The Kocherigin DI-6 was a two-seat biplane fighter with retractable landing gear and used by the Soviet Airforce.


Experimental were the aeroplane "21" this was a version with fixed landing gear.
I only found pictures with skies.
Who can tell me more about this version?
Has it also flowen with wheel landing gear and are there any pictures?
Is there a three side vieuw drawing of the "21"?


There should have be also a trainer version without the gunturret.
I have nothing found of this version so everything is welcome?


Jan


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,025
Reaction score
430
... ;)


Attachments

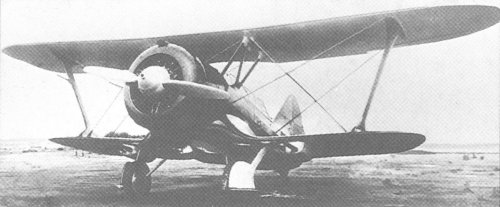

  • Kotscherigin ZKB-11 (DI-6).jpg
    Kotscherigin ZKB-11 (DI-6).jpg
    440.1 KB · Views: 533
  • Kotscherigin ZKB-11 (DI-6)-.jpg
    Kotscherigin ZKB-11 (DI-6)-.jpg
    540.6 KB · Views: 491

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,297
Reaction score
145
Website
zeef.com
https://en.wikipedia.org/wiki/Kochyerigin_DI-6 - wikipedia english : the answer !! B)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162

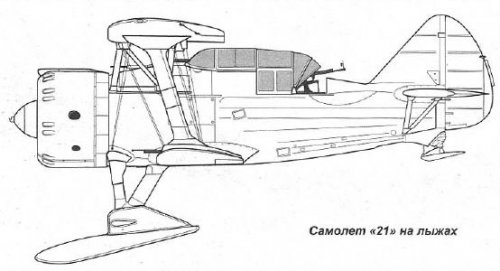

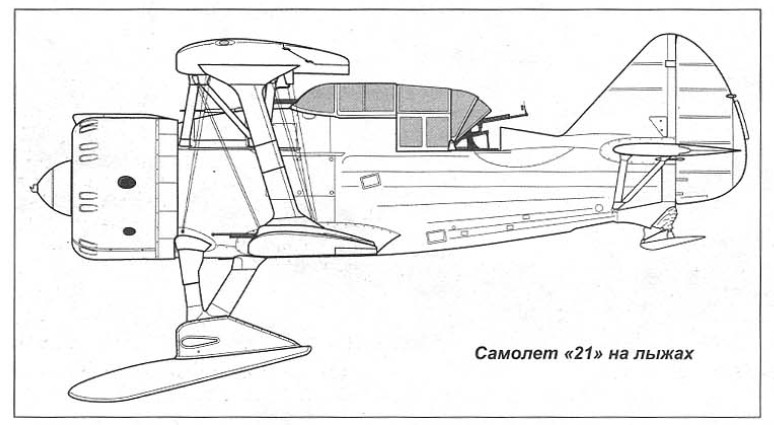

'21'
more- http://www.airwar.ru/enc/fww1/di6.html
pictures from - N.Soyko "Two-seat fighter DI-6" 2007


Attachments

  • '21'.jpg
    27.7 KB · Views: 393
  • '21' 1_6.jpg
    '21' 1_6.jpg
    79.3 KB · Views: 387
  • 21.jpg
    47.4 KB · Views: 367

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

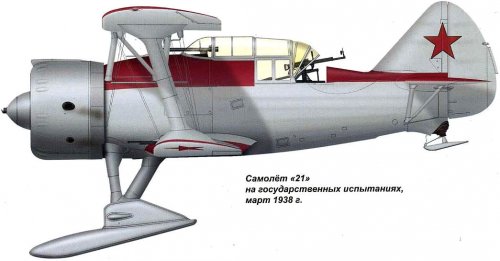

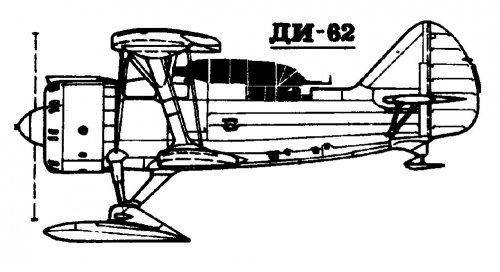

Two more pics of the "21" (note that it is also called the "DI-62" on the profile view):


Attachments

  • DI-62.jpg
    81.5 KB · Views: 52
  • di6-2.jpg
    43.2 KB · Views: 47

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
Thanks, this all well known information and gives no answer if this version was used on wheels.


Is there a 3 side vieuw drawing of this version?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Jan den Das said:
Is there a three side vieuw drawing of the "21"?

Jan den Das said:
Thanks, this all well known information

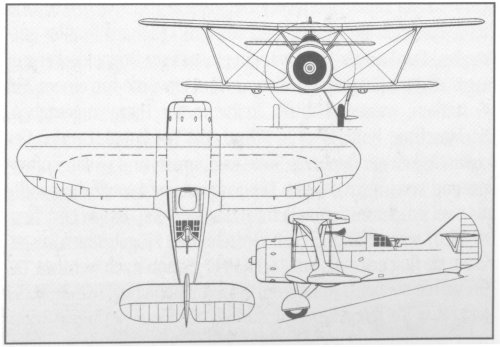

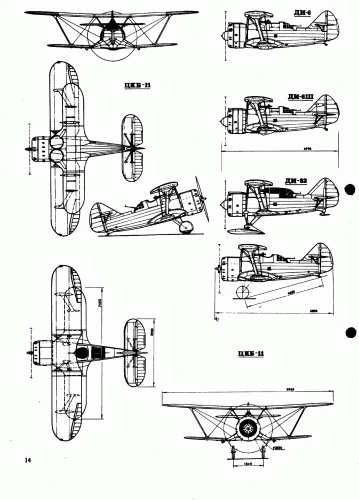

The side view was extracted from a larger five-view plan which strongly suggests no remarkable difference in other views, since only the profile view is modified...


Attachments

  • aviak234.gif
    207.4 KB · Views: 100

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
Skyblazer said:
(note that it is also called the "DI-62" on the profile view):
The plane "21" was originally designed for the new at the time the engine M-62 (hence it is a duplicate designation DI-62)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
Jan den Das said:
Thanks, this all well known information and gives no answer if this version was used on wheels.

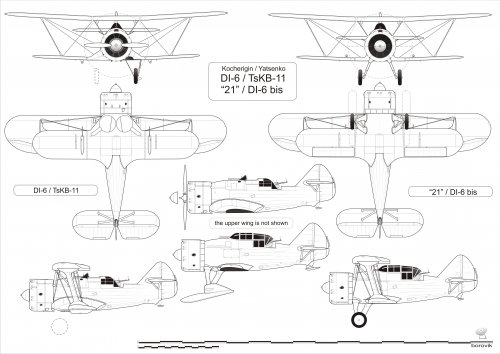

Is there a 3 side vieuw drawing of this version?

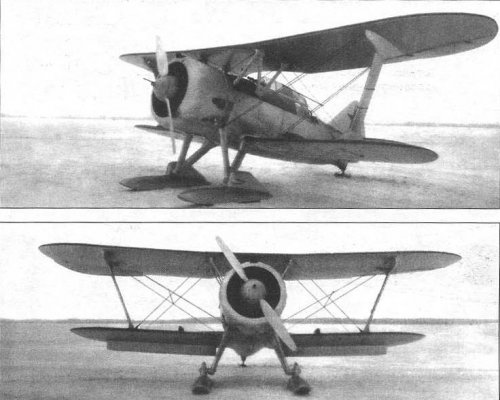

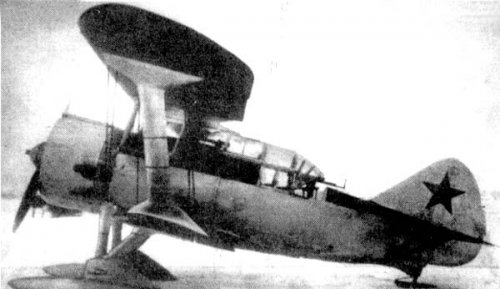

The plane "21" has made 39 test flights, from January to March 23, 1938. All flights he was doing skiing (because it was snowing). This explains the lack of photos of the aircraft on wheels.
The second copy was not completed because:
1) absence (at the time) of the motor M-62, which was designed for this modification.
2) and the main reason for the final lifting of a year-end production base DI-6.


Attachments

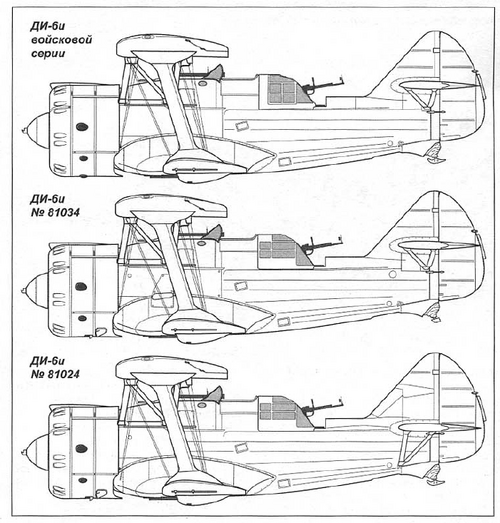

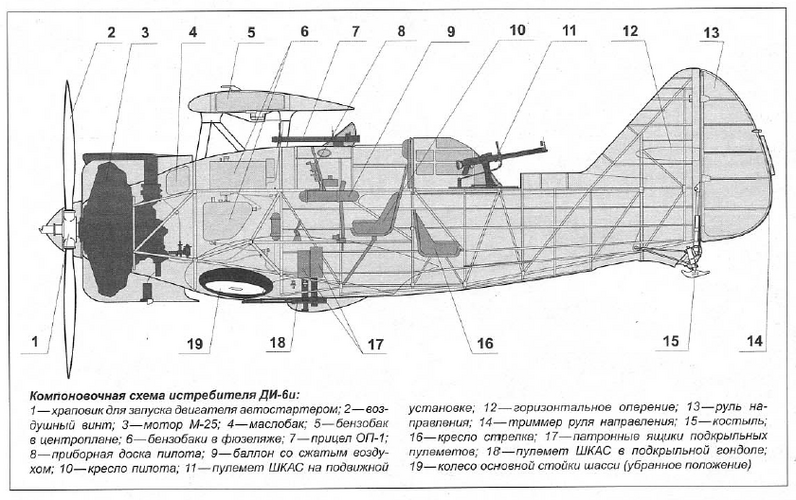

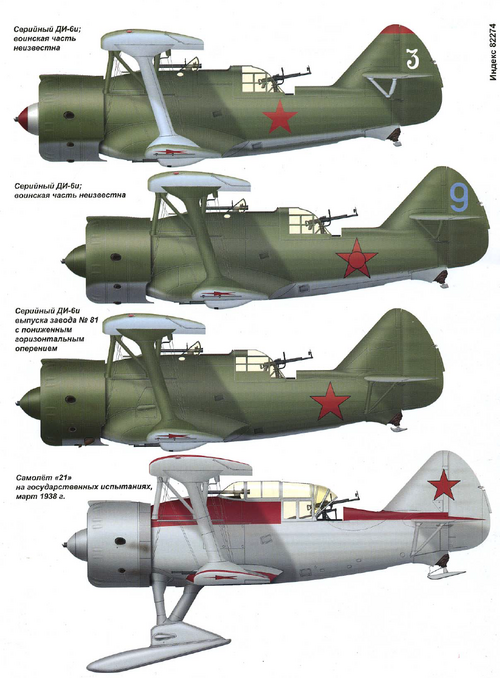

  • Di-6.jpg
    1.1 MB · Views: 147
  • '21'-2.jpg
    61.8 KB · Views: 58
  • '21'-1.jpg
    47.7 KB · Views: 50
  • '21' with M-25V.jpg
    '21' with M-25V.jpg
    73.1 KB · Views: 58

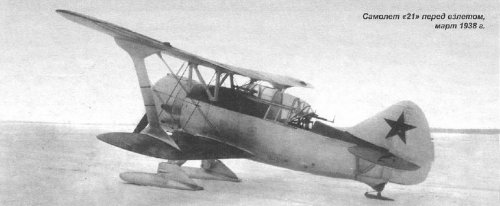

  • '21' mart 1938.jpg
    '21' mart 1938.jpg
    68.2 KB · Views: 66

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
Hi,

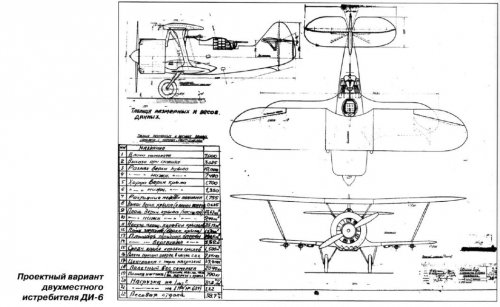

was this the early Kocherigin DI-6 drawing ?.


Корабельные самолеты-разведчики СССР


Attachments

  • DI-6.JPG
    94.2 KB · Views: 93

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162

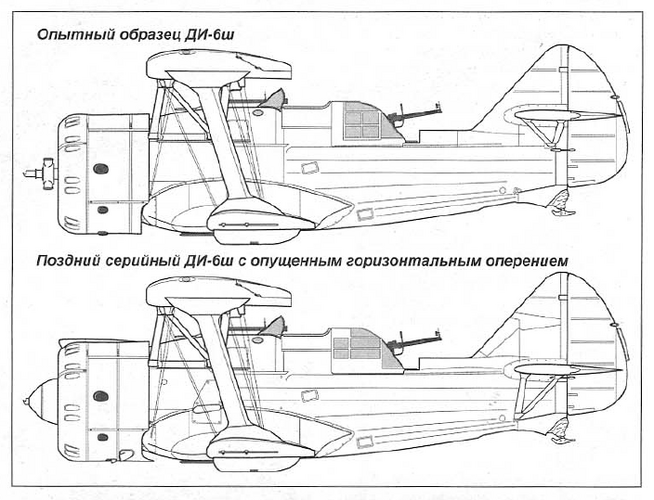

The scheme Di-6Sh (ground attack version), an early variant with a raised stabilizer.
Offensive armament consisted of two machine guns synchronized PV-1, four machine guns PV-1, installed under the bottom wing with special fairings , ammunition 3000 (overload in 4000) rounds of ammunition and bomb load up to 80 kg (8-10 kg bombs) 4 under the wing, 4 under the fuselage). Thus on underwing nodes were suspended two Aviapribor deluge of chemical weapons such as VAP-6.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
Thank you my dear Borovik,


and that means it was actually built (this earlier version).
