Hi all,

in FlugzeugClassic August 2007 I,ve found two uknown Klemm projects for the unbuild aircraft carrier "Graf Zeppelin".

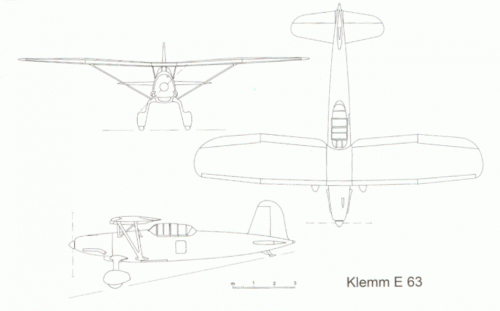

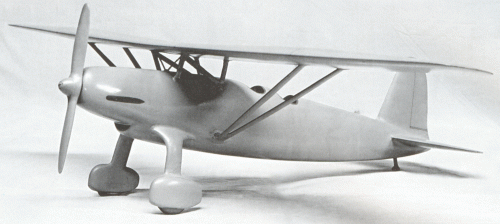

At first the Klemm E.63.

Maveric


Attachments

  • klemm1.gif
    579.7 KB · Views: 456
  • klemm2.gif
    43.8 KB · Views: 459

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358

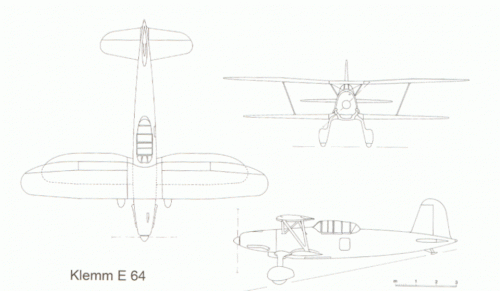

...and here comes the Klemm E.64!

Enjoy, Servus Maveric


Attachments

  • klemm3.gif
    44.4 KB · Views: 445

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
556
Reaction score
187
The E63 looks like a recconaisance aircarft. Is the E64 a fighter?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,207
Both were carrier-borne recce a/c, basically of the same layout, the
E 63 was a parasol wing design, the E 64 an alternative bi-plane.
Estimated data for the E 63: max. speed 310 km/h, landing speed
85 km/h, range 1000 km, TOW 2800 kg, a Jumo 10A or a BMW 116
engine was envisaged.
And the article mentiones, that Hanns Klemm disliked bi-plane and
military aircraft ....


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358
Yes, Jemiba is right. Basically both are the same, but the E.64 with a Span of 12,00m. Klemm E.63 has a Span of 14,00m.
L 10,90m; H 3,34m; Fl. 31,00m². Jumo 10A with 680HP/500kW and the BMW 116 with 700HP/515kW.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358
Projected in 1934 and cancelled in the next year.

Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,646
Reaction score
4,605
Maveric said:
Hi all,

in FlugzeugClassic August 2007 I,ve found two uknown Klemm projects for the unbuild aircraft carrier "Graf Zeppelin".
At first the Klemm E.63.

Maveric


My dear maveric,

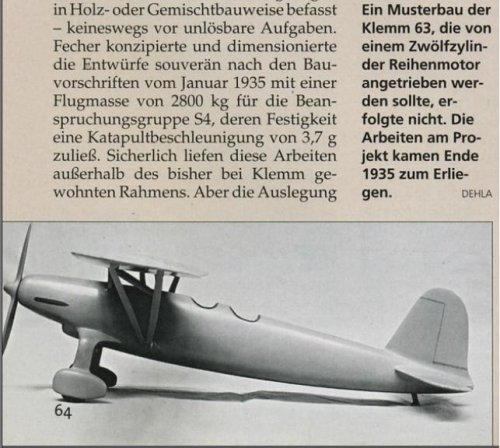

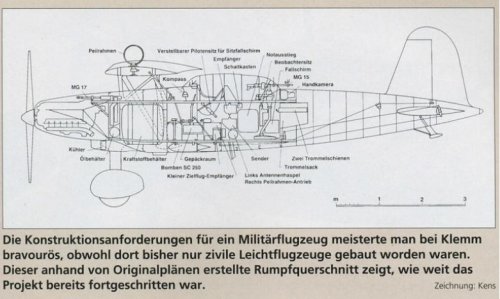

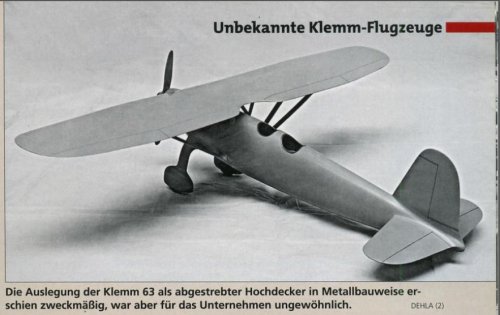

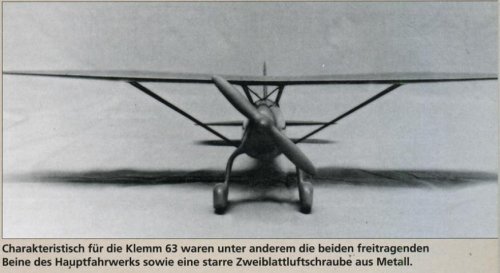

here is the rest of pictures and drawing to E.63.


Attachments

  • 1.JPG
    56.8 KB · Views: 145
  • 2.JPG
    48.4 KB · Views: 138
  • 3.JPG
    55.6 KB · Views: 76
  • 4.JPG
    63.5 KB · Views: 80
