Kawasaki Ki-100Ⅱ fighter

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Hi! Kawasaki Ki-100Ⅱfighter.
Ki-100 II. Engine Mitsubishi Ha-112-II Ru with turbocharger, 1,120 kW (1,500 hp). 3 built as such.

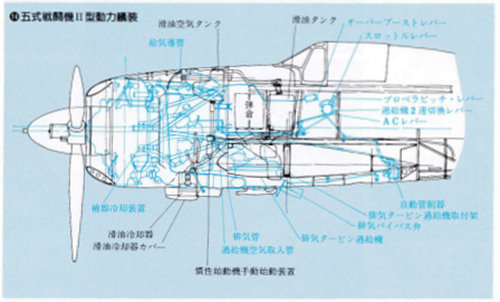

Bottom drawing shows Mitsubishi Ha-112-II Ru turbocharging system which installed Kawasaki Ki-102. In this picture, the engine itself is omitted.

Ha-112-ⅡRu for Ki-102.jpg


Attachments

Last edited:

JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99

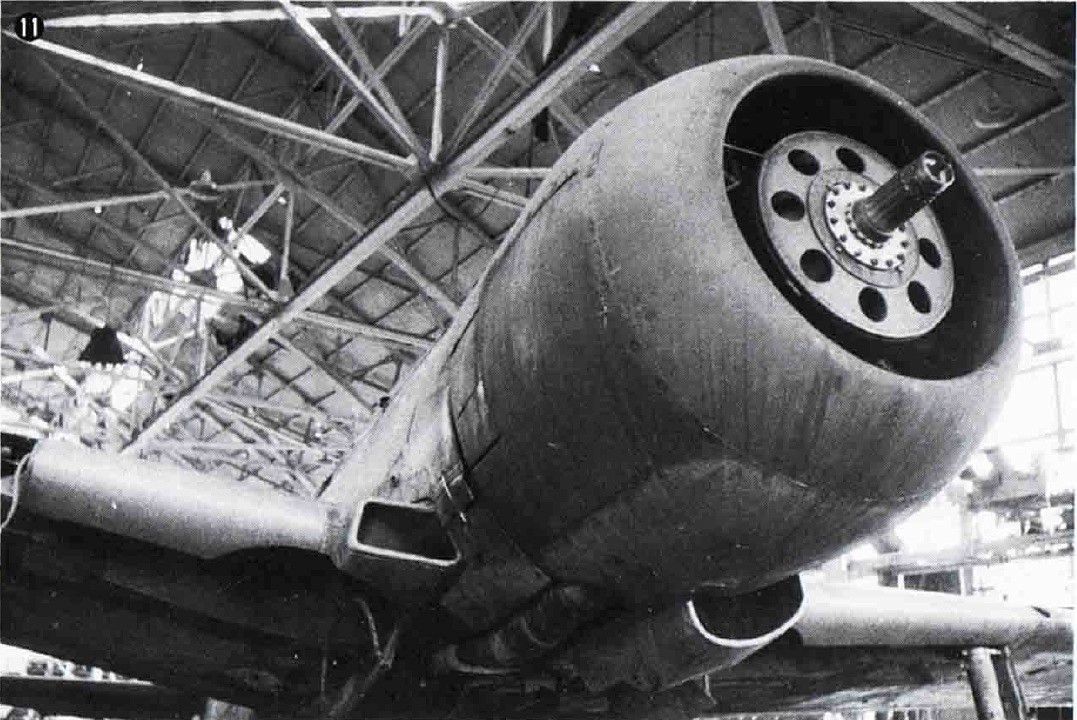

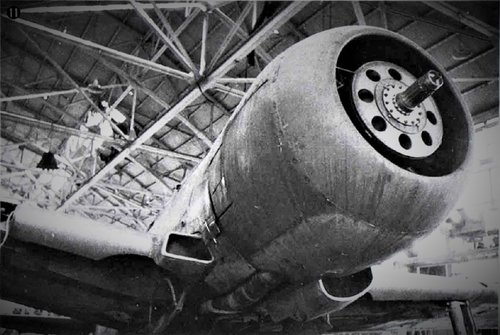

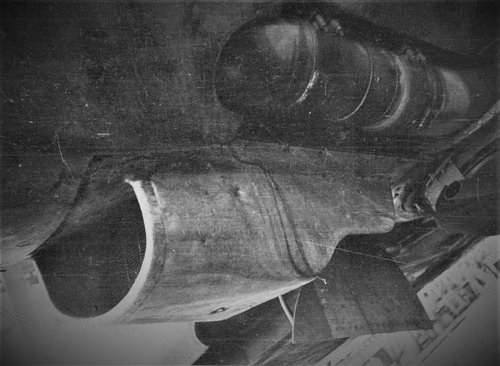

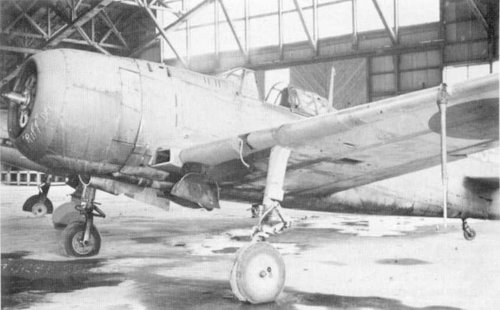

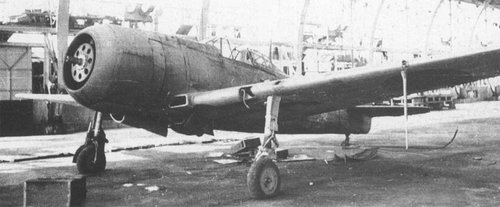

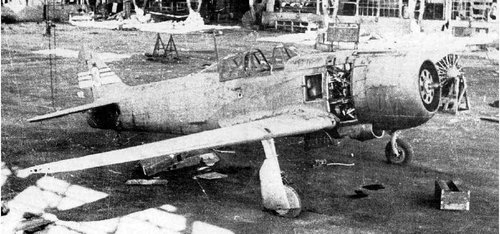

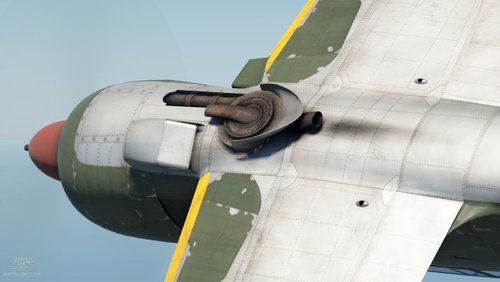

Wasn't at least one of these found intact after the Japanese surrender, there are a few photos online purporting to be of the Ki-100-II, e.g. these, which appear to show the correct intake arrangement and I think the Turbocharger piping under the fuselage is visible:

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Thanks a lot JFC Fuller-san. These pictures are absolutely what we want to see!!:oops:
Ki-100Ⅱ did not have intercooler. She had water/methanol injection system instead.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Amazing pictures!! Thanks a lot Johnbr-san.:)
