Japanese sub-types

gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hi guys
Does anyone have more information and possibly drawings of the following Japanese subtypes?

Ki-44-III (Ha-145 engine)
Ki-49-III (Ha-117 engine)
Ki-102-Hei (Ha-112-II-Ru engine)
C6N2 Saiun- KAI (C6T)
C6N3 Saiun-KAI-1
C6N4 Saiun-KAI-2
C6N5 Saiun-KAI-3
C6N6 Saiun-KAI-4
B6N3 Tenzan
B7A3 Ryusei Kai
B8A1 Mokusei

Any information will be welcome.
Thanx
Gerhard
;D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Sorry this site is off topic.
http://www9.plala.or.jp/buji/JIN/Saiun/Saiun.htm


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63

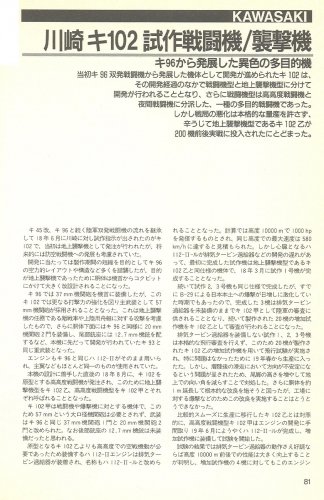

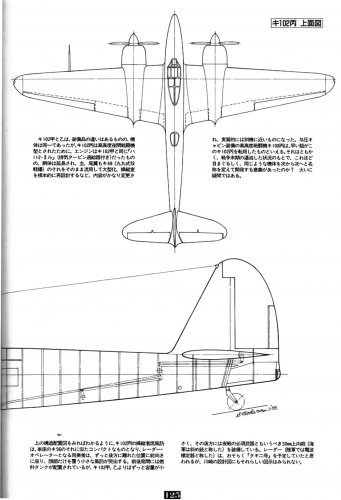

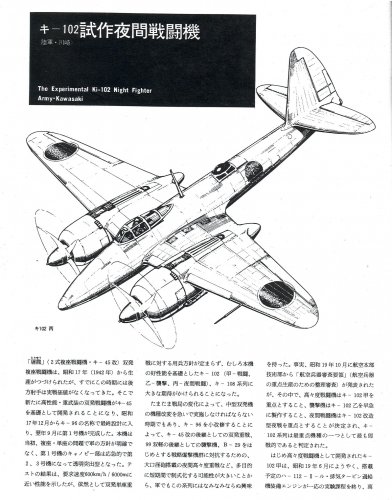

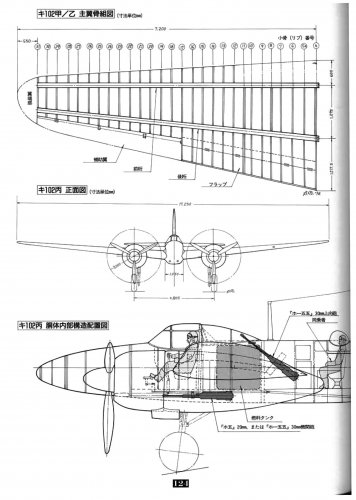

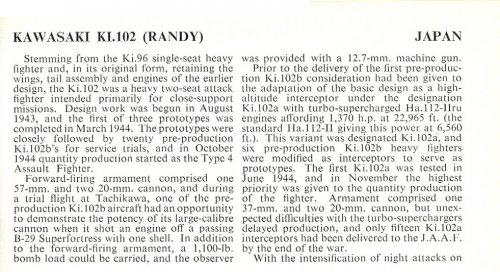

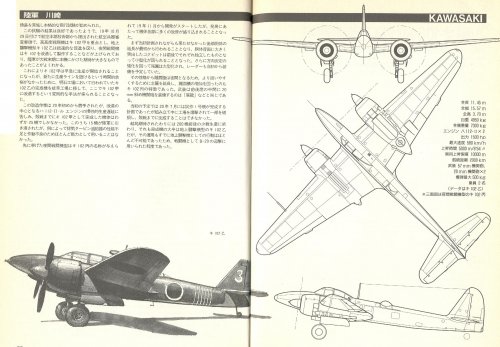

I can't read Japan, but maybe this aircraft is Ki 102-Hei? That is a high-altitude version of Ki 102, with longer fuselage and wings (length 13.050 m, wingspan 17.250 m, wing area 40 m2 - instead of 11.450 m, 15.570 m and 34 m2 of "normal" Ki 102), new pressurized cockpit, armed with two 30-mm and two 20-mm cannons. Its service ceiling is 13 000 m, and maximum speed is 600 km/h at 10 000 m altitude.

The source is a book which cover is in attachment.


Attachments

  • Xplanes Japan-123.jpg
    Xplanes Japan-123.jpg
    299.3 KB · Views: 235
  • Xplanes Japan-124.jpg
    Xplanes Japan-124.jpg
    278.2 KB · Views: 210
  • XplanesTitle1.jpg
    135.4 KB · Views: 166

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63

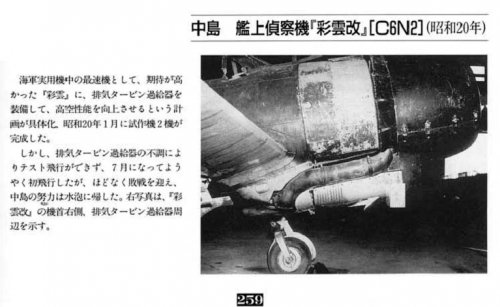

And a C6N2 photo from the same book.


Attachments

  • C6N2.jpg
    81.3 KB · Views: 148

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com

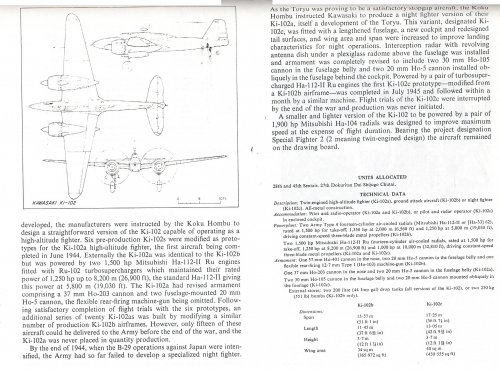

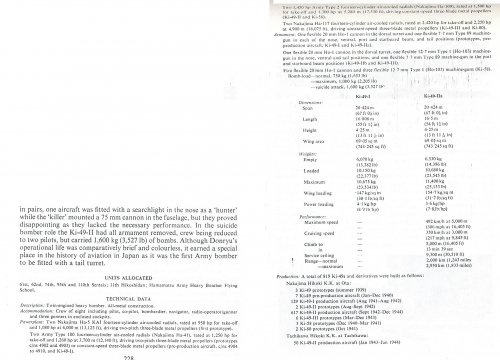

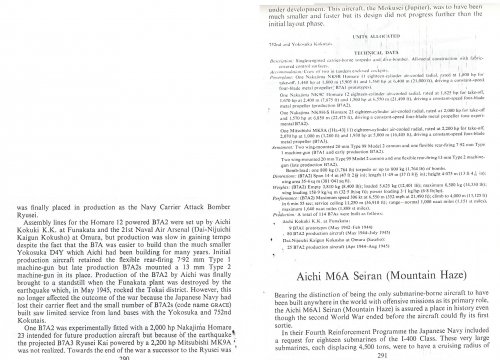

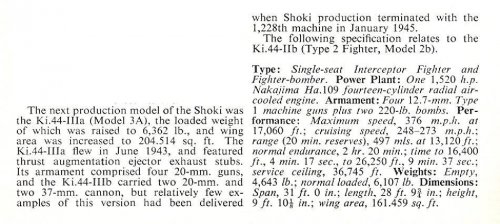

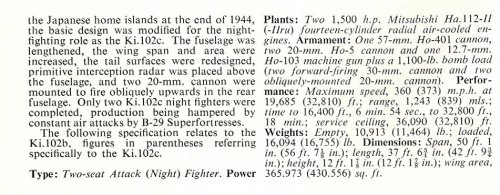

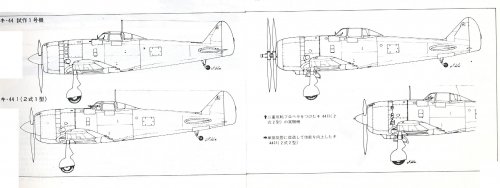

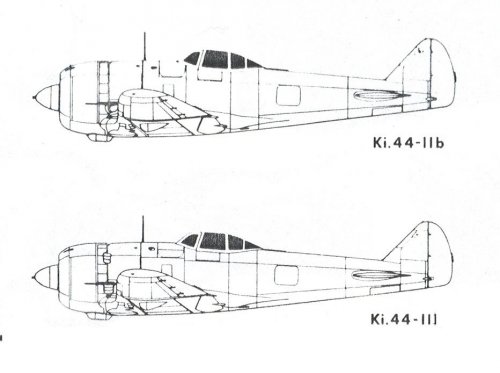

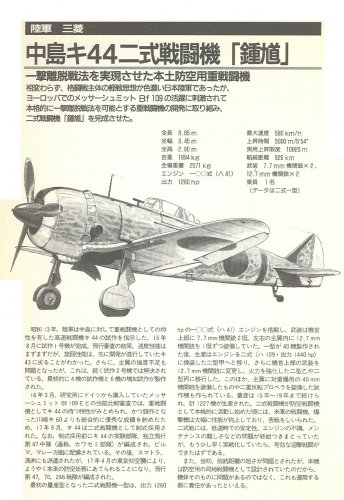

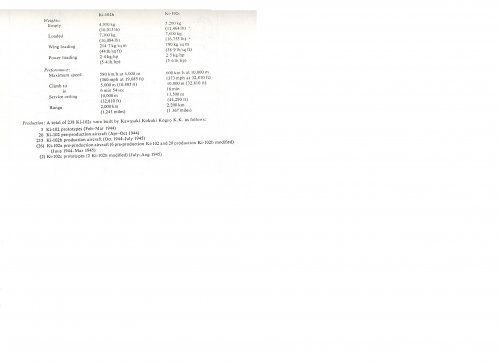

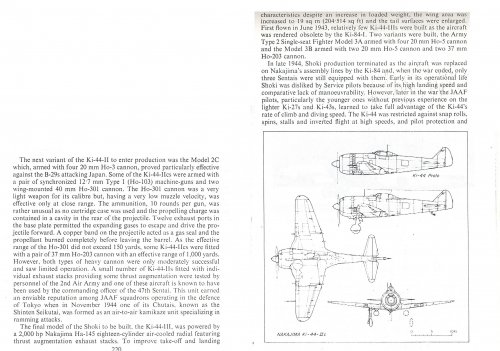

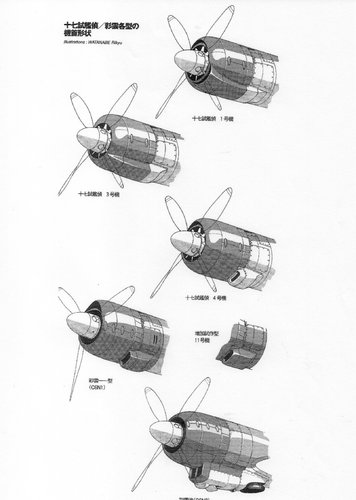

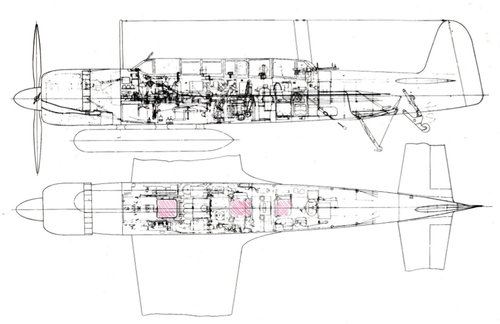

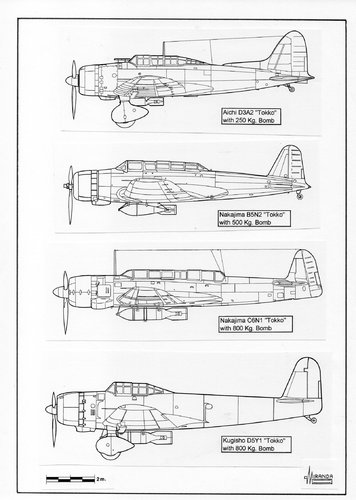

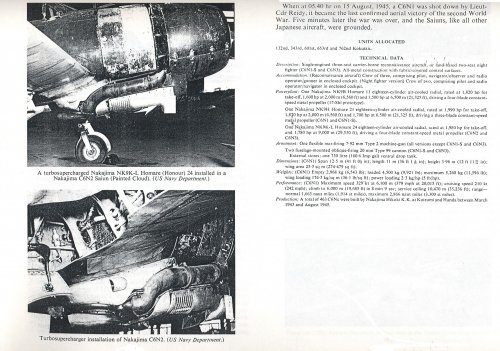

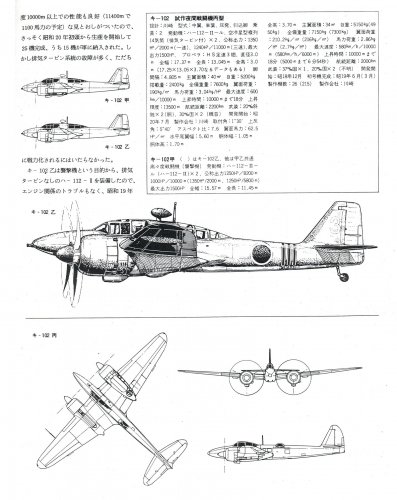

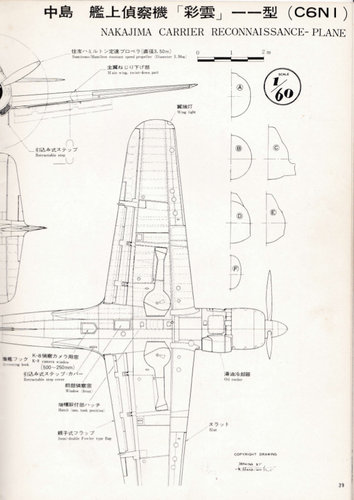

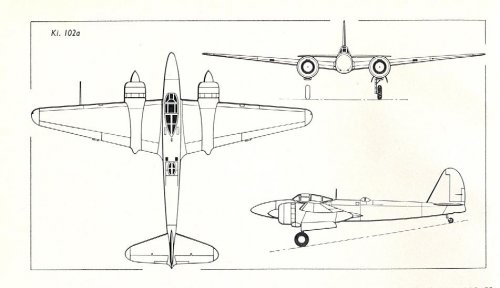

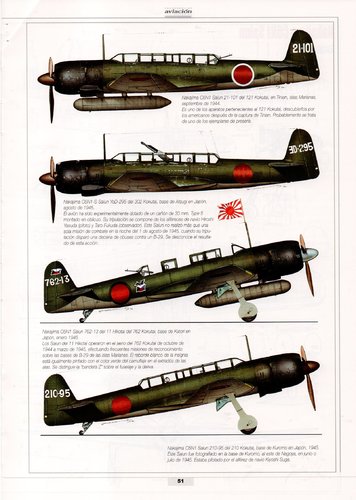

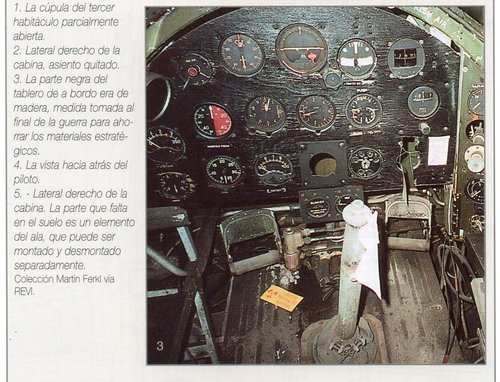

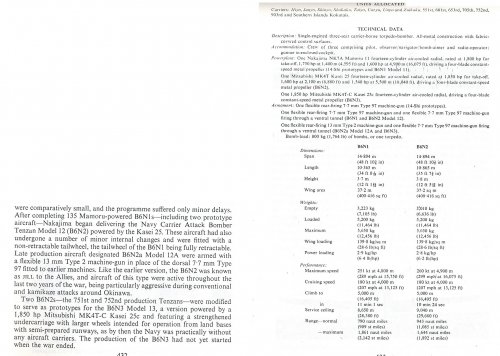

Some info here :-\


Attachments

  • Escanear0005.jpg
    94.8 KB · Views: 84
  • Escanear0004.jpg
    477.3 KB · Views: 104
  • Escanear0003.jpg
    309.4 KB · Views: 71
  • Escanear0002.jpg
    561.1 KB · Views: 110
  • Escanear0001.jpg
    319.3 KB · Views: 152

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com

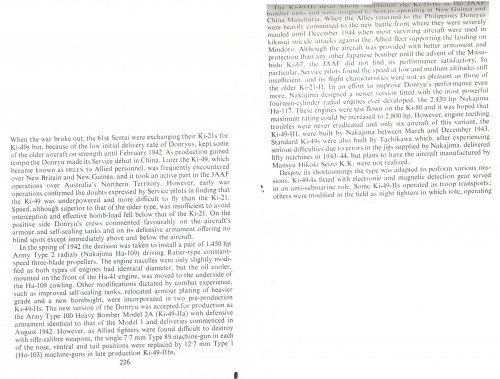

Some info here -post-2


Attachments

  • Escanear0010.jpg
    383.4 KB · Views: 118
  • Escanear0009.jpg
    464 KB · Views: 119
  • Escanear0008.jpg
    45.4 KB · Views: 110
  • Escanear0007.jpg
    105 KB · Views: 77
  • Escanear0006.jpg
    142.5 KB · Views: 64
  • Escanear0005.jpg
    94.1 KB · Views: 57

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com
Some info here -post-3


Attachments

  • Escanear0016.jpg
    324 KB · Views: 80
  • Escanear0015.jpg
    448.2 KB · Views: 123
  • Escanear0014.jpg
    753.6 KB · Views: 82
  • Escanear0013.jpg
    504.2 KB · Views: 70
  • Escanear0012.jpg
    455.7 KB · Views: 58
  • Escanear0011.jpg
    384.8 KB · Views: 74

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com
Some info here -post-4


Attachments

  • Escanear0023.jpg
    181.3 KB · Views: 172
  • Escanear0022.jpg
    76.2 KB · Views: 131
  • Escanear0021.jpg
    53.2 KB · Views: 107
  • Escanear0020.jpg
    127 KB · Views: 78
  • Escanear0019.jpg
    541.7 KB · Views: 114
  • Escanear0018.jpg
    366.1 KB · Views: 68
  • Escanear0017.jpg
    454.1 KB · Views: 76

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
C6N2:Experimental type with turbo charged 'HOMARE' 24RU engine.
C6N3:High altitude night fighter with 20mm slanting canon.(C6N2 variant)
C6N4:Experimental type with HA43 turbo charged engine.
C6N5:Carrier base attacker.
C6N6:Experimental type which had wooden structure.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63
gral_rj said:
redstar72 said:
I can't read Japan, but maybe this aircraft is Ki 102-Hei?

Yes.

Thanks gral_rj! I already convinced in it after reading Justo's posts. And it seems that Ki 102-Hei has a little in common with the main Ki 102 - much less than Ki 96 and Ki 108 have...


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
hello guys I was wondering,has the Kawasaki Ki102 hei a interceptor radar?
If so what for type radar ,It seems a parabolic type antennae because I didn't see a Me110 type
radar antennae.Ill hope some one has some info/drawings of this radar
Further I must say this aircraft bore some striking resambles to the Aichi SA1 Denkoh


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
This is great guys! Thanks a lot. Are there any drawings or 3-views available an the Saiun-Kai’s, Ryusei Kai and Mokusei? ;D


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,249
Reaction score
106
Website
zeef.com

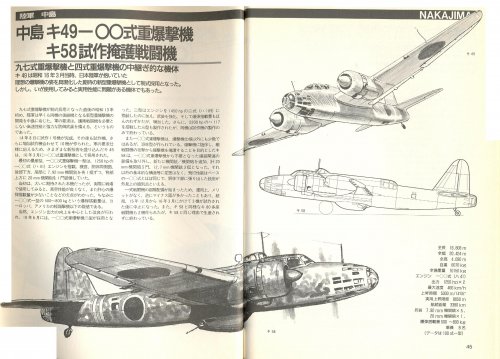

about nakajima ki-49 III , is written in cech language ,but i have understood that ki-49 III was developed by Ki-49 IIb

http://forum.valka.cz/viewtopic.php/t/29249


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
235
T-50 said:
hello guys I was wondering,has the Kawasaki Ki102 hei a interceptor radar?
If so what for type radar ,It seems a parabolic type antennae because I didn't see a Me110 type
radar antennae.Ill hope some one has some info/drawings of this radar
Further I must say this aircraft bore some striking resambles to the Aichi SA1 Denkoh

Given the similarities, you have to wonder if they shared the same radar fit.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63
airman said:
about nakajima ki-49 III , is written in cech language ,but i have understood that ki-49 III was developed by Ki-49 IIb

http://forum.valka.cz/viewtopic.php/t/29249

Hello!
A translation of the Czech text:
Because the Nakajima Ki 49-IIb heavy bomber was underpowered, the company decided to mount much more powerful engines on it - they were 18-cylinder, twin-row Nakajima Ha 117 radials. During prototype tests, one but fatal thing became clear - the engines are very unreliable and underdeveloped for the mass production. So, the program was closed.

Time: late 1943
Built: 6
Crew: 8
Powerplant: two Nakajima Ha-117 radial engines, 2420 hp each
Takeoff weight: 13 500 kg
Wingspan: 20.42 m
Length: 16.50 m
Height: 4.25 m
Maximum speed: 540 km/h
Rate climb: 10 min 30 s to 5000 m
Service ceiling: 8500 m
Range: 3500 km with 500 kg bomb load

Armament:
1x Ho-1 20-mm cannon (dorsal turret),
3x Ho-103 12.7-mm machine guns (nose, ventral, and tail turrets),
2x Type 89 7.7-mm machine guns (firing through side windows).


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
There, I made it!

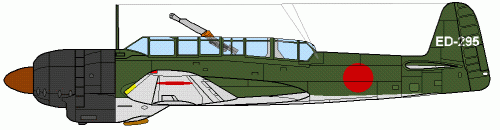

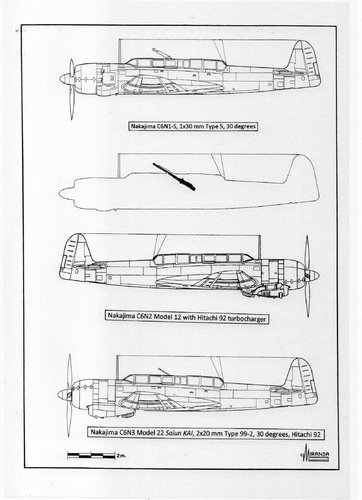

I have decided to draw my own version of the C6N2-S Model 12 Saiun-Kai. How does it look?

Cheers
Gerhard


Attachments

  • C6N2-S.GIF
    18.1 KB · Views: 195

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Oh it's obviously Saiun night fighter!!
Beautiful and sharp.
Many members of this forum can use CAD soft!!


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hey, Guys

Some sources refer to this version as the C6N3 Saiun-KAI-1. Any thoughts on this?

Gerhard


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140

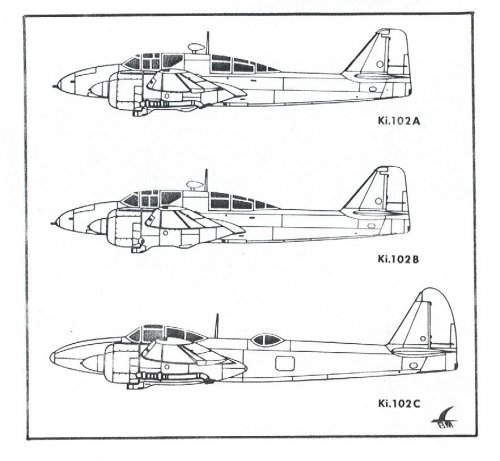

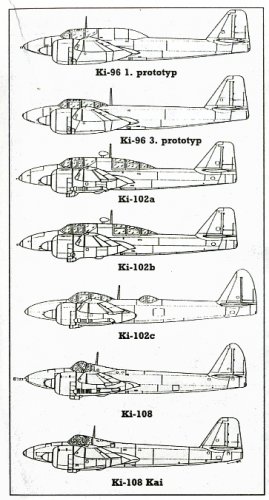

Ki-96 - Ki-108 in one scale


Attachments

  • P-38093.jpg
    171.1 KB · Views: 232

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
borovik,

Interesting that the tail fin of the Ki-102c is different from both the Ki-96 prototypes and the Ki-102a & b. It looks like one Ki-108 has the Ki-102c tail as well.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
windswords said:
borovik,

Interesting that the tail fin of the Ki-102c is different from both the Ki-96 prototypes and the Ki-102a & b. It looks like one Ki-108 has the Ki-102c tail as well.
Kawasaki represented by Takeo Doi to accelerate the work and savings on new prototypes, using elements from his other aircraft ...
Fairness (just noticed) it should be noted that in the scheme above, mixed in places Ki-108 and Ki-108 KAI
/IMHO/


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hi Guys

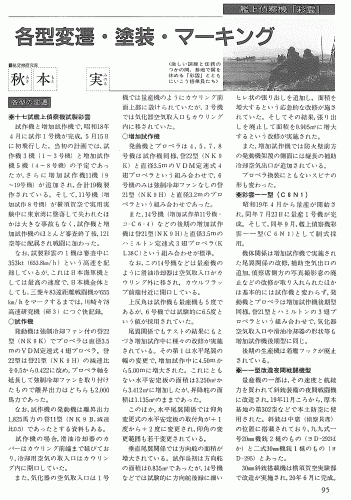

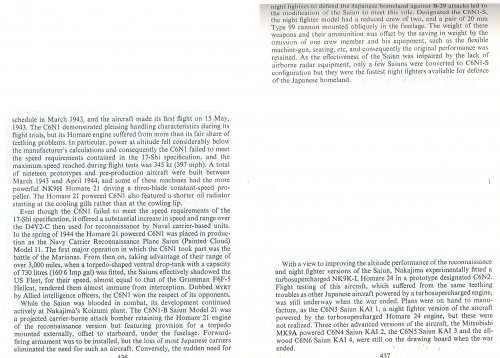

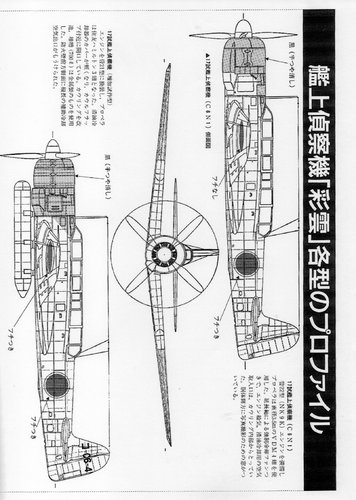

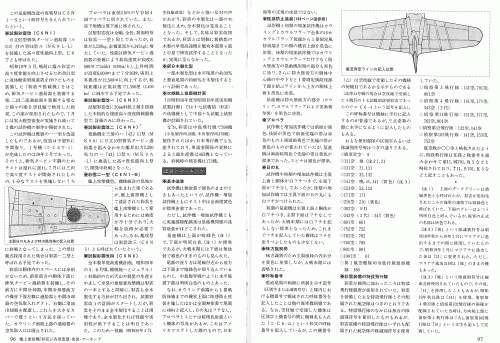

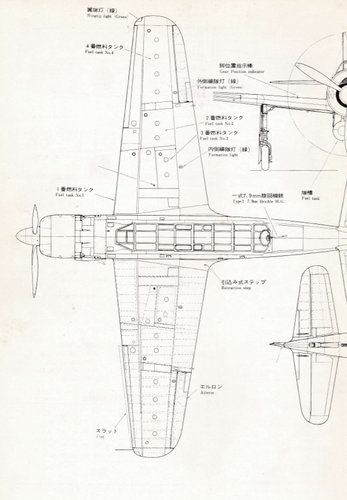

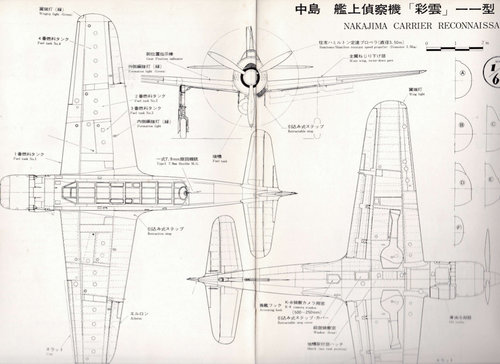

I found this information on C6N sub-types in a recent book purchase.
Please could one of our Japanese speaking members translate the section on the different models?

Many thanx
Gerhard


Attachments

  • Copy (2) of Stbssa_C25010022416400.GIF
    Copy (2) of Stbssa_C25010022416400.GIF
    150.6 KB · Views: 141
  • Stbssa_C25010022416401.GIF
    285.6 KB · Views: 140

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Ok I will try. Please wait for a moment.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
C6N1-S:Night fighter,begun to operation in Nobember 1944. There were two types for C6N1-S.(With two 20mm slanting cannon type and with one 30mm slanting cannon type)
C6N1(C6T):Experimental modified Saiun(彩雲改).Improved high altitude performance type. Engine was HOMARE(誉)(NK9L-L) with Hitachi (日立)92 type turbo super charger(LU212).Completed in February 1945.But super charger did not work well until the end of the war. ;D
Expected max speed was 639km/h(345kt),Service ceiling was 12,500m, Rang was 2,400km(1,300n.m.)
C6N3:High altitude two seat night fighter. C6N1 with slanting two 20mm cannon.Only paper plan.
C6N4:Improved high altitude performance type.Engine was Mitsubishi(三菱) HA43-11 Type LU(MK9A-L) with Hitachi 10 type turbo super charger,take off power was 2,200hp. C6N4 had been developping until the end of the war.
C6N1-B(or called C6N5):Carrier base attack bomber.
C6N6:All wooden structure type.
Total 463 Saiun were made and 173 were survived when the end of the war.
There was a plan for Saiun successor,which was Nakajima 19-shi carrier base reconnaissance aircraft.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

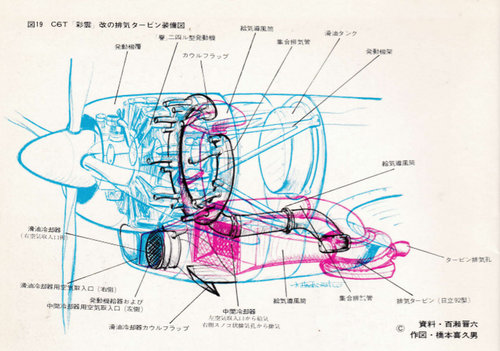

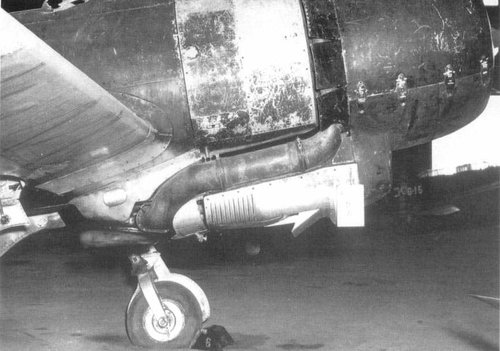

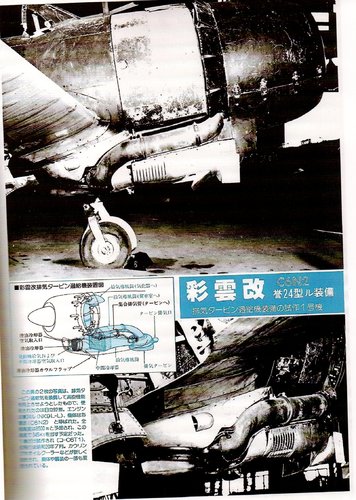

Hi! C6T Saiun-kai.

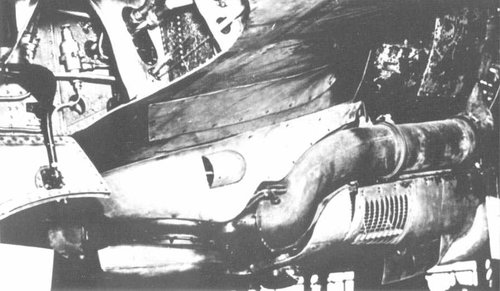

You can see the intercooler (中間冷却器) at the last picture.
May be Nakajima Ki-84Ⅲ turbocharged Hayate fighter had such a turbo charging system.




Attachments

  • saiunnT.jpg
    90.9 KB · Views: 64
  • saiunH.jpg
    73 KB · Views: 67
  • c6n2_engine_nk9k-l_2_162.jpg
    52.3 KB · Views: 58
  • c6n2_engine_nk9k-l_170.jpg
    48 KB · Views: 56
  • 1827__06-1.jpg
    369.7 KB · Views: 105
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Very good drawings as usual. I want to see your speculation about Nakajima Ki-84Ⅲ turbo Hayate fighter.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

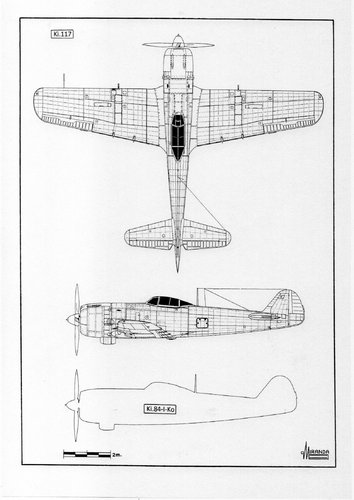

Many thanks Justo-san!! You are very quick artist.

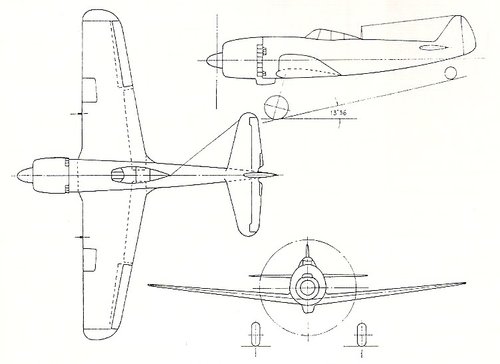

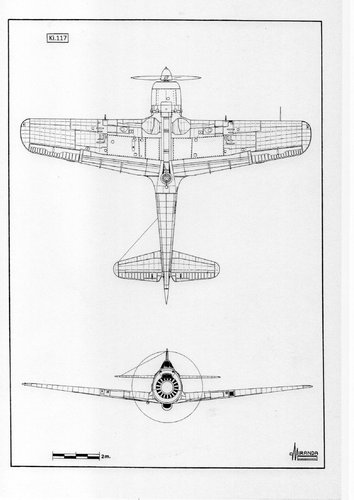

Ki-117 was a Hayate with powerful Ha-44((Ha-219, take off power : 2,400hp) engine without turbocharger) and extended main wing.
Ki-117 planned to begin production in October 1945.
Span : 12.3m, Length : 10.177m, Wing area : 22.3 square meter, Aspect ratio : 6.8, Empty weight : 3,540kg, Gross weight : 4,797kg, Maximum speed : 670km/h/5,820m,610km/h/1,570m, Range : 1577km/350km/h/4,010m, two 20mm cannon.
Engine : Nakajima Ha44-14 (with single stage two speed mechanical supercharger), First speed : 2,380hp/2,800rpm/1,570m, Second speed : 2,160hp/2,800rpm/5,820m, Take off power : 2,530hp/2,800prm, Engine diameter : 1.286m, Reduction ration : 0.431, Dry weight : 1,314kg, Propeller diameter : 3.6m,


Attachments

  • NAKAJIMA KI117.jpg
    NAKAJIMA KI117.jpg
    68.2 KB · Views: 78
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

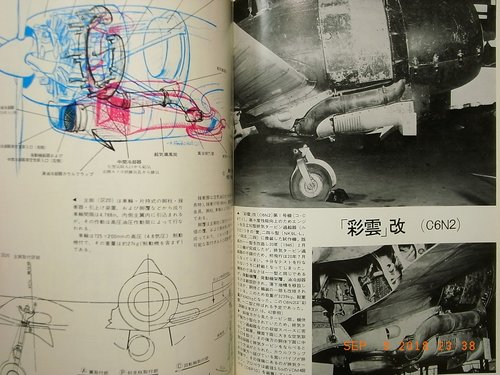

Hi! Saiun turbo charging system larger image.
Engine nacelle bottom right side air intake : oil cooler air intake.
Engine nacelle bottom left side air intake : turbo charger air intake(upper side) and intercooler air intake.
Black line shows oil cooler system and engine exhaust system.
Red line shows intercooler and turbo charging system.
Saiun turbo charging system.jpg

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

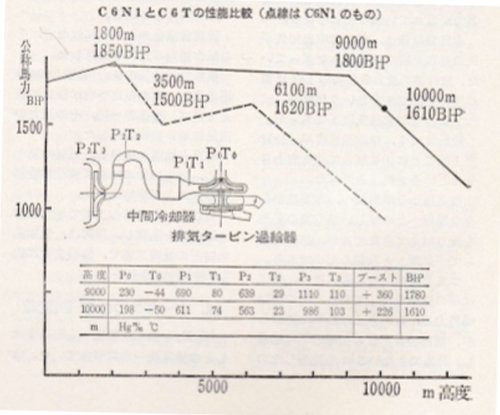

Engine performance comparison between C6N1(Homare engine(single stage two speed mechanical supercharger)) and C6T(turbo charged Homere engine Saiun).
公称馬力 : Nominal power, 高度 : Altitude.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com

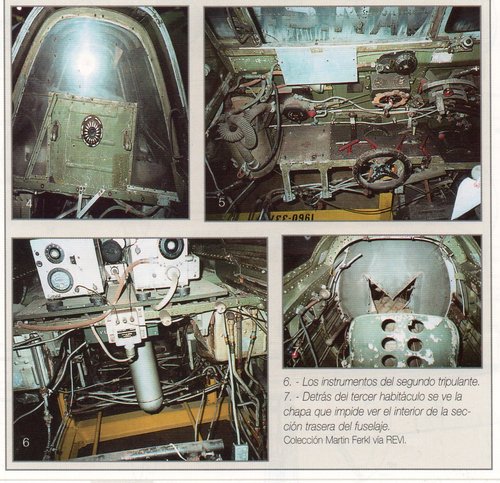

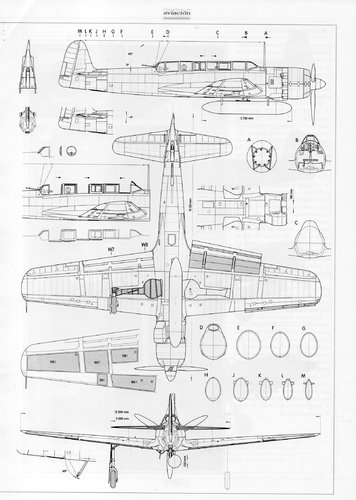

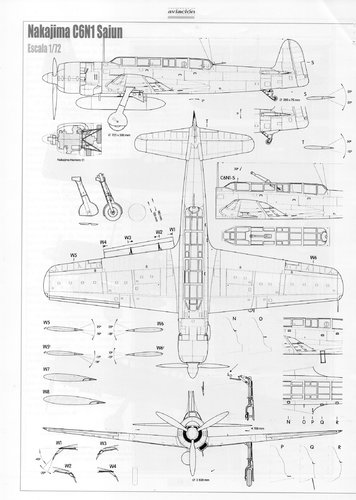

Non Japanese sources
-Cuadernos de aviacion historica
-Le Fanatique de l'Aviation


Attachments

  • 138.jpg
    552.6 KB · Views: 72
  • 139.jpg
    938.5 KB · Views: 83
  • 140.jpg
    627.8 KB · Views: 93
  • 141.jpg
    712.5 KB · Views: 89
  • 142.jpg
    171.2 KB · Views: 67
  • 143.jpg
    355.3 KB · Views: 59
  • 144.jpg
    425.7 KB · Views: 72

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

Attachments

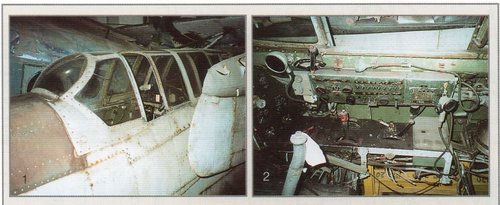

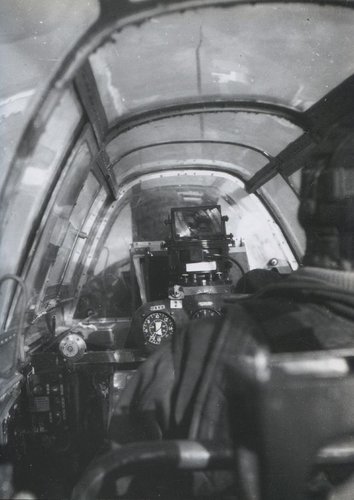

  • Inside_C6N_01.JPG
    72.7 KB · Views: 59
  • Sgt_Shiro_Takahasi.JPG
    100.6 KB · Views: 60
  • Capt. Satoshi Enomoto is a survivor of the Battle of Midway..JPG
    Capt. Satoshi Enomoto is a survivor of the Battle of Midway..JPG
    54.3 KB · Views: 63
Last edited:
Top
