Kaman Sealite (LAMPS)

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829

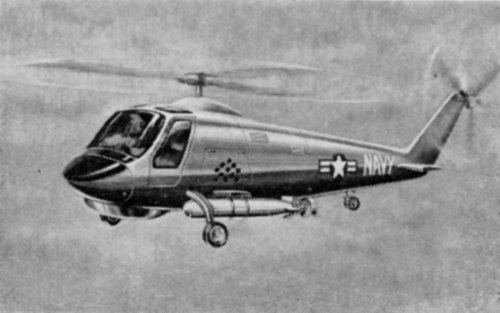

A US Navy programme, at present in the Concept Formulation stage, is aimed at developing a Light Airborne Multi-Purpose System (LAMPS), to utilise helicopters for a variety of missions while operating from, and extending the capabilities of, destroyers and escort vessels. The main tasks of such helicopters would be anti-submarine warfare (ASW) and cruise missile defence (CMD) but they could be deployed also for general utility operations.
Sealite has been proposed by Kaman to meet the Navy's LAMPS requirement and is intended for deployment on naval destroyers and escort vessels at present in service, which have helicopter deck loading limits of about 6,000 lb (2,720 kg). To overcome this weight limitation Kaman intend to utilise the dynamic system of the basic UH-2 helicopter, relying upon a small, lighter fuselage, new skid landing gear, two Pratt & Whitney (UACL) PT6(T400-CP-400) turboshaft engines and a three-blade folding rotor with a new rotor hub to keep the maximum gross weight down to 7,900 lb (3,583 kg).
For ASW missions, Sealite would carry one Mk 46 torpedo, MAD equipment, eight sono-buoys, data link, radar, avionics, data processing, missile defence provision and a crew of two. For CMD operation, equipment would be changed to one Sparrow missile, illuminator, electronic countermeasures, data link, radar, avionics, ASW provisions, sensors and a crew of two.

Flying Review International, May 1970

Sparrow armed helicopter? Interesting...

;D


Attachments

  • Kaman-Sealite.jpg
    43.3 KB · Views: 869

Oli

ACCESS: Restricted
Joined
May 25, 2006
Messages
6
Reaction score
1
Seasprite did carry-trials with a Sparrow for definite, and I think they also conducted radar lock-on trials. But no launches or even unpowered releases to the best of my knowledge.


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
97

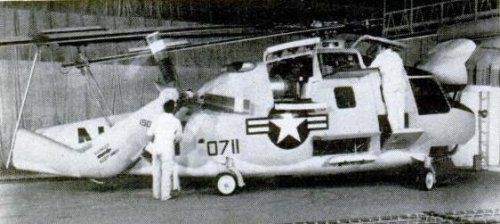

Mock-up Kaman Sealite LAMPS - from 1974 Interavia artical


Attachments

  • US- Kaman Sealite.jpg
    US- Kaman Sealite.jpg
    56.2 KB · Views: 776

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,201
Reaction score
911
Website
beyondthesprues.com

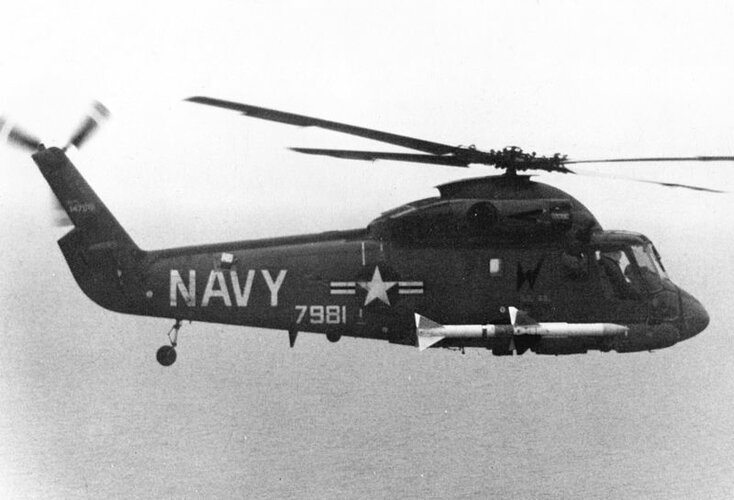

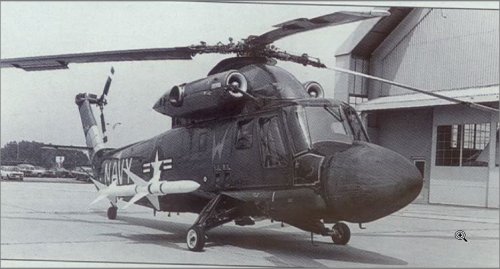

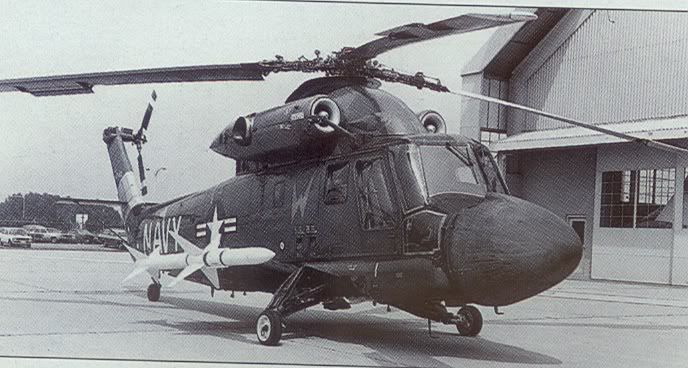

Here's a photo of the Seasprite trial fit of the Sparrow:



Regards,

Greg


Attachments

  • 2017-07-25 19_26_20-Kaman Sealite (LAMPS).jpg
    2017-07-25 19_26_20-Kaman Sealite (LAMPS).jpg
    57.2 KB · Views: 188

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
Good work guys :)

Gregg, could you consider attaching images through the forum rather than photobucket? External links sometimes die..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi,

the Kaman K-820 Sealite for LAMPS competition.
http://www.flightglobal.com/PDFArchive/View/1971/1971%20-%201562.html


Attachments

  • K-820.JPG
    27.1 KB · Views: 1,547

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
K-820 Sealite proposal for the Lamps
competition which now seems postponed
indefinitely following the adoption of
the SH-2D conversion. The K-820 is a
smaller lighter derivative of the H-2
series designed around a new airframe
to fit the small hangars of destroyer
escorts from which Lamps will eventually
operate. It would carry the latest
avionics, nav/com equipment, quickchange
equipment modules for various
ASW and ASMD missions, interchangeable
radar nose, internal Mad housing
and multi-purpose external mounts for
Sparrow missile, Mk46 torpedoes and
auxiliary fuel tanks. In utility configuration
it would have a rescue hoist, external
cargo hook and seats for seven
passengers in the aft cabin. Powerplants
two 900 h.p., 670kW UAC PT-6-400.
Rotor dia 44ft, 13 4m; operating length 52ft
2in, 16m, length with nose, tail and rotor
blades folded 28ft 7in, 8 -71m; height lift
3in, 3-45m; empty weight 4,3731b, 1,984kg,
max 9,5001b, 4,310kg; max speed 162kt,
300km/hr; sea-level endurance at max
weight 5hr.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,259

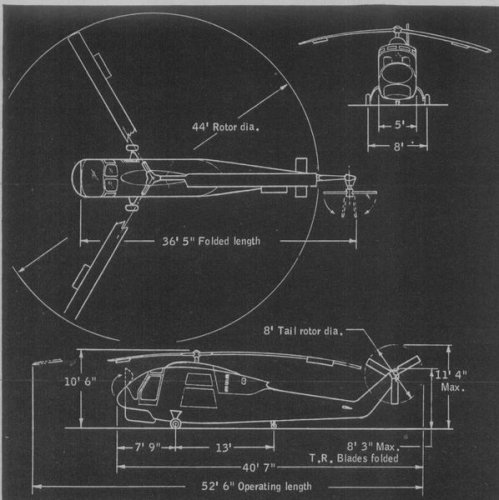

3-view from Aviation Week 7/1969 :


Attachments

  • Kaman-Sealite.jpg
    54.5 KB · Views: 543

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376
Jackpot Triton!!!!
Great find this pic! Can I ask were you found it?


Regards
Pioneer


Brickmuppet

ACCESS: Confidential
Joined
Nov 11, 2006
Messages
189
Reaction score
33
Website
brickmuppet.mee.nu
So this was intended to fit in a DASH hanger?
Wow.

ASMD....is that anti-surface missle defense?
Were they intending to shoot down a TERMIT/STYX with the Seasparow?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665

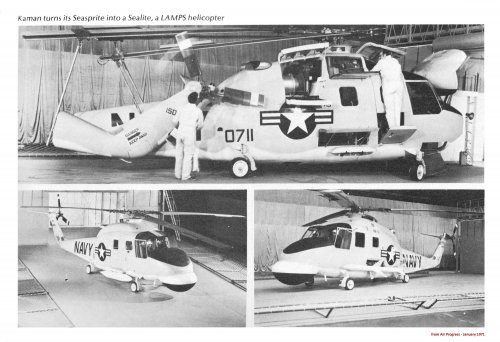

Here's the set of three photographs of the full-size mock-up in higher resolution/definition, taken from Air Progress:


Attachments

  • sealite-small.jpg
    1 MB · Views: 224

ZacYates

LHX SuperTeam fanboy
Joined
Dec 26, 2012
Messages
84
Reaction score
22
Hi all,
Wikipedia (I know, I know) mentions the Sealite was to feature "new skid landing gear". Are there any drawings, concepts etc showing the skids?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi Zac,

I searched for you about this drawing,but I couldn't find it,maybe tomorrow
I can make anther search.


ZacYates

LHX SuperTeam fanboy
Joined
Dec 26, 2012
Messages
84
Reaction score
22
Thank you, hesham. A "Sealite" would be an interesting scale model project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi Zac,

unfortunately nothing in my files,even JAWA books,also I searched in many books about
helicopters,no way.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376
Ive just stumbled across this
https://www.flightglobal.com/FlightPDFArchive/1972/1972%20-%200279.PDF

I looks as if the Kaman designation for its Sealite was K-820.

Regards
Pioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
From JAWA 1973.


Attachments

  • 25.png
    145.9 KB · Views: 373

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
693
Reaction score
458

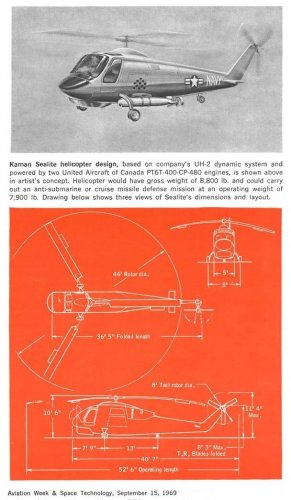

AWST article


Attachments

  • Kaman Sealite copter.jpg
    Kaman Sealite copter.jpg
    190.8 KB · Views: 262

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376

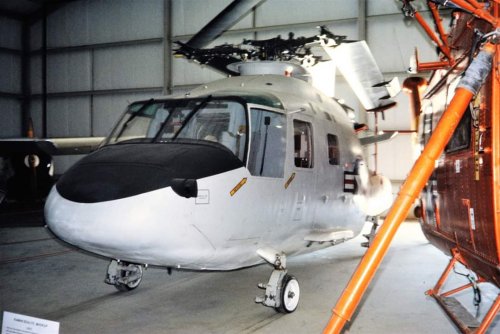

OK, I just stumbled across this picture and exciting info at another website :eek:

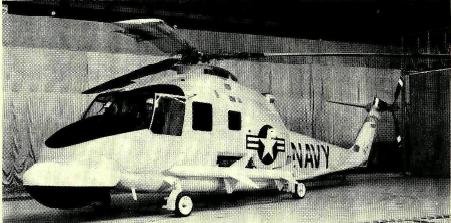

'Kaman Sealite mock-up at New England Air Museum.'

Photo by Jerry O'Niell!


OK, got very excited, and done some enquiries, and sadly this was posted:

"Well, sadly, it doesn't exist any more. The Museum had been hit by a tornado in 1979 and they were able to build a new building, which is where I took this photo. In the late 80's, there was a sever need more indoor display space. Even though it was not a real aircraft, and made of wood, the decision was made to place it outside with tarps over it. Within two years the wood had delaminated and it was going down hill rapidly. It was given to the Airport Fire Department and burned as an exercise. There were some actual aircraft parts, hard points, racks etc, that were removed as they had other uses."



Regards
Pioneer


Attachments

  • FB_IMG_1539568588040.jpg
    78 KB · Views: 164
