Kalinin prototypes and projects

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

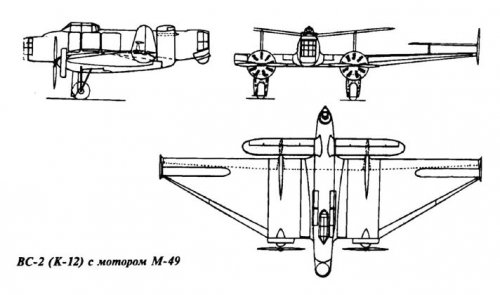

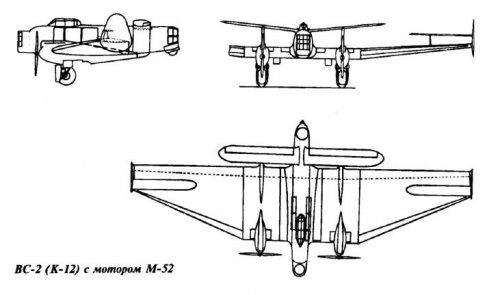

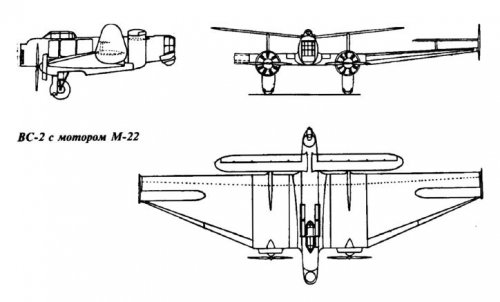

VS-2 (K-12) (Voyskovoy Samolet= tactical/troop plane)
Initial projects of 1933, with engines M-22; M-49; M-52

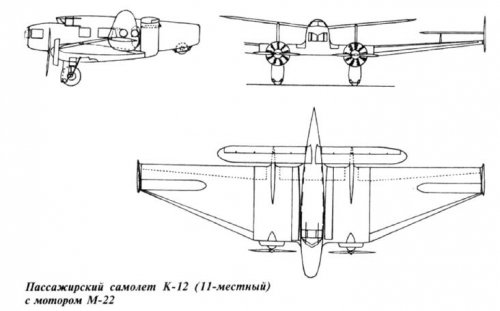

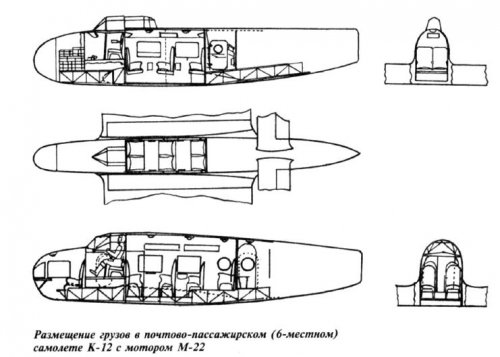

Passenger (11- person) and transport version.


Attachments

  • VS-2  (K12 project 1933).jpg
    VS-2 (K12 project 1933).jpg
    33.7 KB · Views: 805
  • K-12 tr.jpg
    K-12 tr.jpg
    48.7 KB · Views: 183
  • K-12 pass.(1933).jpg
    K-12 pass.(1933).jpg
    32.1 KB · Views: 634
  • K-12 4.jpg
    K-12 4.jpg
    37.6 KB · Views: 672
  • K-12 3.jpg
    K-12 3.jpg
    64.2 KB · Views: 700
  • K-12 2.jpg
    K-12 2.jpg
    34.7 KB · Views: 730
  • K-12 1.jpg
    K-12 1.jpg
    35 KB · Views: 731

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

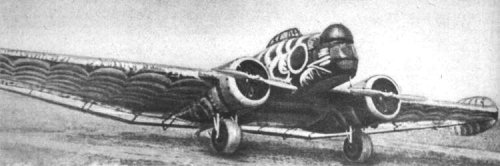

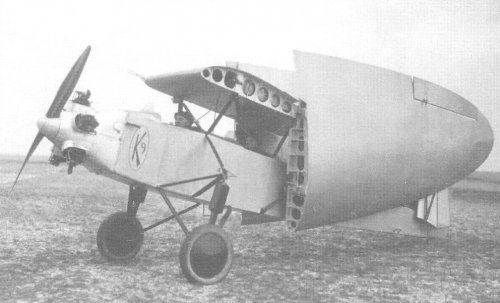

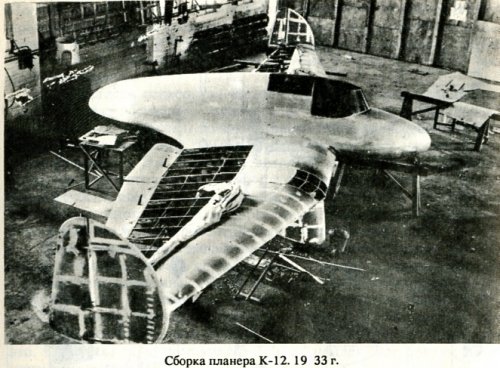

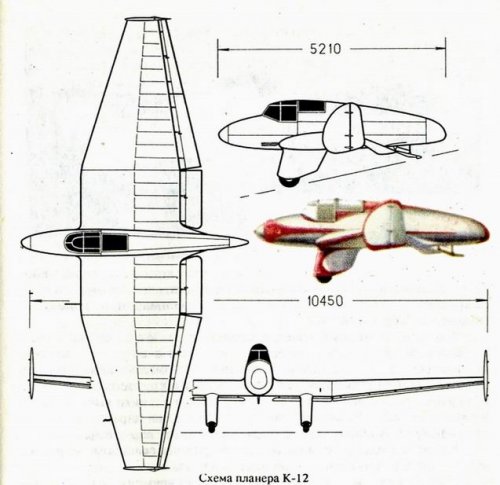

K-12 glider to test aerodynamics of K-12 bomber
First in world tailless bomber K-12

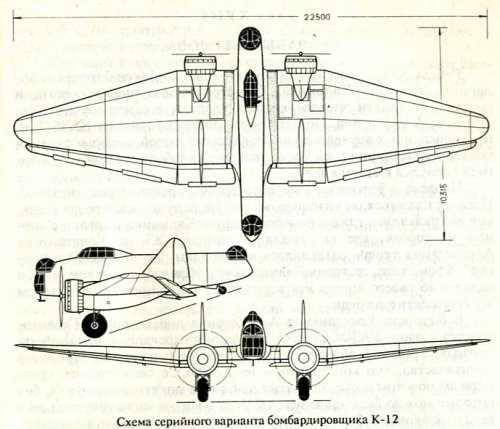

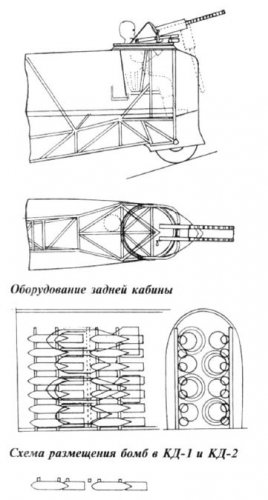

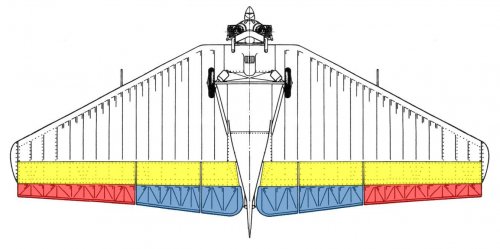

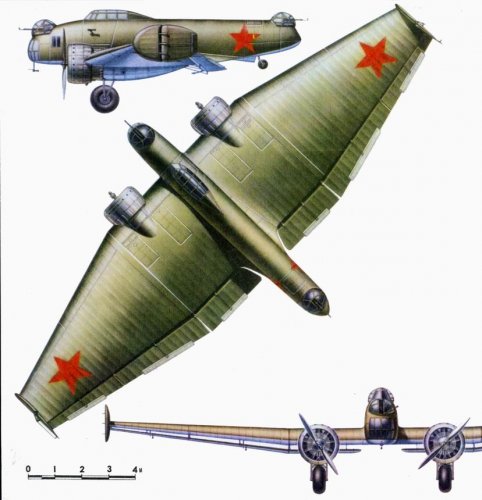

Scheme of the serial variant of the bomber K-12 (M) (modernize) 1938


Attachments

  • K-12 M (serial).jpg
    K-12 M (serial).jpg
    282.1 KB · Views: 190

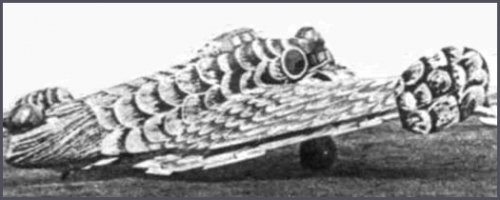

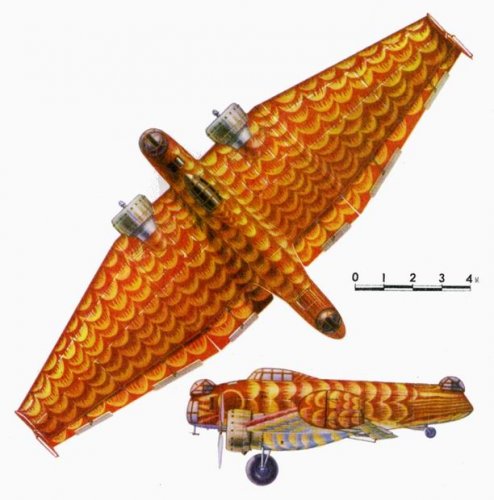

  • FIREBIRD K-12.jpg
    FIREBIRD K-12.jpg
    49 KB · Views: 144
  • K-12.jpg
    78.5 KB · Views: 170
  • K-12 (VS-12).jpg
    K-12 (VS-12).jpg
    113.2 KB · Views: 158

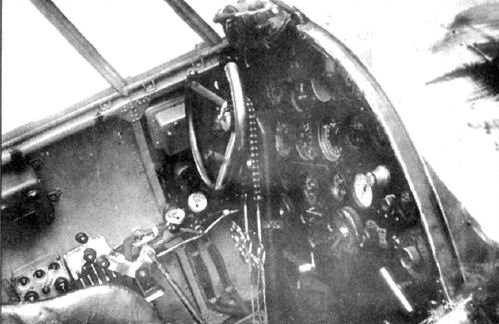

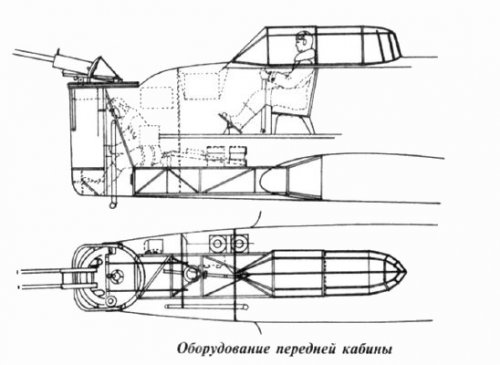

  • K-12 cockpit.jpg
    K-12 cockpit.jpg
    34.3 KB · Views: 122
  • glider K-12.jpg
    glider K-12.jpg
    299 KB · Views: 170
  • K-12 glider.jpg
    K-12 glider.jpg
    49.4 KB · Views: 184

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

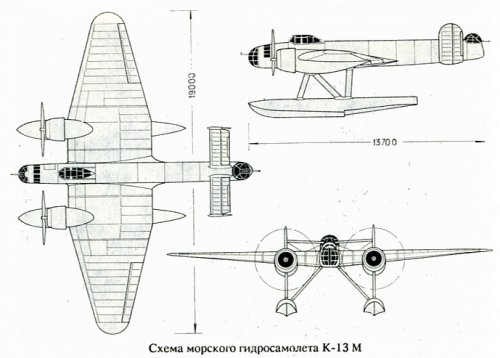

Torpedo bomber K-13M (Морской) = morskoy/seaplane
Twin-engined medium bomber K-13 / СБ = skorostnoy/high-speed, fast bomber
K-14/1 passenger (12+2) version
K-14/2 all-metal variants K-12, with engine M-85 (2 x 825h/p)

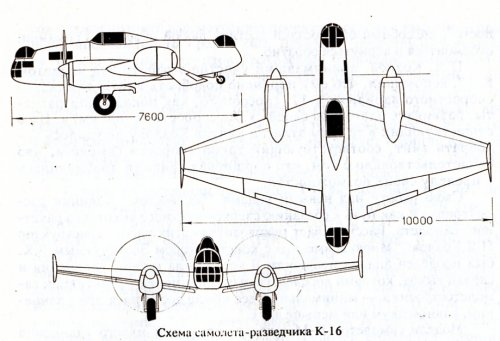

K-16 / BC , VS bomber-reconnaissance project of 1936

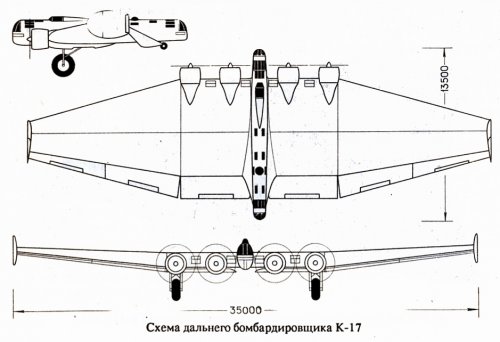

K-17 heavy tailless, fast long-range bomber built on principle "flying wing" and was shown by the present prototype modern strategic bomber.
The Plane was designed in two variants: four and twin - engined.
Range flight with thrown by cargo 4000кg (the normal bomb load) – 8 000 km and before 7000км in overloaded variant (6000 kg), without bombs range flight increased before 10400км!
If meaning Kalinin’s have were able be realized then USSR had already to 1940 unique long-range bombers - "flying fortress".
In KB-29 Grokhovskiy were conducted like work on improvement TB-3 in variant "flying wing".
(Were and other joint high-altitude projects , stratostat by Grokhovskiy + K-15 rocket plane with delta wing)
It is arrested on false accusation (fraudulent charge of conspiracy and spying) NKVD and October 22, 1938 executed.

Sources: “Planes of the world” magazine #4,2000
“MK” #1,1989
V.Savin “Planeta “Konstantin” (1994 Khar’kov “OSNOVA”)
D.SOBOLEV "Centennial history of flying wings" (1978 Rusavia)
More drawings : http://mkmagazin.almanacwhf.ru/avia/k_12.htm
http://mkmagazin.almanacwhf.ru/avia/k_7.htm


Attachments

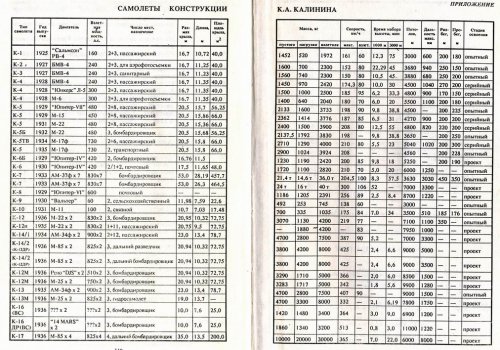

  • K-1 - K-17.jpg
    K-1 - K-17.jpg
    229.4 KB · Views: 235
  • G-LK (TB-3 LK).jpg
    G-LK (TB-3 LK).jpg
    76.1 KB · Views: 217
  • K-17.jpg
    232 KB · Views: 249
  • K-16.jpg
    295.1 KB · Views: 224
  • K-14-2.jpg
    223 KB · Views: 204
  • K-13 & K-14-1.jpg
    K-13 & K-14-1.jpg
    258.8 KB · Views: 215
  • K-13M.jpg
    157.6 KB · Views: 184

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
946
Reaction score
93
Hi Borovik,

as usual, incredible stuff. The "Tsar Ptitsa" in it`s many variants. Makes me day dream. The K-15 is realised in kit form by Igor Shestakov`s Unicraft Models. Take a look at this magnificent project: http://www.geocities.com/unicraftmodels/on/k15/k15.htm
Thank you very much Borovik, for sharing this.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
Wurger said:
Hi Borovik,

as usual, incredible stuff. The "Tsar Ptitsa" in it`s many variants. Makes me day dream. The K-15 is realised in kit form by Igor Shestakov`s Unicraft Models. Take a look at this magnificent project: http://www.geocities.com/unicraftmodels/on/k15/k15.htm
Thank you very much Borovik, for sharing this.
surely it's a little futuristic plane ! ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
My dear Borovik,

what was about the unknown project,K-8 ?.


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
302
Reaction score
115
Two pictures:


Attachments

  • FlyingWings_AilesVolantes_Nurfluegel_AlaVolante_KN_Pic_Kalinin_K12_glider.jpg
    60.3 KB · Views: 124
  • FlyingWings_AilesVolantes_Nurfluegel_AlaVolante_KN_Pic_Kalinin_K12_Firebird.jpg
    55.6 KB · Views: 119

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
Kalinin K-7 was with 7 x 750 ? It's new for me, all sources that i know speak about six ! ???
Anyone can give a me reason ? ???


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,016
Reaction score
344
airman said:
Kalinin K-7 was with 7 x 750 ? It's new for me, all sources that i know speak about six ! ???
Anyone can give a me reason ? ???

6 front and one rear engines :)

http://www.ctrl-c.liu.se/misc/ram/k7giant.html


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
surely it's a little futuristic plane !
K-15 really futuristic and undervalued project, deserving separate topic. Long before Lippish and brother Horten , for the first time in the world and exactly in USSR offered delta wing (the Project SAM-4 "Sigma" Moskalev’s had rather ogival form.)
No, first in the world was Leonardo da Vinchi. :)
what was about the unknown project,K-8 ?.


Attachments

  • K-8.jpg
    277.3 KB · Views: 157

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Kalinin K-7 was with 7 x 750 ? It's new for me, all sources that i know speak about six !

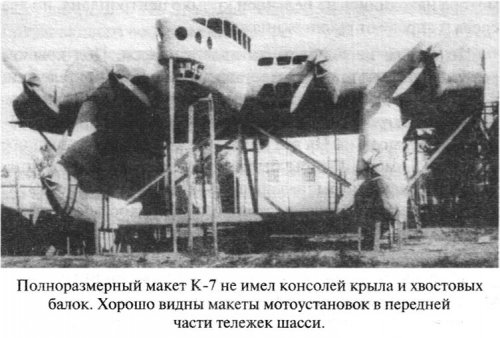

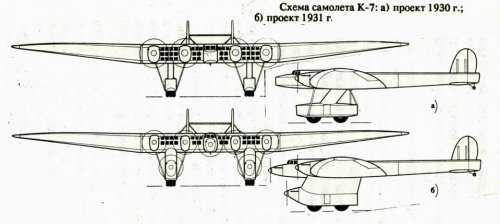

An initial projects were except final seven of the motor version with four and seven ( all frontal) engines. All foto & drawings from:V.Savin “Planeta “Konstantin”


Attachments

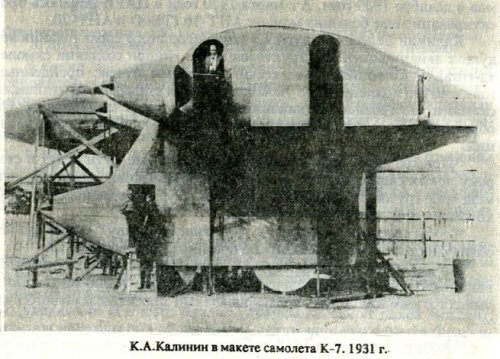

  • K-7 mock-up .jpg
    K-7 mock-up .jpg
    80.7 KB · Views: 158

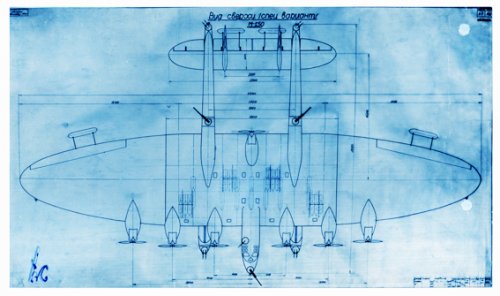

  • K-7 (projects 1930-31).jpg
    K-7 (projects 1930-31).jpg
    56.9 KB · Views: 172

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Thank you my dear Borovik,

but is the Kalinin K-8 a fighter or recce aircraft ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Officially project was qualified as postal plane.
K.Kalinin seen its plane multi-role aircraft.
Fighters never not designed.
but is the Kalinin K-8 a fighter or recce aircraft ?.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Hi borovik,

can you show us the Kalinin K.6 in the same way? ::)

Servus and Thanks Maveric


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

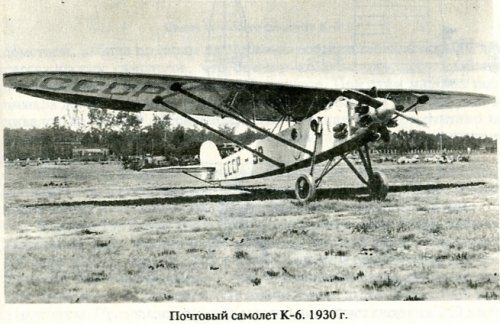

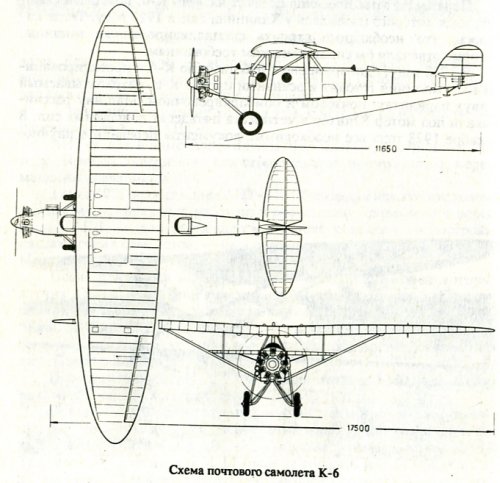

In 1928 , Kalinin prepares the draft K-6 under development in two variants postal and bombing... On designs K-6 was a development to models K-4 with multiple element installed on plane K-5 that simplified the building of the plane.
source same


Attachments

  • K-6 f.jpg
    K-6 f.jpg
    255.5 KB · Views: 106
  • K-6.jpg
    283.7 KB · Views: 131

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
76
Reaction score
32

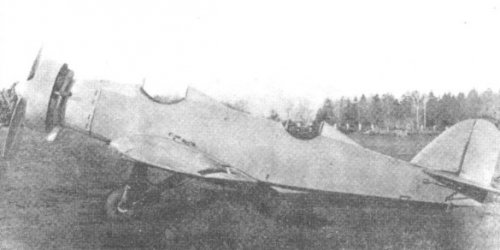

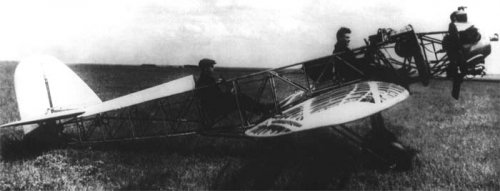

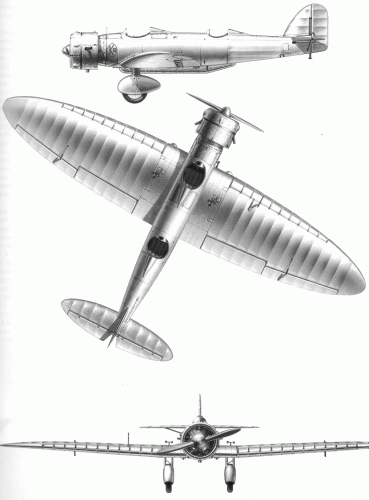

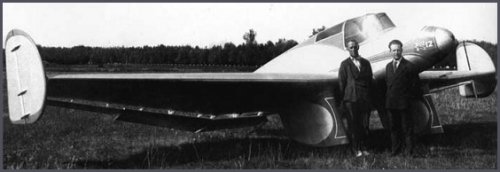

A couple of not mentioned yet light planes created by Kalinin:

K-9 (first flight 11.1930, first photo) and K-10 (first flight 05.1931, all images except the first one), only prototypes have built and tested.

K-9 was equipped by Walter engine (60 HP), K-10 by more powerful Schwetsov M-11 (100 HP)


Attachments

  • k10_3v.gif
    584.4 KB · Views: 599
  • k10_3.jpg
    35.7 KB · Views: 548
  • k10_2.jpg
    85.1 KB · Views: 562
  • k10_1.jpg
    45.7 KB · Views: 579
  • k9_1.jpg
    359.3 KB · Views: 668

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
528
Reaction score
146
Do the folding wings in K9 and K 10 indicate that there were plans to use them on aircraft carriers?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,588
Reaction score
890
Nick Sumner said:
Do the folding wings in K9 and K 10 indicate that there were plans to use them on aircraft carriers?

Folding wings were pretty common on pre-war European light aircraft. The folding tailplane of the K-9 on the other hand ... !


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Nick Sumner said:
Do the folding wings in K9 and K 10 indicate that there were plans to use them on aircraft carriers?
Agree with Apophenia
None aircraft carriers. This reduced the size of the plane on range before 2,8м and allowed to carry it, not taking , on flat-cars and keep in small lodgement.
If to screw up one’s eyes, :) then K-10 can looks like Japanese naval carrier dive-bomber Aichi type 99 D3A “Val”.
That is found under K-10 not bomb rack/hard-point, facility for pollination in agricultures.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

in the Osprey Encyclopdia of Russian Aircraft book,the K-11 was mentioned
at the first of book as tailless glider,and at the Addendum,it was project of
1933 as utility transport aircraft with high wing and powered by one pusher
engine and had a twin boom configuration,who we can believe ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

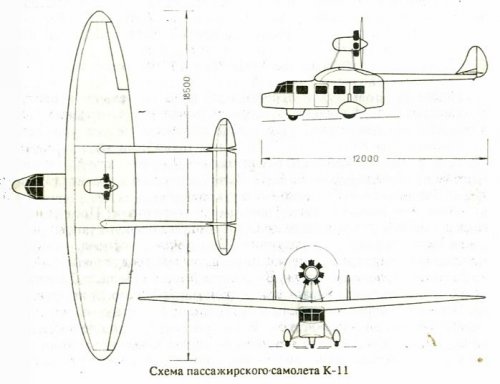

Information on p.135 pertains to K-12(the glider). See more objective info about K-11 at the Addendum, p.523.
Besides:
"Kalinin couldn't finish these K-11 works which began in 1933. It was expected to be twin-engined passenger plane having elliptic wing and two fuselages." (V.Savin, Planet "Konstantine", p.190)
Similar like to two-set K-5.

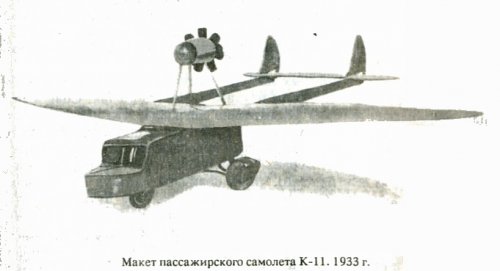

There was also another version of the K-11 preliminary (sketch) project, undersized and single-engined (pusher).


Attachments

  • K-11.jpg
    96 KB · Views: 110
  • Kalinin K-11 .jpg
    Kalinin K-11 .jpg
    36 KB · Views: 151

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

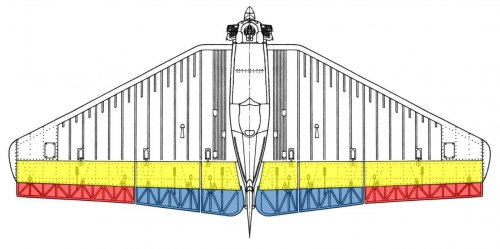

More Kalinin K-12 from the Russian Modelist Konstruktor:


Attachments

  • K-12.jpg
    63.9 KB · Views: 48

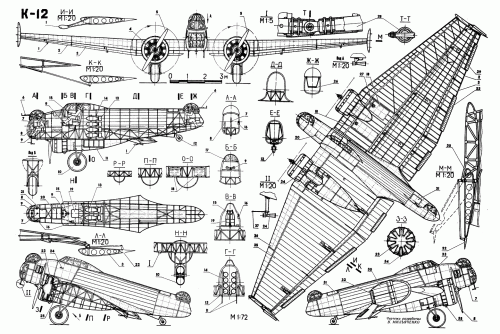

  • K-12 plan.gif
    K-12 plan.gif
    237.5 KB · Views: 98

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

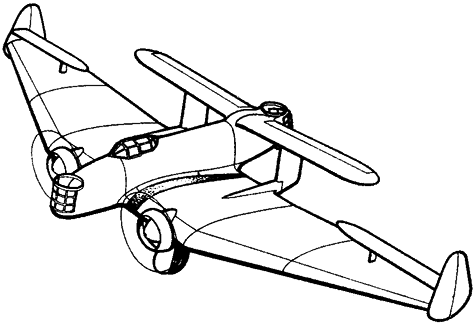

Artwork of the VS-2 project, which led to the K-12. Note the presence of a tail, as in the very first post of this thread:


Attachments

  • VS-2 art.gif
    VS-2 art.gif
    10.5 KB · Views: 47

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
More Kalinin K-7, also from Modelist Konstruktor:


Attachments

  • K-7 compartments.gif
    K-7 compartments.gif
    14.7 KB · Views: 60
  • Kalinin K-7.jpg
    Kalinin K-7.jpg
    33 KB · Views: 84

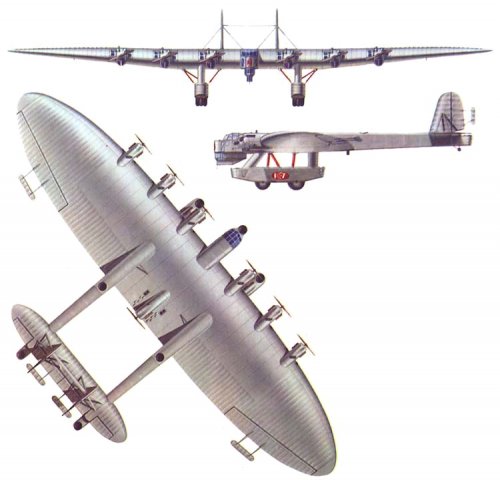

  • K-7 color three-view.jpg
    K-7 color three-view.jpg
    102.3 KB · Views: 99

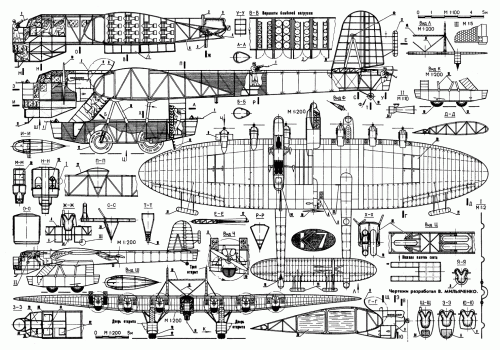

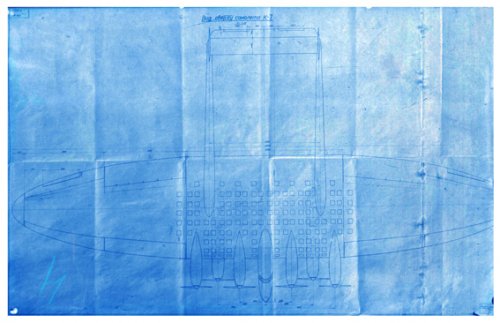

  • K-7 plan.gif
    K-7 plan.gif
    392.3 KB · Views: 92

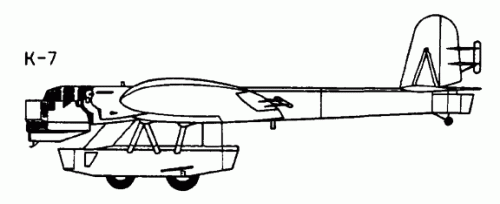

  • K-7 profile.gif
    K-7 profile.gif
    6.8 KB · Views: 56

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

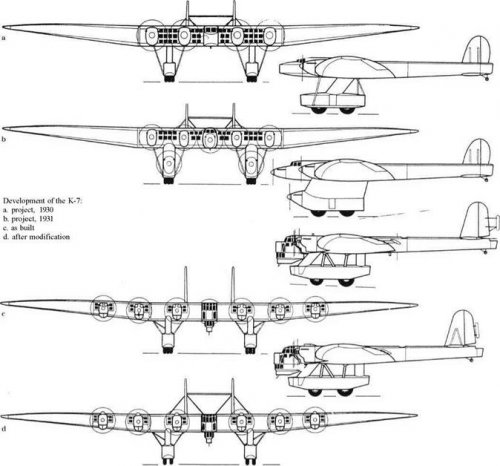

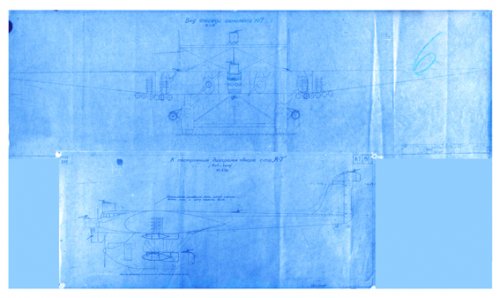

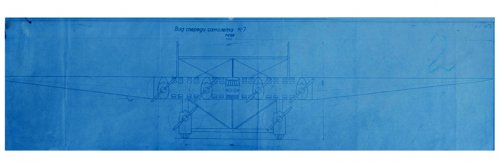

From the book "Stalin's superbombers" by Vladimir Kotelnikov (Moscow, Yauza-Eksmo, 2010 (ISBN 978-5-699-41181-8) - Page 166-180).


Attachments

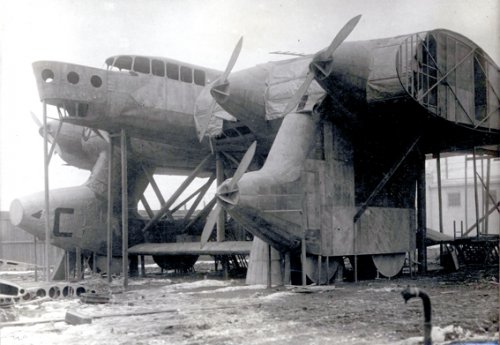

  • K-7 mockup.jpg
    K-7 mockup.jpg
    67.1 KB · Views: 87

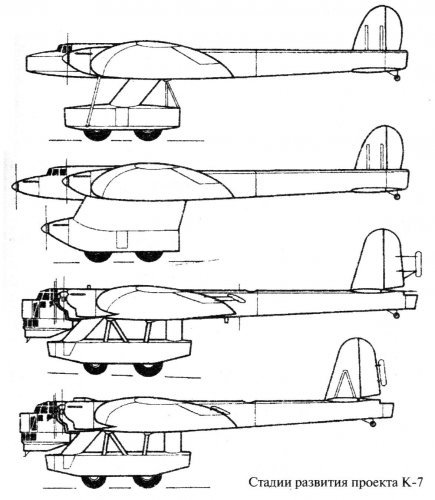

  • K-7 evolution.jpg
    K-7 evolution.jpg
    142.1 KB · Views: 113
  • K-7 engines.jpg
    K-7 engines.jpg
    73.8 KB · Views: 96

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

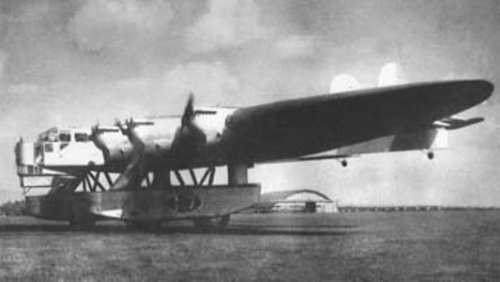

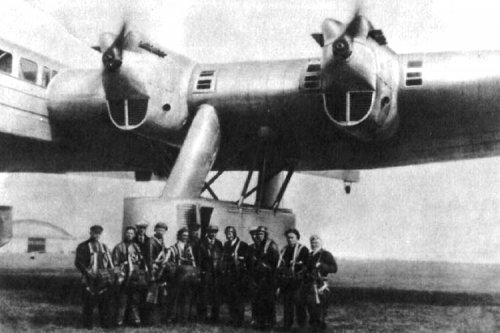

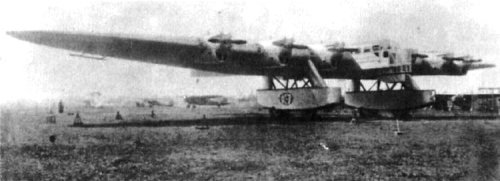

More K-7 pics. Funny how the engines seem to be running in the second pic, and yet we know it was only a mock-up.


Attachments

  • K-7 with crew.jpg
    K-7 with crew.jpg
    111.9 KB · Views: 92
  • K-7.jpg
    67.1 KB · Views: 95

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Stargazer2006 said:
More K-7 pics. Funny how the engines seem to be running in the second pic, and yet we know it was only a mock-up.

There is real prototype on these photos, not the mock-up. The mock-up looked much different, as you can see.

There are only two known photos of the mock-up: one posted by borovik, the other posted by me yesterday.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
borovik said:
K-15 really futuristic and undervalued project, deserving separate topic.

Until we have enough material to justify a separate topic (which I certainly hope for) here is a photo of the wind-tunnel model of the K-15.

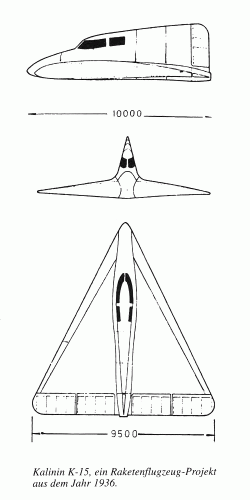

Full text in German reads:

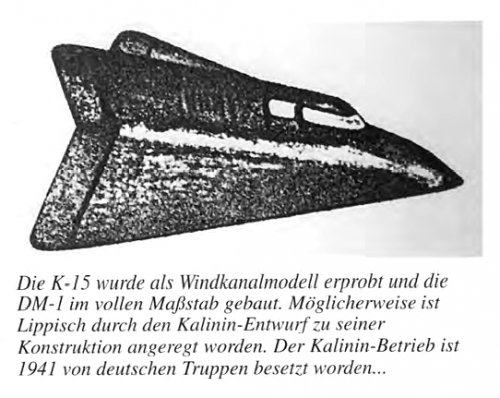

"The K-15 was tested as a wind-tunnel model while the DM-1 was built in full scale. Lippisch may have been stimulated by Kalinin's design for his construction. The Kalinin operation was occupied by German troops in 1941... "


Attachments

  • K-15 model.jpg
    K-15 model.jpg
    111.1 KB · Views: 81

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
And here is a three-view arrangement of the K-15:


Attachments

  • K-15 three-view.gif
    K-15 three-view.gif
    44.3 KB · Views: 115

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
13
Oh, thanks, Skyblazer! Did you know what landing gear type of K-15?

interesting info here: http://artofwar.ru/i/iwan_d/text_0750.shtml


Attachments

  • scan.jpg
    89.7 KB · Views: 97
  • german_influence_03s.jpg
    29.9 KB · Views: 150

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
I read somewhere that serie-production of the Kalinin K-12 twin engine bomber was launched in the Factory n°207, close to Moscow (where exactely?), with 10 production aircraft ordered.
Is there any photos existing of this production line, or how was the construction status of those 10 examplaries when Kalinin was arrested by the NKVD and the program stopped?

Thanks in advance


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
The information is correct (and confirmed in these sources: V.Savin "Planeta" Konstantin "(1994 Khar'kov" OSNOVA ") D.SOBOLEV" Centennial history of flying wings "(1978 Rusavia))
Factory №207 located in Moscow suburban town Dolgoprudny.
Construction of ten series K-12, begun in 1938, shortly after the laying of the pile in the first aircraft was discontinued leadership GUAP (General Directorate of Aviation Industry).


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

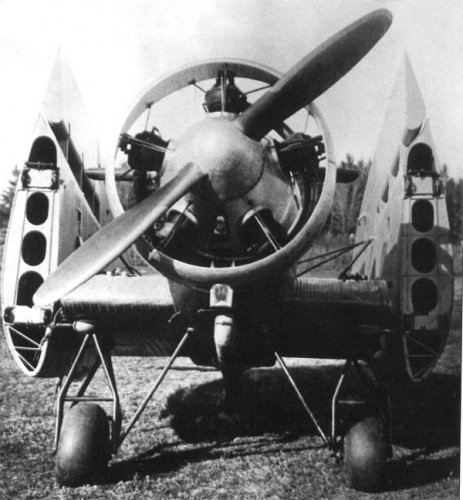

Hi!
http://ourairports.biz/?p=6453

https://www.youtube.com/watch?v=VscDLKQnpQk


Attachments

  • image138_4.jpg
    54.3 KB · Views: 429

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Re: Kalinin prototypes and projects (early K-12 control surfaces??)

From: https://www.secretprojects.co.uk/forum/index.php/topic,16455.msg158807.html#msg158807

redstar72 said:
hole in the ground said:
I am pretty confused about the wing control surfaces. From google's translation of the russian from airwar.ru it sounds like the junkers type surfaces are the elevons whilst the controls attached to the wings seem to be the flaps.

Can anyone confirm if this is the case?



The red parts are ailerons. The blue parts are elevators.

The yellow parts are deflectable part of the wing, which could be swiveled by the pilot on angle from +3 to -5 deg. for longitudinal trim of the aircraft. These parts served the function of horizontal stabilizer, and were called “suspended stabilizer”.




So that was the control layout for the BOK-5 (and presumably the K-12 as built).

However the first designs had a completely different layout. I'm having trouble figuring this out.

borovik said:

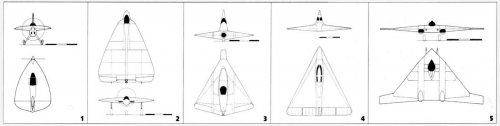

VS-2 (K-12) (Voyskovoy Samolet= tactical/troop plane)
Initial projects of 1933, with engines M-22; M-49; M-52
Passenger (11- person) and transport version.


So, some observations:

1) There are clearly a set of elevators.

2) I assume that the small horizontal surfaces above the wingtips are all-moving ailerons... is this correct?

3) The vertical surfaces on the wing tips have no markings indicating rudders... is this the case? Or would there have been rudders to allow yaw control?

4) Finally ...dotted lines (under the wing)... are they flaps? Or are the dotted lines marking an area that can be adjusted for trim? Or something else?

Any ideas? Any books I should read?


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
614
Reaction score
66
To complement


Attachments

  • Copia de BOK-5 controls.jpg
    Copia de BOK-5 controls.jpg
    99.1 KB · Views: 243
  • BOK-5 controls.jpg
    BOK-5 controls.jpg
    84.7 KB · Views: 256

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
83
Website
www.avicopress.ru
Some more info about K-7


Attachments

  • K-7 one of bomber project-01.jpg
    K-7 one of bomber project-01.jpg
    204 KB · Views: 216
  • K-7 one of bomber project-02.jpg
    K-7 one of bomber project-02.jpg
    189.6 KB · Views: 208
  • K-7 one of bomber project-03.jpg
    K-7 one of bomber project-03.jpg
    211.4 KB · Views: 89
  • K-7 project for 128 passengers-01.jpg
    K-7 project for 128 passengers-01.jpg
    148.6 KB · Views: 86
  • K-7 project for 128 passengers-02.jpg
    K-7 project for 128 passengers-02.jpg
    244 KB · Views: 81
  • K-7 project for 128 passengers-03 Inside cabin.jpg
    K-7 project for 128 passengers-03 Inside cabin.jpg
    221.7 KB · Views: 86
  • K-7 project for 128 passengers-04 Inside cabin.jpg
    K-7 project for 128 passengers-04 Inside cabin.jpg
    214.2 KB · Views: 75

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
ucon said:
Some more info about K-7

Interesting drawings and photos, expecially the passengers version top view one.
Thank you for sharing, Ucon!

Top
