Jupiter Orbiting Vehicle for Exploration (JOVE) - 1967

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,288
Reaction score
61
One of the more interesting results of the various NASA space engineering projects.

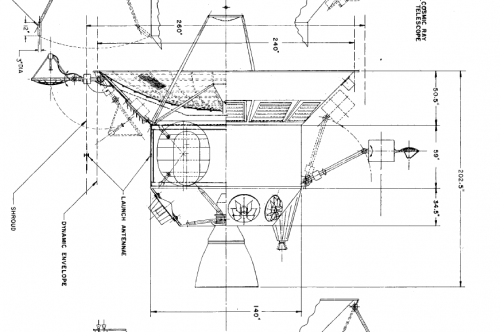

Designed by a team from the University of Auburn, this Saturn V launched probe, which would have been launched sometime between 1975 -1980 had it been built.

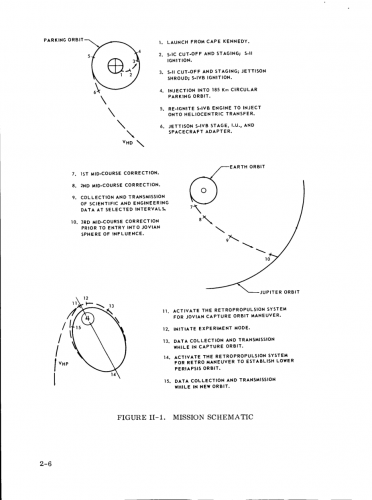

Upon arrival at Jupiter (After an 800-900 day trip, see the attached mission profile.) the 3.6 metric tonne orbiter would have entered an initial eliptical polar orbit with a perijove of no less than 7 Jupiter radii that following checkout would have been lowered to one with a perijove of around 4 Jupiter radii.

Keeping with the view at the time that the Jovian moons would be uninteresting 'dead' worlds the instrumentation fit (See below) was biased towards particle and fields detection. While cameras were fitted they were intended primarily to photograph Jupiter itself. Power was to be supplied by eight RTGs supplying a total of 640w.

Instruments

1. Solar Wind/Flare detectors
2. Cosmic Ray detectors
3. Micrometeorite detectors
4. Magnetometers
5. Trapped radiation detectors
6. Radiometers & photometers
7. UV/Visible/IR Spectrographs
8. Wide (10º) & Narrow (1º) angle television cameras. (Resolution at 7 Jupiter Radii Wide angle (150km), Narrow Angle (35km), at 4 Jupiter Radii. 70km & 18km respectively.)

The full two volume report can be downloaded below:

https://app.box.com/s/7wd95p24t97ru6dvwdw0


Attachments

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,273
Reaction score
103
Nice Find Graham1973

A Jupiter probe using Mars Probe Voyager Hardward and required Saturn V Rocket
This project would have just like Mars Probe Voyager a stillborn project
With price tag of billions, no way the US congress had approved this...


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,684
Reaction score
13
Something that I have not found, but that I suspect existed, are proposals for other planetary missions that would have used the Saturn V. With so much time and effort put into Voyager, I'm sure that somebody at JPL was looking at other possible deep space missions using the Saturn V.

I did hear about an early-mid-1970s JPL study for extensive study of the Jovian system that would have included orbiters, landers, and even rovers. But I don't have any more information than that. There were a series of JPL studies done in 1974 that outlined many of the missions that NASA ultimately flew over the next 20 years, including Galileo, Magellan, and a few others.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,273
Reaction score
103
blackstar said:
Something that I have not found, but that I suspect existed, are proposals for other planetary missions that would have used the Saturn V. With so much time and effort put into Voyager, I'm sure that somebody at JPL was looking at other possible deep space missions using the Saturn V.

I did hear about an early-mid-1970s JPL study for extensive study of the Jovian system that would have included orbiters, landers, and even rovers. But I don't have any more information than that. There were a series of JPL studies done in 1974 that outlined many of the missions that NASA ultimately flew over the next 20 years, including Galileo, Magellan, and a few others.
So far i know the early study of Grand Tour probes, were also Saturn V consider even with NERVA third stage or Shuttle & Space Tug
but that same thing like JOVE and Mars Voyager, huge mastodons Spacecraft who cost billions of 1960s Dollars.
in 1970s they down sizes the Probes for launch with Titan IIIE, thanks to evolution of modern electronic and computers systems
end of 1970s NASA had ambitious Plans on Space exploration:
new Viking probes, Mars rover, Halley probe with ion engine, Solar Polar orbiter, Venus Radar orbiter VOIR, Jupiter Orbiter and many other proposal
unlucky JPL face a enemy in 1980: the Reagan Administration and slaughtering in NASA budget began...


Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,288
Reaction score
61
blackstar said:
Something that I have not found, but that I suspect existed, are proposals for other planetary missions that would have used the Saturn V. With so much time and effort put into Voyager, I'm sure that somebody at JPL was looking at other possible deep space missions using the Saturn V.
Somewhere on my backup drive is another NASA systems engineering project that involved a SaturnV (INT-20)/Centaur launched probe, I've located the document, but I'll post it to a separate thread.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,273
Reaction score
103
Orionblamblam said:
Michel Van said:
unlucky JPL face a enemy in 1980: the Reagan Administration and slaughtering in NASA budget began...
Buh?

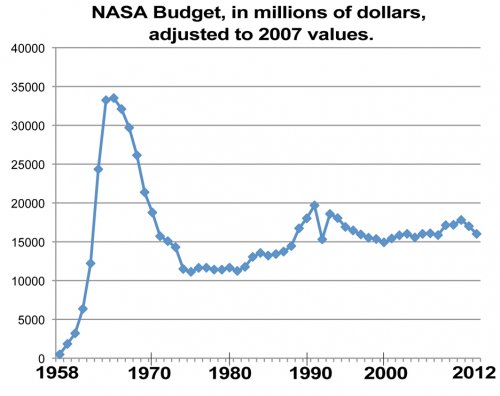

you know the Shuttle program was eating half of NASA Budget
in same time the Reagan Administration swing the budget axe in Planetary probes program, almost killed Galileo and Hubble Space Telescope


Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,288
Reaction score
61
Was this basically JUNO's granddaddy?
Concept wise yes. For a bit more context around the same period NASA was talking about the exploration of Jupiter along much the same lines as Mars, with pairs of spacecraft launched at every favorable launch opportunity. This design is one of a number of 'systems engineering' projects that NASA carried out in conjunction with various universities during the late 60s/early 70s. I've seen a Mars orbiter design from another such project which looks to be ancestral to the Mars Observer (Failed) & Mars Global Surveyor (Successful) missions in the 1990s.

I'll have to dig that one out and post it.
