Jacques Gérin's « Varivol » Projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,

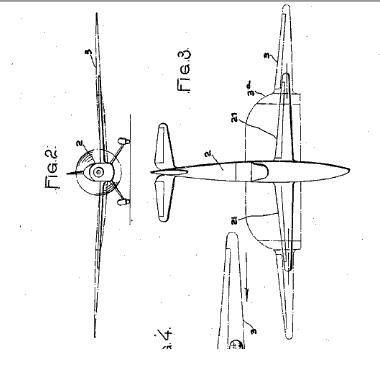

the V.6E was a single seat low-wing racer monoplane,also with variable surface wing.

Last edited:

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,227
Reaction score
934
I've googled for Gerin patents myself, but still found nothing related to the
Gerin Caravelle contender from around 1952. Everybody else, who was
more succesful ?
Must be quite unusual designs for modern times !


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,224
Reaction score
1,745
Good article about Guerin (not Gerin ;) ) in Le Fana de l'aviation, circa 2001. Try "varivol" for more details. The article was very thought toward Guerin... this kind of VG system is aparently not viable


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482

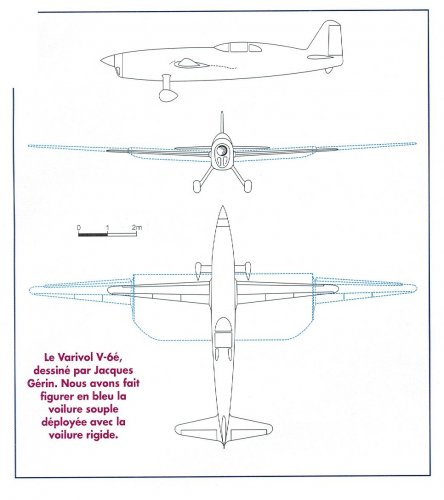

Hi,

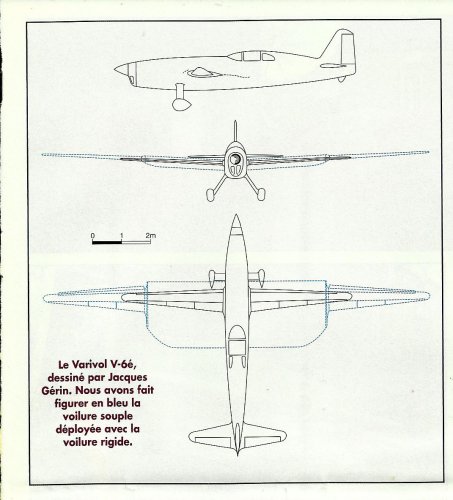

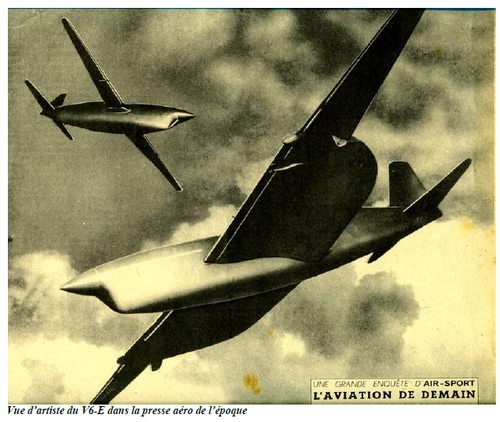

the Jacques Gerin V.6E had an extended wing,and I think it
was a fighter.
http://www.the-one-true-scale.co.uk/gallery%203.htm


Attachments

  • Varivole V.6E.jpg
    Varivole V.6E.jpg
    50.3 KB · Views: 1,065

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,227
Reaction score
934
As far as I understand the article from Le Fana, the V-6e was an intended in
1938 as a contender for the coupe Deutsch de la Meurthe. After the war,
in 1946 it probably was just seen as an experimental aircraft. Fitted with a
260hp Renault 6Q engine, I think, it was a little bit under powered as a fighter,
even in 1938 and totally outdated in 1946.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Thank you my dear Jemiba,

but the actually Gerin Varivol built aircraft of 1936,what was it,V4 or V.5 ?.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,234
Reaction score
1,882
Additional info


Attachments

  • Escanear.jpg
    130.4 KB · Views: 521
  • Escanear0004.jpg
    398.8 KB · Views: 426
  • Escanear0005.jpg
    90.8 KB · Views: 125

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,


I heard that,the Gerin V.12 was developed from this aircraft,but I
am not sure about this Info.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
Hi all

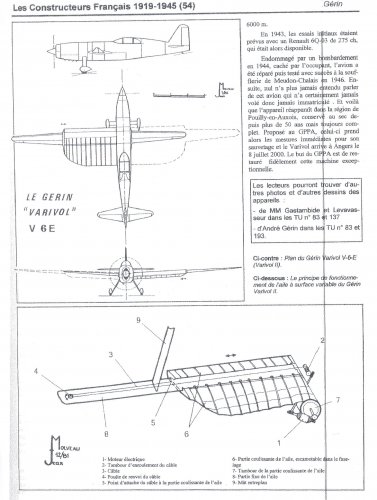

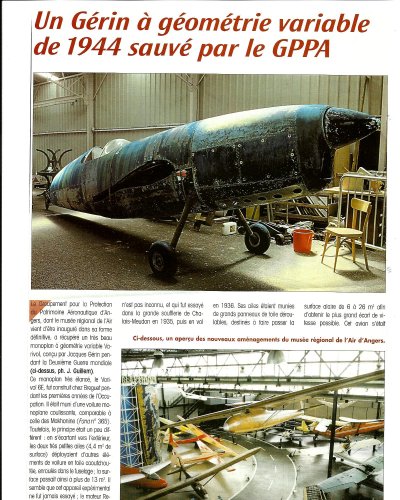

1)From "le fana de l aviation " october 2000

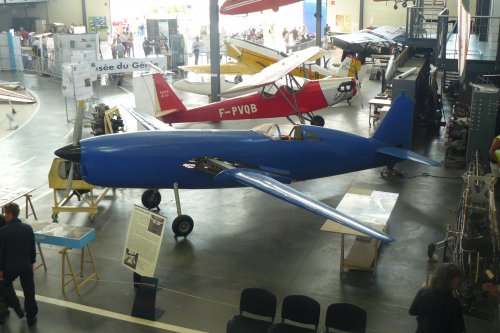

The varivol is actually in Angers "Musée regional de l'air"

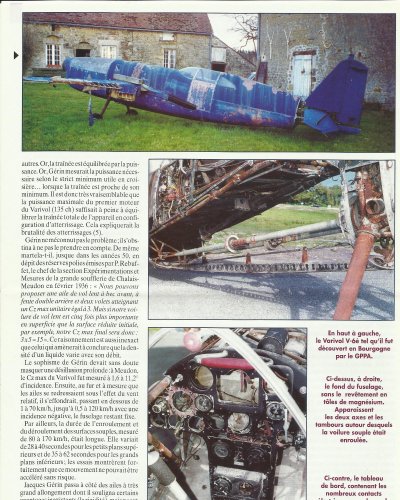

2) from "le fana" December 2000 11 pages article.


Attachments

  • gerin.jpg
    700.3 KB · Views: 454
  • Scan.jpg
    798.5 KB · Views: 462

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Thank you my dear Toura,


I have all pages of this,but what about V.12 ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,227
Reaction score
934
Very interesting findings, thanks Paul and Hesham !
Is there anything about the contender for a jet powered airliner, as a contender
to the later SNCASE Caravelle ? Perhaps a developed version of the Arbalete,
with jet engines and just a single wing could give an idea, what it would have
looked like ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
May be my dear Jemiba,


and for SNCASE Caravelle competition,the tenders were;


SNCASE X-200,X-201,X-202,X-203,X-204,X-205,X-206 & X-210,Hurel-DUBOIS HD.40,HD.41 & HD.45,Dassault MD.900,SNCASO SO.60A,SO.60B & SO.60C,Breguet Br.978,Late-800,Gerin V.? and Nord N.3000.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,

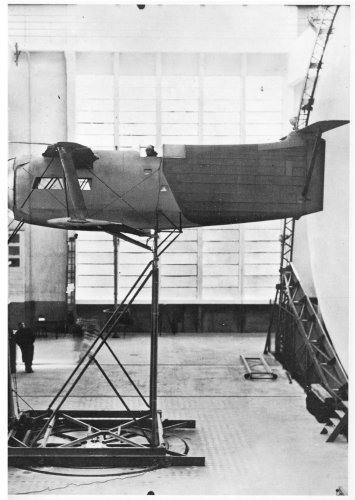

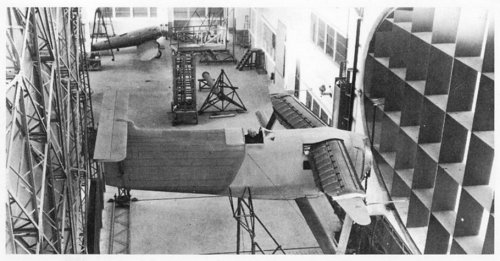

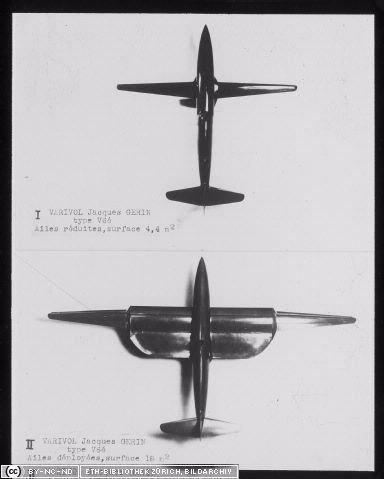

here is the wing tunnel V.6E.


Attachments

  • ETHBIB.Bildarchiv_Dia_240-200_30026.jpg
    18.2 KB · Views: 157

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

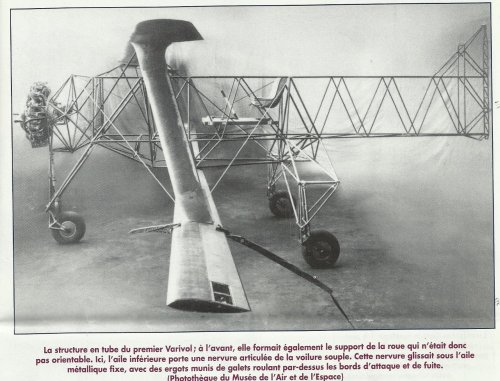

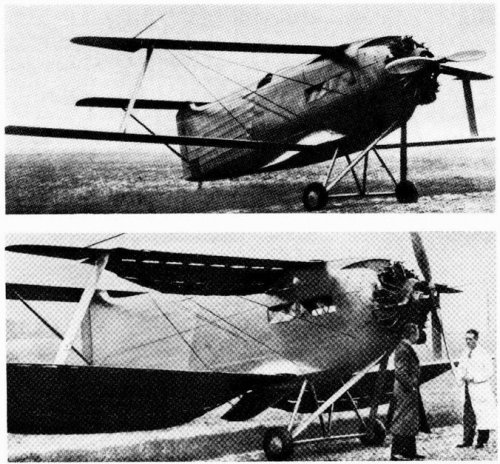

The inventor Gérin designed a wing plan which varied in span from 1 to 5 by a complex system made of sliding leading edge and folding braces. Though the system worked in wind tunnel tests, the design was faulty and this wasn't apparent immediately. Not only the wing generated an awful drag in extended position, but the empennage was much too small and there was no fin.

The pilot trusted the engineers and started the aircraft at full throttle. The Varivol immediately went nose-up and fell to pieces.


Attachments

  • Varivol1.jpg
    254.9 KB · Views: 543
  • Varivol2.jpg
    982.1 KB · Views: 519

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,224
Reaction score
1,745
A decade ago Le Fana only had very bad words on Gérin. i remember the title "l'utopie de l'aile a surface variable" (variable wing surface utopia)


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
Hi Archibald

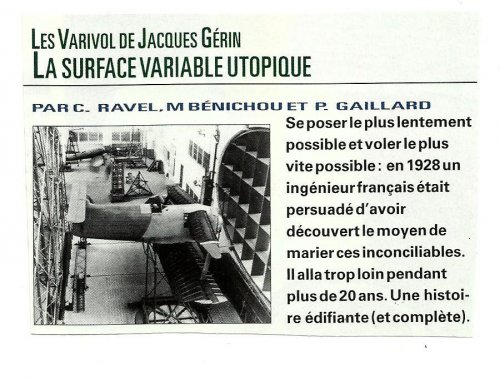

Le fana december 2000 !!!


Attachments

  • gerin.jpg
    123.8 KB · Views: 378

patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99

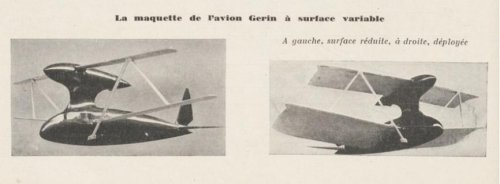

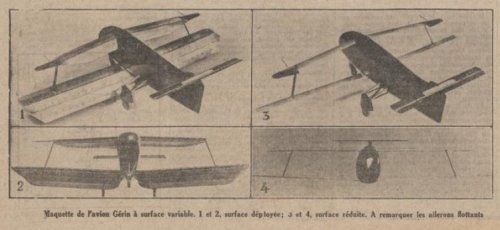

Some of Gerin


Attachments

  • var 1.jpg
    var 1.jpg
    391.5 KB · Views: 369
  • var 2.jpg
    var 2.jpg
    527.4 KB · Views: 330
  • var 3.jpg
    var 3.jpg
    785.7 KB · Views: 114
  • var 4.jpg
    var 4.jpg
    153 KB · Views: 117

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86

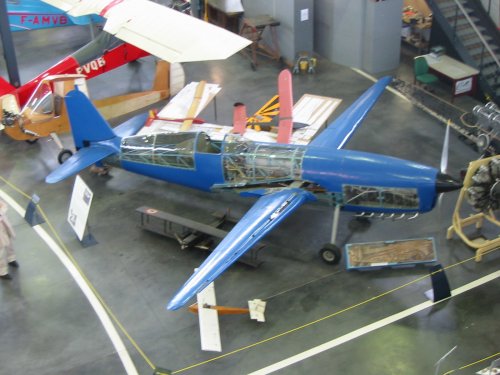

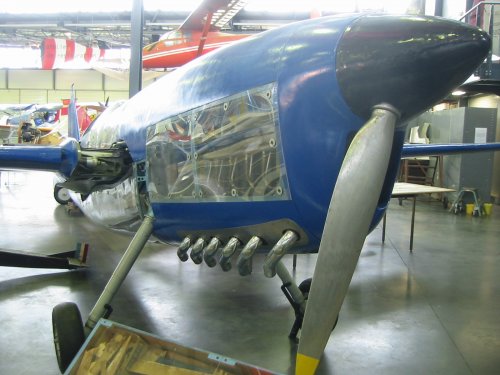

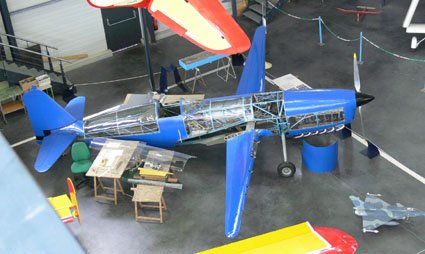

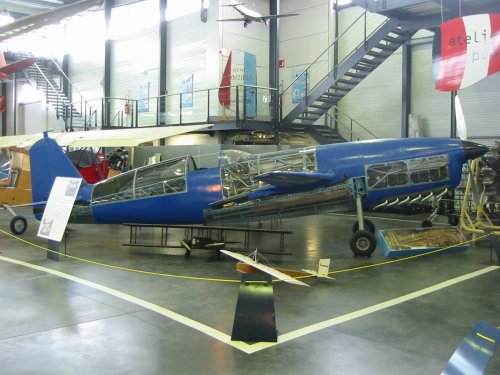

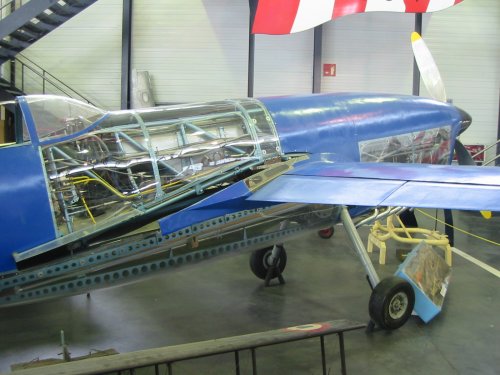

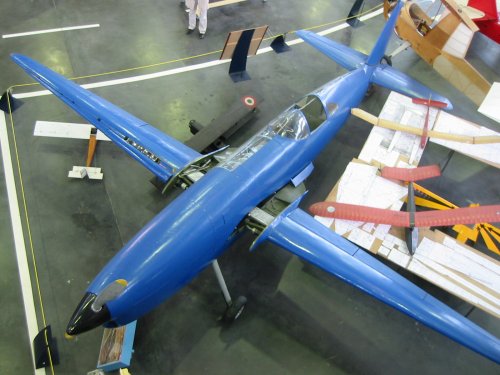

Some more photos (taken in August 2012):


Attachments

  • IMG_0395.JPG
    751 KB · Views: 93
  • IMG_0396.JPG
    764.2 KB · Views: 88
  • IMG_0334.JPG
    833.6 KB · Views: 76
  • IMG_0336.JPG
    807.5 KB · Views: 72
  • IMG_0337.JPG
    776 KB · Views: 70

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103

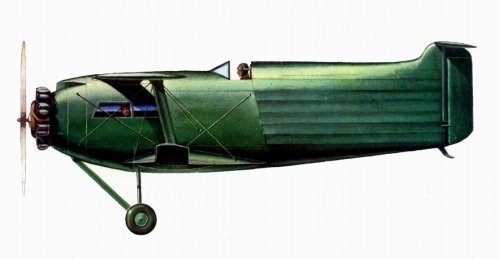

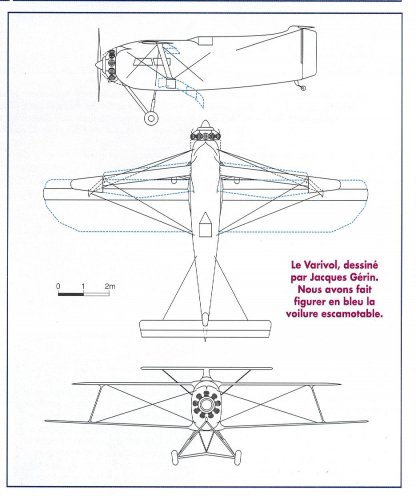

from "Flieger Revue"


Attachments

  • Gerin 'Varivol'.jpg
    Gerin 'Varivol'.jpg
    50.7 KB · Views: 91

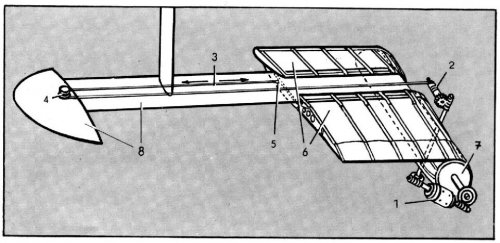

  • mechanical Gerin wing.jpg
    mechanical Gerin wing.jpg
    113.4 KB · Views: 78
  • Gerin.jpg
    117.1 KB · Views: 68
  • Gerin 'Varivol'..jpg
    Gerin 'Varivol'..jpg
    62 KB · Views: 78

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
From Le FANA,

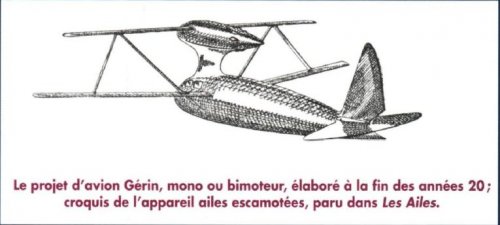

here is an early project to Gerin,it was light transport aircraft.


Attachments

  • Gerin.JPG
    32.7 KB · Views: 82

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
The more time I spend looking at the Jacques Gérin Varivol concept, the more I think he was on to something. A simplified version using a very small, fixed, constant-chord wing with a a flexible section sliding out from the fuselage, riding on the fixed wing, seems very promising in terms of combining high-speed cruise with low-speed take-off and landing with minimal complexity.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
hesham said:
From Le FANA,


here is an early project to Gerin,it was light transport aircraft.

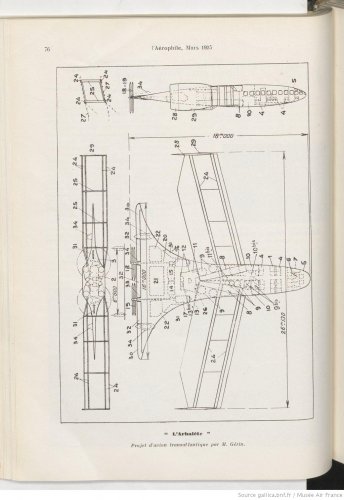

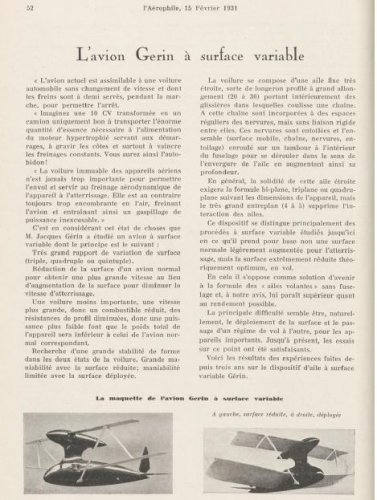

And from Aerophile magazine.


Attachments

  • Gerin-1.JPG
    27.4 KB · Views: 95
  • Gerin-2.JPG
    59.4 KB · Views: 99

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,


during the development of Varivol or V.1 (1932),Mr Gerin designed a 4 to 6 seat tourist aircraft
project,powered by one 200 to 300 hp engine,I believed it was (V.2),does anyone hear about
it before ?.


TU magazine 207


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Via my dear Tophe,

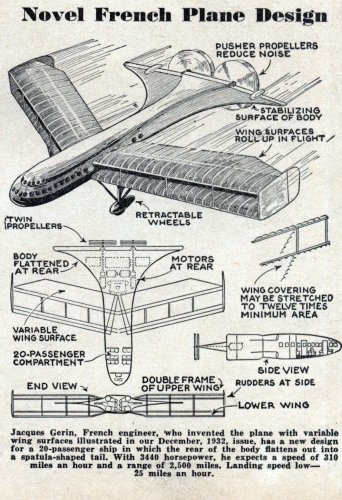

also during development of the Varivol or V.1,Gerin designed a light transport aircraft project,
accommodated 10-12 passenger (not related to Arbalete),I believed it was V.4 or V.5,did
anyone hear about it before ?.


TU magazine 207


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,


in 1938,Gerin designed a monoplane with triangle wing aircraft project,powered by 140 hp
engine,maybe transformed into the Varivol II,completed at Breguet Factory during the
Germany occupation,also does anyone hear about it before ?.


TU magazine


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201936%2004.pdf


Attachments

  • 1.png
    509 KB · Views: 129

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482

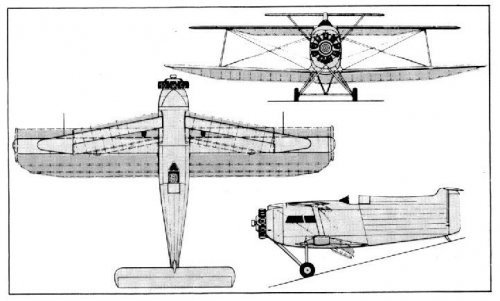

And from La Fana and TU magazines,I can say as only my speculations ;

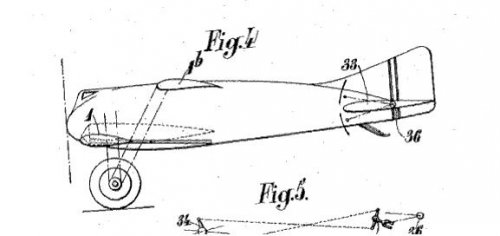

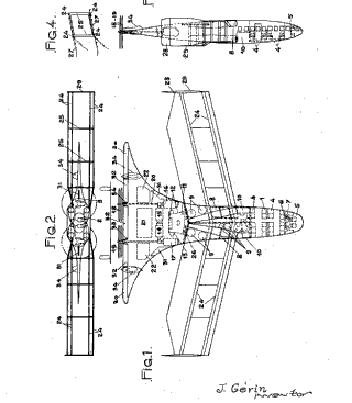

1924/25 was a flying car patent,with pusher engine
1927 was a biplane patent to proof the concept
V.1 Varivol was the first airplane as a well known one,1929/30
V.2 was a 4/6 passenger tourist airplane Project of 1934,powered by one 200 or 300 hp engine
V.3 was an experimental monoplane Project of 1934,with large variable surface wing area
V.4 was a 10/12 passenger small transport sesquiplane Project of 1934,powered by two push-pull engines

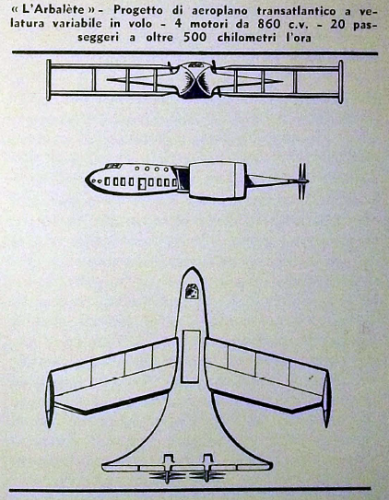

V.5 Arbalète was a transatlantic large transport biplane Project of 1935,powered by four (each two in pair)
860 hp engines
V.6E was a single seat racer monoplane of 1936

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,699
Reaction score
3,482
I heard that,the Gerin V12 was developed from this aircraft,but I
am not sure about this Info.

Maybe I translate wrong,From La Fana 373 ?.


Attachments

  • 1.png
    144.1 KB · Views: 35

Aubi

ACCESS: Confidential
Joined
Aug 31, 2009
Messages
196
Reaction score
267
Website
www.armedconflicts.com

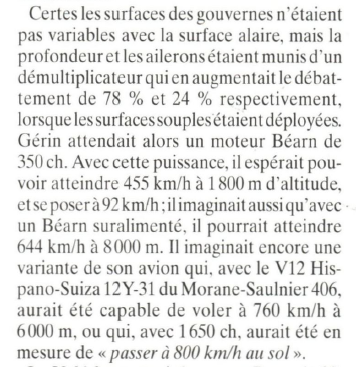

It says that the model inquestion could have Béarn engine of 350 ch (345 hp), with expected speed 455 km/h at 1800 m (283 mph at 5906 ft), but it was imagined also variant with Hispano-Suiza 12Y-31 V12 engine, with expected speed 760 km/h at 6000 m (472 mph at 19685 ft).
So, the V12 in question here is the engine configuration, not model designation.
