Hi,

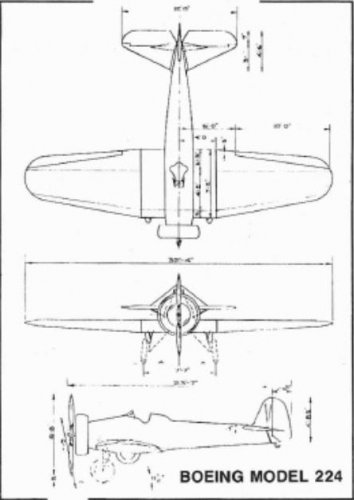

the Boeing Model-224 was a single seat cantilever low-wing monoplane
fighter project,the wing was housing a backward-retracting landing gear,
with all-metal semi-monocoque construction,P-12E tail surfaces,and a 550
hp P&W Wasp engine.

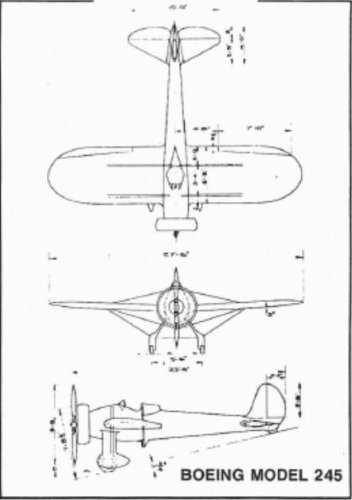

The Boeing Model-245 was a single seat wire-braced mid-wing monoplane
fighter project,all those designs led to develop the Boeing P-26 fighter.


Source, Boeing P-26 Variants, by Peter Bowers


Attachments

  • 224.JPG
    26.4 KB · Views: 282
  • 245.JPG
    25 KB · Views: 279
