Has anyone ever found scale plans of the Interstate TDR-1 assault drone?

This was a precursor of both guided missiles and contemporary UCAVs that was used in combat on a limited scale in 1944. It could be remotely steered into a target from its TBM Avenger control ship or it could be armed with bombs or other ordnance which could be delivered and the drone returned to base.


Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
24
Searay said:
This was a precursor of both guided missiles and contemporary UCAVs that was used in combat on a limited scale in 1944. It could be remotely steered into a target from its TBM Avenger control ship or it could be armed with bombs or other ordnance which could be delivered and the drone returned to base.

Return-to-base was only an option for unarmed training flights (on these, a pilot sat in a simple cockpit of the TDR-1, to take over the drone should the remote control fail). On combat missions, the landing was dropped after take-off (to reduce weight and drag, presumably), and the TDR-1 was expended.


Abingdon

ACCESS: Confidential
Senior Member
Joined
Jul 9, 2007
Messages
54
Reaction score
84
Thanks. I've seen that photo (going in either direction!) My library is fairly good on missiles, less so on aircraft, so I was hoping there might be a scale plan out there in some obscure book I hadn't seen yet. This is for an upcoming book on the history of UAVs, and I'm currently preparing the references for the illustrator. I have a good selection of photos of the TDR-1 and TDN-1. Here's a few that might be of interest. The head-on shot is a TDR-1 during the 1943 stateside training. The other two show training with the TDN-1 and an interesting shot of one of the armament options on the TDN-1.

(I'm new to this forum so I hope the photos post properly!)


Abingdon

ACCESS: Confidential
Senior Member
Joined
Jul 9, 2007
Messages
54
Reaction score
84

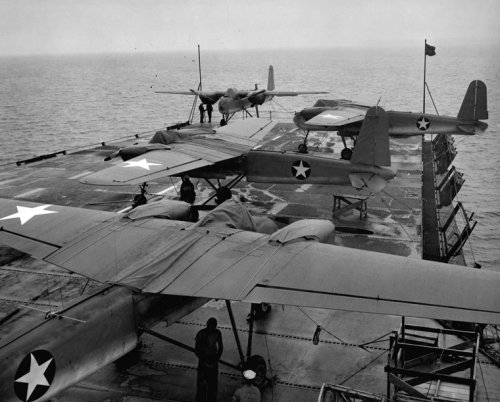

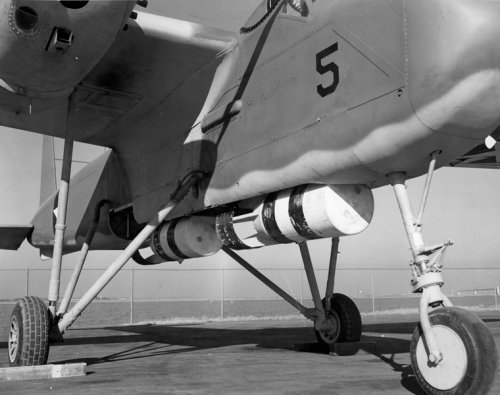

Here's another attempt to post the pictures mentioned above


Attachments

  • TDR1A.jpg
    110.7 KB · Views: 632
  • TDN1A.jpg
    293.8 KB · Views: 683
  • TDN1B.jpg
    252.1 KB · Views: 584

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,983
My library doesn't really extend to before the 1950s but there are others who might have something.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,983
http://stagone.org/

Nice article has broken images - so here's a fixed copy as PDF.


Attachments

  • Command Break.pdf
    624.5 KB · Views: 163

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,656
Reaction score
534
A superb article can be found at Le Fana de l'Aviation Nº286 September 1993 by Alain Pelletier Pg 27 to 30 with lots of pics that can complement that from Searay. BTW Thanks a lot for sharing it Searay!


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
122
More info in:

*The Aeroplane Spotter - January 25,1947
and in
*Aviation History - January 2004


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,983
I can probably locate the Fana article this weekend, but unless it has a 3 view I'm guessing it won't be useful.


Abingdon

ACCESS: Confidential
Senior Member
Joined
Jul 9, 2007
Messages
54
Reaction score
84
Many thanks to all concerned for the many leads on articles. I have a US Navy Proceedings article also. I had the StagOne material, but the .pdf was a big help as the internet version is missing most of its images. I would swear there was an article in Tail-hook many moons ago, but if so, I haven't been able to find it.

I actually have enough detail on the program for the purposes of the book. It is an overview of UAV history from 1917 to 2007 for the Osprey New Vanguard series, and there's only so much stuff you can cram into a 13,000 word book. I was interested in the drawing as I am working on the references for the color plates. If there are no available drawings, I'll do up a set based on photos.

Anybody have decent drawings of the QH-50 DASH drone from the 1960s?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,656
Reaction score
534
UAV history from 1917 to 2007 for the Osprey New Vanguard serie
Wow, nice addition to my library :)


Anybody have decent drawings of the QH-50 DASH drone from the 1960s?

Pg 67 World Encyclopedia of civil and military helicopters by Giorgio Apostolo with drawings from Amedeo Gigli. 1984. Mondadore Editore SpA Milano


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,983
http://aeroweb.brooklyn.cuny.edu/specs/intersta/tdr-1.htm

I am now 88 yrs. old, and I was the Chief Liaison Engineer for the TDR-1 production plant in DeKalb, Illinois, from 1942 to 1944. I worked for Interstate in Los Angeles on this project prior to volunteering to move to DeKalb. From the time of the release of all Interstate employees on this project in 1944, until 2003, I had been unable to find any information on this aircraft. My son and I traveled in Feb. 2004 to Pensacola, Fl, to see what I think is the only intact TDR-1 in existence, at the National Museum of Naval Aviation. I would be interested in communicating with other people who have an interest in the history of this aircraft. I would also be interested in obtaining a copy of the manufacturing/use/repair paperback manual such as is in the library of the museum.

Perhaps the manual would contain a drawing?


TomfromNYC

ACCESS: Restricted
Joined
Dec 3, 2008
Messages
1
Reaction score
0
I just came across this 12/2/08 website, are you still looking for TDR info. Have you seen the model on Hyperscale? www.hyperscale.com/features/2001/tdrdronetc_1.htm


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,983
I guess not needed for this book, as Mr Zaloga's book has come out already.

http://www.amazon.com/Unmanned-Aerial-Vehicles-1917-2007-Vanguard/dp/1846032431


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,656
Reaction score
534
I guess not needed for this book, as Mr Zaloga's book has come out already.

I'd to love to see a much more expanded book on this subject by Mr Zaloga. I enjoy very much his books but that's only a little introduction on such highly interesting field. I need much more ::)


modelxv

ACCESS: Restricted
Joined
Jan 25, 2008
Messages
2
Reaction score
0
[quote author=Searay ]
Anybody have decent drawings of the QH-50 DASH drone from the 1960s?
[/quote]

would this be of any help

http://www.gyrodynehelicopters.com/qh-50d1.htm

Xavier


modelxv

ACCESS: Restricted
Joined
Jan 25, 2008
Messages
2
Reaction score
0
sorry , forgot the original subject.

check this article (with drawing) at http://www.vectorsite.net/twcruz_1.html#m4

and if you have time to spare check the whole site. ;)

regards

Xavier


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
46
It is kind of interesting how some of this technology was around since the 1940's...


Tomac

ACCESS: Restricted
Joined
Jan 31, 2009
Messages
45
Reaction score
8
Searay said:
Here's another attempt to post the pictures mentioned above

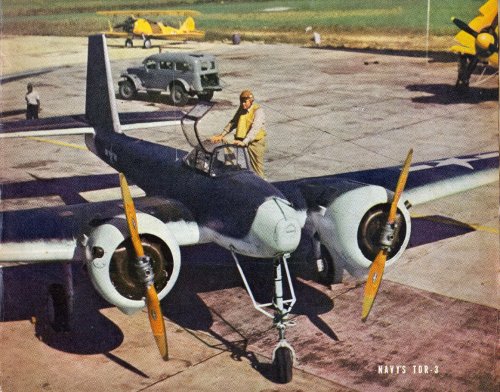

Here's another photo, it appeared on the cover of Air Trails back in 1945.


Hope this helps,

-- John


Attachments

  • [Naval Aircraft Factory] (1943) TDR-3 (01).jpg
    [Naval Aircraft Factory] (1943) TDR-3 (01).jpg
    602.8 KB · Views: 501

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
158
Website
www.tommythomason.com
Searay said:
Has anyone ever found scale plans of the Interstate TDR-1 assault drone?

From the archives at the Washington Navy Yard:


Attachments

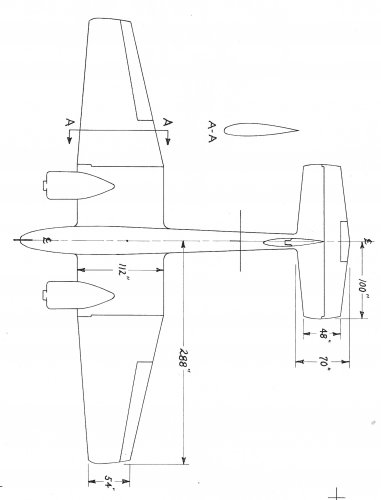

  • TDR top view.jpg
    TDR top view.jpg
    379.1 KB · Views: 342

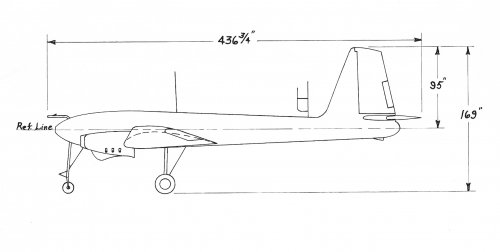

  • TDR side view.jpg
    TDR side view.jpg
    256.4 KB · Views: 341

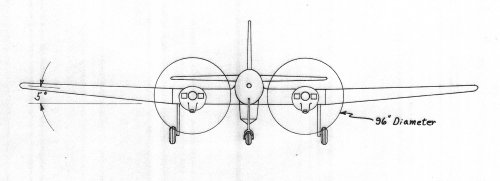

  • TDR front view low res.jpg
    TDR front view low res.jpg
    548.2 KB · Views: 426

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
Completely missed the 3-view still yet, so, although rather belated, many thanks Tommy !
One question remains. The 3-view shows the TDR-1 in "attack configuration" without
the cockpit. But at some photos show the manned version with cockpit armed with a
torpedo or with bombs. So, was this configuration just used for flight testing and evaluation
or was the removal of the cockpit not really necessary for pilotless flights ? (No, I don't think,
that there ever were thoughts about using the pilot just as guidance system, as a US Kamikaze .. ::) )


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
158
Website
www.tommythomason.com
Jemiba said:
Completely missed the 3-view still yet, so, although rather belated, many thanks Tommy !
One question remains. The 3-view shows the TDR-1 in "attack configuration" without
the cockpit. But at some photos show the manned version with cockpit armed with a
torpedo or with bombs. So, was this configuration just used for flight testing and evaluation
or was the removal of the cockpit not really necessary for pilotless flights ? (No, I don't think,
that there ever were thoughts about using the pilot just as guidance system, as a US Kamikaze .. ::) )

Just guessing, I'd say they left the safety pilot seat and controls in and the canopy on until the aircraft was being prepared for its last flight, since I don't think the remote control was adequate for a landing. Even if it was, it would still be appropriate for a safety pilot to be aboard for a maintenance test or ferry flight, if not training flights.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
Seems to me like the TDR was the first recorded OPV (Optionally Piloted Vehicle) in US aviation history!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

http://en.wikipedia.org/wiki/Interstate_XBDR


Attachments

  • 300px-Interstate_XBDR-1.jpg
    5.3 KB · Views: 989

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
The XBDR-1 was a design for a tailless jet-powered assault drone, proposed in 1944. Scale models were built but no full scale aircraft.
Span was 51'8" and it was powered by 2 jets.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Reisert, Thomas. "Tests of a 1/17-Scale Model of the XBDR-1 Airplane in the NACA Gust Tunnel", NACA Report WR-L-539, 1944
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930092619_1993092619.pdf


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
9
These might be of interest. The source is "XBDR-1 Mock Up," Interstate Aircraft & Engineering Corp. Rpt No. W 272. The document is not dated, but the photos are dated "11-19-43." Sorry for the poor quality -- it's a photocopy from an original located at NARA, file 72-AC-1B.


Attachments

  • img099.jpg
    374.2 KB · Views: 516
  • img098.jpg
    190.5 KB · Views: 535
  • img095.jpg
    114.4 KB · Views: 557
  • img096.jpg
    167.6 KB · Views: 573

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
615
Reaction score
165
Wonderfull information, Cliomam!
It was my missing link between the XBRD-1 program reference and Interstate's patent n. 144.111 dated March 12,1946.
Thank you so much for sharing.


Attachments

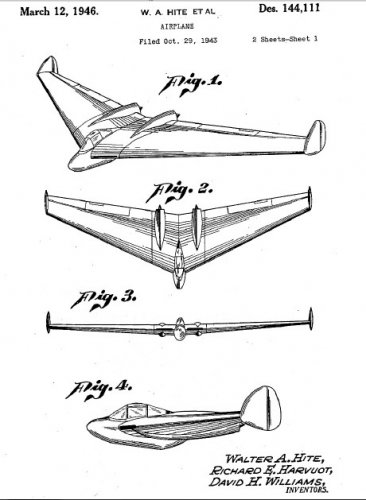

  • Patent !$$!!!.jpg
    Patent !$$!!!.jpg
    56.8 KB · Views: 203

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
9

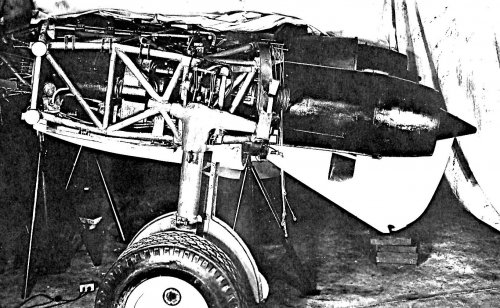

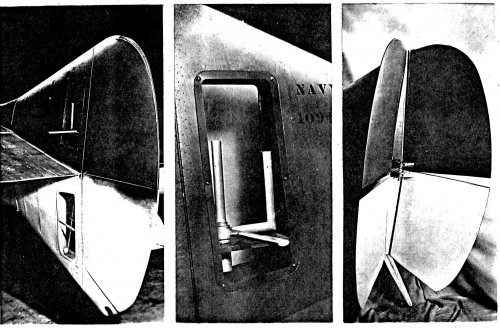

Here are a few more pics from Interstate's XBDR Mock Up report. The cutout in the fin is for the guidance reception antenna. The airbrake arrangement is also interesting.


Attachments

  • img100.jpg
    350.1 KB · Views: 189
  • img101.jpg
    618.4 KB · Views: 182

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,174
Reaction score
130
On pg. 14 of the COMMAND BREAK pdf that Overscan posted, it shows artwork of a flying wing, jet-powered "bomber drone" proposed by Interstate.

All I got is from the STAG 1 website: http://stagone.org/?attachment_id=120

"Two views of what might have been. On the left the TDR-3, which sported radial engines and an improved Block-3 television set-up. The Navy lost all interest in propeller driven aircraft after the war, and it was shelved. On the right, a drawing of a jet-powered bomber drone – an Me 163 clone? – designed by Interstate in 1943 and put into the round file by the Navy."

Anyone else hear more about this one? It looks like a nice one.


Attachments

  • ns18.jpg
    12.6 KB · Views: 198

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,174
Reaction score
130
Well looks like Google answered my question.

http://en.wikipedia.org/wiki/Interstate_XBDR


Attachments

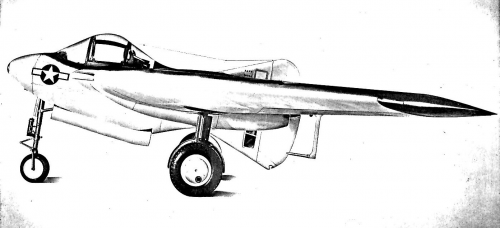

  • Interstate_XBDR-1_piloted_side_view.png
    327.2 KB · Views: 115

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,174
Reaction score
130
But wait! There's more! Win! B)

http://www.secretprojects.co.uk/forum/index.php/topic,10838.msg102255.html#msg102255


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,635
From the same article:

Interstate Aircraft & Engineering Corp. - "XBDR-1 Mock Up," Interstate Aircraft & Engineering Corp. Rpt No. W 272. National Archives File 72-AC-1B.

Artist's concept of the Interstate XBDR-1 jet-powered assault drone in flight.


EDIT: Clioman posted the same image back in 2010!


Attachments

  • Interstate_XBDR-1_flying.png
    1.2 MB · Views: 195

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,174
Reaction score
130
That's the true joy of this forum. Years on here and I'm still discovering new projects!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!
Interstate XBDR. ;)

https://en.wikipedia.org/wiki/Interstate_XBDR
"The Interstate XBDR was a design for an assault drone - an early television-guided missile - powered by two jet engines, that was designed by the Interstate Aircraft and Engineering Corporation during the latter stages of the Second World War for use by the United States Navy. Wind tunnel tests of a scale model were conducted, however no full-scale examples of the aircraft were built before the project was cancelled."

http://www.designation-systems.net/dusrm/app1/bdr.html

NACA Report. In this report NACA called XBDR-1 as airplane.
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930092619.pdf
Gust-tunnel test model had a windshield!! :eek:

So we have following three kind of images for XBDR and 1/17 XBDR gust tunnel test model.
(1) XBDR with slit shape air intake.
(2) XBDR with slit shape air intake and wind shield.
(3) XBDR 1/17 scale gust tunnel test model with round air intake and wind shield.


Attachments

  • Interstate_XBDR-1_flying.png
    1.2 MB · Views: 156
  • Interstate_XBDR-1_piloted_side_view.png
    327.2 KB · Views: 163

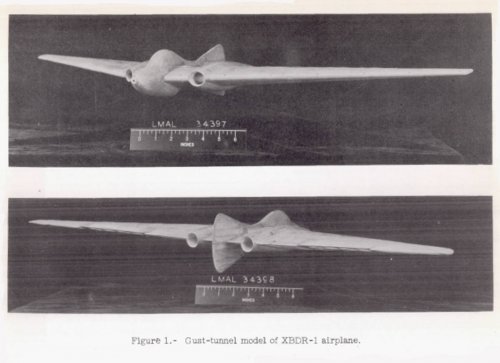

  • Gust tunnel test model.jpg
    Gust tunnel test model.jpg
    77.8 KB · Views: 170
