Hi
I am looking for any data, info or 3-views of the Henschel Project 130.

If anyone can help I would be very grateful.

Many thanks
P

I found some info here.

http://www.historyofwar.org/articles/weapons_henschel_hs_130.html

Careful, the Henschel P.130 probably hadn't any relation to the Hs 130 . ;)
Seems to have been mentioned in Luftwaffe Secret Projects: Fighters, 1939-1945 v. 1 ,
as a fighter bomber with Jumo 222 engine.

Many thanks John and jemiba.

The one I'm interested in is the one as you state Jemiba, the one mentioned in Luftwaffe Secret Projects Fighters 1939-1945.

It looks almost the same aircraft as the P135. The P130 having a rear fuselage mounted piston engine powering a pusher prop. Wing root intakes.
Whereas the P135 has jet power fed by a nose intake.

The wings look very similar to each other.

I just wondered if the P135 was basically a jet powered development of the P130 as they look very similar apart from the obvious differences of course?
Many thanks
P

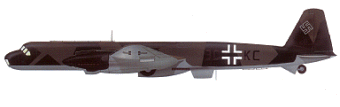

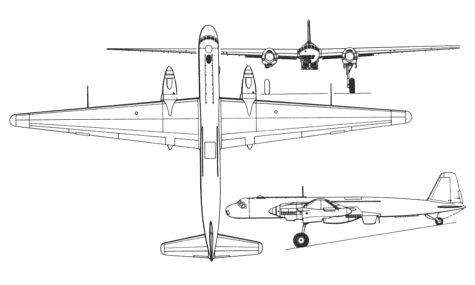

Hs 130 E-0





Länge: 19,73 m
Spannweite: 33,00 m
Höhe: 5,54 m
Besatzung: 3
Motor: DB 603 B
Leistung: 2 x 1860 PS
Vmax: 610 km/h
Reichweite: 2250 km
Gipfelhöhe: 15100 m
Bewaffnung: bis zu 1000kg Bombenlast

Regards,

kampfflieger,
Flitzer and jemiba mean the Henschel P.130.
See this picture (found via google): http://s005.radikal.ru/i209/1002/69/3c241a14da95.jpg
My issue of that book "Luftwaffe Secret Projects Fighters 1939-1945 Volume I" says on page 19 that the Henschel P.130 from 1944 was the forerunner of the Henschel P.135 from Feb. 1945 as shown on page 153.
I will not attach or insert the picture due to copyright reasons.

Flitzer, no more info so far. :-[

fightingirish said:
kampfflieger,
Flitzer and jemiba mean the Henschel P.130.
See this picture (found via google): http://s005.radikal.ru/i209/1002/69/3c241a14da95.jpg
My issue of that book "Luftwaffe Secret Projects Fighters 1939-1945 Volume I" says on page 19 that the Henschel P.130 from 1944 was the forerunner of the Henschel P.135 from Feb. 1945 as shown on page 153.
I will not attach or insert the picture due to copyright reasons.

Flitzer, no more info so far. :-[
Click to expand...

Thanks Fighting Irish.
I don't have any more info either, but I might be able to de-develop so to speak the P135.
Worth a try.

Cheers
Peter

Flitzer said:
fightingirish said:
kampfflieger,
Flitzer and jemiba mean the Henschel P.130.
See this picture (found via google): http://s005.radikal.ru/i209/1002/69/3c241a14da95.jpg
My issue of that book "Luftwaffe Secret Projects Fighters 1939-1945 Volume I" says on page 19 that the Henschel P.130 from 1944 was the forerunner of the Henschel P.135 from Feb. 1945 as shown on page 153.
I will not attach or insert the picture due to copyright reasons.

Flitzer, no more info so far. :-[
Click to expand...

Thanks Fighting Irish.
I don't have any more info either, but I might be able to de-develop so to speak the P135.
Worth a try.

Cheers
Peter
Click to expand...
Yes, there are connection of Henschel P.130 and Henschel P.135 ( Heinkel P.130 with engine , P.135 with Jet-Engine Heinkel HeS 011 ), but they are two tailless aircraft, but for Henschel P.130 so in Midland book there are no more info .

Thanks airman
It's still worth a stab even without any further info I think.

We'll see.

Many thanks again.
Peter
