Various Henschel projects

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
46
and do you know Henschel P.72,P.76 and P.80? thanks.

Hs P 72 was an high wing 2xBMW 801TJ transport (length:17,8 m)
Hs P 76 was a project related and looking like the Hs 129
The Hs P 80 was a project between Hs 130A and Hs 130 E


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158

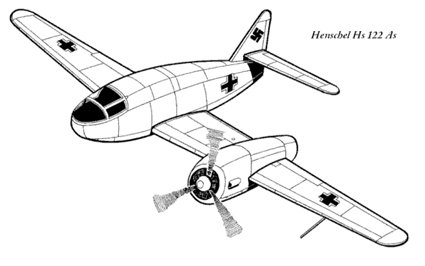

Any info about this project?


Attachments

  • Hs122As.jpg
    32.5 KB · Views: 979

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158
Aircraft of the Luftwaffe 1935-1945: An Illustrated History by Jean-Denis G. G. Lepage


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
643
Reaction score
157
Hi!

Isn't Henschel Hs-122 has been single-engineed rarasol, flown in 1935
http://en.wikipedia.org/wiki/Henschel_Hs_122

I guess, RLM doesn't allow duplication of aircraft indexes.

For me this picture was a fiction, inspired by Richard Vogt assymmetrical projects.

Cheers!


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
46
There are some duplications ( Bf163 ; Me 163 . Bf 162 ; He 162 . Fw 187 ; Ju 187 . Me 265 ; Fl 165 . Hs 296 ; Ar 296 ....).


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
40
Hi
I think it is totally bogus.

I did a 'what-if' spare parts model a few years ago and pics are posted on Igor's Unicraft site on page 6 of the photographs section.
I swear I had never seen anything similar before I did 'my' Hs P122 AS and until this post ever since. I made it up, just to use my left over kit parts for fun. I never dreamed it would end up like this.
If there was a genuine Hs design just like this then it will be the biggest coincidence in history.
I can't imagine me having the brains to guess what a Henschel designer did all those years ago.

So I think its definitely not a authentic aircraft design.
It just goes to show what Orionblamblam has mentioned numerous times, what-if projects need labelling as such so as not to confuse with genuine concepts. Viewers may see a 'what-if' on the internet and accept it as a genuine WW2 design.

Cheers
P


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
643
Reaction score
157
Hi!

richard said:
There are some duplications ( Bf163 ; Me 163 . Bf 162 ; He 162 . Fw 187 ; Ju 187 . Me 265 ; Fl 165 . Hs 296 ; Ar 296 ....).

You are quite right! Even in carefully prepared RLM plans appears the places for duplications or even mistakes ;)

Thanks for correction!


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
319
Reaction score
158
These are Hs-122 too:


Attachments

  • hsp122.jpg
    50.2 KB · Views: 840
  • henshel-122.jpg
    19.7 KB · Views: 812

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
40

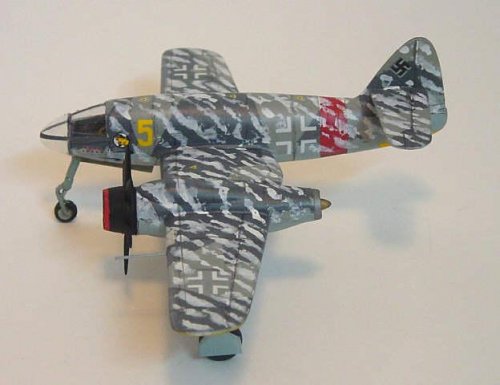

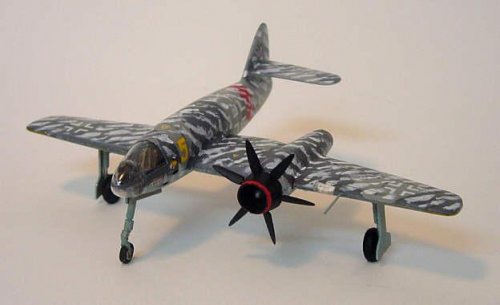

Hi I found 2 low res pics.
Crappy model now I look at it again.
Unicraft Hs P122 fuselage and fin with wings made from a Fw Ta154. Engine by Unicraft.

Cheers
p


Attachments

  • Hs P122As ymmetric 1.JPG
    Hs P122As ymmetric 1.JPG
    28.5 KB · Views: 814
  • HsP122As 2.JPG
    HsP122As 2.JPG
    18.5 KB · Views: 830

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
Hi,

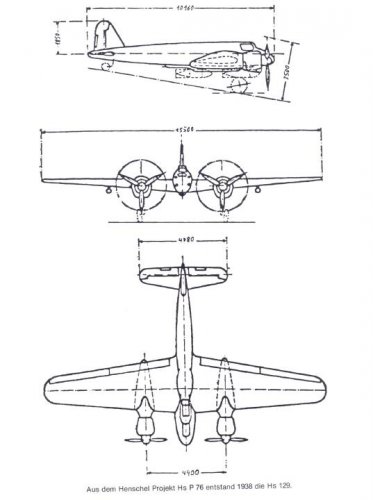

Hs P.76 was a twin engined low-mid-wing ground attack project,looks like Hs.129.


Attachments

  • P.76.JPG
    36.2 KB · Views: 816

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
The cation says "In 1938 the Hs 129 emerged from the Hs P.76", so it was the pre-project,
or internal project number for the Hs 129. ;)
Can you tell us the source, please ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
Here is the source my dear Jemiba,


Waffen-Arsenal; Flugzeuge gegen Panzer.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321

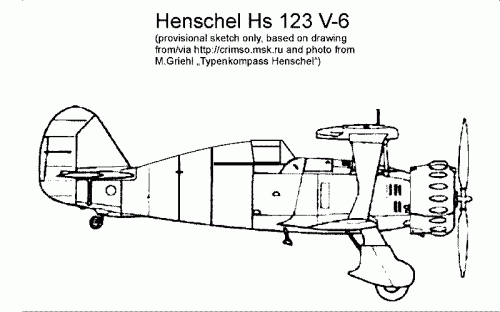

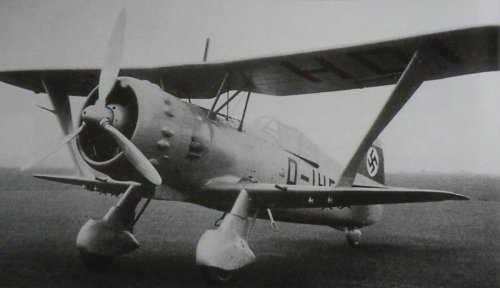

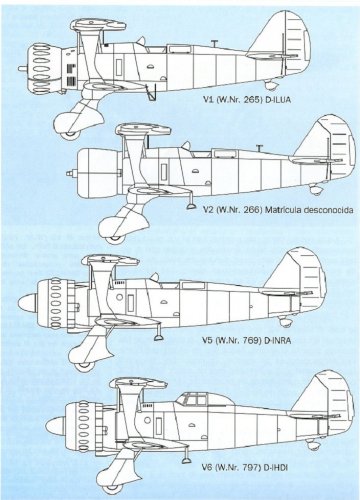

Found in "Manfred Griehl, Typenkompass Henschel", not strictly a project, but a proposal, that
never came to fruition, the HS 123 fitted with a closed canopy. Tested in the prototype V-6, the
open cockpit was still preferred by the pilots. Have searched for quite a while and this was the
first photographic evidence I've found.

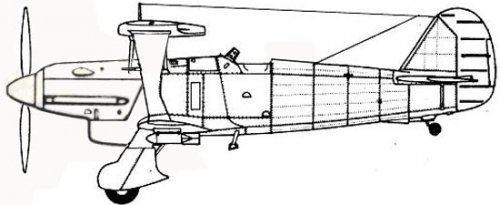

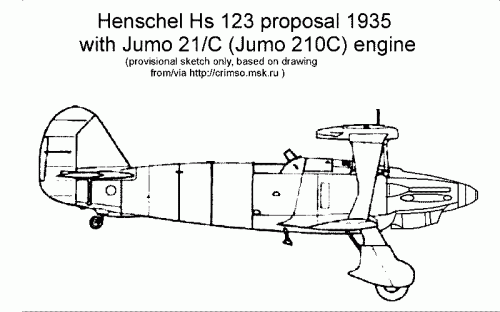

With the beginning of this program, versions with other engines were proposed, too. One of them
should have been powered by a Jumo 21/C (later Jumo 210C). Tried to sketch it using the nose of
the He 112, as shown on http://www.luftfahrtmuseum.com.
Perhaps someone got another, more realistic drawing ?


Attachments

  • Hs-123_V-6.jpg
    91.3 KB · Views: 507
  • Henschel_Hs-123_V-6.gif
    9.6 KB · Views: 496
  • Henschel_Hs-123_Jumo-210.gif
    9.5 KB · Views: 498

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
133
Well done, Jens. Does the series "Typenkompass" hold more lesser-known projects/variants?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
Mentioned, too, are proposed variants with BMW Hornet 135, with Twin Wasp Junior S5A-G
(probably similar to the Hs 123 V-2 ?) and with Hispano Suiza 12 (!) engines (Still looking for
a good pattern for the latter one).
The unbuild projects were all already mentioned here (P.87, P.122, 135, 136 ..)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
A very welcome addition to this thread Jens! Thanks.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,987
Reaction score
112
It perhaps deserves its own topic but something like four types of rockets and five gunpods were proposed for the HS-129 that didn't see service.

The HS-129C was also slated to have an ejection seat and twin mk-103 installation similar to the Russian KABB project. This would allow hitting the top armour of tanks. While ammunition supplies were extremely limited, the ability to attack from extreme low altitude and hit tanks from their most vulnerable direction could have been extremely effective (I've run simulations on this actually :) )

So there is a very interesting evolution of weapon systems here.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
Apophenia said:
Another source for Jumo cowling inspiration might be the Hs 126 v1

Good work ! But the Hs 126 V-1 had a DB 600, hadn't it ? Actually, the cowling of the Jumo
powered Hs 123 could have been more similar to this one, than to the one I've used, as there
often is a kind of "family likeness" between the designs of a manufacturer.

Avimimus said:
It perhaps deserves its own topic but something like four types of rockets and five gunpods were proposed for the HS-129 that didn't see service.

Good idea, we should have a look for detailed inforamtion. The mentioned book just covers the built variants,
including the one with the SG 113.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
133
The HS-129C was also slated to have an ejection seat and twin mk-103 installation similar to the Russian KABB project
Hi Avimimus,

can you please state your source? I didn`t know about this.
In
Also, does anyone know about the other contenders in this RLM specification? In Wikipedia one can read that four companies were invited to tender, but only two of three projects were considered. What was the third project? By Gotha or by Hamburger Flugzeugbau?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
According to Novarra "Die deutsche Luftrüstung 1933 - 45" the C-series would have been
powered by Isotta-Fraschini engines. No other information there. Seems, that other sources
for engines were looked for, as with the Gnome & Rhone engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
richard said:

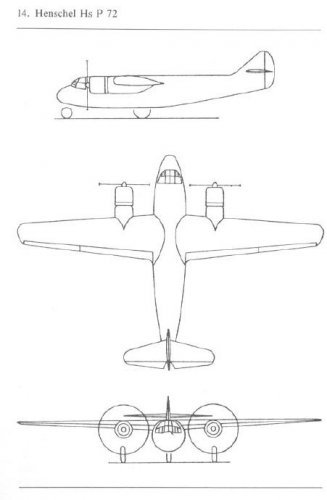

Hs P 72 was an high wing 2xBMW 801TJ transport (length:17,8 m)


Hi,

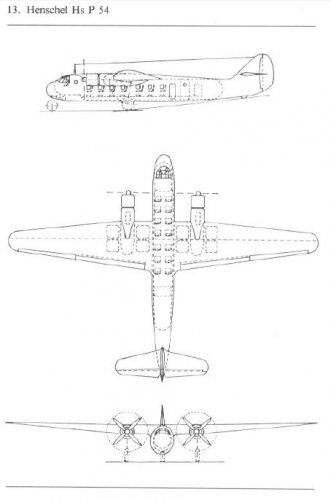

Hs P 54 was twin engined high-wing medium transport monoplane project,powered by two
1750 hp BMW 801 TJ engines.


The source is the same book as my dear Jemiba later mentioned.


Attachments

  • P.72.JPG
    22.6 KB · Views: 432
  • P.54.JPG
    26.7 KB · Views: 433

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,987
Reaction score
112
Hi Avimimus,

can you please state your source? I didn`t know about this.

I only read the book in passing... I remember the photographed documents reproduced in it though.

Such weapon loads for the Hs-129C-1 are mentioned in "German Aircraft of the Second World War: Including Helicopters and Missiles" By Antony L. Kay, John Richard Smith. However, the book I saw had reproduced drawings of the Hs-129C and a photograph of a document listing proposed gunpods and ammunition loads.

If I recall correctly: The twin depressable Mk-103s carried only 30 rounds per gun! There were also 2xmg151 (250 rpg), 2xmg131 (500 rpg) and 4xmg131 (250 rpg) gun pods looked at early in the program. The WGr. 21, WGr. 28, Panzerblitz 1, Panzerblitz 2 may actually have been tested. There is also passing reference to the Gero flame thrower.

I have yet to see any documents showing drawings of the gun-pods or rocket mounts that were proposed but never saw service.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321

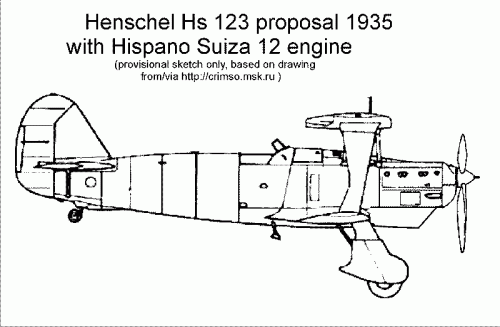

Couldn't resist to transplant a Hispano Suiza 12 (Y) engine to the HS 123 fuselage.
Actually, I can only think of this propulsion plant to be meant for export aircraft ?


Attachments

  • Henschel_Hs-123_H-S-12.gif
    10.8 KB · Views: 596

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,771
Reaction score
1,269
Jemiba said:
... But the Hs 126 V-1 had a DB 600, hadn't it ? ...

According to William Green's Warplanes of the Second World War Vol.9 (pg.186), the Hs 126 v1 was powered by a 600 hp Jumo 210 "pending availability of the proposed Bramo Fafnir 323A-1 nine-cylinder radial ...". But that book was published in 1967, so who knows?

BTW, in Vol.10, Green identified the Hs 129C's powerplant as the Isotta-Fraschini Delta RC 16/48 rated 840 hp at 17,390 ft. Green said that the C series only proceeded as far as an engine installation mockup.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
Griehls "Typenkompass" give for both, the Hs 126 V-1 and V-2 the DB 600 as the
propulsion plant. Novarra says, the V-1 was at first given a RR Kestrel, which was later
replaced by a Bramo 323, whereas the V-2 got a Jumo 210 at first ...
Such engine changes were quite frequent then, just have a look at the Bf 109 or Ju 87,
so not unplausible, but Griehl at least gives photographic evidence of the V-1 and V-2
with the DB 600, although that's no reason, that no other engines were used on those
airframes.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,771
Reaction score
1,269

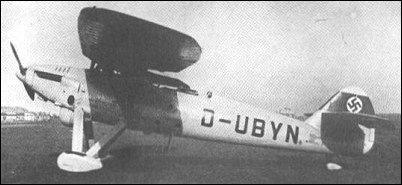

Thanks Jens. I knew that the Hs 122 V1 (D-UBYN) had a Kestrel but hadn't seen the suggestion that the Hs 126 prototype was similarly powered.

Interesting idea about an HS.12-powered export Hs 123. Moteur canon perhaps? :D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321
With trying to get the different engine lconfiguartions rigt, it seems, that we've opened
a can of worms !
Griehl gives for the HS 122 V-1 the registration D-UQEV, powered by a Siemens Halske SAM 22B radial.
The D-UBYN is said to have been the V-2, powered by a Kestrel, at least this aircraft is shown and the
shape of the cowling fits to this type of engine.
What is said to be the Hs 126 V-1 is shown on two photos, too, but it didn't wear a registration, so it's hard
to determine, if it really is the first prototype.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,771
Reaction score
1,269
Hmmm. A can of worms indeed. LuftArchiv says the same: "Hs 122 V2, D-UBYN, mit Rolls Royce Kestrel Motor". Alas, no image of the Hs 122 V1.

http://www.luftarchiv.de/flugzeuge/henschel/hs122.jpg
http://www.luftarchiv.de/index.htm?/flugzeuge/henschel/hs122.htm

Wikipedia cites CG Grey, Jane's AWA 1938, saying V1 was D-UBYN (powered by Kestrel) and V2 was D-UBAV powered by a Siemens Sh 22B.

Just to add to the confusion, Warbirds Resource Group refers to the first two prototypes as the Hs 122a and Hs 122b. Presumably, these 1935 prototypes were designated before the RLM's Feb 1935 V-for-Versuch rules were enforced.

http://www.warbirdsresourcegroup.org/LRG/hs122.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,321

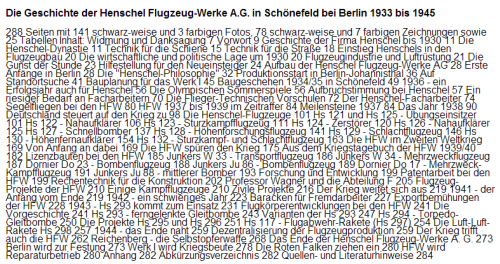

In "Die Geschichte der Henschel-Flugzeugwerke AG 1933 - 45" by Horst Materna some projects arer mentioned, too:

- Hs P.21 : This designation was used in 1936 for several designs for a fast bomber, building a mock-up was started
- Hs P.24: Design for a heavy figher, stopped in October 1936 because the kind of engine used was still unclear.
- Hs. P.25/26: 4-engined (Jumo 210) long-range bomber, crew of four to six, seated in a fully glazed nose, bomb load
3,000 kg, mechanically steered dorsal and belly twin gun turrets and a tail turret. A mock-up was ordered in 1936, but
the progarm was stopped in 1937.
- Hs P.28: 3-seat close reconnaissance aircraft 1936.
- Hs P.30: Modification of the Hs 124 for high altitude engines.

Several later projects are given just with their descriptions, but without designations:
- Twin seat, 3-engined jet aircraft, 1943 ( unclera if fighter or bomber)
- 3-seat, 4-engined (TL 018) bomber 1944, inner engines in the wing roots to be shut down during cruising flight and intakes
then shut to minimise drag. Remotely controlled guns, range 2,000 km, bomb load 2,000 kg.
- Combination of the AA-missile Hs 117 "Schmetterling" and a mini glider with canard layout (span 4 m, wing area 4qm).
Launched by a catapult, this combination should be guided to a bomber by the pilot , who then would release his glider
and land.
- Hs P.136: Canard rocket fighter with prone pilot and an armament of two rocket pods with six 5 cm rockets each.

BTW, I've merged the old thread about the "Hs 122" which actually was misinterpretation of the "P.122" . ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
Excellent my dear Jemiba,


thank you for sharing.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
133
Great input, Jens! Thanks. I own the book and, apparently, I missed those later projects. How silly of me ::) .


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,002
Reaction score
404

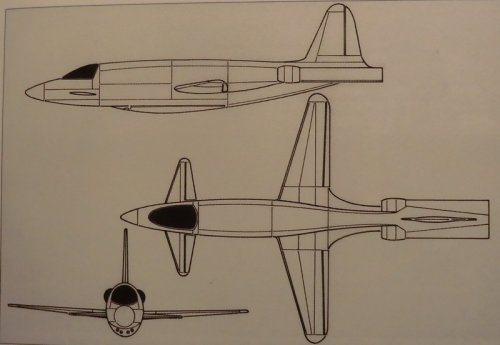

HsP.136...


Attachments

  • Henschel HsP-136-.jpg
    Henschel HsP-136-.jpg
    88.8 KB · Views: 917

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
711
We already have a topic on the P.136 (also dubbed the PJ 600 after its engine):
http://www.secretprojects.co.uk/forum/index.php/topic,16398.msg170843.html#msg170843

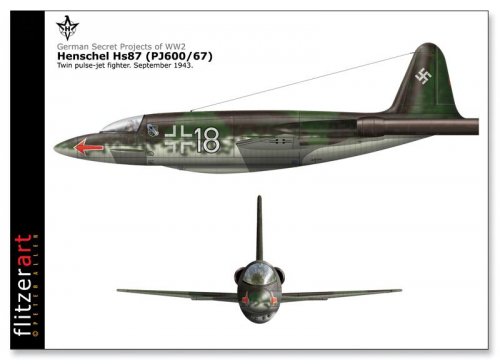

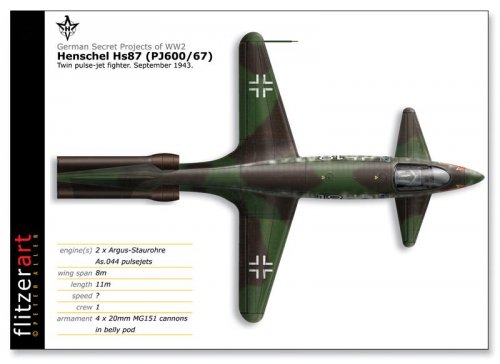

Flitzer made a beautiful series of "what if" plans for that aircraft! (I'm attaching one of them)

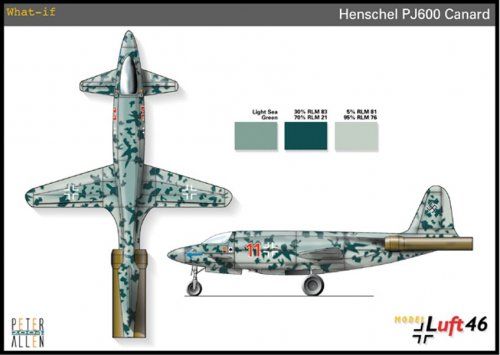

I'm also adding a beautiful "what if" plan by Peter Allen.


Attachments

  • 55V9HsP600J.jpg
    44.7 KB · Views: 913
  • 56V9HsP600J.jpg
    38.9 KB · Views: 895
  • Henschel PJ600 Canard.jpg
    Henschel PJ600 Canard.jpg
    60.9 KB · Views: 909

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
Hi,


here is a drawing to Hs.129C project.


Attachments

  • 1.png
    103.5 KB · Views: 793

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,981
Reaction score
5,267
Hi,


I found on ebay,a reference to Henschel patent aircraft projects,and they used a strange
series;the HFW,and some missile projects too,but it's the first time to hear about that
sequence.


http://www.ebay.de/itm/HORST-MATERNA-DIE-GESCHICHTE-DER-HENSCHEL-FLUGZEUG-WERKE-A-G-IN-SCHoeNEFELD-B-/280921510257


Attachments

  • Henschel.png
    72.5 KB · Views: 177

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,255
Reaction score
112
Website
zeef.com
V-5 and V-6 could be been a base for version B and C : anyone know there are a detailed technical data about V-5 and V-6 ?


Attachments

  • Hs123.jpg
    124.8 KB · Views: 183

Similar threads

Top
