Hypersonic Surface-To-Air Missile (HYSAM)

[dannydale]

I cannot say I've seen this one. Hypersonic SAM?

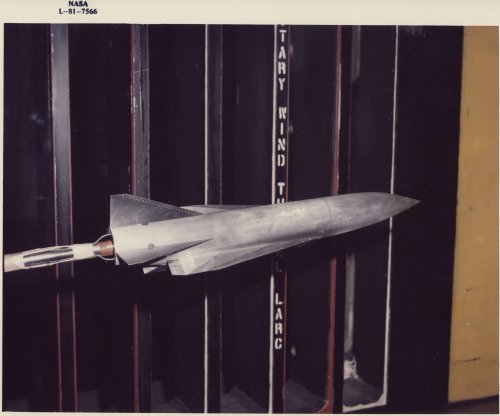

http://crgis.ndc.nasa.gov/historic/File:L-81-7566.jpg

Very highly-swept wings and tailplanes on what I guess is your generic ogive forebody, possibly an elliptical one or flattened on the bottom half. Aft end of a hollow box-like structure can be seen under the tail which then seems to ramp up on the bottom, suggesting an expansion ramp.

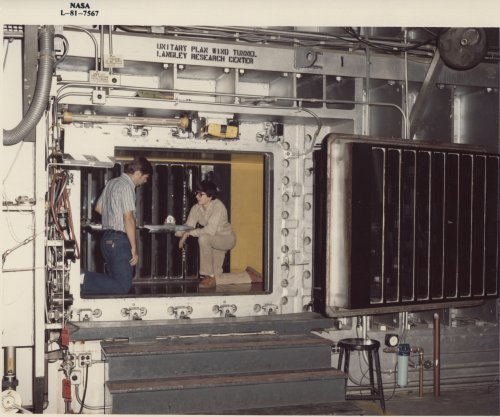

http://crgis.ndc.nasa.gov/historic/File:L-81-7567.jpg

Apologies for the hipsters in the second photo. The parallelogram object appears to be an engine cowl, and the nose ogive is definitely flattened a bit on the bottom leading into the cowl. The tail expansion ramp can be seen in clear profile.



[flateric]

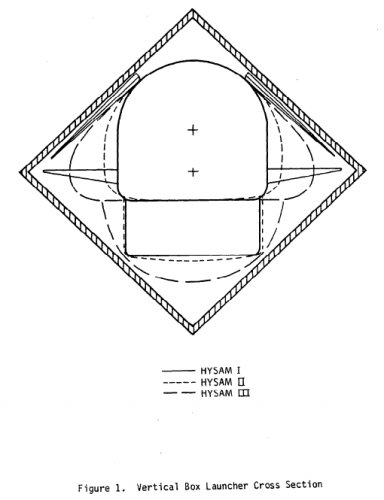

seems that this was one of many HYSAM variations studied (more on these in the evening)

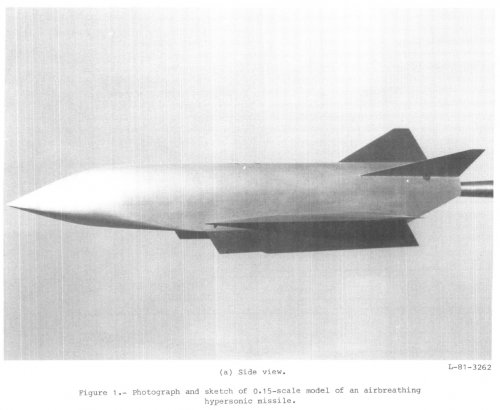

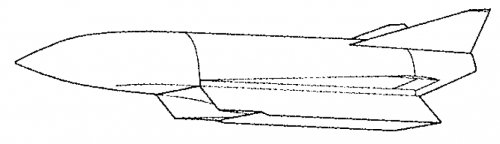

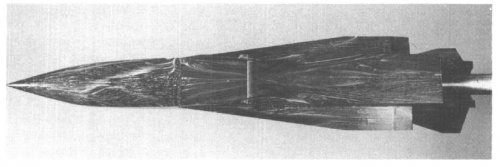

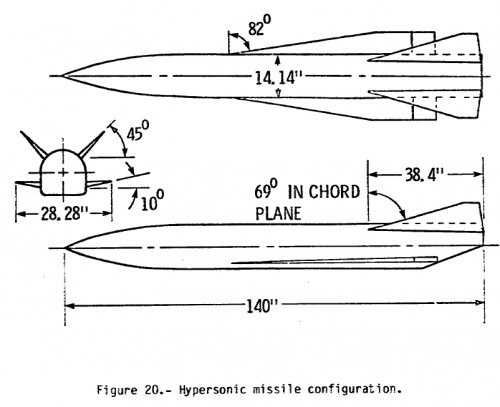

so far - 'classic' HYSAM and Marquardt report on its scramjet
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840005127_1984005127.pdf



[mz]

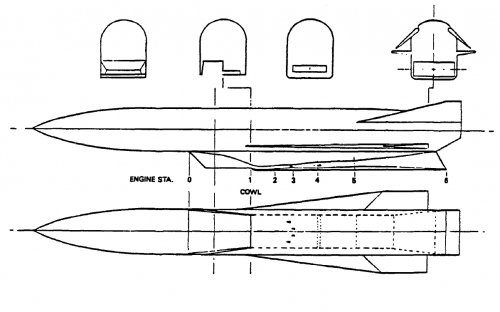

Interesting approach with the compression ramp. First thin sidewalls, then the ramp closing in vertically. I guess this simplifies design greatly.



[DSE]

Interesting approach with the compression ramp. First thin sidewalls, then the ramp closing in vertically. I guess this simplifies design greatly.

A variation of a 3-D "sidewall" compression inlet, ala the NASA Langley 3-Strut inlet without the struts. See Design and Performance at a Local Mach Number of 6 of an Inlet for an Integrated Scramjet Concept., Trexler, C. A. and Souders, S. W., NASA TN D-7944, August, 1975. http://hapb-www.larc.nasa.gov/Public/Documents/19750022091_1975022091.pdf
