Hughes Ring-Wing Missile

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

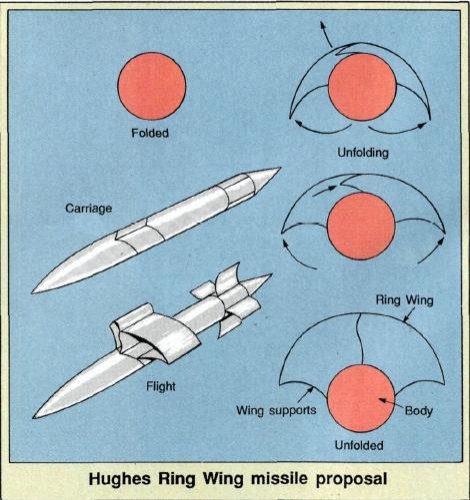

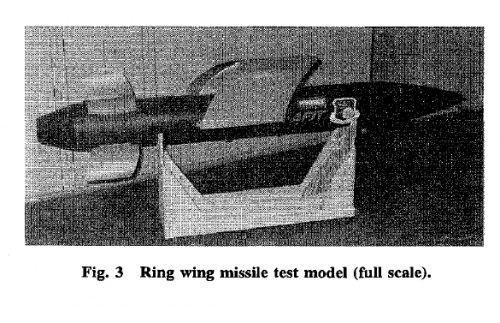

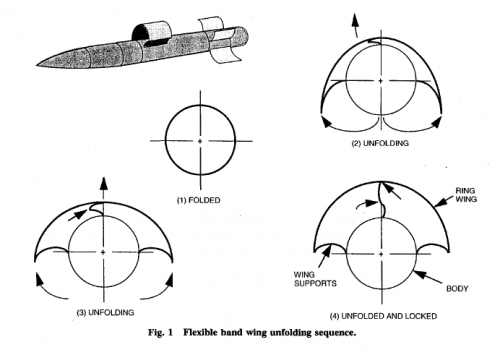

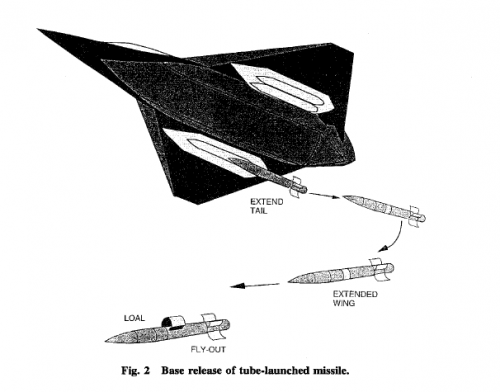

and here is a more drawings and a full scale Model for this Hughes Concept.


http://arc.aiaa.org/doi/abs/10.2514/3.47026


Attachments

  • 1.png
    33.7 KB · Views: 282
  • 2.png
    33.8 KB · Views: 282
  • 3.png
    60.3 KB · Views: 271

pedrospe

ACCESS: Secret
Joined
Feb 9, 2010
Messages
282
Reaction score
36
Very enteresting concept,thanks a lot for sharing Hesham.




regards


Pedro


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
GTX said:
Did this ever get trailed?


Frankly,I don't know,my dear GTX,

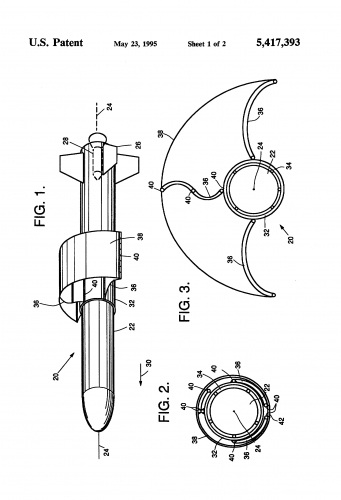

and here is a Patent for it;
http://www.google.com/patents/US5417393


Attachments

  • US5417393-1.png
    55.6 KB · Views: 173
