Heinkel He 280 Prototypes & Projects

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Requested by GTX ,27 sept 2008

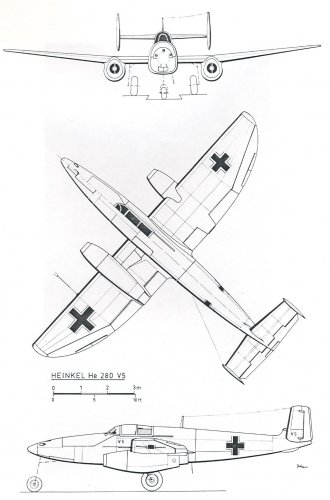

Attachments

  • Escanear0001.jpg
    106 KB · Views: 1,334
  • Escanear0002.jpg
    149.8 KB · Views: 1,210
  • Escanear0003.jpg
    174.5 KB · Views: 1,200
  • Escanear0004.jpg
    220.7 KB · Views: 1,224
  • Escanear0005.jpg
    352.6 KB · Views: 1,087
  • Escanear0007.jpg
    115.8 KB · Views: 355

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

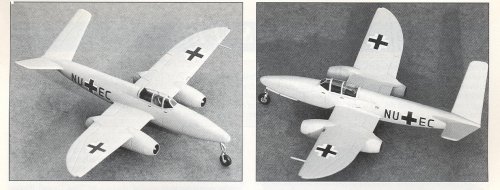

From "Plastic kit constructor Nº 69"

Specifications:
He 280A-1 He 280B-1
Engines 2x Heinkel 001A 2x Jumo 004B
Engine thrust 750 kg (1653 lbs) 900 kg (1984 lbs)
Empty Weight 3215 kg (7088 lbs) ?
Maximum Weight 4300 kg (9480 lbs) 5170 kg (11,376 lbs)
Max Speed at sea level 870 kph (540mph) 800 kph (498 mph)
Max Speed at 6000m (19,690 ft)900 kph (559 mph) 880 kph (547 mph)
Max rate of climb 19.1 m/sec (3760 fpm) 24.65 m/sec (4355 fpm)
Range 970 km (603 miles) 718 km (446 miles)
Armament 3x 20mm 6x 20mm
Bombload None 1100 lbs (500 kg)


Attachments

  • Escanear.jpg
    214.6 KB · Views: 319

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Thank you Justo
Do you know the He 280 V 6 with single fin & rudder ?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

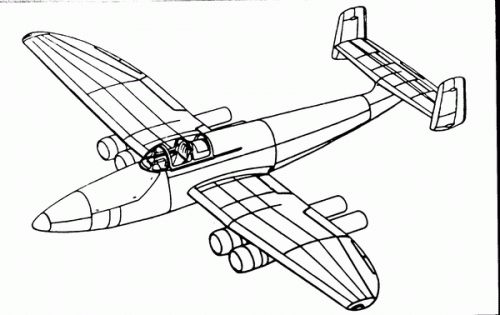

In Waffenarsenal Bd.108 a provisional drawing shows, what the He 280 with
four Argus 014 pulse jets would have looked like.


Attachments

  • He-280_Argus014.GIF
    47.3 KB · Views: 236

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
richard said:
Do you know the He 280 V 6 with single fin & rudder ?

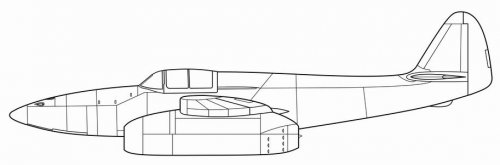

Sorry, from unknown source:


Attachments

  • He280-b.jpg
    20.1 KB · Views: 278

Bodmas

ACCESS: Confidential
Joined
Feb 19, 2009
Messages
71
Reaction score
0
Thanks everyone - i didn't realise that the He 280 project had been so thoroughly elaborated - what with the initial powerplant problems; i thought it had been completely shelved after the first few test-flights :eek:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,

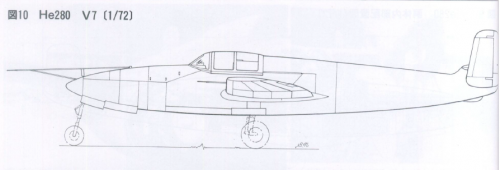

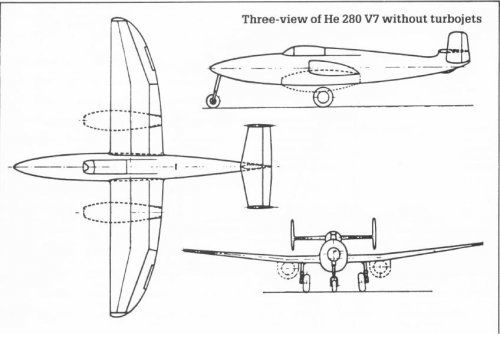

here is the Heinkel He-280 V7,without turbojets.


Attachments

  • 280 V7.JPG
    280 V7.JPG
    41.5 KB · Views: 213

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

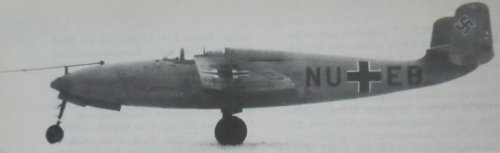

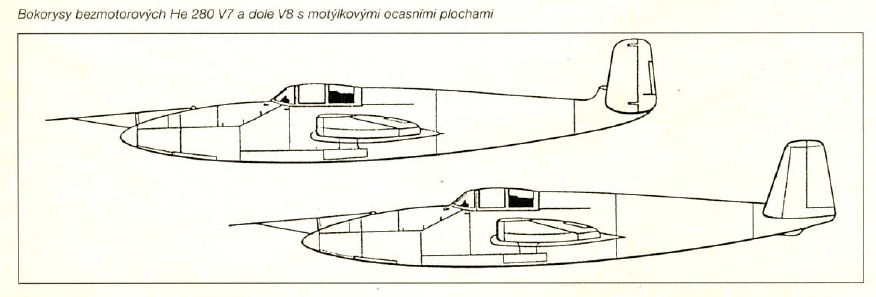

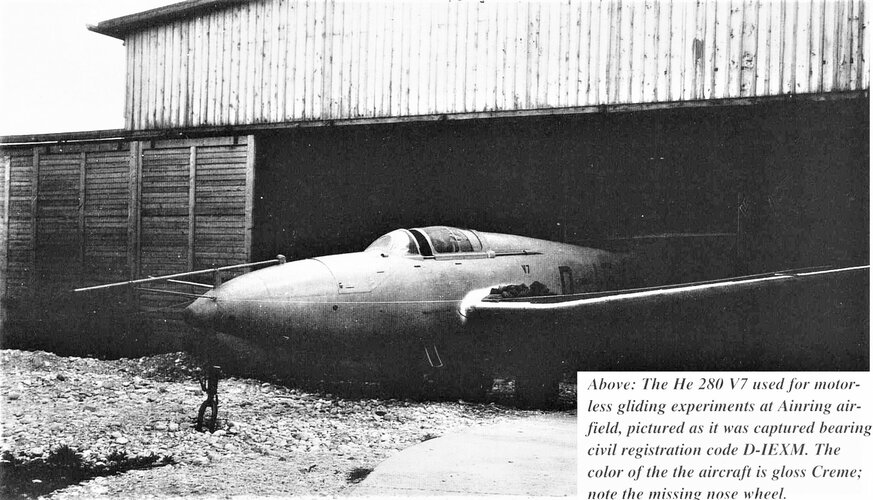

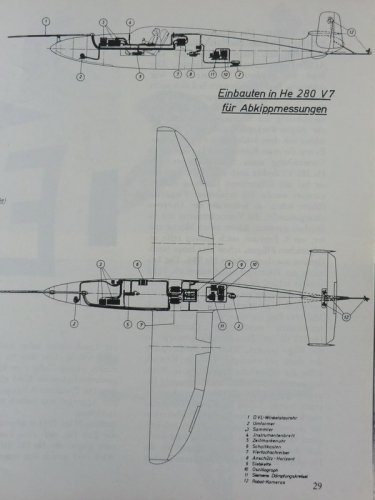

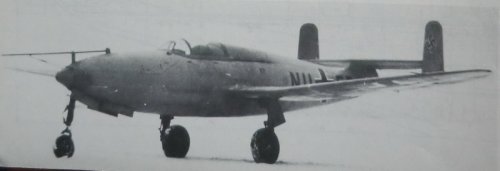

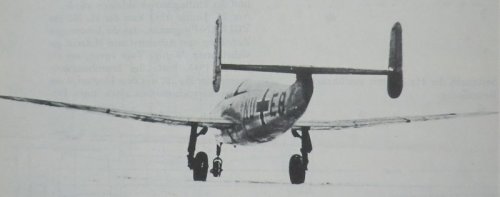

The V7 was used for handling tests as a glider. From the already mentioned Waffenarsenal Bd.108,
a drawing showing the additional installations and three photos of this aircraft


Attachments

  • He-280V7_04.jpg
    50.4 KB · Views: 204
  • He-280V7_03.jpg
    53.9 KB · Views: 199
  • He-280V7_02.jpg
    44.2 KB · Views: 242
  • He-280V7_01.jpg
    96.9 KB · Views: 246

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
From Jet & Prop,

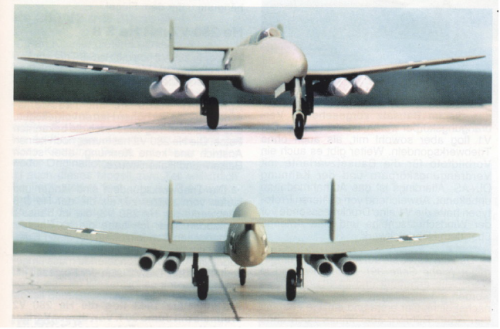

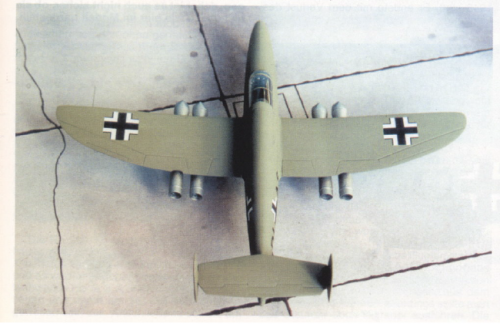

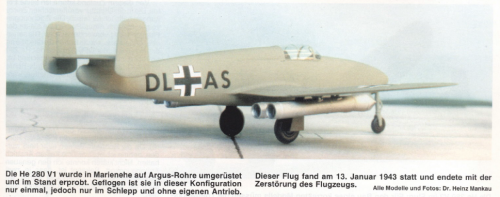

here is a model for Heinkel He.280 with Argus 014 pulse-jets.


Attachments

  • 1.png
    675.5 KB · Views: 182
  • 2.png
    531.2 KB · Views: 181
  • 3.png
    565.2 KB · Views: 186

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,

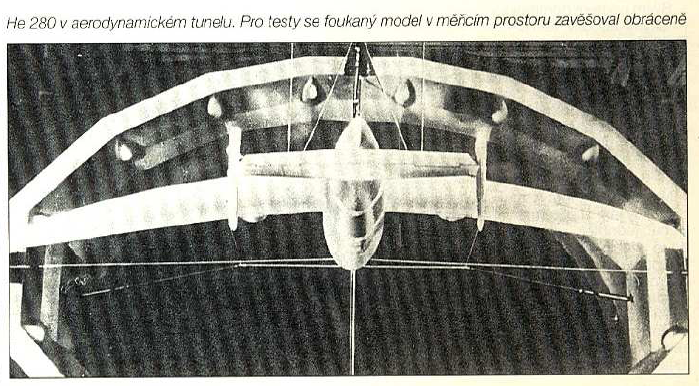

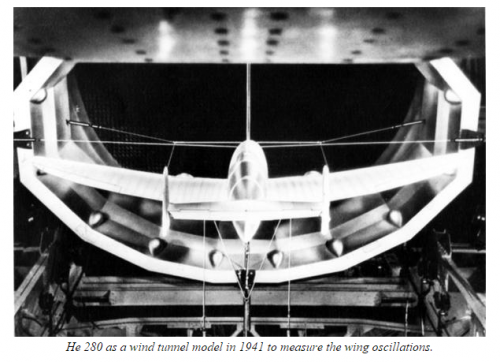

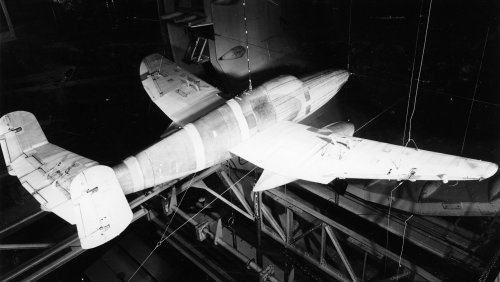

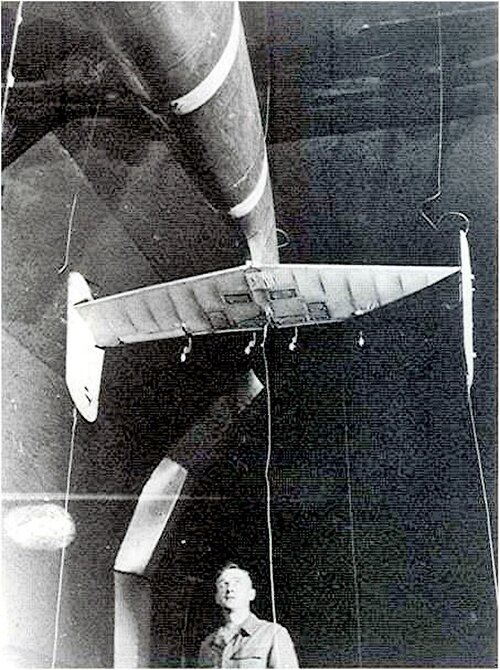

here is the Heinkel He.280 in wind tunnel Model,and an Info about He.180;


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/h/Heinkel/He%20280/Heinkel%20He%20280.htm


Attachments

  • 280.png
    254 KB · Views: 811

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394

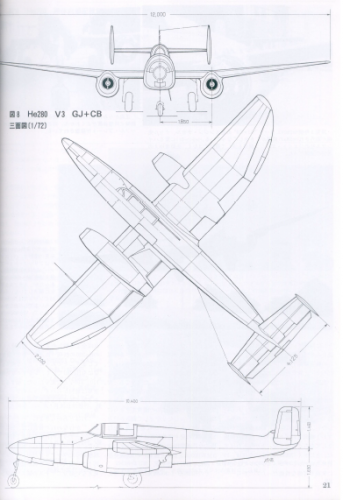

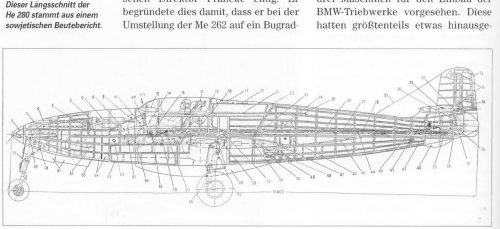

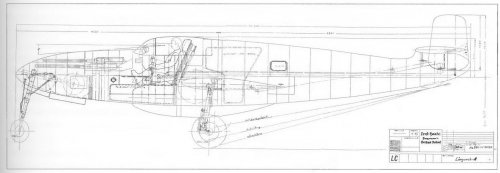

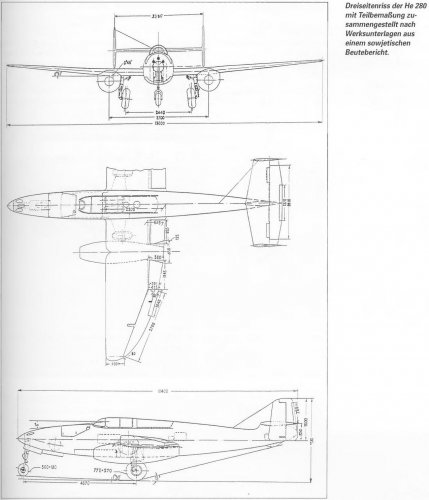

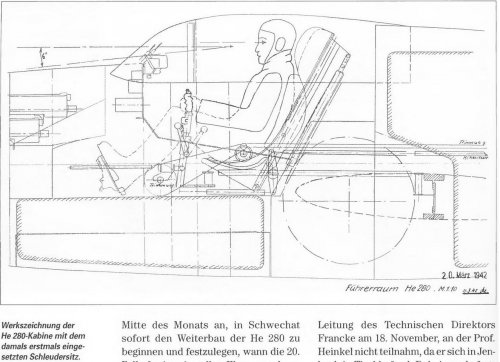

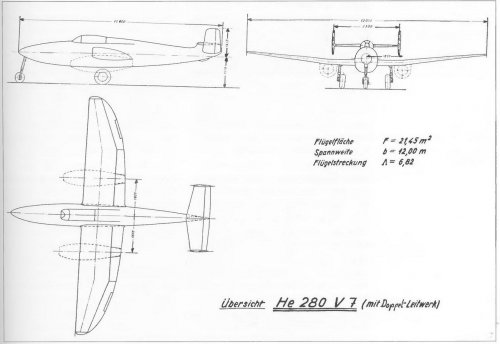

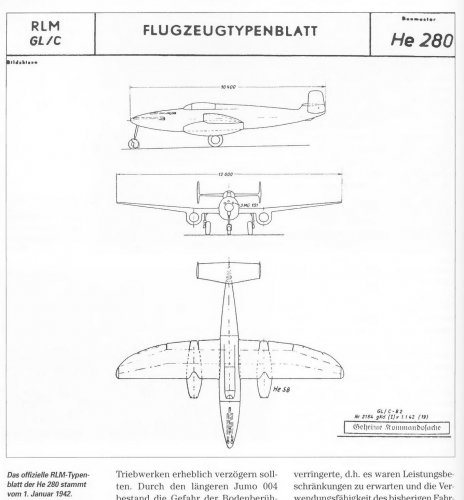

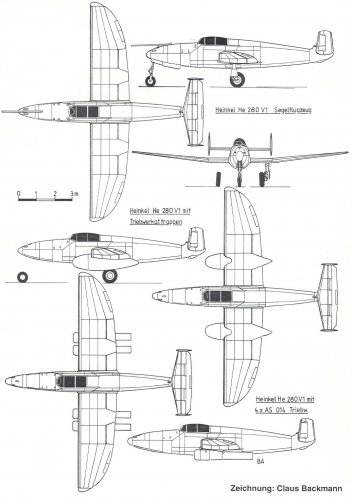

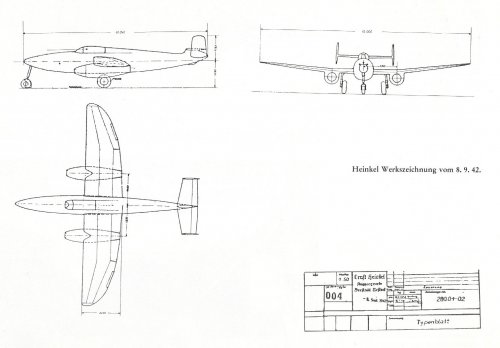

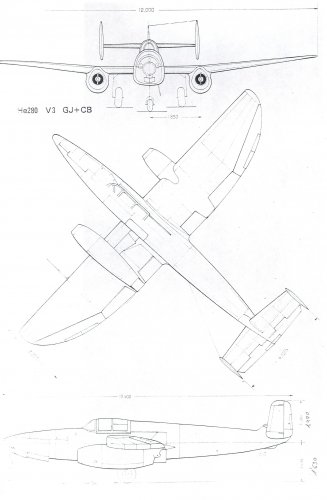

A bunch of good drawings from Heinkel: Raketen und Strahlflugzeug


There are a few more drawings I could post if people want to see them, as well as some rare photos.


Apologies if these have been posted elsewhere before


EDIT: photo is from here - http://www.dlr.de/dlr/desktopdefault.aspx/tabid-10256/366_read-2283


Attachments

  • 2808.jpg
    392.5 KB · Views: 309
  • 2807.jpg
    215.6 KB · Views: 275
  • 2806.jpg
    85.7 KB · Views: 263
  • 2805.jpg
    127.7 KB · Views: 263
  • 2804.jpg
    166 KB · Views: 259
  • 2803.jpg
    140.9 KB · Views: 250
  • 2802.jpg
    139.9 KB · Views: 695
  • 2801.jpg
    70.5 KB · Views: 730
  • 2011_12_He280-AVA1941.jpg
    774.7 KB · Views: 778

athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
319
Reaction score
174

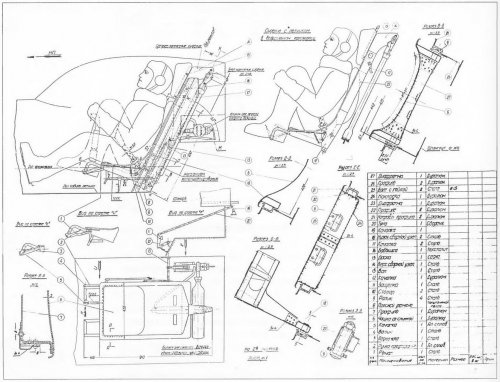

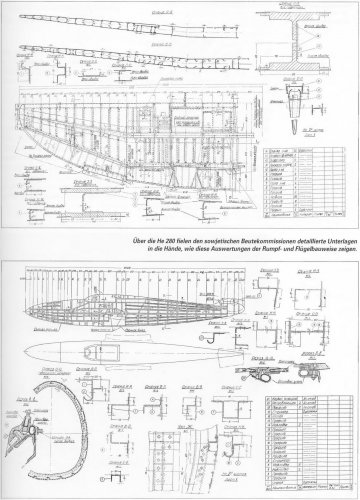

The last drawings are in russian language. So it must be material captured by the soviets. Does anyone know what they made from it?


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Excellent stuff, Sienar! Thanks for sharing with us. Please do post more on this (and other german) subject.


Pavel_P

ACCESS: Restricted
Joined
Mar 24, 2010
Messages
24
Reaction score
5

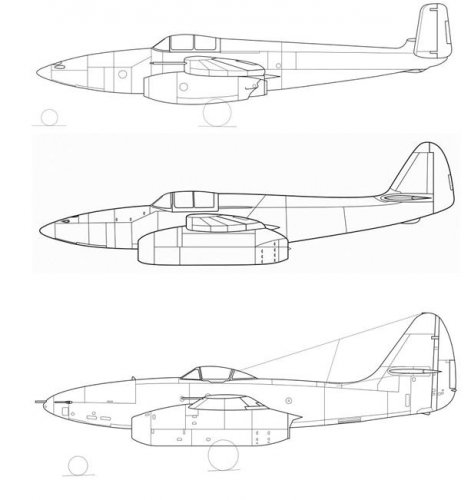

There were rumors that He-280 influenced more on Su-9 project than other German planes.


Attachments

  • 280-9.jpg
    33.3 KB · Views: 249

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

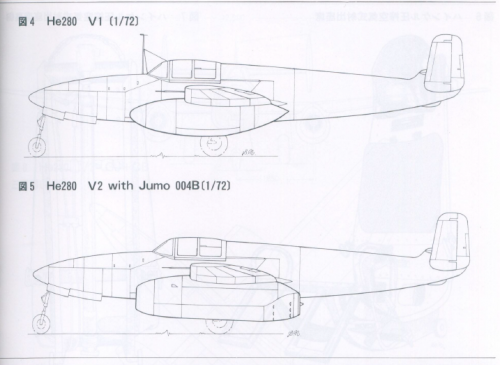

From; Model Art 348 German Jets in WW II


Attachments

  • 1.png
    434.2 KB · Views: 230
  • 2.png
    275.4 KB · Views: 191
  • 3.png
    278.3 KB · Views: 199

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
615
Reaction score
207

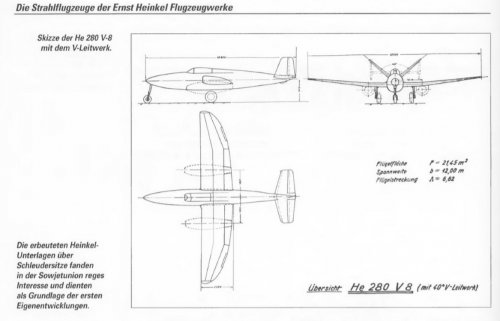

do you have something on the heinkel 280 with V-tail?

thanks for your answer!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hamzalippischh said:

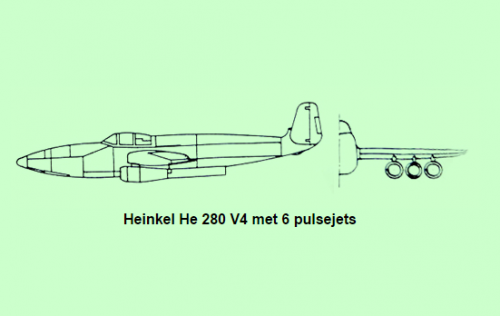

From "Heinkel Raketen und Strahlflugzeuge" by Volker Koos p.162

Yes my dear Hamza,but with pulse jet engines,probably is false one.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
615
Reaction score
207
thank for you answer,here is a topic on the he 280:
https://ww2aircraft.net/forum/threads/heinkel-he-280.47130/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989

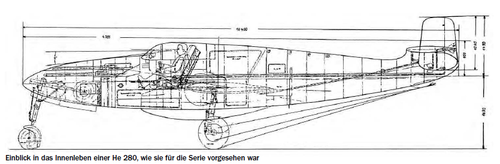

From Flugzeug Classic Extra 2019.


Attachments

  • 1.png
    142.2 KB · Views: 236

Savoia

ACCESS: Restricted
Joined
Jun 24, 2020
Messages
2
Reaction score
0
A bunch of good drawings from Heinkel: Raketen und Strahlflugzeug


There are a few more drawings I could post if people want to see them, as well as some rare photos.


HI Sir !! Would you have some rare photos or Blueprints from ARADO 234 Blitz ??
Do you mind to share it ??

Regards


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,568
Reaction score
1,051

SleeperService2

Not sure about changing it now.
Joined
Aug 16, 2016
Messages
64
Reaction score
74
Hi People
We've been having a great chat about this aircraft HERE and I've been digging around and discovered nowhere explaining where the He280B-1's 2'7" fuselage extension was to be incorporated. As it was for extra fuel we're pretty certain it would have to go forward of the existing tank, it would be good to find some proof. Any ideas?
BTW it's a build on the What-If? Modelsite that has experienced scope creep. So much for a QUICK-BUILD :D;)


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Hi People
We've been having a great chat about this aircraft HERE and I've been digging around and discovered nowhere explaining where the He280B-1's 2'7" fuselage extension was to be incorporated. As it was for extra fuel we're pretty certain it would have to go forward of the existing tank, it would be good to find some proof. Any ideas?
BTW it's a build on the What-If? Modelsite that has experienced scope creep. So much for a QUICK-BUILD :D;)
Behind the cockpit to compensate for the longer length of the BMW 003 engines


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,289
Reaction score
1,225
Why not split the extension as with the Herc variety?


Conspirator

ACCESS: You don't have clearance to know......
Joined
Jan 14, 2021
Messages
168
Reaction score
49
sometimes i wonder what they were thinking when the germans came up with these designs for quad pulse jets


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
In late 1943, flight tests of the Messerschmitt Me 328 V3 transported on a bomber Do 217 in Mistelschlepp configuration started in Hörschling-Linz airfield. The plane was the prototype of the future Me 328 A, the fighter version of the programme. At an altitude of 18,000 ft the carrier plane started a shallow dive to facilitate ignition of the two experimental pulsejets Argus VSR-7 attached to both sides of the fuselage of the prototype. After launch, the pilot verified that the engines lost thrust quickly and were unable to maintain the flight altitude of the Me 328 V3 until coming down to 9,000 ft when the engines returned to normal.
A new attempt made with two Argus As 109-014 could only worsen the problem of vibration, to the extent that Messerschmitt technicians used explosive bolts to fix them so that the airplane might be detached in case of emergency.
Subsequent tests showed that this type of engines were useful only when the plane was flying at relatively low altitudes and speeds and the RLM concluded that the Me 328 could not be used as a fighter.
The Argus pulsejet could not be throttled for lack of fuel pump, which had been removed to simplify the design. The fuel system was pressurized by means of compressed air bottles. The life of the flap valves was 20 minutes and only produced 366 kp thrust at 3,000 m ceiling.
