Heinkel He P.1073 (variants)

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116
The Russian historian to
aviations Mikhael Maslov have found in archive TsAGI some schemes on design
line Heinkel P.1073 (in russian document He-162) 20 variants dated since
July 6 to October 3 1944.
From more or less known project, variant 2 and 3 for I turned out to be new.
1) He P. 1073 02. with Swept Forward Wing

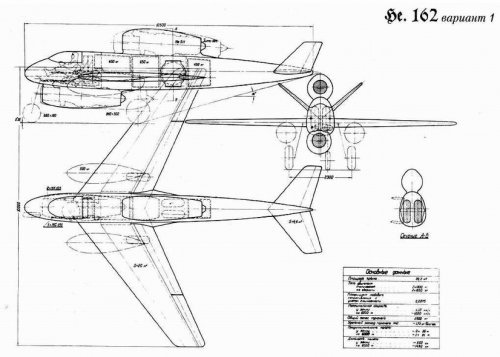

2) He P. 1073.01-01 (6.7.1944)

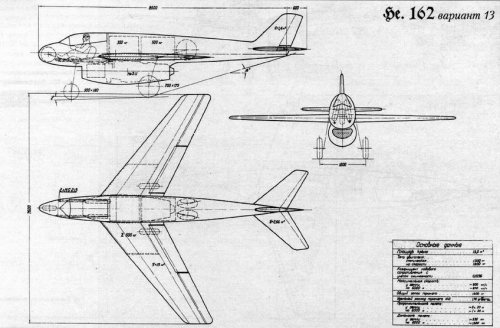

3) He P. 1073. 01-13 (19.8.1944)

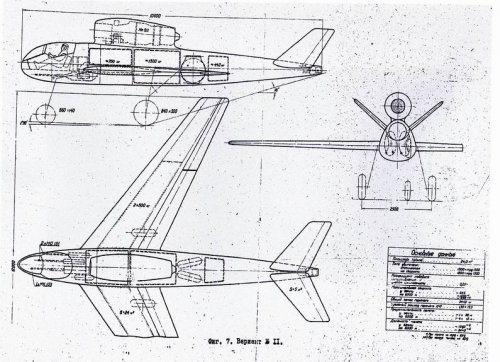

4) He P. 1073. 01-11 (5.8.1944) expected additional use HWK 109 4) courtesy by H.Miranda

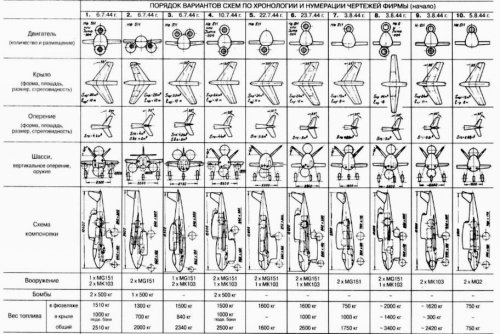

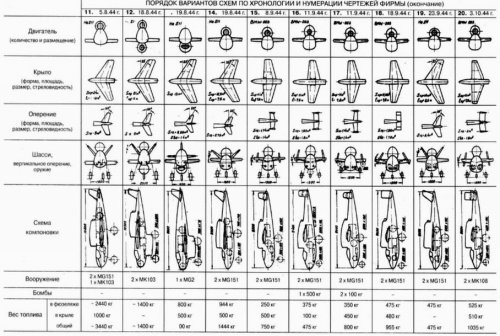

5-6) Variants
7) He P. 1073 02. (in color courtesy by P.Allen)http://www.secretprojects.co.uk/forum/index.php/topic,4547.msg36028.html#new
source:M.Maslov "Poligon"


Attachments

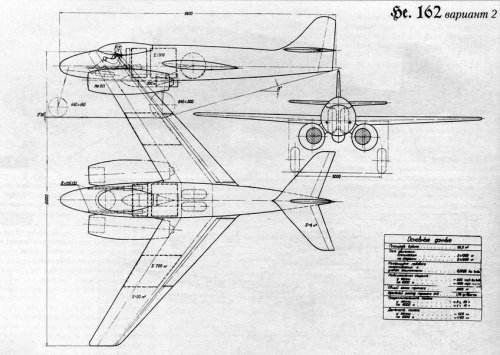

  • He P. 1073. 01-02  (6.7.1944).jpg
    He P. 1073. 01-02 (6.7.1944).jpg
    94.5 KB · Views: 528
  • He P. 1073.01-01 (6.7.1944).jpg
    He P. 1073.01-01 (6.7.1944).jpg
    149.4 KB · Views: 468
  • He P. 1073. 01-13 (19.8.1944).jpg
    He P. 1073. 01-13 (19.8.1944).jpg
    91.1 KB · Views: 452
  • He P. 1073. 01-11 (5.8.1944).jpg
    He P. 1073. 01-11 (5.8.1944).jpg
    118.1 KB · Views: 457
  • He162(1).jpg
    136.4 KB · Views: 470
  • He162 (2).jpg
    He162 (2).jpg
    128.7 KB · Views: 253

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
30
Ahhhh....

So many.....I just might be busy for a while if I get stuck into this little lot.

Great stuff Borovik

Many thanks
Peter
::) :eek: ;D
