Heinkel He 162 projects and variants

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
Jemiba said:
That's what I wanted to express. Back then, people, who made fakes often were
ordered to do so by higher authorities, but the results in most cases are easier to tell,
then today, I think.
Very true!


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,029
Reaction score
204
Jemiba said:
toura said:
Yes Jens, but my "S" is a twoseaters !
As I expressed, I have some doubts about this single-seat glider, too ! Would have been an easy
conversion, of course, but what for ? At least as an actually built variant, I only know the one,
you've posted.
As a variant with a Jumo 004 engine, I've found the A8, not the A9, but it seems to be actually
planned.
Assuming for a moment that the photo was retouched to illustrate a genuine proposal for the Luftwaffe, perhaps it was intended for the so-called 'Leonidas Squadron'?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212
Grey Havoc said:
Assuming for a moment that the photo was retouched to illustrate a genuine proposal for the Luftwaffe, perhaps it was intended for the so-called 'Leonidas Squadron'?
Although designed for easy and fast construction, I think for a one-way mission, the He 162 still was too expensive, especially,
as there were other types, designed from the start for that purpose. And as far as I know, all "Selbstopfer" (self-sacrifice) types
were powered types, that could be released well before the target.

Thanks Justo for those Heinkel types, I think, we should strat a new thread for those, not related to the "Volksjäger" program.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049
Excellent my dear Justo,thank you very much.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100

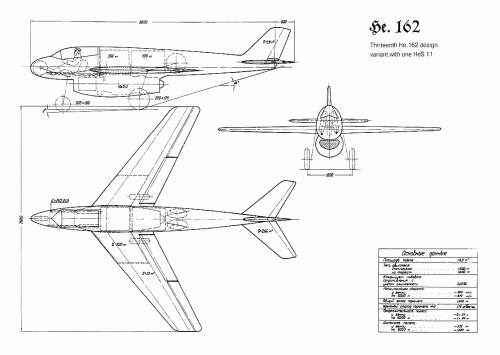

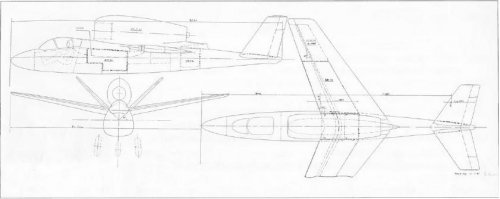

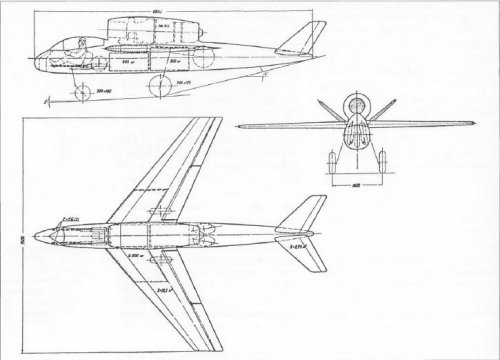

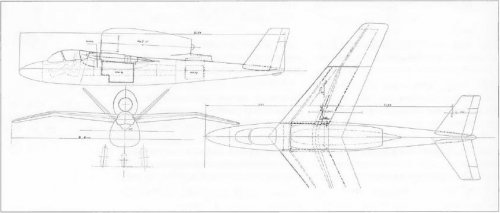

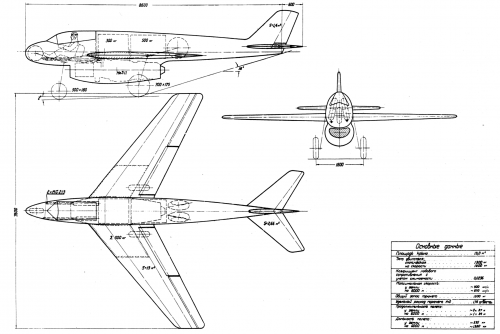

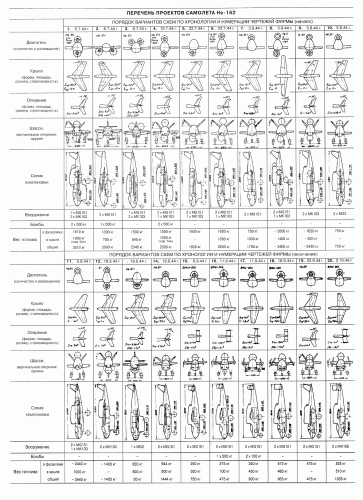

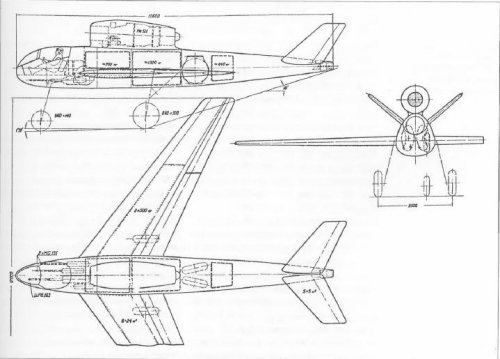

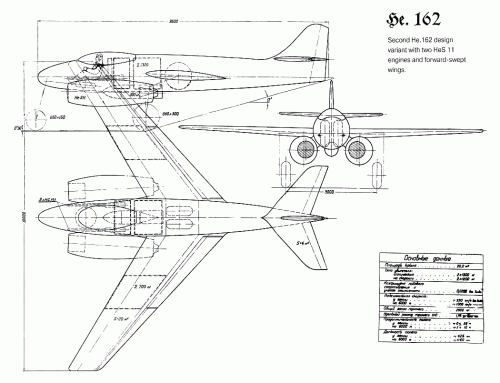

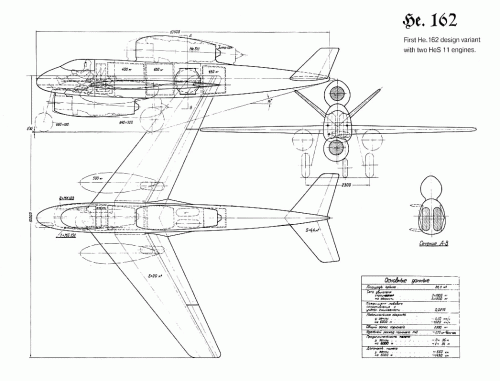

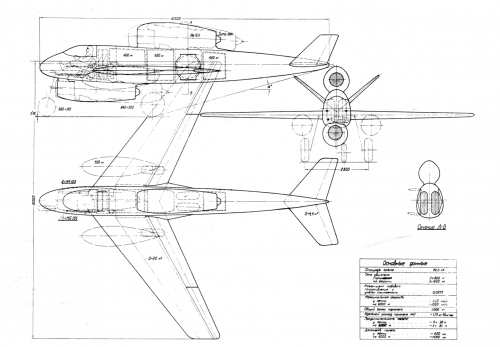

A slightly better resolution of the He 162 versions chart (albeit in Russian), and detailed plans of variants 1, 2 and 13 (all from the Russian magazine Polygon).


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212

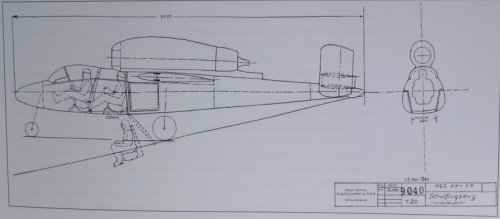

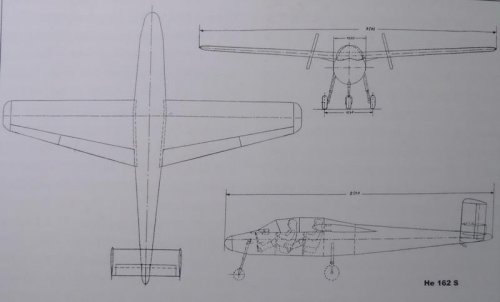

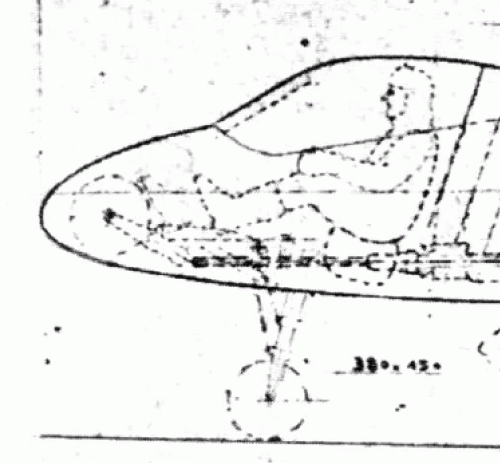

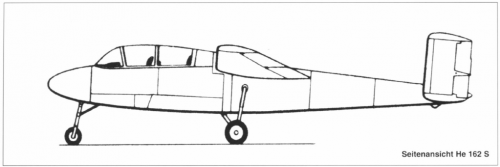

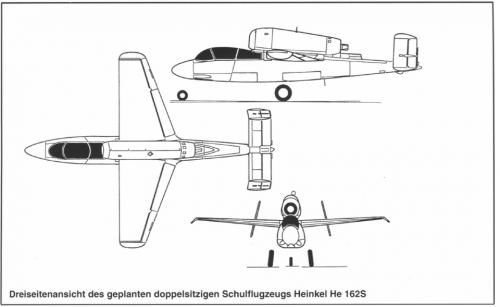

In Volker Koos book "Heinkel Raketen- und Strahlflugzeuge" I've found a drawing of the He 162 twin
seater, showing the "emergency exit" for the instructor. Another drawing shows the seating arrangement
of the He 162S.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Thanks to all. Amazimg! :eek:


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212
Triggered by the thread about Gerys He 162 pictures ( http://www.secretprojects.co.uk/forum/index.php/topic,19310.msg187102.html#new )
I had a look into the Luftfahrt International articles about the He 162 (issue 24 and 25).

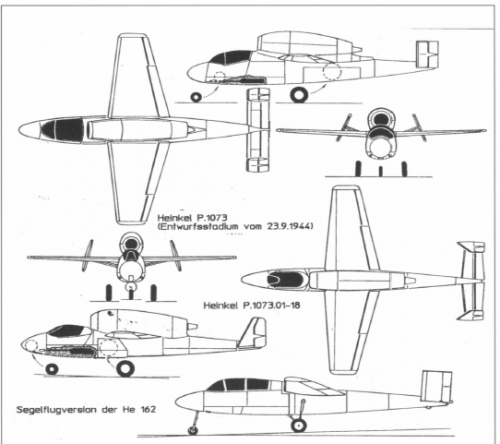

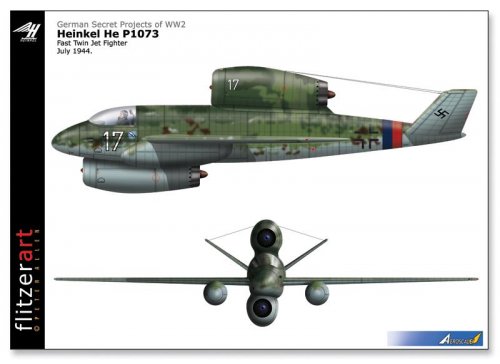

In a drawing of the P.1073 (drawing number 1073 01-18) quite clearly an armoured windscreen
is shown. Weight for armour for this variant was (estimated) 77 kg. For the He 162 (as built) it was 70 kg.
The lack of an armoured windscreen actually amazes me. as this protecting measure was even provided
for the Bachem Natter, which, due to its kind of armament may have stayed at longer distance to its target.
So, my question is: Was an armoured windscreen planned for later marks of the He 162 ? If not, why ?
Ease of production ? Not very likely, I think, as it was used even on more primitive designs. Maybe the
He 162 was planned to be used mainly against fighters ? Not very likely, too, as it was envisaged to be
flown by hastily trained pilots. And pilots, even if only poorly trained were in short supply and not redundant.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212
Both canopies still are different ! Not sure, that the He 100 had an armoured windscreen, or just
an optical flat panel, but the He 162 had neither. A rounded windscreen was tried on other aircraft
and in most cases proved to be problematical, because of optical distortions, often preventing precise
gun laying via the gun sight. The He 280, maybe more comparable to the He 162 had such a flat panel,
too.
The most plausible explanation for me is the urge, the program was driven with. About 180 to 185 He 162
were actually finished, many of them still suffereing from leaking tanks and other flaws, nevertheless, they
were given to squadrons. Changing a part would have meant a delay in the production, so maybe, no changes
at all were incorporated. But that's just a guess, haven't still yet found a real evidence.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212

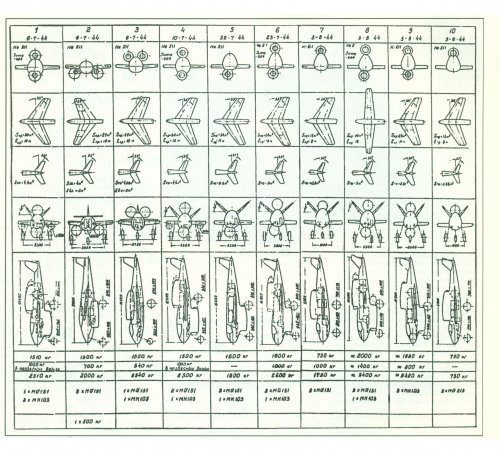

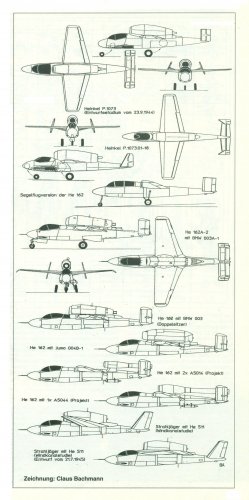

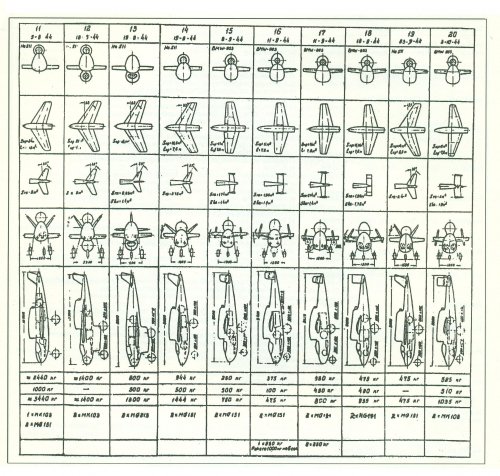

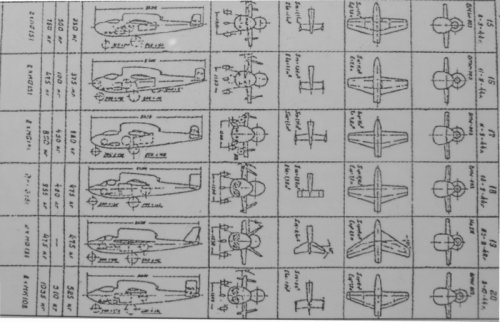

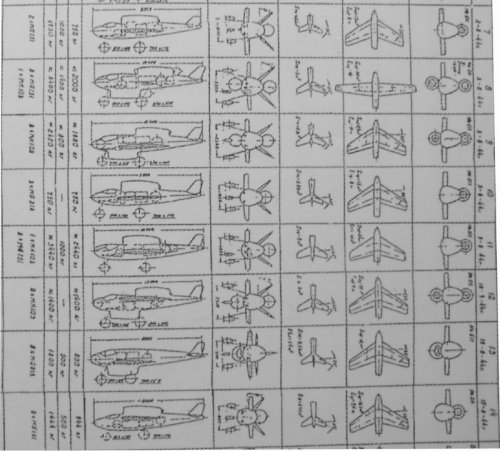

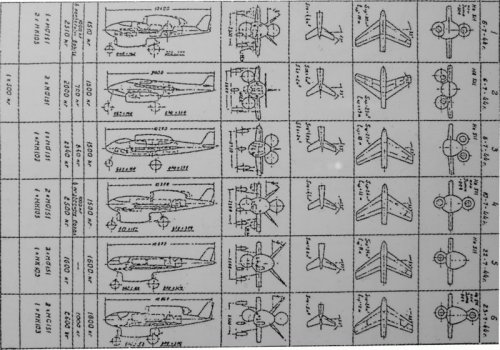

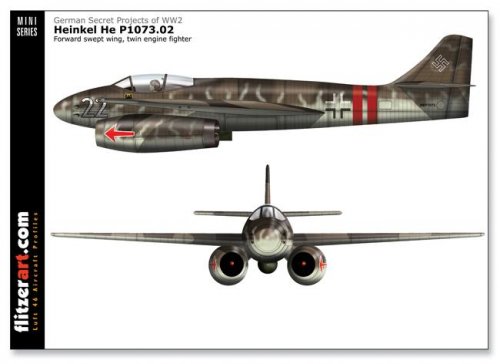

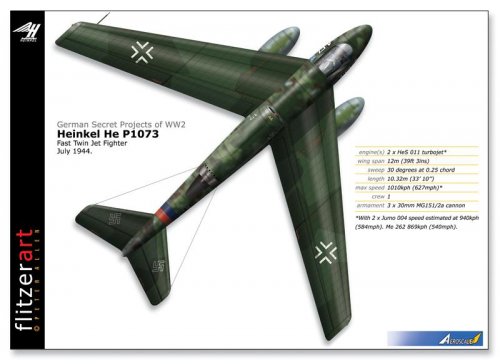

While searching for some clues, I've just found in Volker Koos book "Heinkel - Raketen- und Strahlflugzeuge"
(Rocket and jet aircraft) a listing from a soviet report about the development of the He 162, showing the
variants of the P.1073 1 to 20. The complete page from this report is shown as a picture of about 8cm x
20cm, so the single drawings are less than stamp sized, but maybe the basic layout is recognisable nevertheless.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049
Also from Waffen Arsenal,


a book about He.280,here is a drawing to He.162,but with different cockpit
configuration.


Attachments

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
15
The original posts in this thread mention the two seat variant of the He 162.

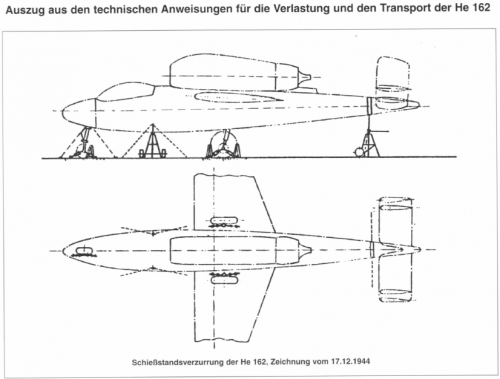

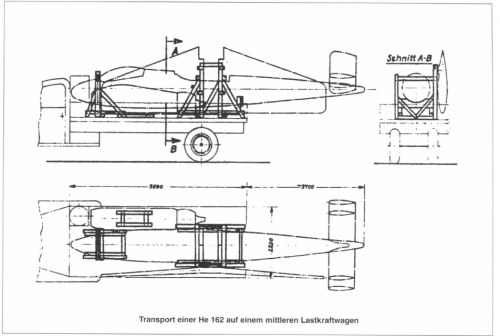

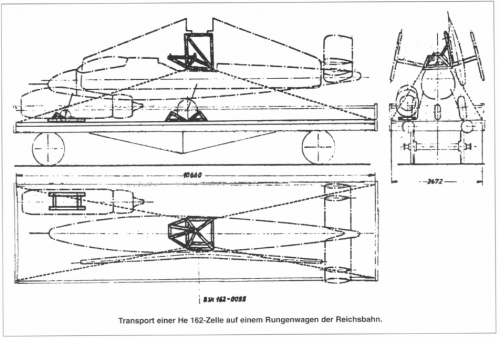

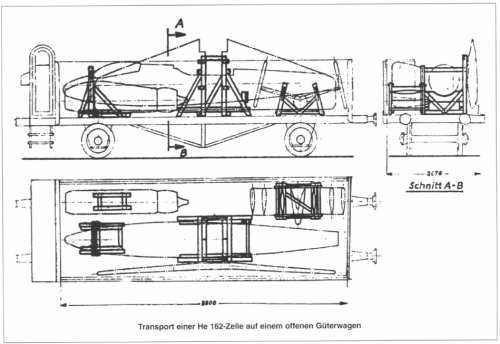

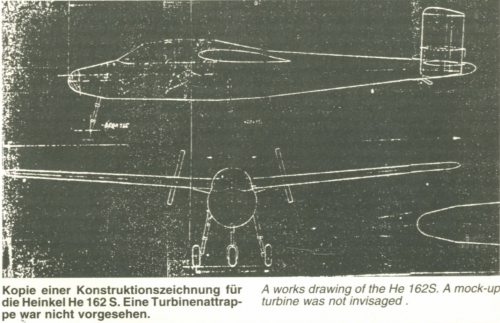

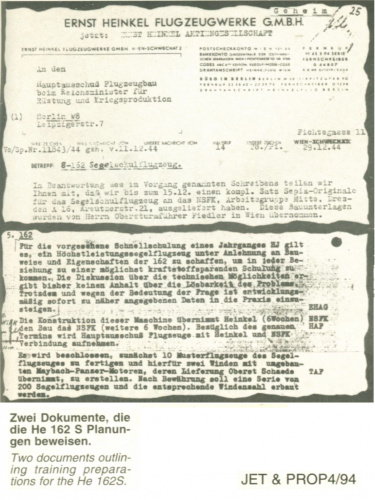

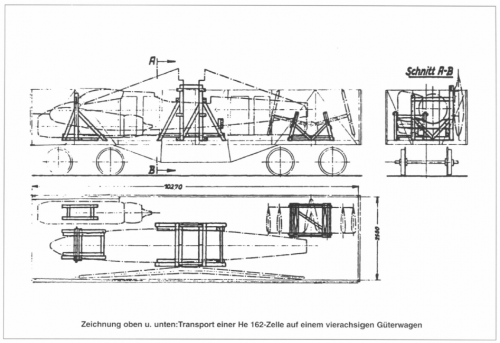

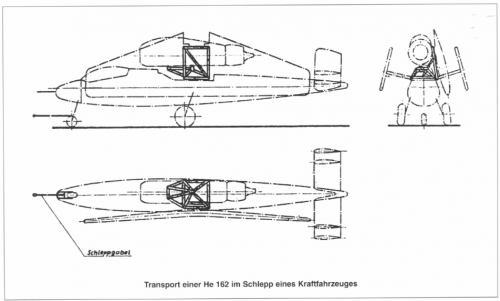

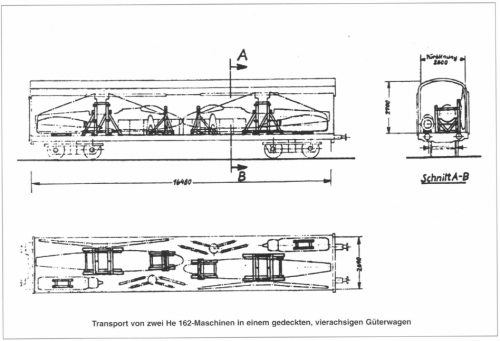

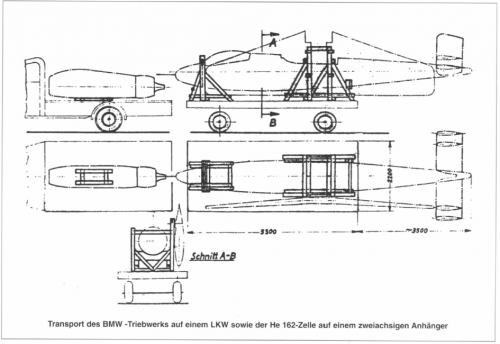

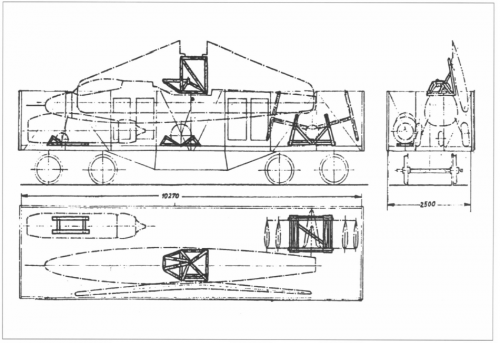

There is an article by Peter Petrick in a 1994 issue of Jet & Prop about the He 162 (He 162S) Schulflugzeug variant which had couple of interesting images of the training documents (in German) and original an factory drawing which are attached below.

Source:
Jet & Prop magazine 1994-94


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049

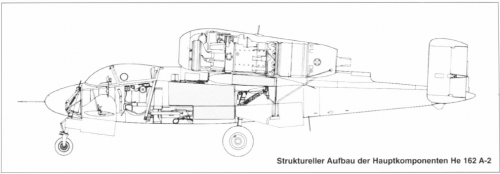

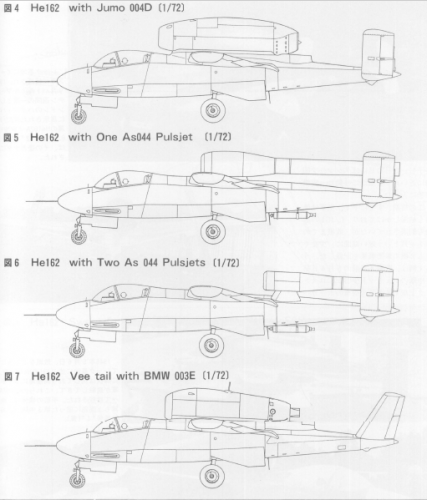

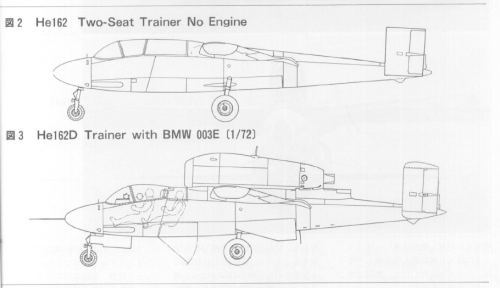

From Model Art 348 German Jets in WW II


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049
Jemiba said:

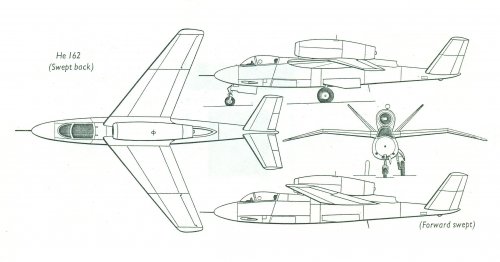

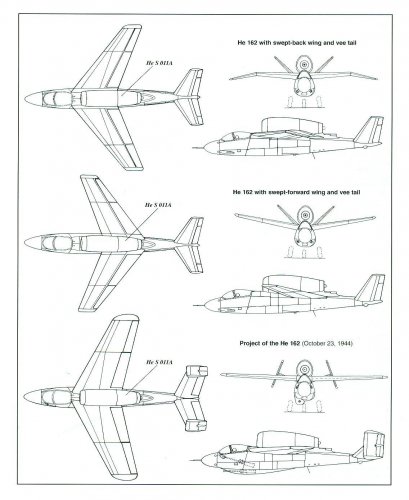

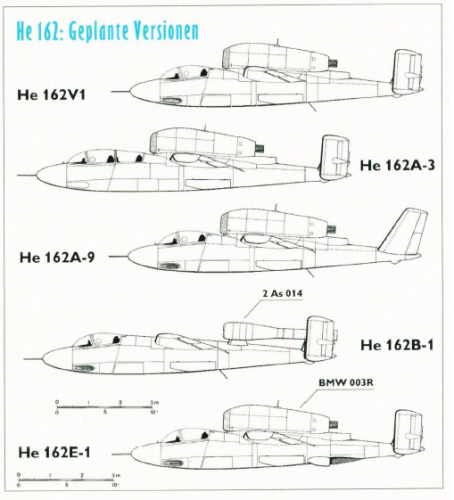

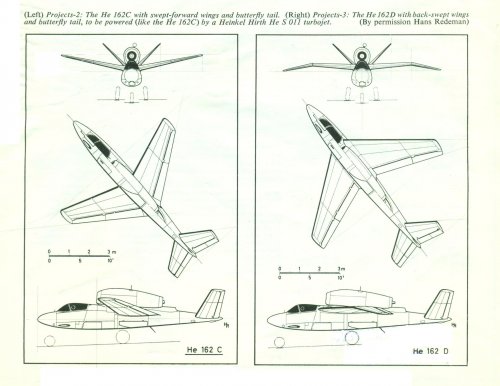

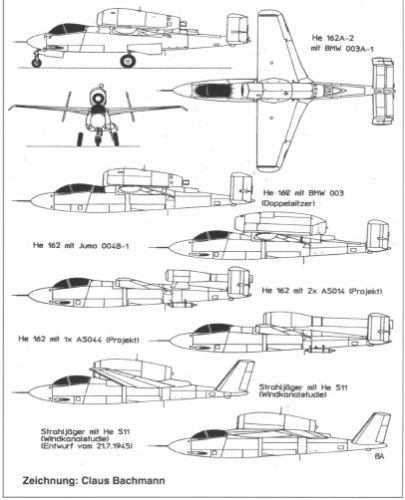

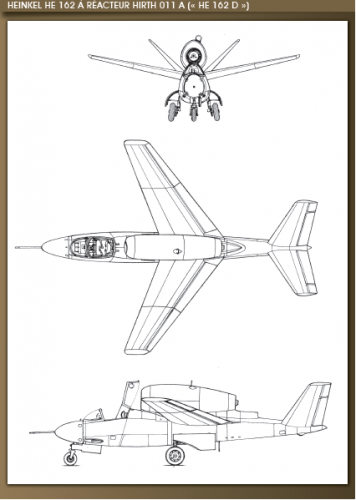

Here are drawings of the E (from FlugRevue 1978) and the C and D (from
Flugzeug 5/1995). It should be noted, that at least at the time those articles
were written, it wasn't clear, if construction of the C/D/E-variants was ever
started. Even vectorsite just mentiones, that "interchangeable wings" were dis-
covered, not actual prototypes. In the drawings the "C" and "D" are just described
a windtunnel studies and for those interchangeable wings would make sense.

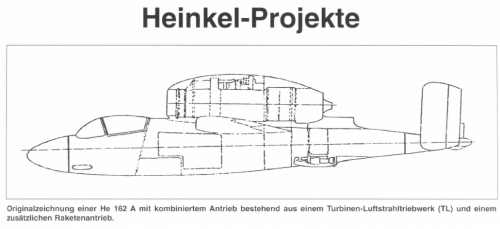

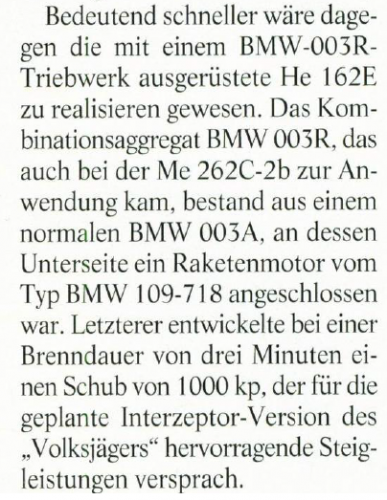

A small Info about Heinkel He.162E-1;

He 162E — He 162A fitted with the BMW 003R mixed power plant, a BMW 003A turbojet with an integrated BMW 718
liquid-fuel rocket engine,mounted just above the exhaust orifice of the turbojet — for boost power. At least one prototype
was built and flight-tested for a short time.


Attachments

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

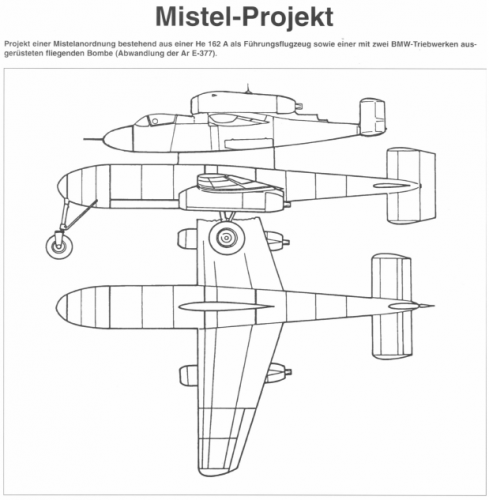

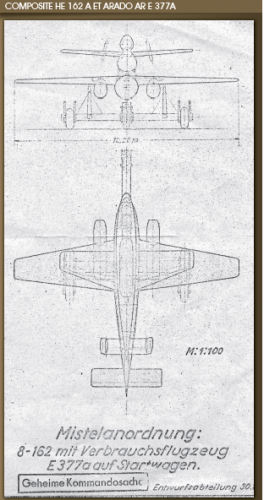

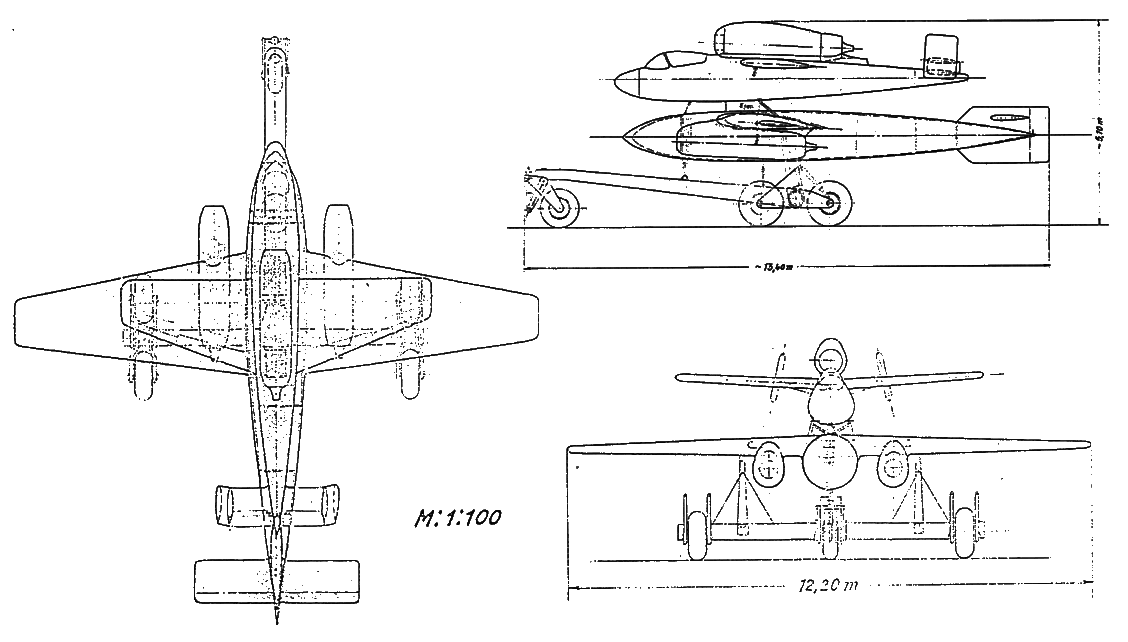

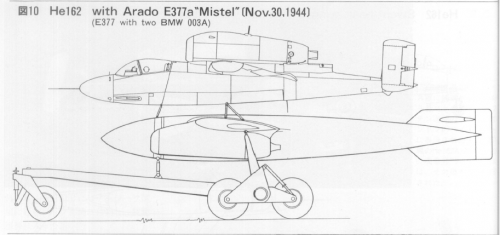

mistel V original drawing:

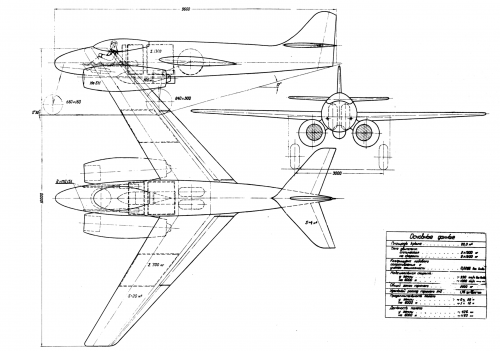

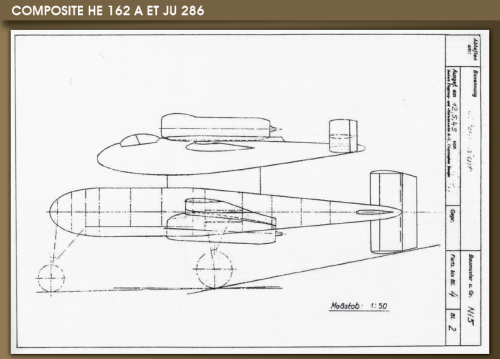

ju 268+he 162 original drawing:

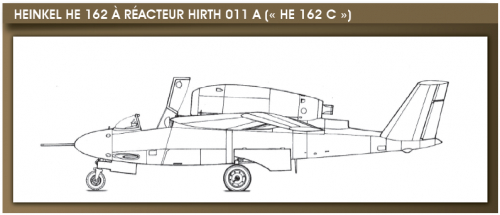

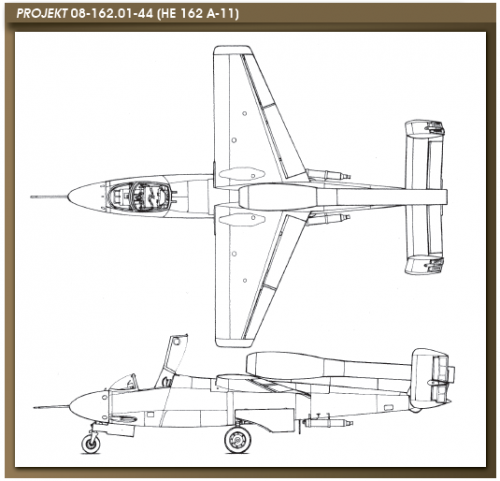

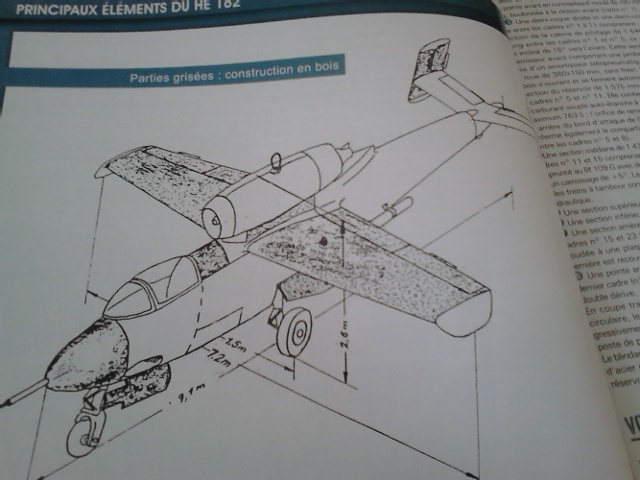

from aero journal hors-série 27:


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049
Nice drawings Sgeorges.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

http://www.kiwimodeller.com/~kmodel/index.php/forum/5-aviation-modelling/25115-1-32-he162-with-pulse-jet


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50
Heinkel P1073 report:
http://deutscheluftwaffe.com/archiv/Dokumente/ABC/h/Heinkel/He%20162/P%201073/P%201073.pdf


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50
Pre-He 162 variant: http://deutscheluftwaffe.com/archiv/Dokumente/ABC/h/Heinkel/He%20162/Baubeschreibung.pdf


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50
Number error in aero journal,it's not ju 286,it's ju 268(they correct it in wehrmacht 46 tome 2):



Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,273
Reaction score
103

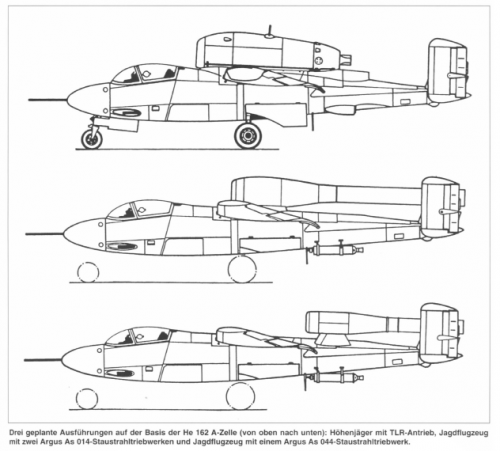

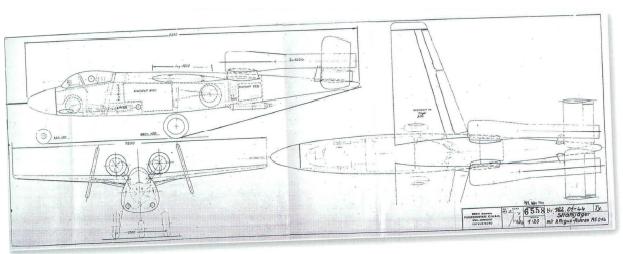

Question on He 162 version with Argus pulse engine

How they start, Katapult, Solid rocket motor or drop from Aircraft ?


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
822
Reaction score
167
Michel Van said:
Question on He 162 version with Argus pulse engine

How they start, Katapult, Solid rocket motor or drop from Aircraft ?
According to a Heinkel report dated March 30, 1945, 'He 162 with Argus tube': "Take-off must be effected by having recourse to auxiliary starting aid. If the take-off position is not to be betrayed by the smoke of the starting rockets it will be necessary to employ a catapulting device."


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50
:eek: http://www.wwiiaircraftperformance.org/he162/HE-162-F-TS-672-RE.pdf


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

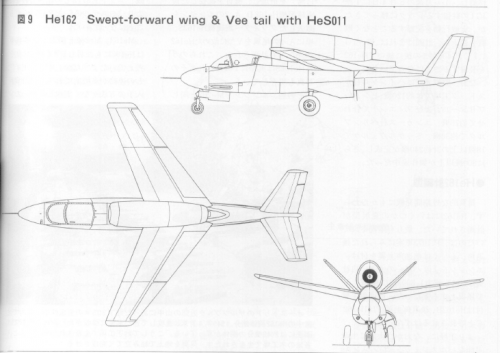

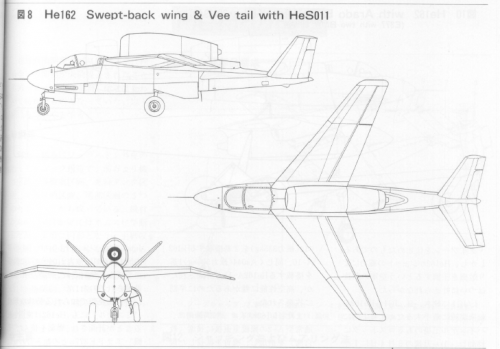

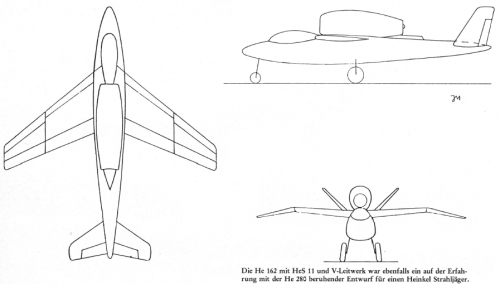

any drawing or picture regarding the heinkel 162 M8 with a V-Tail?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,249
Reaction score
1,049
sgeorges4 said:
any drawing or picture regarding the heinkel 162 M8 with a V-Tail?
My dear Sgeorges,I will search in my files.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

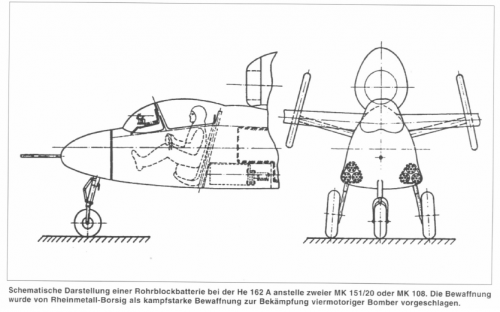

any original document regarding the heinkel 162 with R4M?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

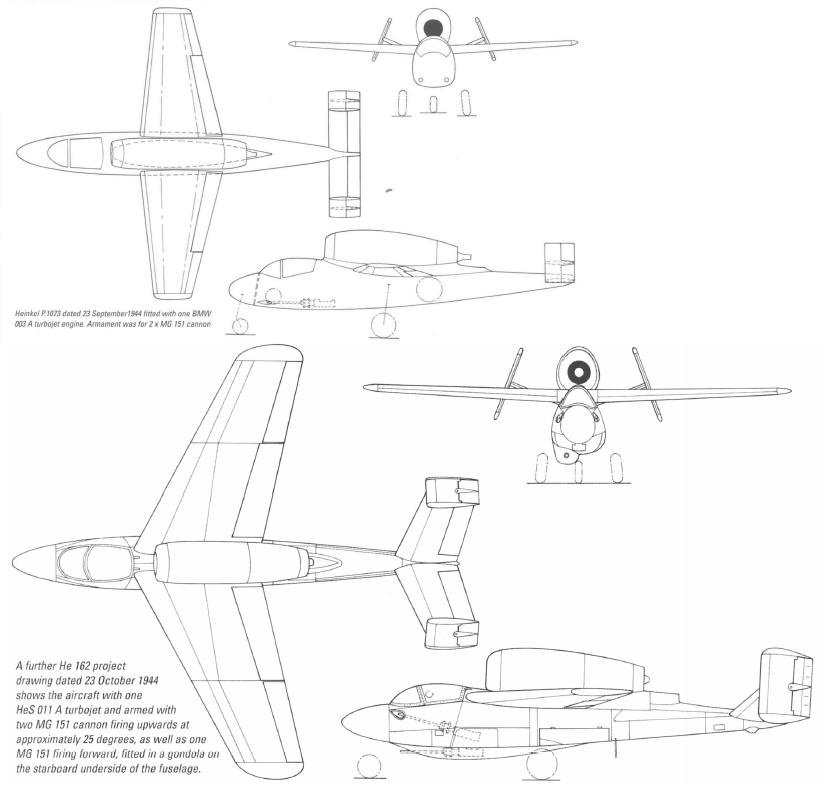

source: heinkel he 162 Spätz: from Drawing board to destruction: The Volksjäger Robert forsyth and Eddie J.creek


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
50

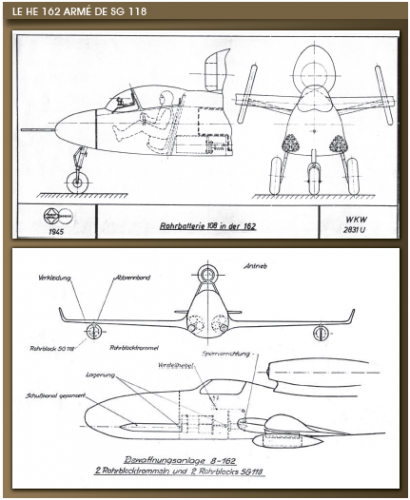

SG 118 and 117:

https://raigap.livejournal.com/441274.html
http://www.deutscheluftwaffe.com/archiv/Dokumente/ABC/s/SG%20Sondergeraete/SG%20117/Sondergereat%20SG117.htm
was there a choice regarding the SG 118/117 on the heinkel 162(like no SG 117 under the wing or no SG 118 in the fuselage but two SG 117 under the wing)?
