Hi,


I open this topic to speak about the Hanriot projects and little
known aircraft,that means the HD series and H series,such as
H.240,I would like my dear Tophe to talk about it.


Hanriot H.29 :single seat trainer floatplane developed from HD.2.

Last edited:
Hi,

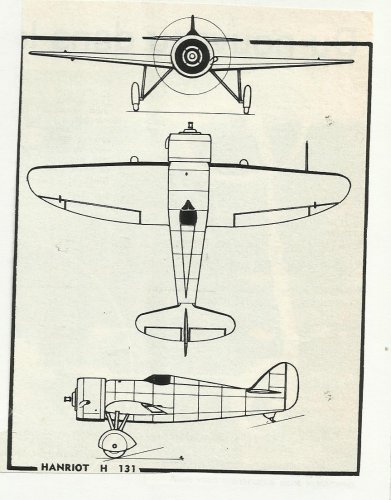

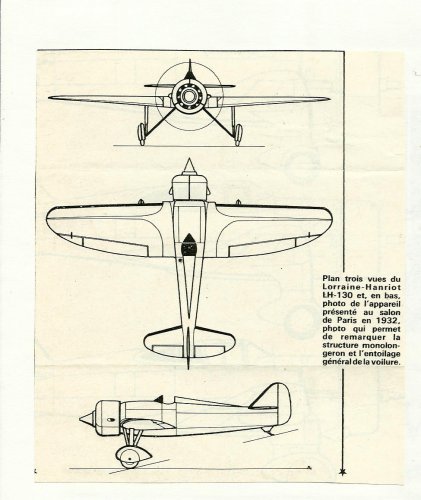

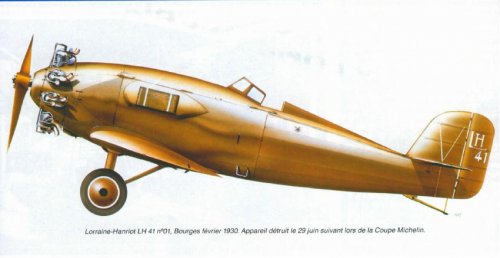

here is the Lorraine-Hanriot LH-41-01,LH-41-02,LH-42 & LH-130 also
Hanriot H.131 racer aircraft.


Attachments

  • LH-41-01.JPG
    39.3 KB · Views: 985

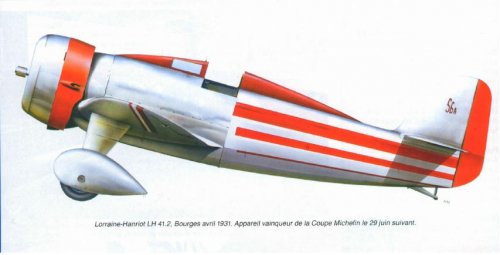

  • LH-41-02.JPG
    36.6 KB · Views: 945
  • LH-41 01.JPG
    LH-41 01.JPG
    55.8 KB · Views: 920
  • LH-41 02.JPG
    LH-41 02.JPG
    62 KB · Views: 886
  • LH-42.JPG
    66.3 KB · Views: 883

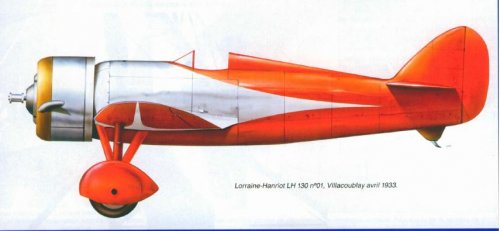

  • LH-130.JPG
    34.3 KB · Views: 188
  • LH-130  1.JPG
    LH-130 1.JPG
    79.6 KB · Views: 183
  • H.131.JPG
    55.8 KB · Views: 184

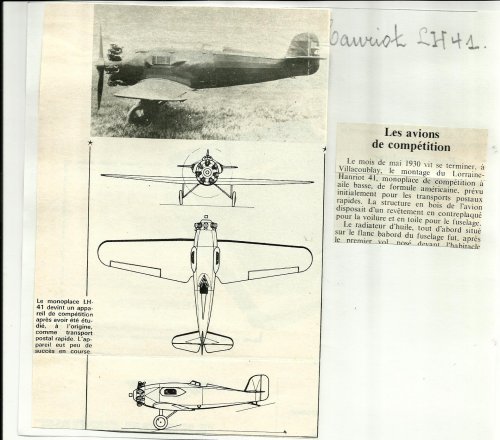

from "aviation magazine"


Attachments

  • lh3.jpg
    247.3 KB · Views: 198
  • lh 2.jpg
    lh 2.jpg
    262.8 KB · Views: 181

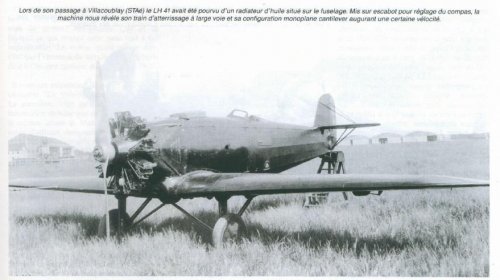

  • lh41.jpg
    284.5 KB · Views: 183

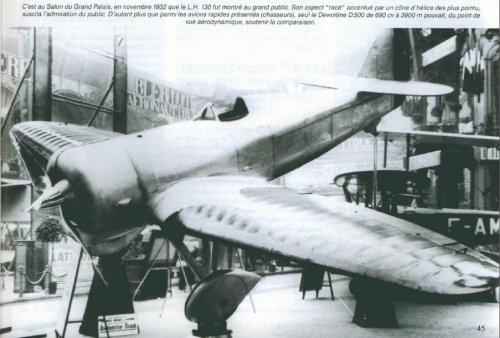

and this


Attachments

  • lh 130.jpg
    lh 130.jpg
    134.4 KB · Views: 200

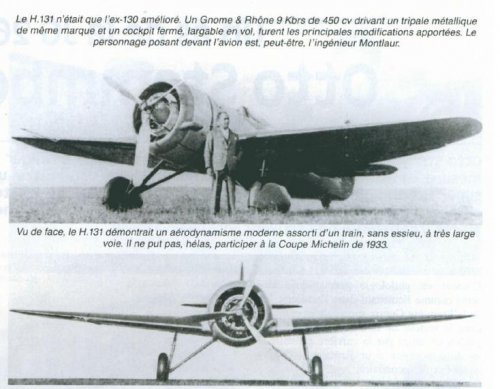

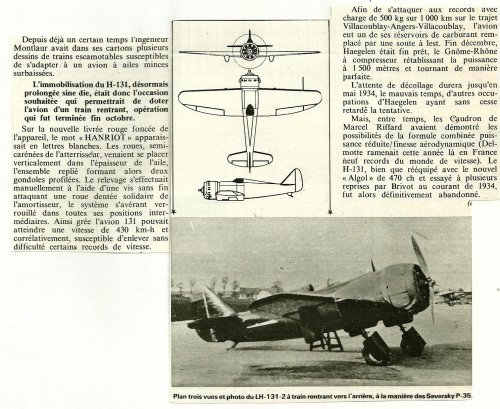

  • h 131.jpg
    h 131.jpg
    131.5 KB · Views: 230
  • 131 2.jpg
    131 2.jpg
    375.9 KB · Views: 262
Does anyone have - or know of the whereabouts - of a photograph of the Hanriot H.320 F-AIGO?

avion ancien said:
Does anyone have - or know of the whereabouts - of a photograph of the Hanriot H.320 F-AIGO?


Sorry I don't have this picture my dear Avion,


the Lorraine-Hanriot LH-80 was a parasol wing three seat recce monoplane
of 1932,in A.3 category,and powered by one 600 hp Lorraine Courlis 12 Fa
en W engine,prototype appeared in the same year,abandoned in 1934.

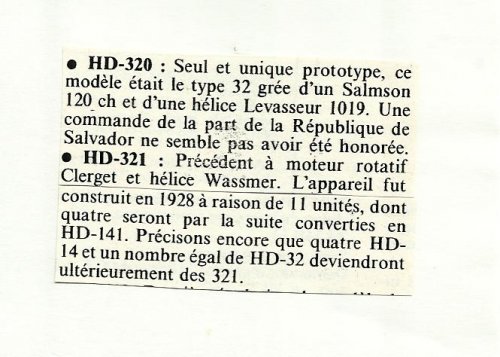

Bonjour Avion Ancien

No photo of F-AIGO....
Only this from an old "Aviation Magazine"


Attachments

  • test.jpg
    63.7 KB · Views: 132
Thank you, toura and hesham. I fear that the search for a photograph of F-AIGO may be rather akin to the Hunting of the Snark! But a friend would love me to be proved wrong!

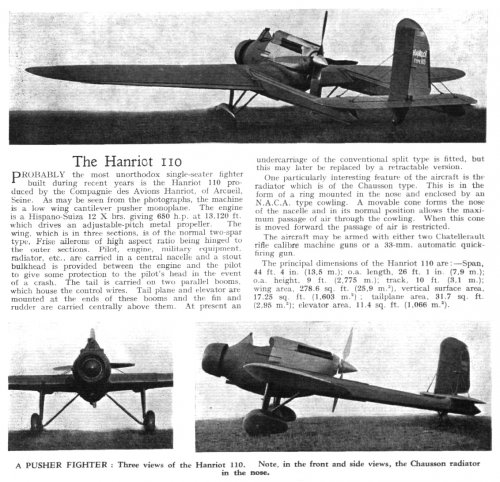

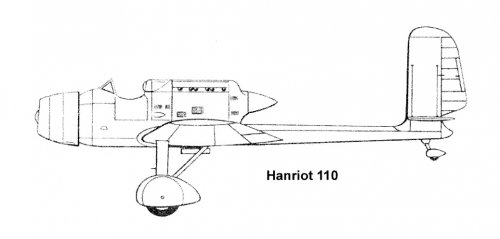

The Hanriot H.110 was an unusual pusher configuration, twin boom, single seat fighter aircraft submitted in the 1931 C1 (single-seat pursuit) competition. Only one prototype was built. It was later transformed into the H.115 after receiving a more powerful engine and cannon armament. This was quicker than the earlier version, but failed to attract a contract as the competition was won by the Dewoitine D.500.

More information on AviaFrance, Aviastar and Wikipedia.


Attachments

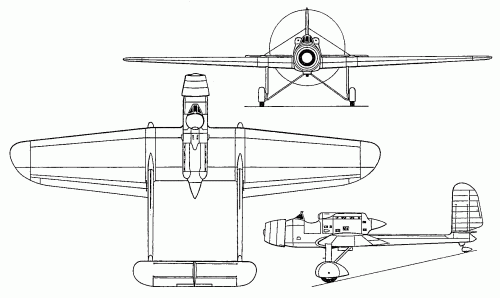

  • H.110 three-view.gif
    H.110 three-view.gif
    24 KB · Views: 188
  • H.115 (Flight Feb 22, 1934).jpg
    H.115 (Flight Feb 22, 1934).jpg
    668 KB · Views: 180
  • Hanriot 110 profile.jpg
    Hanriot 110 profile.jpg
    86.7 KB · Views: 170
  • Hanriot 110.jpg
    Hanriot 110.jpg
    43.1 KB · Views: 147
Hi hesham,

I just found this concerning Hanriot H.29 deep down in my archive - maybe too late...

http://www.pic-upload.de/view-23400168/H.29.jpg.html

The text started at page 39 only with: "H-29 En novembre 1923 la firme Hanriot..."

Martin

Hi,

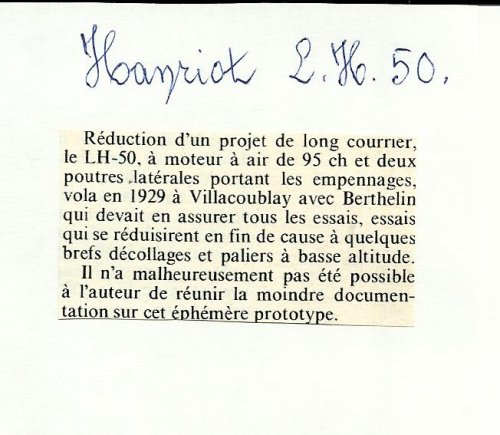

the Lorraine-Hanriot LH-50 was a single seat light aircraft,and it had two lateral booms bearing
the tail,powered by one 95 hp Salmson 7 Ac engine.

You are right Vieessso
From Jean Liron in an old "Aviation Magazine"


Attachments

  • test.jpg
    63.3 KB · Views: 227
Hi Hesham

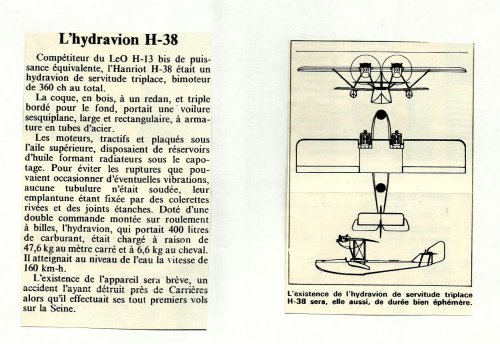

Another H 38


Attachments

  • h 38.jpg
    h 38.jpg
    202.6 KB · Views: 229
Hi All

Always by Jean Liron in Aviation magazine

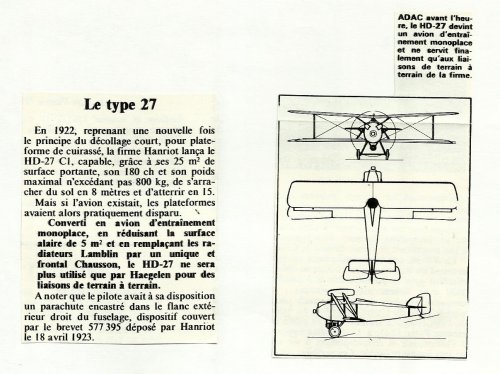

The HD 27


Attachments

  • hd 27.jpg
    hd 27.jpg
    176 KB · Views: 231

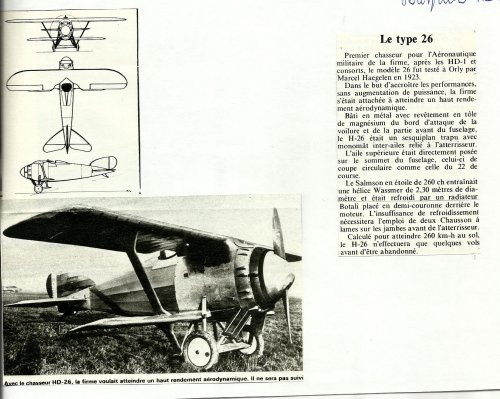

and now the HD 26


Attachments

  • HD 26.jpg
    HD 26.jpg
    376.8 KB · Views: 232

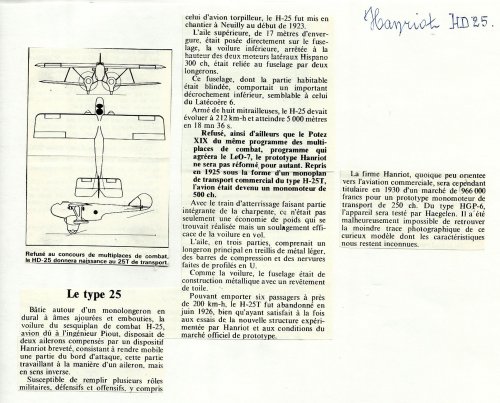

always the same source


Attachments

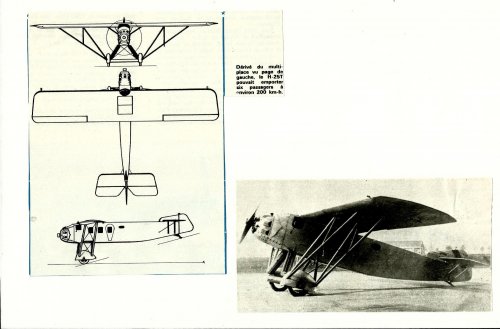

  • HD 25.jpg
    HD 25.jpg
    367.3 KB · Views: 229
  • HD 25T.jpg
    HD 25T.jpg
    408.4 KB · Views: 168
It will be nice to see pics or drawings of the following gaps in my collection:
H.D. or H. 10 / 11 / 13 / 16 / 21 / 23 / 30 / 37 / 39 / 42 / 44 and 45. My info that the H. 46 was the last of this series.

Thanks, Maveric

Excellent my dear Toura,


and for the member Wieesso,yes,that was mentioned in TU magazine.


For my dear Maveric,I can full one gap only,the H.37 was a twin engined bomber
developed from H.31 fighter,powered by two 300 hp Hispano-Suiza 8 Fb engines,
for B2 category.

Sorry Maveric,
no pics, only text from Flight, Dec 12, 1930 (Paris Air Show)

The Hanriot H. 10 ED 2 is a strut-braced parasol monoplane two-seater school machine with 100 h.p. Lorraine engine. The machine is intended for preliminary school work.

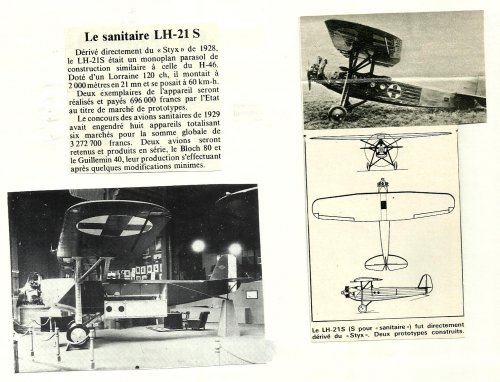

The 21 S is an Avion Sanitaire with 120 h.p. Lorraine engine. It has a metal fuselage and plywood-covered wing (semi-cantilever).

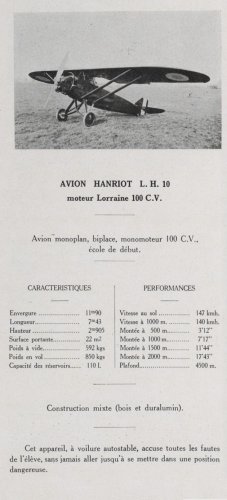

Hanriot L.H. 10:


Attachments

  • L.H. 10.jpg
    L.H. 10.jpg
    435.3 KB · Views: 142

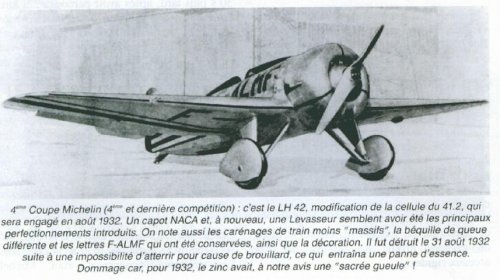

Hanriot L.H. 42 or L.H. 420:


Attachments

  • L.H. 420 (41~2, 42).jpg
    L.H. 420 (41~2, 42).jpg
    921.8 KB · Views: 157
  • LH-42.JPG
    66.3 KB · Views: 140

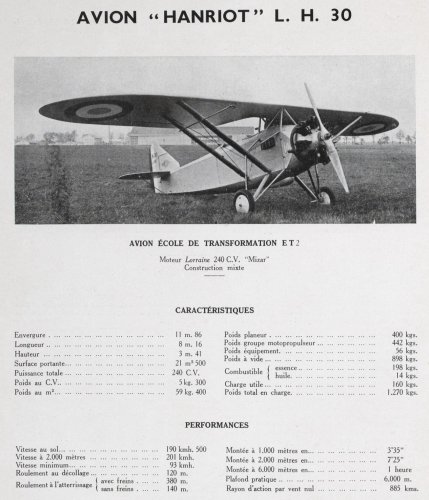

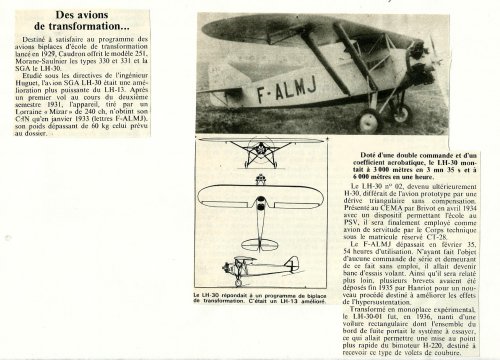

Hanriot L.H. 30:


Attachments

  • L.H. 30.jpg
    L.H. 30.jpg
    1,007.5 KB · Views: 127

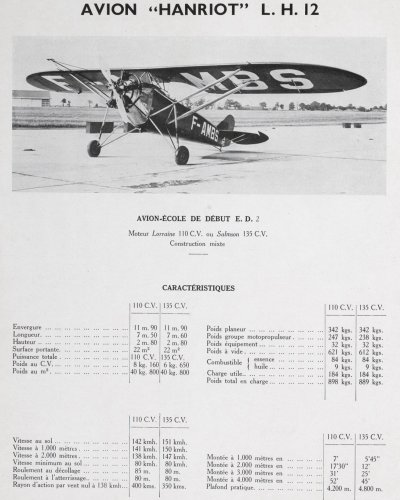

Although this is labeled L.H. 12 my understanding is that this actually depicts the L.H. 13 (but this needs confirmation):


Attachments

  • L.H. 12 (in fact 13).jpg
    L.H. 12 (in fact 13).jpg
    1,003.9 KB · Views: 124
Thanks wieesso,
but this H.16 was from a later series.

Hi Wieesso,


you must to know that,the Hanriot-Dupont began its life in 1916 and started with the series "HD",
then in 1930 merged with Lorraine to became Lorraine-Hanriot and had the "LH" or simply
"H" series,but the later prefix is used wrong,all Lorraine-Hanriot aircraft began with "LH",
and in 1933 this relationship was dissolved and the company renamed Hanriot.


The H.10 or H.16 in fact called LH-10 and LH-16,later and after 1933,they renamed as H.10
and H.16,as they still used after 1933.


So the projects which my dear Maveric asked about it,was for HD series and not LH or H.

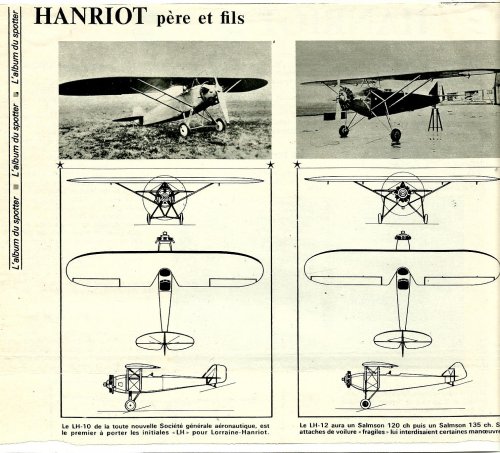

Thre view drawing LH 10 - LH 12


Attachments

  • lh 10 12.jpg
    lh 10 12.jpg
    346.2 KB · Views: 535
Hi Skyblazer...

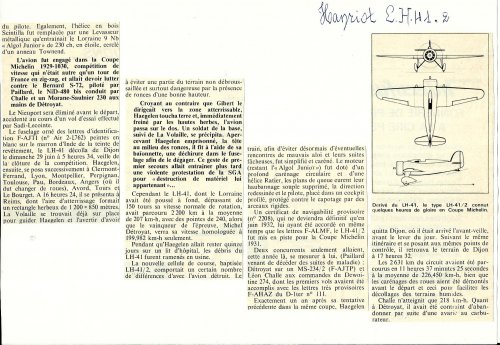

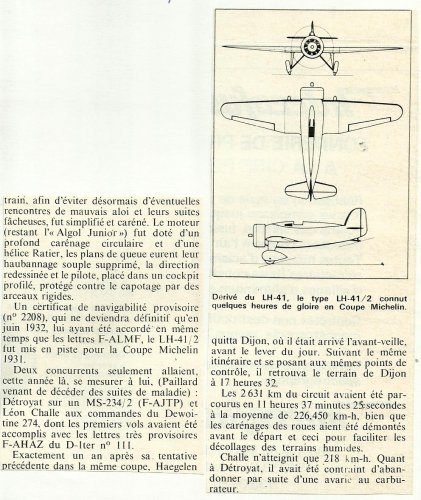

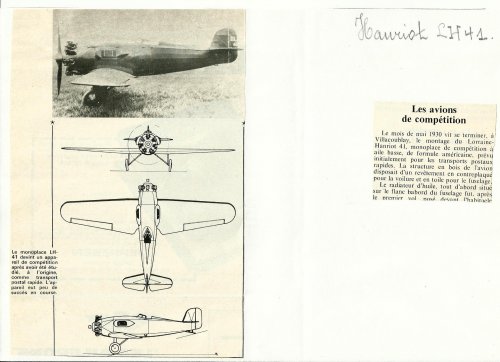

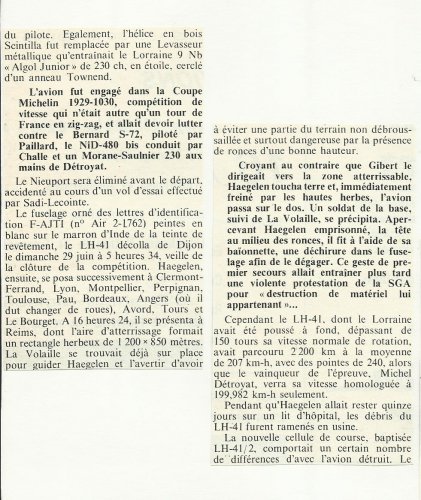

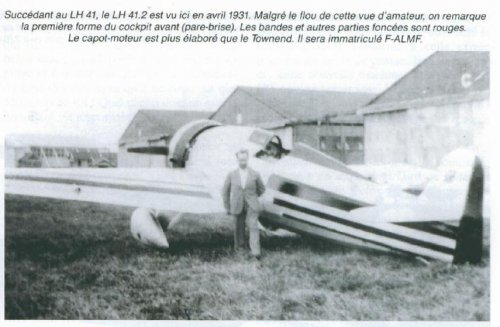

Before the 42 the 41 and 41 2


Attachments

  • lh 41.jpg
    lh 41.jpg
    479.6 KB · Views: 396
  • lh 41 2.jpg
    lh 41 2.jpg
    858.7 KB · Views: 400
Hi hesham,

thank you very much for clarifying!

Am looking for several years for the one and only HD.320 c/n 1000 F-AIGO - AA asked already in #6 - maybe one day I will find a trace of her...

Martin

Hi Wieesso,


the only picture I have for HD.320,here it is.


Attachments

  • Arno_HD320.jpg
    48.5 KB · Views: 108
Thank you hesham!
Here you can find images of the Salvadoran Hanriot 320 Type 1926 - they once had five ac
http://forum.keypublishing.com/showthread.php?78476-Hanriot-320&p=1217064#post1217064
