HA54 engine plan point book

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095
Recently I got this HA54 engine plan point book full digital image.(Dated in April 1944 by Nakajima aircraft engine design department)
I will report the detail of this this book little by little to you.

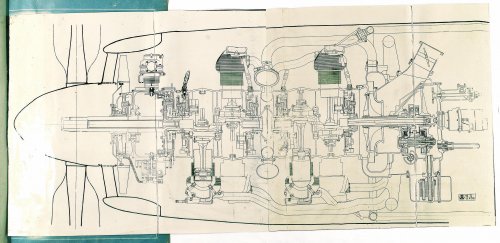

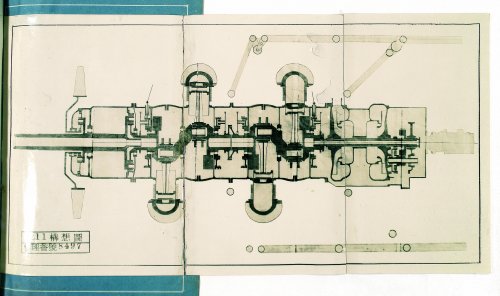

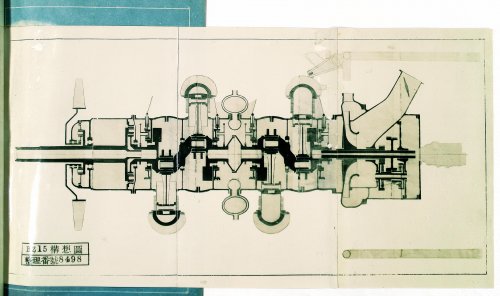

Accoring to this book, engine drawing in this book is not including first stage turbo charger or mechanical supercharger.
So Fugaku HA54 engine had two stage supercharger like bottom four pictures.

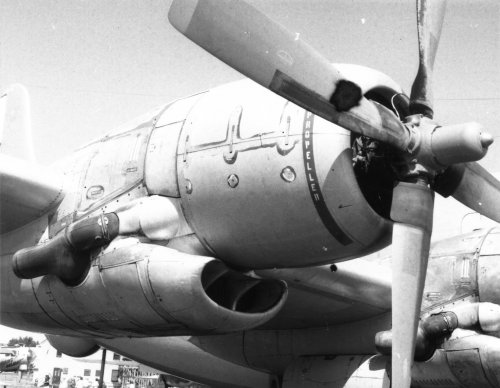

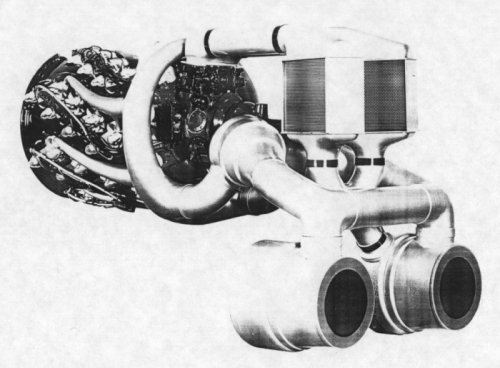

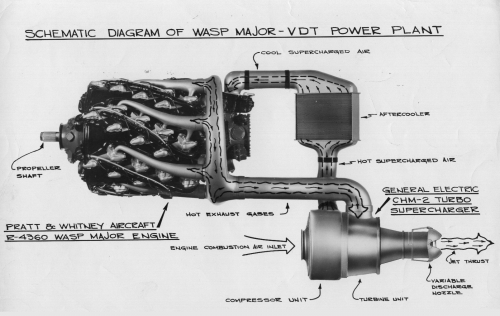

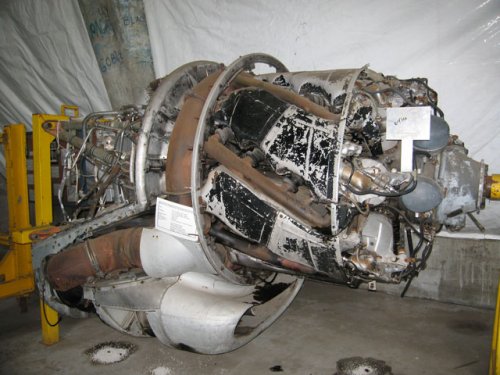

(Turbo charged P&W R-4360 WASP MAJOR engine)


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095

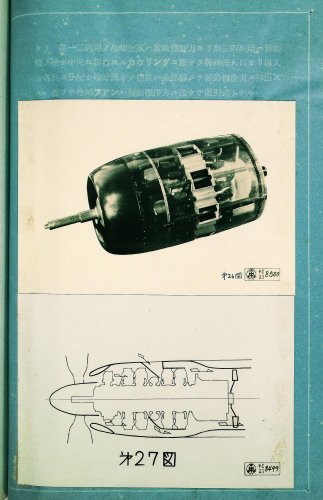

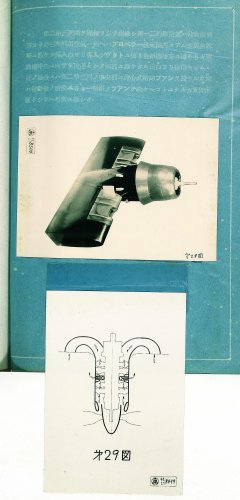

The most diffficulr problem that HA54 engine faced was how to cool four layers radial air-cooled engine. Final cooling method was cooling by the forced cooling fan installed front of the engine, but other methods were also considered. For example...


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095

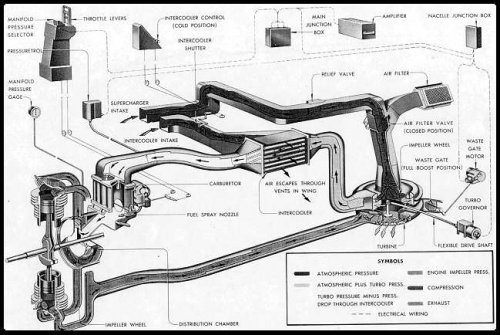

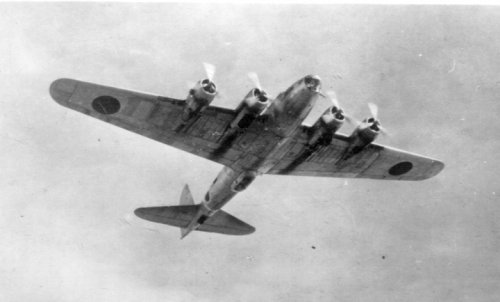

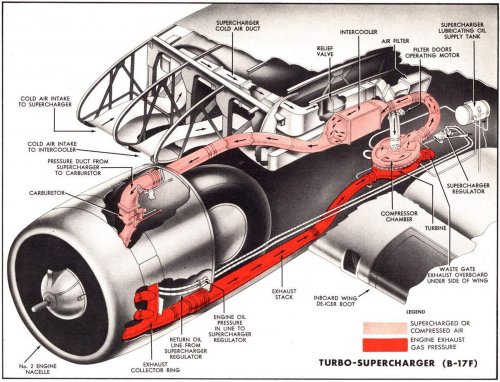

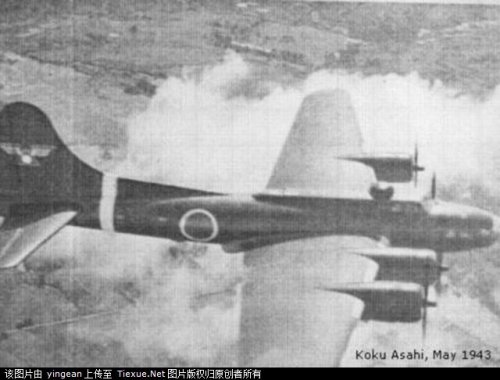

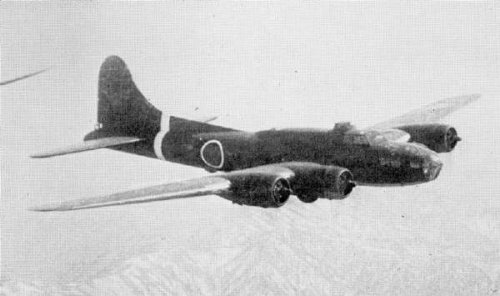

The method to install air intakes related to an engine in the leading edge part of a main wing was adopted to Boeing B-17 bomber. The engineer of Nakajima Aircraft investigated B-17 which Japanese military captured, and maybe considered the possibility to adapt this method to Fugaku bomber.

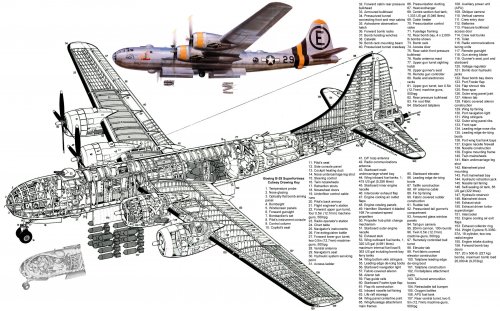

B-29 and Renzan engine had another compact layout.

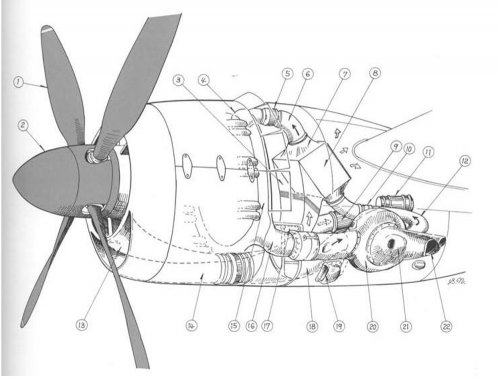

The part of the air poured from an air intake of the engine nacelle lower part in case of Renzan bomber is poured into a turbocharger. Remaining air is poured into an intercooler. The air poured into a turbocharger is compressed by the compressor driven by an exhaust gas turbine, and it becomes hot.
The air which became hot is cooled by an intercooler to improve the engine efficiency, and is supplied an engine with. Maybe a design of Renzan engine consulted B-29.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095

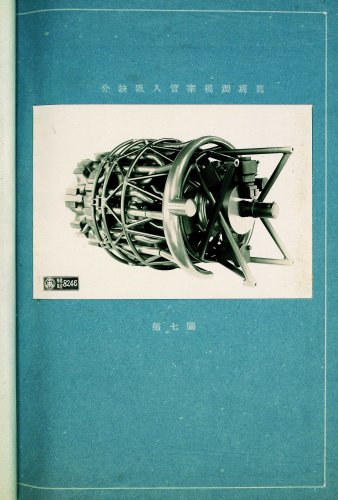

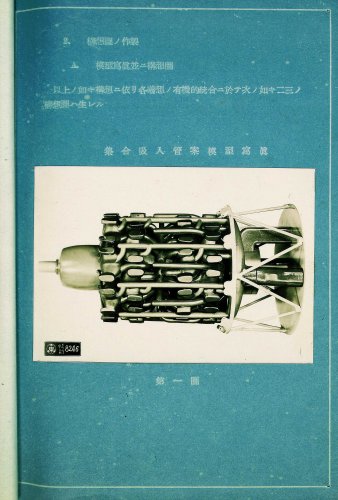

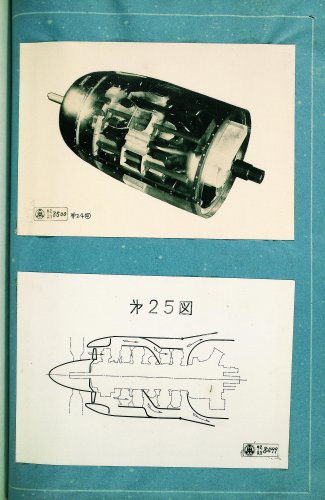

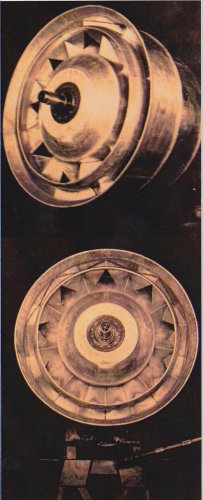

HA54 front cooling fan concept and aft cooling fan concept.
We can get the concept of engine cooling air baffle through these models,too.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095

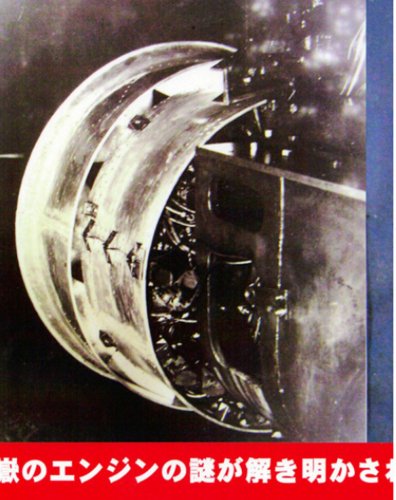

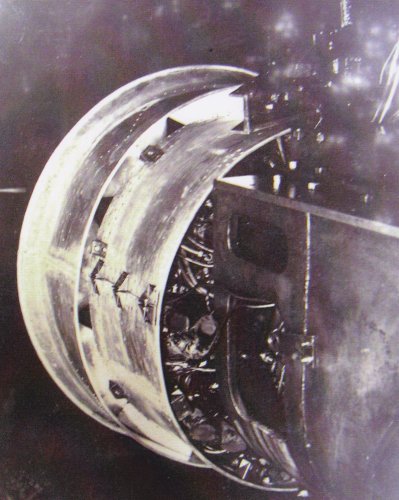

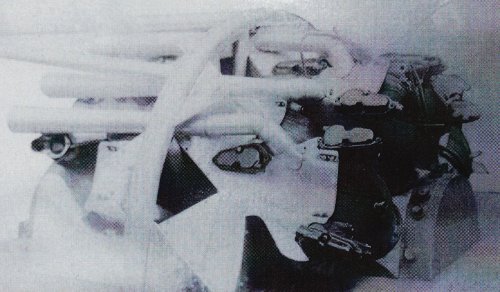

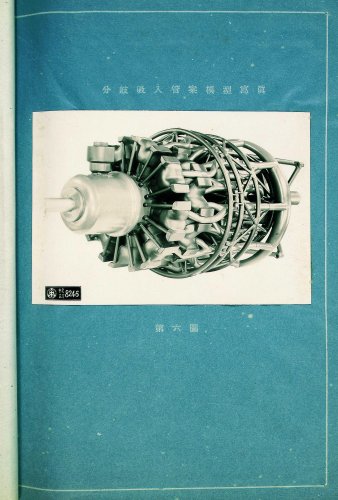

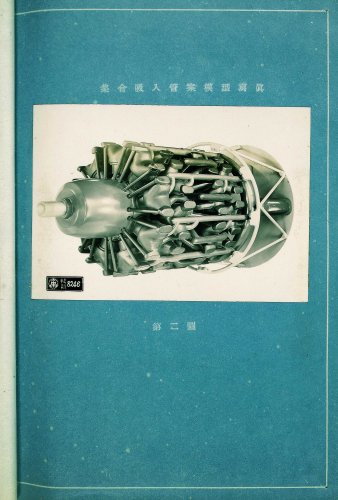

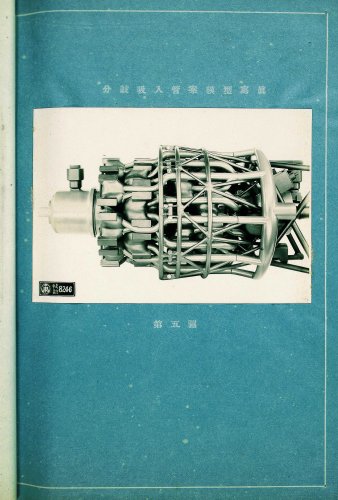

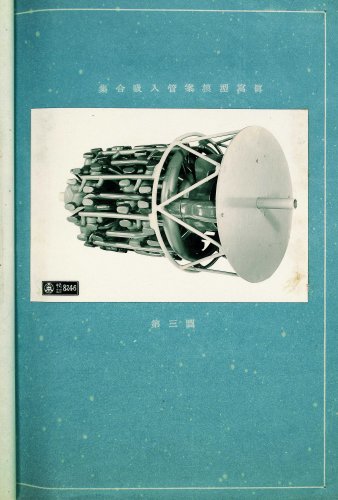

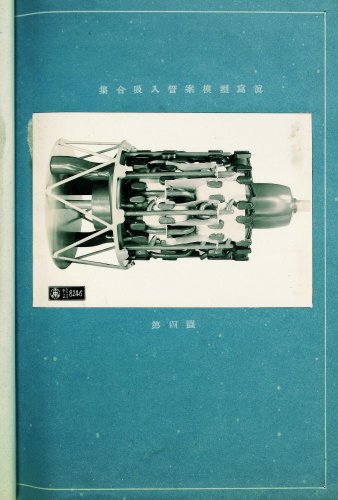

Engine model pictures.
The fourth picture is excellent.
We can understand the concept of engine coolling air buffle.
We can see cooling air intake for the third and the fourth row of engine cylinders and cooling air outlet for the first and the second row of engine cylinders.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095

Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
747
Reaction score
129
Blackkite that was one great Post thanks.


Winston

CLEARANCE: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
4
Thanks for posting these blackkite. I love seeing the details like this!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,069
Reaction score
2,095
Winston said:
Thanks for posting these blackkite. I love seeing the details like this!
My pleasure. You are the one of the best western Japanese aircraft specialist.
