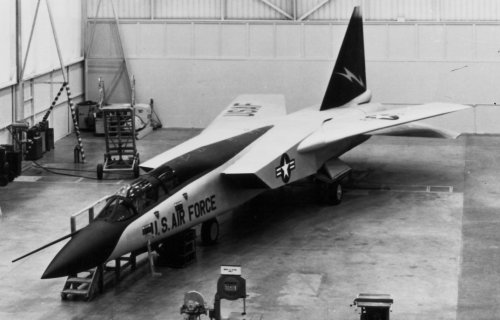

Quiz time. If you know it, say it.


Attachments

  • guess 1.jpg
    guess 1.jpg
    45.1 KB · Views: 584
  • guess 2.jpg
    guess 2.jpg
    19.7 KB · Views: 464
  • guess 3.jpg
    guess 3.jpg
    33.3 KB · Views: 448
  • guess 5.jpg
    guess 5.jpg
    133.5 KB · Views: 655

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,931
Reaction score
1,255
1. super cool jet fighter from Boeing ?
2. somekine Glider from Boeing ?
3. Tilt wing rotor from Boeing ?
4. F-15 Proposal from Boeing ?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,825
Reaction score
2,074
Michel Van said:
1. super cool jet fighter from Boeing ?
2. somekine Glider from Boeing ?
3. Tilt wing rotor from Boeing ?
4. F-15 Proposal from Boeing ?

I think that bottom one looks more like a North American design.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,141
Reaction score
1,255

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,211
Reaction score
173
3. I'd also guess Boeing Vertol, because the nose looks Chinookish.

4. I'd guess SOR 183 - TFX without the Navy - and most likely North American.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
2. Wartime medium jet bomber from Boeing

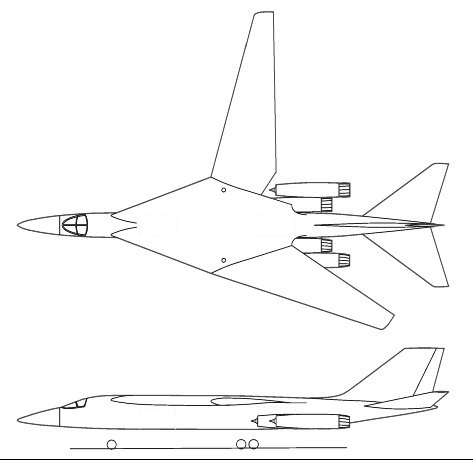

And 1. not AMSA, AMPSS (Advanced Manned Precision Strike System), earlier, different performance envelope from AMSA, I think.

N.5 (fourth in the row), is SOR-183, McDonnell ?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
170
3. Could be the BV 137 contender from the Tri-Service program ... ???


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,520
I thought McDD TFX first, but then saw the USAF and thought better of it. Could be McDD GOR-183 as Skybolt suggests? Or Boeing GOR-183?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
I initially thought Boeing, but then considered that Boeing was the only TFX contender that refuted the DoD invitation at "coupling" up. So if they had a dorsal intake config for the TFX, probably they had already fro the GOR-183 a year before. What's strange that there were full scale mock-up already at the GOR-183 stage. BTW, I now think that the often seen Republic TFX submission mock-up is in reality a GOR-183 one (the cockpit is tandem, for starter).
Now it will come up that it is in reality the Grumman GOR-183...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,286
Reaction score
1,217

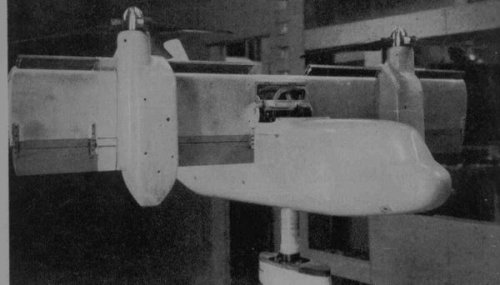

regarding N°3, I think, boxkte may be right. It looks similar to this windtunnel model:
(from: "Vertical Take-off and Landing <VTOL> Aircraft, (Series of papers ... of a
conference held on Dec. 10-12, 1962) ; Consulting ed.: I. B. Laskowitz")


Attachments

  • Boeing-Vertol-137SC.jpg
    27.4 KB · Views: 302

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
I would venture that the tilt-wing is in response to a late fifties Army requirement for a tactical transport... I have no idea what program.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
Correction, Boeing AND Lockheed were the only companies that refuted the suggestion to couple for the TFX final competition.... precision where precision is due.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,211
Reaction score
173
I'd say the tiltwing is either CX-6(?) or the Tri-Service competition won by the XC-142A, probably the latter since the box seems to be about the same size.

The SOR 183... Macs or Vought.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
364
Which is the more accurate "Production" / "Submission" of the GD design, the artist rendering or the two views? The cockpit is different between the two.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi All!

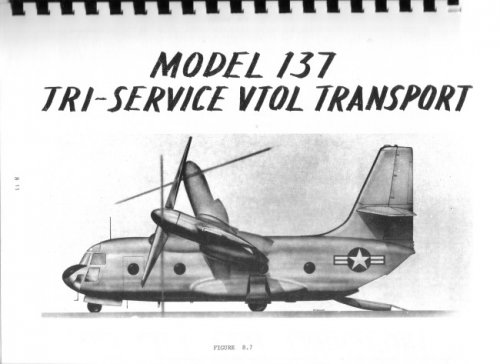

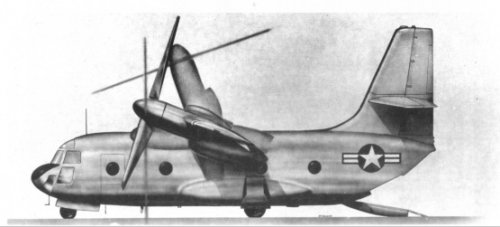

Boeing/Vertol Model 137----Competition of XC-142A ( Tri-Service Transport Aircraft Specification TS-152 ,U.S. Air Force Project SS-478A )


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
Ah, ah, it was the too simple answer that was the true answer. Strange that they changed so much the layout.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,068
Reaction score
1,506
Website
www.aerospaceprojectsreview.com
Skybolt said:
Strange that they changed so much the layout.

That "818" and the "818" we've all come to know and love are virtual identical twins compared to some of the other 818 concepts Boeing looked at. They had truly stealthy designs, they had weird-ass VTOL lifting body designs, they even had turboprop designs.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,957
Reaction score
356
Orionblamblam said:
Skybolt said:
Strange that they changed so much the layout.

That "818" and the "818" we've all come to know and love are virtual identical twins compared to some of the other 818 concepts Boeing looked at. They had truly stealthy designs, they had weird-ass VTOL lifting body designs, they even had turboprop designs.

Great find Orionblamblam !
A very interesting mock-up of the early Model 818, that I have not seen before.
This is why I love this web site!!!!!!!!!!!!
Do you have any more pics or drawings of these early designs?
What was the source that you found the pic of the early Model 818 mock-up


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
That "818" and the "818" we've all come to know and love are virtual identical twins compared to some of the other 818 concepts Boeing looked at. They had truly stealthy designs, they had weird-ass VTOL lifting body designs, they even had turboprop designs.

I (will never) see. :'( :'( :'( :'( :'(


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,520
Pioneer said:
Orionblamblam said:
Skybolt said:
Strange that they changed so much the layout.

That "818" and the "818" we've all come to know and love are virtual identical twins compared to some of the other 818 concepts Boeing looked at. They had truly stealthy designs, they had weird-ass VTOL lifting body designs, they even had turboprop designs.

Great find Orionblamblam !
A very interesting mock-up of the early Model 818, that I have not seen before.
This is why I love this web site!!!!!!!!!!!!
Do you have any more pics or drawings of these early designs?
What was the source that you found the pic of the early Model 818 mock-up

Presumably at Boeing, during recent trip.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,534
Reaction score
313
What about picture number 2?

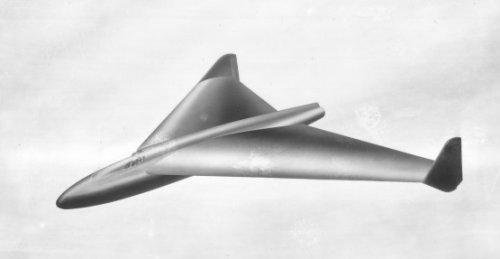

Boeing rocket propelled interceptor 1944-45?

Please Scott give us more clues?...


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,068
Reaction score
1,506
Website
www.aerospaceprojectsreview.com
pometablava said:
What about picture number 2?

Boeing rocket propelled interceptor 1944-45?

Bell D-35, dated 10-13-1945. You now know as much about it as I do, excpept that Bell Model 35 is listed as a more conventional interceptor. Shrug.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,660
Orionblamblam said:
pometablava said:
What about picture number 2?

Boeing rocket propelled interceptor 1944-45?

Bell D-35, dated 10-13-1945. You now know as much about it as I do, excpept that Bell Model 35 is listed as a more conventional interceptor. Shrug.

My dear Scott,

I think the Bell D-35 interceptor was the Bell proposal for XP-92 competition.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,825
Reaction score
2,074
Skybolt said:
Strange that they changed so much the layout.

That "818" and the "818" we've all come to know and love are virtual identical twins compared to some of the other 818 concepts Boeing looked at. They had truly stealthy designs, they had weird-ass VTOL lifting body designs, they even had turboprop designs.

Any chance you'll do an article on these Boeing concepts?


allysonca

ACCESS: Secret
Top Contributor
Senior Member
Joined
Mar 11, 2011
Messages
203
Reaction score
351

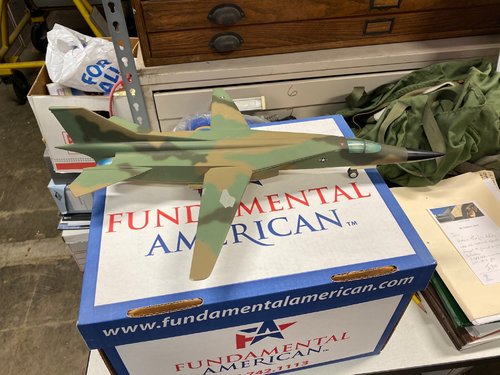

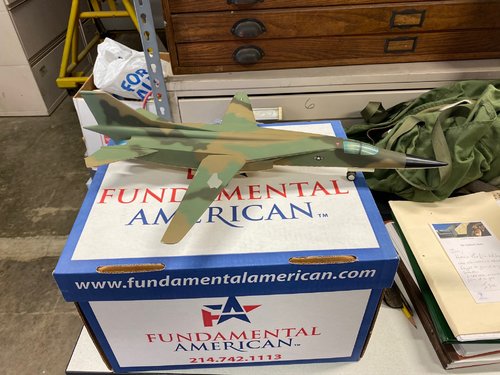

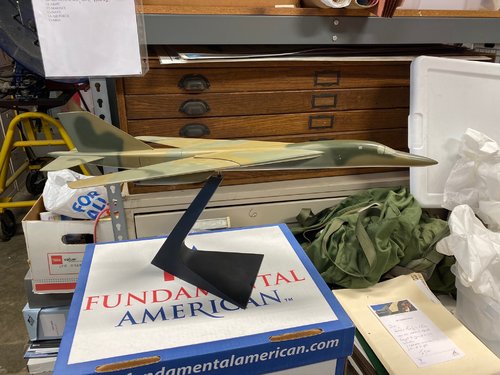

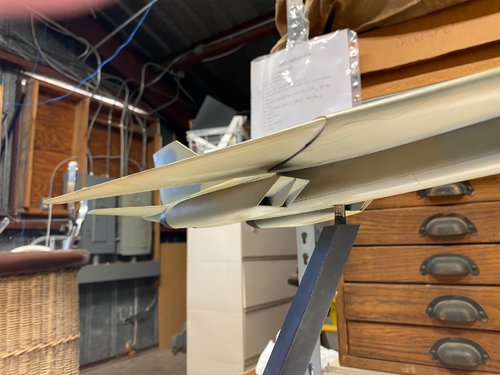

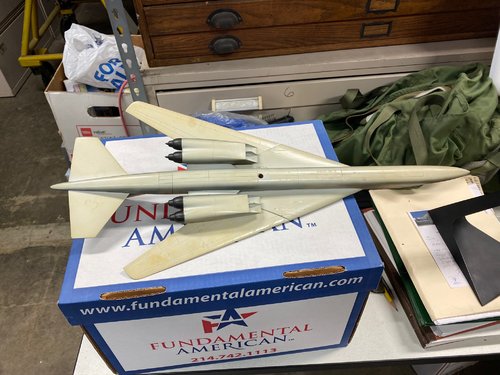

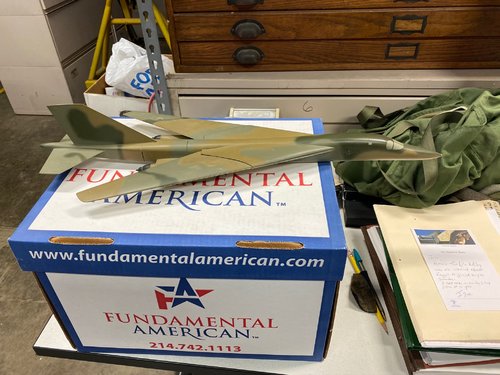

At the Fort Worth Aviation Museum.
