Not a secret project, rather a one-off homebuilt inspired by the Westland Pterodactyl designs...

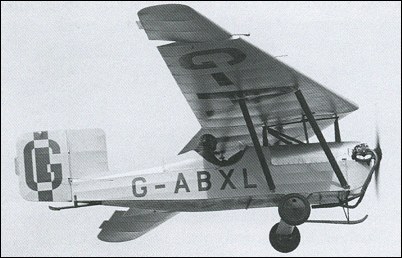

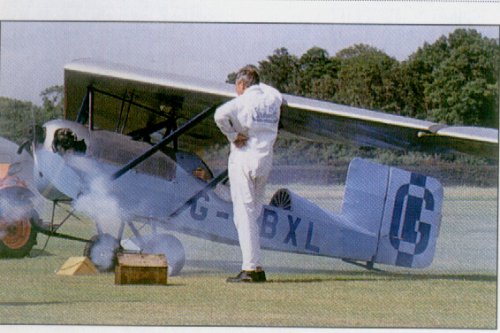

I have quite a bit of info on the Granger Archaeopteryx, an interesting little homebuilt that first flew in 1930 and was long part of the Shuttleworth Collection in England. In fact, they used to fly it now and again, though I think not anymore. It is now under restoration by Richard Granger, the son/nephew of the Granger brothers that built it.



As you can see, this unusual little plane is essentially a swept, tapered flying wing with wingtip, all-moving elevons attached parasol-style to an ordinary fuselage with a rudder. So its not quite tailless, but not quite tailed, either.

I have pics and specs and pilot's reports, but I don't have a 3-view or any other drawings. Can anyone help?

Cheers,

Matthew


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,885
Reaction score
1,554
Matthew,

Bill Young offers scale drawings of the Granger Archaeopteryx for sale.

http://billyoungdesigns.wordpress.com/publications-catalog/

Alternatively, you might try contacting Gabriel Stern. He scratch-built a beautiful 1/72nd scale model of the Archaeopteryx.

info@luchina.com
http://www.aircraftresourcecenter.com/Gal6/5901-6000/gal5935_Granger_Stern/00.shtm


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
According to Aeroplane Monthly 2/2001, restoration should be finished, as
the date for the second maiden flight was given as "in 2 to 3 years"

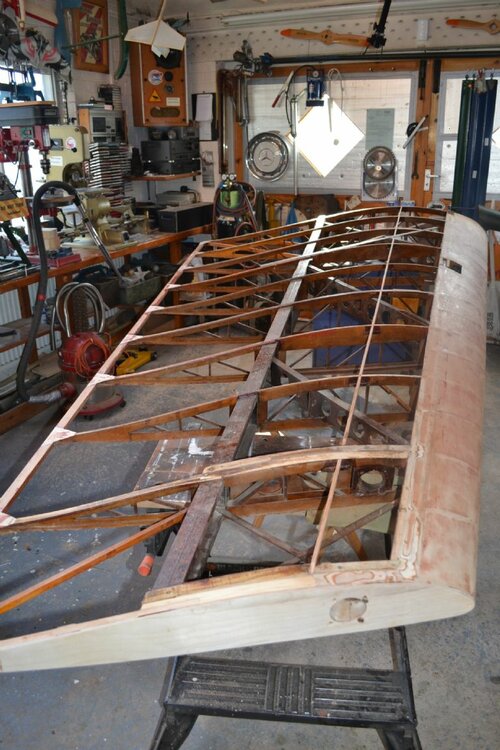

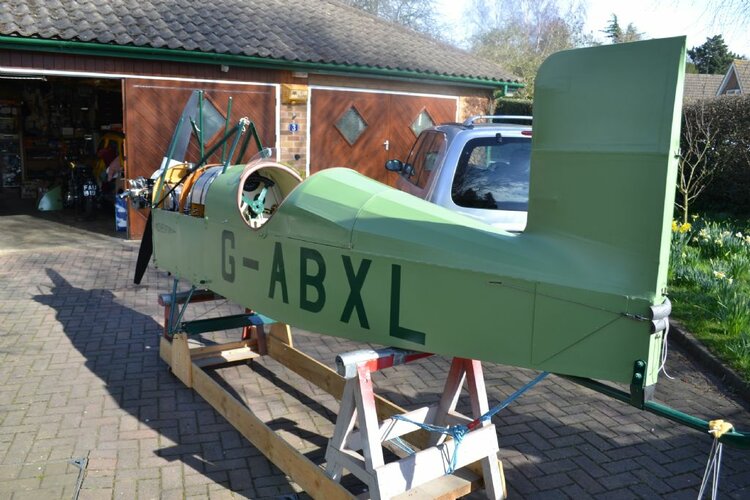

On the photo it already looks quite complete ...
