Gloster E1/44 (GA.1/GA.2) 'Ace' early jet fighter project

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,043
Reaction score
535
Afternoon all

I am after a 3-view drawing of the Gloster E1/44 (GA.1 / GA.2) Ace early jet fighter project.
From what I have read on the net, it was 33 per cent heavier, but 100mph faster than the Vampire!


Regards in advance
Pionner


Attachments

  • GLOSTER GA.1_GA.2 'ACE' early jet fighter project, heavier, but 100mph faster than the Vampire.jpg
    GLOSTER GA.1_GA.2 'ACE' early jet fighter project, heavier, but 100mph faster than the Vampire.jpg
    51.3 KB · Views: 258

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
From putnam's 'Gloster', page 308, and from 'British Experimental Jet Aircraft' pp. 54-5, although with these, the front and rear views are distorted by the binding, a fatal flaw in this otherwise excellent book. :mad:



EDIT:- my mistake, for 'GA.1' read 'GA.2' :-X


Attachments

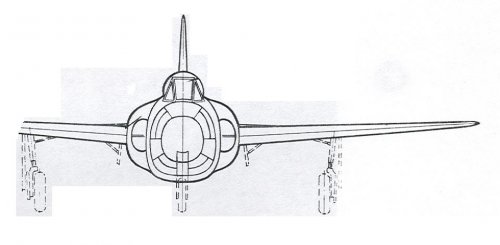

  • gloster GA.1.jpg
    gloster GA.1.jpg
    39.8 KB · Views: 285

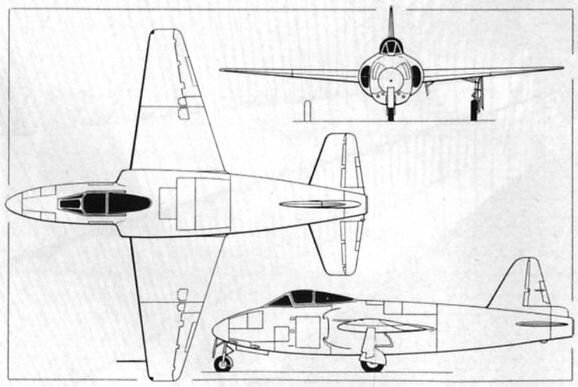

  • gloster GA.1 TX145.jpg
    gloster GA.1 TX145.jpg
    46.7 KB · Views: 272

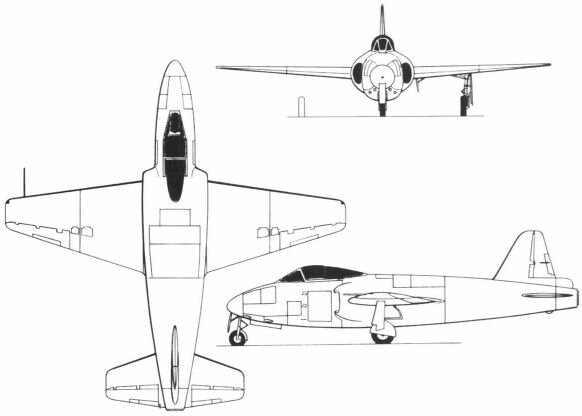

  • gloster GA.1 TX148.jpg
    gloster GA.1 TX148.jpg
    53.3 KB · Views: 258

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,960
Reaction score
1,098
I think in the last issue of IAPR was an article written by Tony Buttler about the "Ace" !

Deino


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,043
Reaction score
535
Thanks gents


It looks as though it may have had some potential.
It had a nice clean nose design for an early jet fighter
Although I do not know just how maneuverable it would have been with its wings?

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
In Aeroplane Monthly, September 1993 was a quite comprehensive
article (colour profile from that article)


Attachments

  • E-1-44.JPG
    9.8 KB · Views: 147

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340
Have you any idea if the fighter would have carried a ventral fuel tank, similar to what the Gloster Meteor did have?

By the way, the E1/44 could have been a British equivalent of the F-80 Shooting Star, don't you think?

Best regards,
Piotr


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,973
Reaction score
3,923

Attachments

  • E144  initial configuration.jpg
    E144 initial configuration.jpg
    24.8 KB · Views: 45

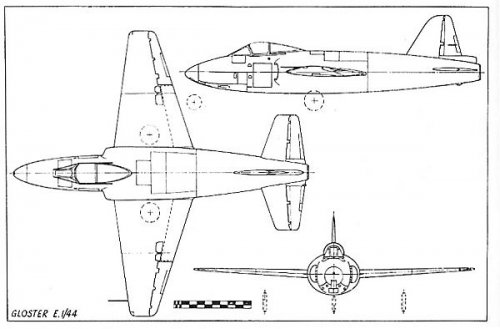

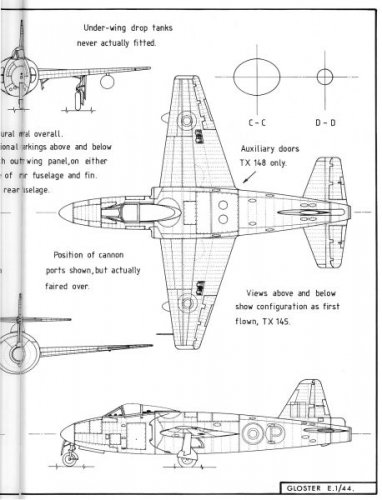

  • Gloster E144 drawing P.175 dated March 3  1944.jpg
    Gloster E144 drawing P.175 dated March 3 1944.jpg
    21.8 KB · Views: 39

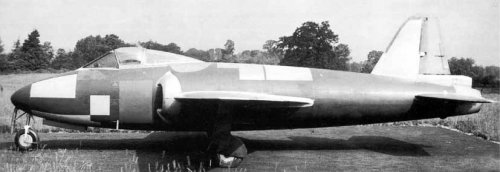

  • The second prototype with the original tail.jpg
    The second prototype with the original tail.jpg
    44.5 KB · Views: 47

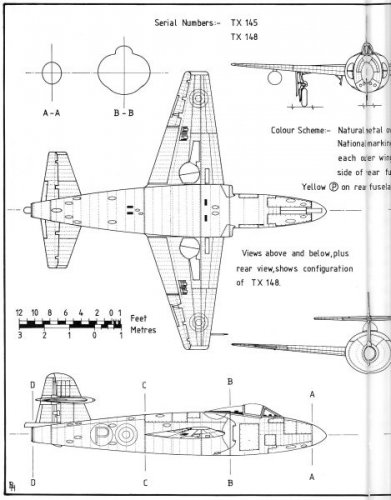

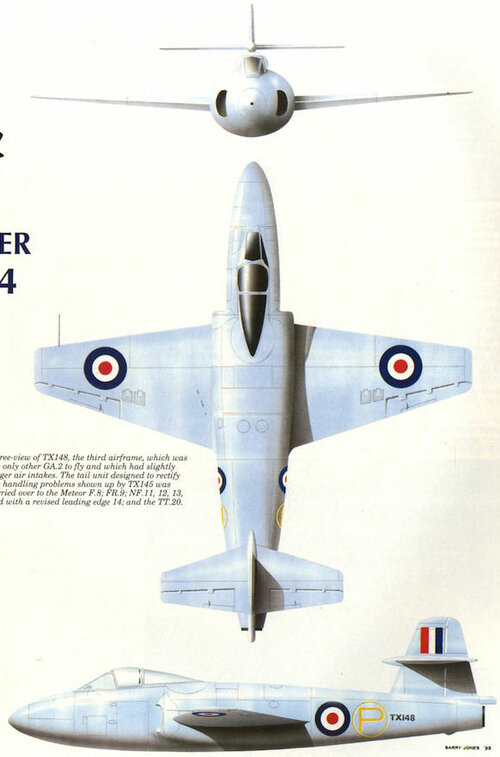

  • Three-view of the second airframe TX145.jpg
    Three-view of the second airframe TX145.jpg
    73.2 KB · Views: 47
  • Three-view of TX148, the third airframe.jpg
    Three-view of TX148, the third airframe.jpg
    76.5 KB · Views: 42

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,973
Reaction score
3,923
Hi!


Attachments

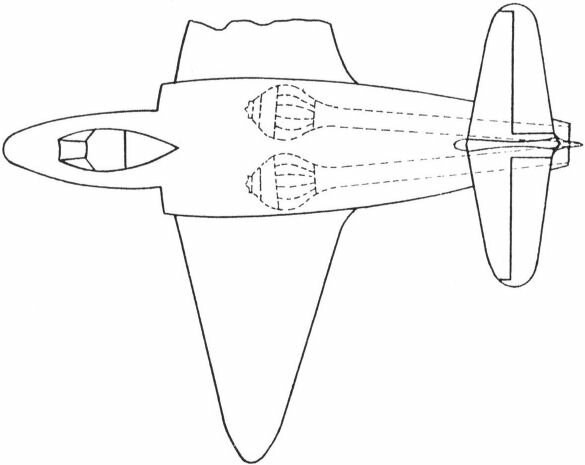

  • Rough RAE sketch of the Rocket from a report comparing wind tunnel tests of the Meteor, Ace, R...jpg
    Rough RAE sketch of the Rocket from a report comparing wind tunnel tests of the Meteor, Ace, R...jpg
    25.3 KB · Views: 46

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,973
Reaction score
3,923
Hi!
KEY:

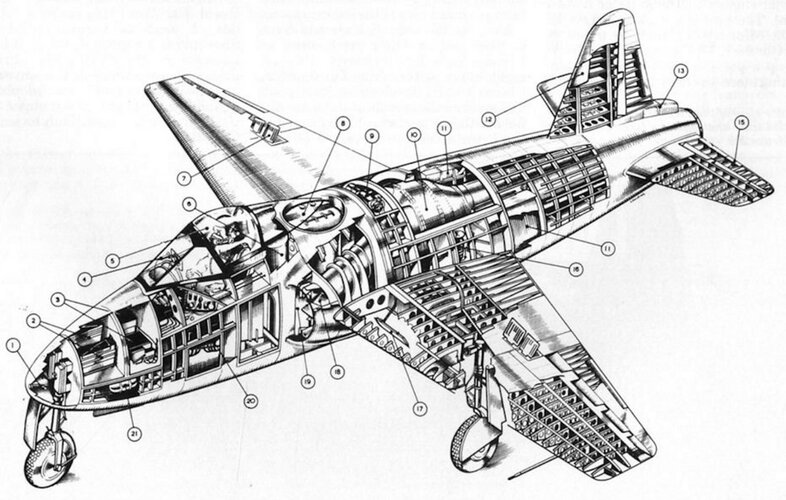

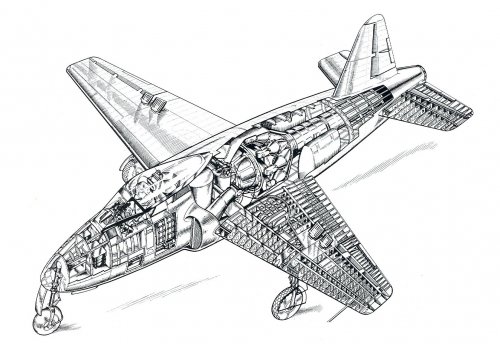

1. Cabin ventilating pipe 2. Electrical accumulators 3. Radio 4. Windscreen de-icing 5. Electrically-operated hood 6. Front fuselage fuel tank
7. Air brakes 8. Main fuel tanks 9. Auxiliaries gearbox 10. Rolls-Royce Nene I gas turbine 11. Rear fuselage fuel tanks 12. Surface aerial
13. Tail parachute 15. Elevator trim tab 16. Hydraulic reservoir 17. Dive recovery flap (port and starboard) 18. Engine air intake duct
19. Boundary layer bleed duct 20. Electrical main panel 21. Pneumatic air container


Attachments

  • 21-3.jpg
    271.2 KB · Views: 54
