General Dynamics A-310/A-311 V/STOL (US Navy "Type A" proposals)

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

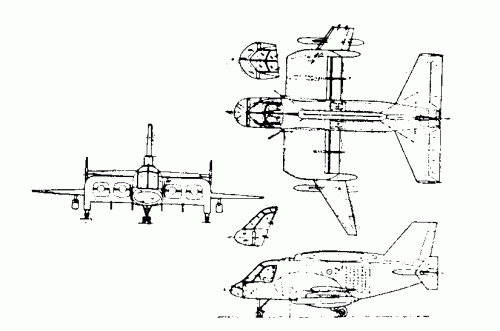

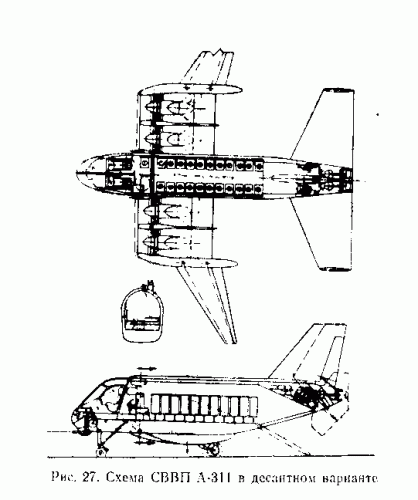

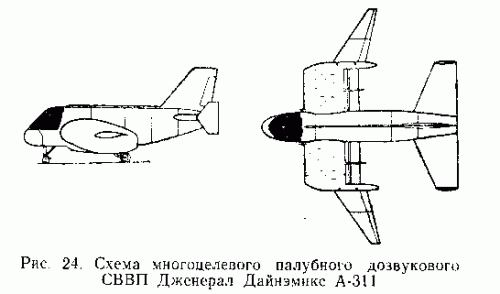

General Dynamics A-311


Attachments

  • A311-1.gif
    4.2 KB · Views: 936
  • A311-2.gif
    8.8 KB · Views: 933
  • A311-3.gif
    9.2 KB · Views: 896

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,460
Reaction score
191
A beautiful GD A-310 model from Aviation Magazine International Nº748 February 1979


Attachments

  • GD A310.jpg
    GD A310.jpg
    195.8 KB · Views: 843

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382

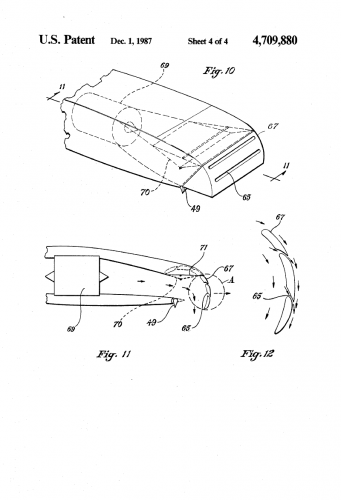

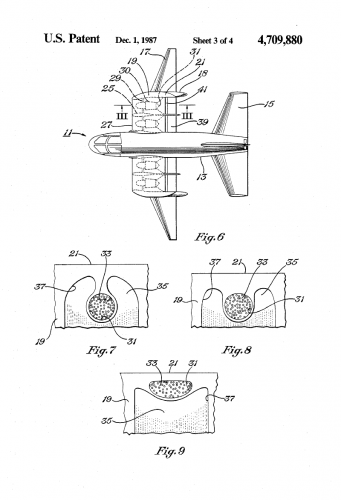

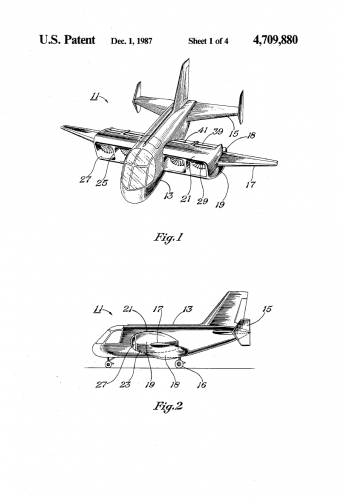

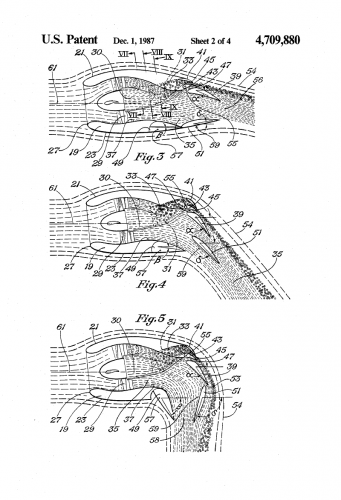

General Dynamics A-310 patent

http://www.google.com/patents?vid=USPAT4709880&id=98o1AAAAEBAJ

Corrected link and added pictures.


Attachments

  • patents.png
    29.9 KB · Views: 708
  • patents2.png
    59.7 KB · Views: 215
  • patents3.png
    33 KB · Views: 180
  • patents4.png
    22.5 KB · Views: 153

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382
4.1.2 General Dynamics

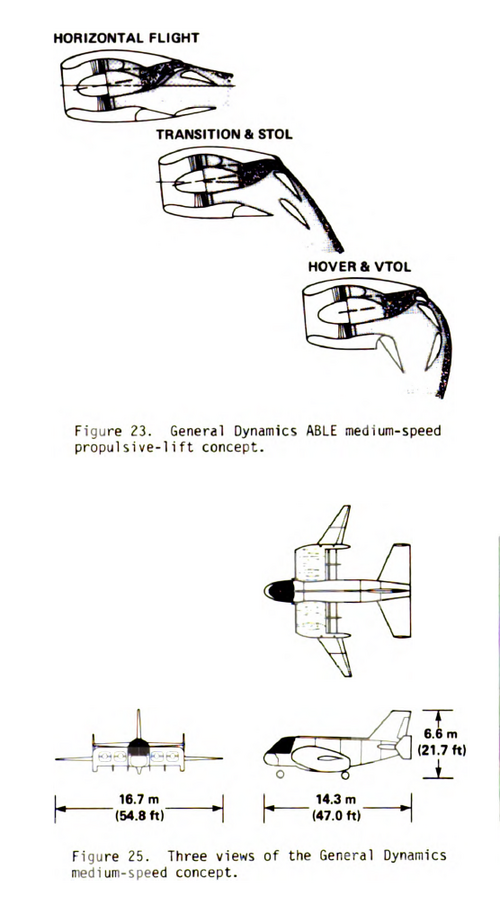

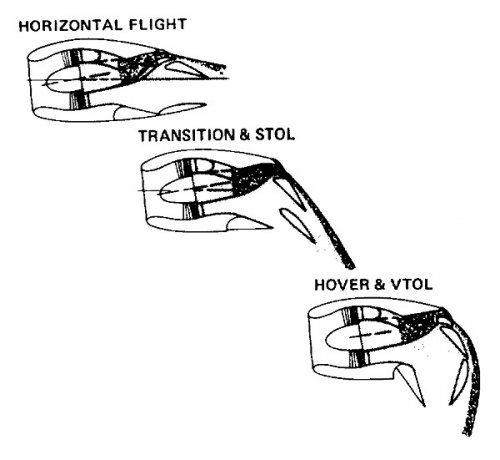

A medium-speed concept studied by General Dynamics, Fort Worth Division, features a powered lift system referred to as ABLE (Advanced Blown Lift Enhancement). The heart of this system is a "lifting nacelle" integrated into the wing that vectors the thrust of turbofan engines by using a series of movable flaps to make up the nozzle as illustrated in Fig. 23. One flap forms the upper surface of the two-dimensional nozzle, and two flaps form the lower surface. The upper flap has two slots. The upper forward slot forms the high-aspect ratio nozzle for the turbine engine exhaust, and the upper aft slot is a boundary layer control slot. The intent is to energize the external boundary layer and thus maintain attached airflow over the "lifting nacelles" to produce significant gains in STOL and transition performance and in aircraft controllability in these modes of flight. In forward flight, the flaps are arranged as shown on the left in Fig. 23, and in transition flight the flaps are deflected into intermediate positions as in the center of the figure. In hover flight (right in Fig. 23) the lower aft flap becomes a part of the aft wall of a vertical-thrust nozzle. The lower forward flap becomes the forward wall of the nozzle and provides a generous radius of the inside of the turn to reduce separation.

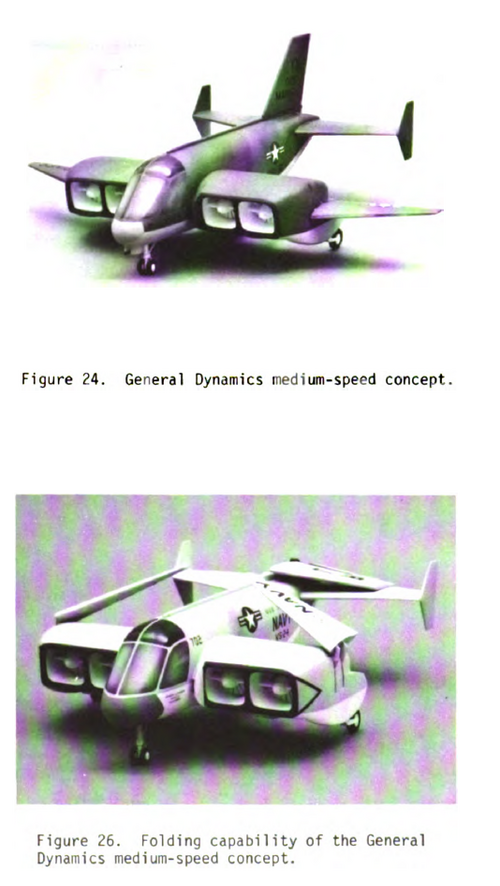

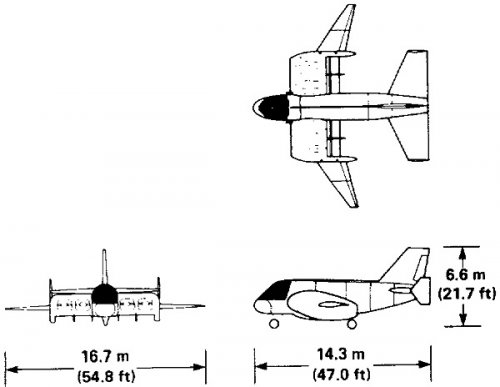

This propulsive lift system has been used in a configuration (A-311) illustrated by the model in Fig. 24. A three-view sketch is shown in Fig. 25, and the means of providing folding capability for a Navy configuration is illustrated in Fig. 26. Reference 3 gives a more complete description of this concept.

Four turbofan engines are used in the lifting nacelles of configuration A-311. The fans are cross-shaftedtogether using bevel gears in the fan nose bullets for engine-out considerations. Two load compressors are mounted between the inboard engines and the fuselage and are driven directly from the cross shaft. These compressors provide co_ressed air to the pitch trim/control system in the aft fuselage. This compressed air drives two air turbines which in turn drive two fans. The fan exhaust passes through dual nozzles which can be aimed up or down using a movable deflection system. Roll control in hover is achieved by biasing the thrust of the main engines either left or right through the cross shaft. Yaw control in hover is achieved by differentially deflecting the main engine nozzle flaps fore and aft on opposite sides of the aircraft.

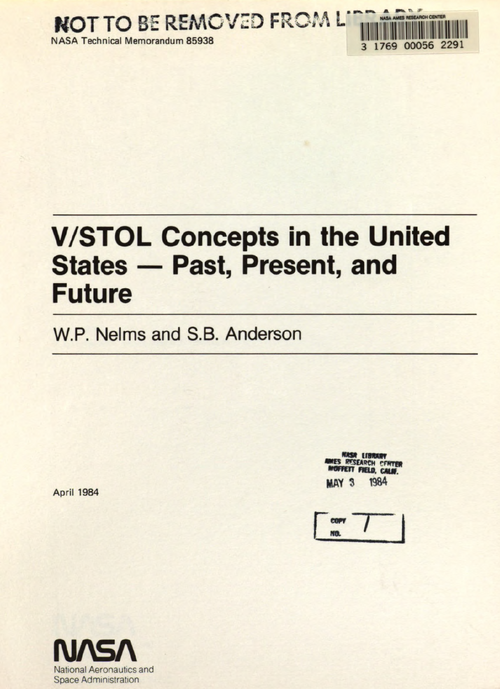

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840014464_1984014464.pdf


Attachments

  • A-311b.jpg
    49.3 KB · Views: 99
  • A-311.jpg
    38.1 KB · Views: 107

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

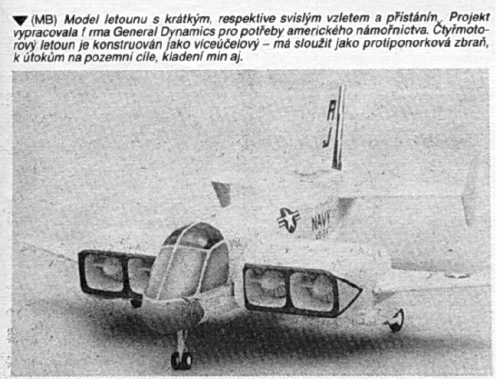

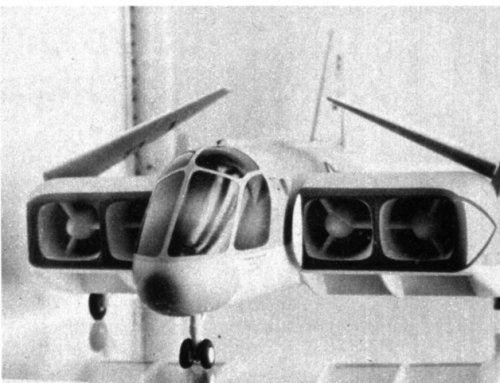

Another view of the model :
(frm Aviation Week 10/1978)


Attachments

  • GD_A-VSTOL.JPG
    30.1 KB · Views: 178

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

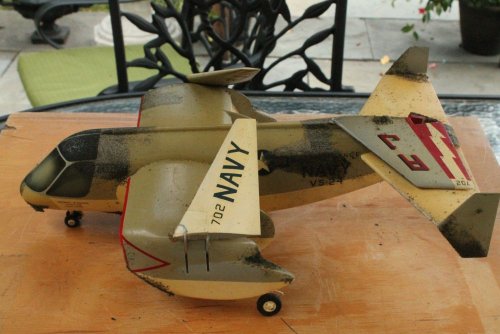

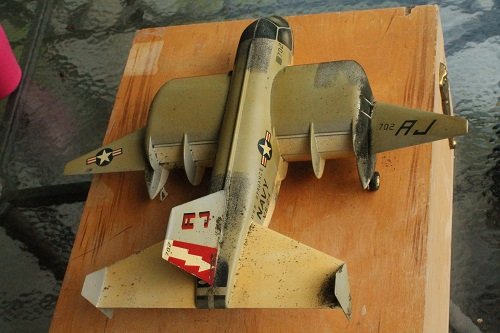

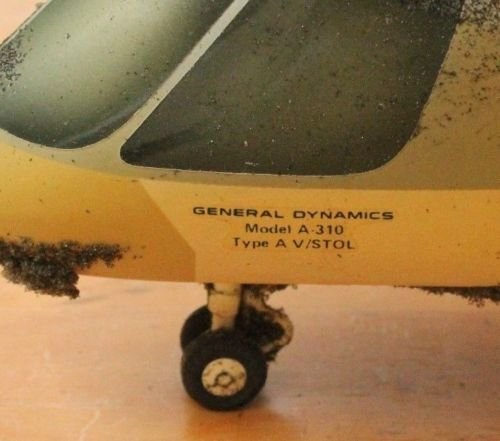

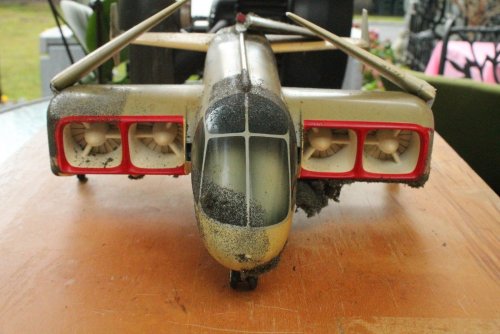

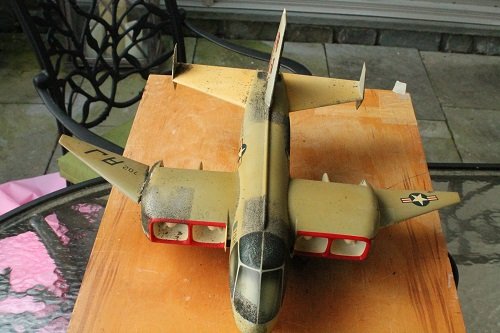

This model just sold on eBay for over $1,200. I did not buy it because the rotting foam had penetrated too deeply into the lacquer. I've seen this before ... The whole model needs complete stripping and refinishing -- out of my league.


Attachments

  • 2.JPG
    82.9 KB · Views: 124
  • 3.JPG
    86.9 KB · Views: 103
  • $_12.JPG
    28.7 KB · Views: 103
  • $_57-13.JPG
    262.3 KB · Views: 100
  • $_57-12.JPG
    262.4 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

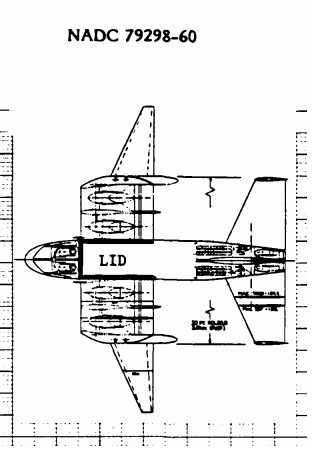

https://apps.dtic.mil/dtic/tr/fulltext/u2/a105668.pdf


Attachments

  • 1.png
    29.3 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467

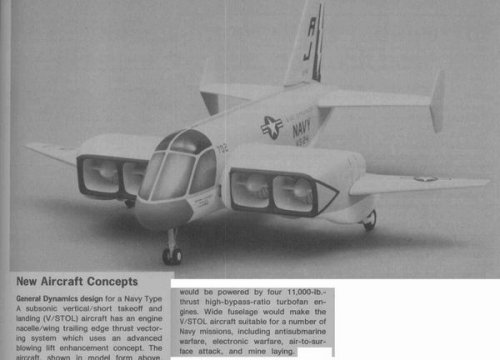

From L+K 25/1978.


Attachments

  • 1  25-1978.png
    1 25-1978.png
    346.7 KB · Views: 54
