French Matra JK200 weapon/drop tank system

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,667
Reaction score
39
G'day all

I'm trying to find out information on the Matra JK200 rocket/fuel/bomb system that was associated with the Dassault Mirage III/5/50 series of fighter-bombers.

As far as I can ascertain Matra promoted three combinations of the system:

- Matra JL100 (268 litre fuel tank and 18x68mm FFAR rockets)
- Matra TK500 (500 litres fuel tank and 4x500-pound bombs)
- Matra JK200 (313lt fuel, 18x68mm FFAR rockets and 4x500 lb bombs)

Although I have been able to find information/photos of both the Matra JL100 and TK500 systems, Im struggling to find any information/pictures of the Matra JK200 system!

Can anyone afford me the time to ascertain whether the Matra JK200 system was actually manufactured and purchased by what air forces?

Was it only able to be used on the Mirage III/5/50 series?

And if possible could you post photographs with the JK200 system fitted to aircraft?

Regards
Pioneer


Attachments

SteveO

CLEARANCE: Secret
Joined
Jun 24, 2007
Messages
367
Reaction score
2
It looks like they were proposed for the EE Lightning on the overwing hardpoints.
https://en.m.wikipedia.org/wiki/File:EE_Lightning_F.53_418_G-AXEE_Kuw_LEB_07.06.69_edited-5.jpg
https://en.m.wikipedia.org/wiki/English_Electric_Lightning


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,693
Reaction score
48
Website
beyondthesprues.com
As theorised over on BTS, I suspect the JK200 is a fake designation/design. Yes the JL100 and the TK500 are definitely real items but I am increasingly doubtful about the JK200.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,693
Reaction score
48
Website
beyondthesprues.com
SteveO said:
It looks like they were proposed for the EE Lightning on the overwing hardpoints.
https://en.m.wikipedia.org/wiki/File:EE_Lightning_F.53_418_G-AXEE_Kuw_LEB_07.06.69_edited-5.jpg
https://en.m.wikipedia.org/wiki/English_Electric_Lightning
The photo shown there is actually a JL100


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,212
Reaction score
397
When I was a kid (elementary school) I had a 1/32 scale model of the Mirage III. You could build it with either type of bomb-carrying drop tank. I built the one that had the rockets in the nose of the tanks. The model even had a removable Atar jet engine.


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
580
Reaction score
5
Website
defense-and-freedom.blogspot.de

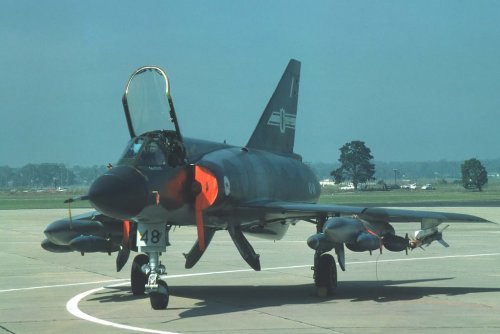

http://forum.keypublishing.com/attachment.php?attachmentid=148676&stc=1&d=1165713971
photo from here http://forum.keypublishing.com/showthread.php?65417-Current-Mirage-III-5-50-Operations&p=1053382#post1053382

http://i1268.photobucket.com/albums/jj563/venoid/217841_495702950458631_1569907884_n.jpg
from here http://forum.keypublishing.com/showthread.php?65417-Current-Mirage-III-5-50-Operations&p=2015145#post2015145

http://www.afwing.com/d/file/aircraft/others/france/61048534f3ba7069264dc3328079b7f2.jpg
http://ww.modelforum.cz/download/file.php?id=1053721&sid=24f451509676fc6244727b645c131971&mode=view
http://ww.modelforum.cz/download/file.php?id=1053756&t=1&sid=24f451509676fc6244727b645c131971

finally on JK-200:

There's someone to ask whether "fictional" described the whole thing or merely the drawing.


SteveO

CLEARANCE: Secret
Joined
Jun 24, 2007
Messages
367
Reaction score
2
GTX said:
SteveO said:
It looks like they were proposed for the EE Lightning on the overwing hardpoints.
https://en.m.wikipedia.org/wiki/File:EE_Lightning_F.53_418_G-AXEE_Kuw_LEB_07.06.69_edited-5.jpg
https://en.m.wikipedia.org/wiki/English_Electric_Lightning
The photo shown there is actually a JL100
Good point, I should have reread Pioneer's post before replying!


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,693
Reaction score
48
Website
beyondthesprues.com
lastdingo said:
http://forum.keypublishing.com/attachment.php?attachmentid=148676&stc=1&d=1165713971
photo from here http://forum.keypublishing.com/showthread.php?65417-Current-Mirage-III-5-50-Operations&p=1053382#post1053382

http://i1268.photobucket.com/albums/jj563/venoid/217841_495702950458631_1569907884_n.jpg
from here http://forum.keypublishing.com/showthread.php?65417-Current-Mirage-III-5-50-Operations&p=2015145#post2015145

http://www.afwing.com/d/file/aircraft/others/france/61048534f3ba7069264dc3328079b7f2.jpg
http://ww.modelforum.cz/download/file.php?id=1053721&sid=24f451509676fc6244727b645c131971&mode=view
http://ww.modelforum.cz/download/file.php?id=1053756&t=1&sid=24f451509676fc6244727b645c131971
Lots of TK500 pics there but no "JK200"

lastdingo said:
finally on JK-200:

There's someone to ask whether "fictional" described the whole thing or merely the drawing.
That's the only image I can seem to find as well - I took the words to imply that the item was a fictional creation.


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
580
Reaction score
5
Website
defense-and-freedom.blogspot.de
There's a possible reason for why a triple combination would not work if it looks like that:

The launching rockets need vents for their propellant gasses, JL-100 has those.
The JK-200 drawing shows the vents in the same places, but some would direct the gasses towards the bombs. I strongly doubt this is how it would be done by the engineers.

The clamp/mounting of the bombs also appears to be where two or more SNEB rockets are supposed to be.


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
580
Reaction score
5
Website
defense-and-freedom.blogspot.de

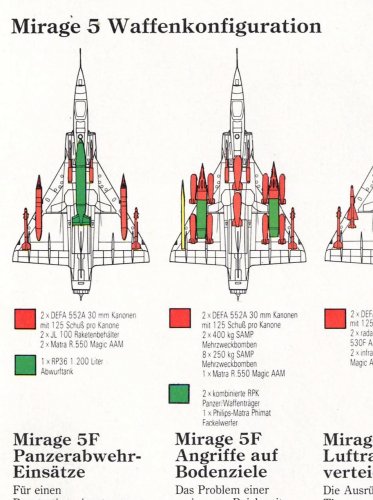

Good news: It's NOT really some recent fanart.

I found it in Aero journal issue 214 (German issue), original copyright Marshall Cavendish Ltd. 1986

It's only drawn there with no photo, and called "RPK".

The diameter is vastly greater than with the JL-100, so rocket calibre may have been different and designation is different ... a combination of drop tank, rocket launcher and bomb pylon has existed apparently, but "JK200" in description and known drawing may be utterly inaccurate.


Attachments

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,921
Reaction score
16
Although there could have been scaling issues or simplifications in the original drawing (even if it isn't recent fanart).

Btw. Does anyone know how long the JL100 and TK500 were in service?


PierreDeveaux

CLEARANCE: Restricted
Joined
Sep 11, 2019
Messages
3
Reaction score
1
Hello to all: As the author of the "JK200" bomb carryiong fuel/rocket launcher illustration I may confirm this to be pure fantasy.

The JL100 is presumably well known and while making some research on the subject I bounced on the TK500 bomb carrying fuel tanks carried by Mirage-5 (or like) of the Peruvian Air Force (if I remember well,,,) Within the context of the fiction/fantasy I am working on, I thought why not trying a combination of these two ?

In support of this fantasy I used existing imagery to sort of illustrate the idea - the resulting image has to pretense to any accuracy (not really needed for what I am working on)

From time to time I see this image being commented here and there, probably borrowed from another source than my own website where its fantasy nature is clearly mentioned. Sorry not to mention it as it's not functional at this moment, and won't before next December or even January (2020 !)

Being here only by "accident", any further question may be sent to me more directly, Best regards to all

Pierre Deveaux
Rue Saxe-Cobourg 23
B-1210 Brussels Belgium
Tel - +32 2 219 9958
Tel - +32 485 336 300 (mobile but voice and sms only)
Mail - pierre.deveaux@laposte.net

Post scriptum : born in another century, I have no reluctance to identifly myself - Honni soit qui mal y pense

Last edited by a moderator:

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Bombs and rockets on fuel tanks, what could possibly go wrong ? o_O


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,949
Reaction score
29
Bombs and rockets on fuel tanks, what could possibly go wrong ? o_O
Not much. I think the real concern was the use of rockets and fuel tanks together. Rocket exhausts tend to set fuel leaks alight...
