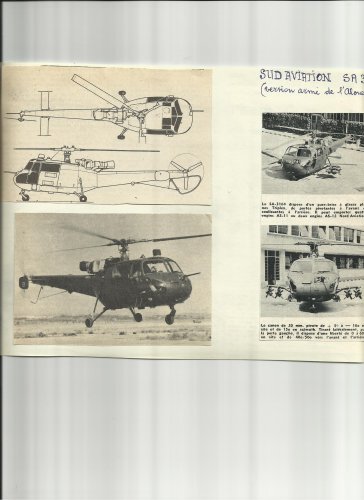

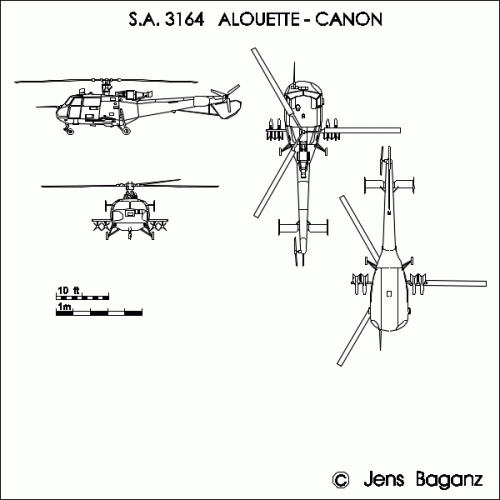

Apart from arming transport helicopters with pintle mounted machine guns and occasionally rockets, the first, more dedicated attack helicopter
I've found was the SA 3164 Alouette Canon, built in a single example,
as a moderate modification of a satandarrd SA.316, armed with up to
four SS 11 and a bow mounted 20mm gun.

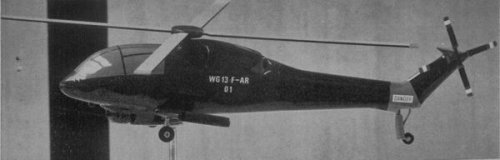

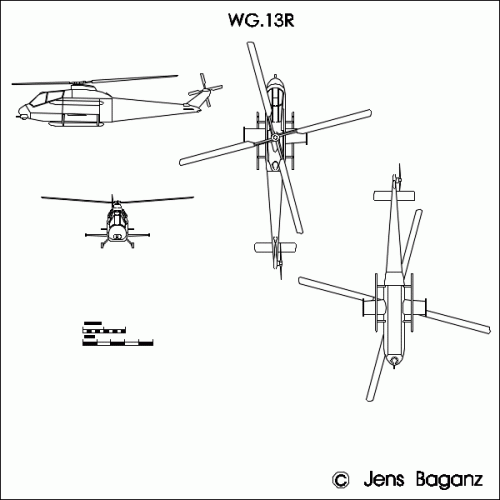

The anglo-french cooperation Aerospatiale and Westland brought several
projects for armed versions, which were intended for use for the french
army too. The layout of first armed version of the Lynx, proposed by
Westland in 1964, wasn't favoured in France, instead a cockpit with
side-by-side seating was adopted, although later designs featured
a tandem cockpit, too.
(from Aviation Week 5/68)


Attachments

  • SA-3164.GIF
    21.1 KB · Views: 598
  • WG-13R.GIF
    20.3 KB · Views: 1,937
  • WG-13-1.JPG
    15.7 KB · Views: 1,849
  • WG-13-2.JPG
    13.2 KB · Views: 1,836

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,197

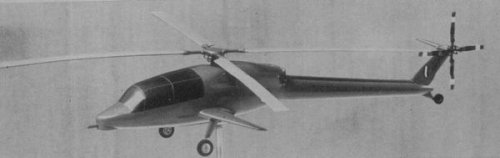

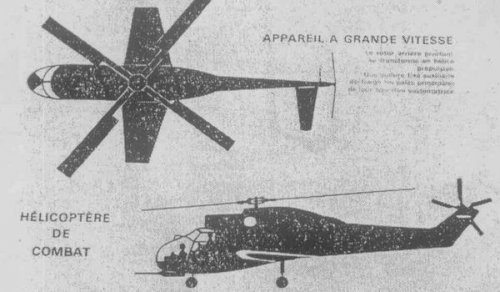

A concept proposed in 1964, based on the SA-330 Puma was the
AAFSS, using the dynamical system of the Puma, but fitted with
a swivelling tail rotor which acted at higher speeds as a pusher prop,
as in the Sikorsky S-61F (from FLIGHT INTERNATIONAL 1965).
As told in the AH-56 thread, I don't know if the concept from 1971,
based on the Puma was really influenced by the Cheyenne, or how
it fits into the french attck helicopter programs of this time.

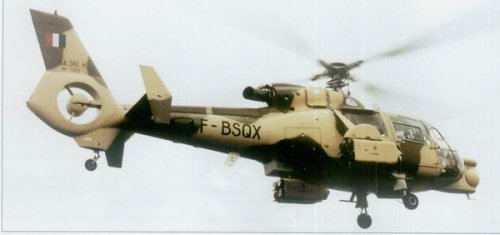

In 1972 a SA.360 Dauphin was modified to the SA.361 for the
HCL program (Hélicoptère de Combat Léger) (from MiniDocavia N°9).


Attachments

  • AAFS.JPG
    39.4 KB · Views: 593
  • Aerospatiale_SA-330.JPG
    17 KB · Views: 395
  • SA-361.JPG
    18.9 KB · Views: 356

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,197

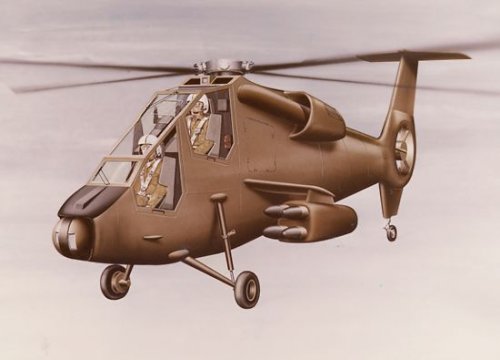

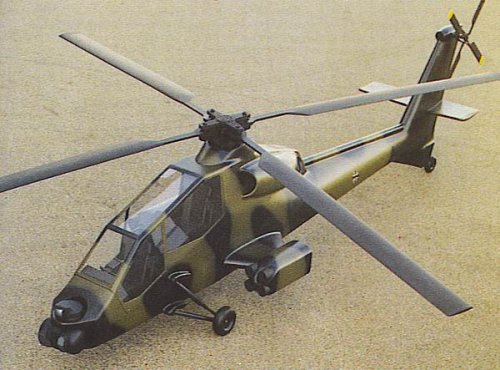

The beginning of the german -french collaboration, which eventually
resulted in the Eurocopter Tiger, brought several designs from Aero-
spatiale and the participating german MBB, later merged into Eurocopter.


Attachments

  • PAH-2.JPG
    23.4 KB · Views: 205
  • Aerospatiale_MBB_PAH_1.jpg
    60.3 KB · Views: 196

rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1
I find it quite amusing how much the front end of the Tigre with the fenestron looks like Italy's Mangusta.......



Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,197

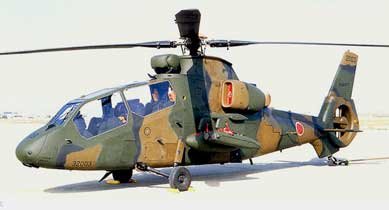

.. and the tail with the fenestron looks quite similar to the Kawasaki OH-1 !
A typically case of "form follows function", I think .


Attachments

  • oh-1.jpg
    10.6 KB · Views: 208

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,748
Reaction score
4,395
Armed WG13 variants side views here: http://www.secretprojects.co.uk/forum/index.php?topic=324.0


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
Hi,

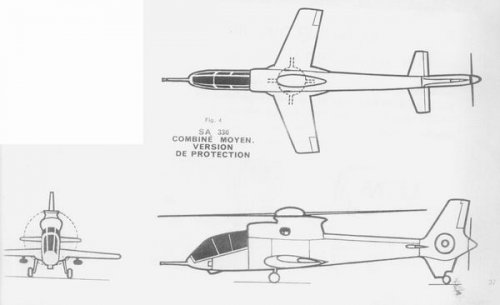

by the way, the Aerospatiale SA.330 means SA X-330
(in X series).


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,197
Difficult theme, I think. There actually were Sud-Aviation projects with X designations,
like the X-600 or X-910. But in this case, I'm not sure about the "X", as it a type based
on the SA-330. So a designation á la SA-33x or SA-33xx seems more probable to me,
or a completely new model number and then, maybe, during the early design stages
with an X. Designations given in the media for such types are often a windy affair !


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
My dear Jemiba,

for Aerospatiale,the new aircraft always get X series,such as
X-270 light aircraft,X-300 which became SA-340,X-330 attack
helicopter,X-350 Rotojet compound helicopter and X-380 experimental
helicopter from SA-365N.
unfortunatly,I saw X-280 on Internet before,but now I have not any
information about it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
My dear Jemiba,

also I mentioned the X-370 and X-375 helicopters in (french projects
aircraft after WW2) topic


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
217
Re: Westland WG-13 French Attack Helicopter project......

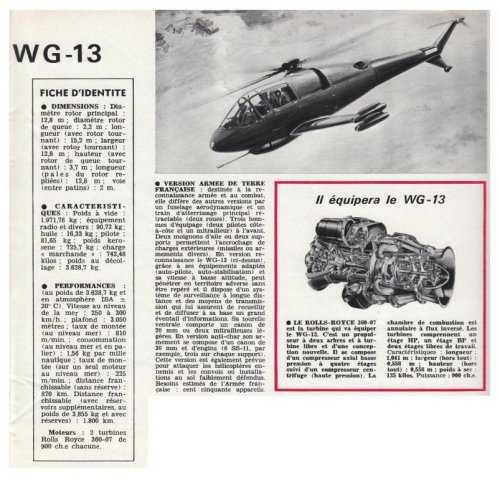

Dear Boys and Girls, here is a feature in French about the Westland WG-13 armed attack helicopter "project" designed for the Armée de Terre. Is is part of a larger article about all the proposed versions of the WG-13......

The feature comes from the 15th September 1968 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Westland WG-13 Armée de Terre version project - Aviation Magazine International - No.jpg
    Westland WG-13 Armée de Terre version project - Aviation Magazine International - No.jpg
    131.9 KB · Views: 175

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
583
Very nice... but a Westland project in "French Attack Helicopters"?? This is misleading.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
217
Stargazer2006 said:
Very nice... but a Westland project in "French Attack Helicopters"?? This is misleading.

Maybe, but it's at the top of the topic and it was for a French requirement......


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549

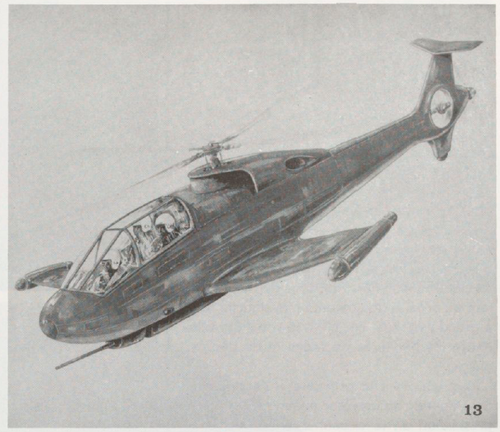

from Icare 1967,

here is unknown Sud-Aviation attack helicopter Project ?.


Attachments

  • 3.png
    589.9 KB · Views: 91
  • 8.png
    50.7 KB · Views: 91
