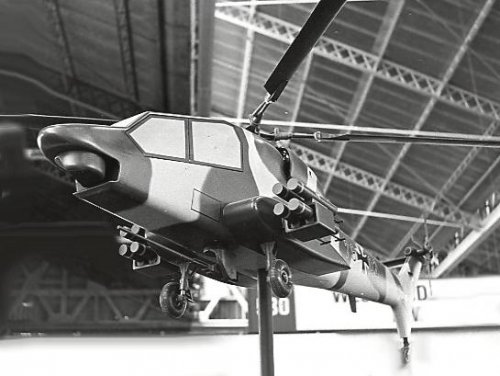

New PAH II entry: VFW Fokker/Westland Helicopters P277

One of the large surprises air show 1977 in Le Bourget/Paris was common the model debut from VFW Fokker and Westland of the Helicopters and in all silence of developed combat helicopter P 277 'Fleidermaus' (Bat). With this sample it concerns a project suggestion on the fulfilment of the tactical demand of the Federal Republic of Germany on a helicopter laid out for antitank defense. Certainly thereby the development of the PAH II steps into a completely new phase.

In May/June 1977 became known the procurement of 212 machines of the antitank defense helicopter of the 1. Generation (PAH I) green light gives. With this sample it acts around a derivative out of the Bo 105M, by which for February 1976 two machines are extensively tested. Numerous studies resulted in that with appropriate weapons of equipped Bo 105M can fulfill the demands on the PAH 1. In addition also attempts with an inserted mg 3 belonged in swiveling carriage and a sechsläufigen mini act of Emerson Electric at the fuselage lower side. Also the usefulness of the 20-mm cannon RH 202 of Rhine metal was examined.



Although all of this led to excellent results, one decided in the long run for the equipment of the PAH I with six antitank defense missiles of the German of French type HOT (High Optical tube) in three-foldwho far from. These 260 m/s fast and 32 kg heavy weapon equipped with folding wings an employment use of 75 to 4000 M. with six HOT armed Bo 105P has comes including the complete visor equipment on a takeoff weight of 2400 kg. With the PAH I the army aviators are finite starting from at the end of of 1979 in case of an armed conflict able to be able to fight solid tank break-throughs more effectively than ever before. Everyone of the three corps will receive additionally an antitank defense regiment (PAR) with 56 Bo 105P.

But back to the antitank defense helicopter of the 2. Generation, whose development with the decision stepped over the troop introduction of the PAH I into a new concrete phase. To the principal claims of the German army aviators to the new sample belong not only more efficient weapons, but above all the night operations and bad weather fitness. Only well-known forerunner for the new PAH system, which was to be realized to European joint venture work and be introduced in the second half of the eighties, was to June 1977 the draft Bo 115 prepared by MBB. It was not amazing thus that the project of the P developed together by VFW Fokker and Westland knocked 277 into Le Bourget themselves with numerous specialists like a bomb.

Both companies worked in the last two years and in all silence on the draft of the new combat helicopter, which in the weight class around 4500 kg ranked and outwardly a little reminds of the American sample Bell Huey Cobra. Not only from time, but in particular from cost reasons one already took Westland as a basis Lynx, which fulfills the operational demands of the PAH II fully in the initial phase the complete dynamic system of the light multi-purpose helicopter.

The power plant of the P 277 consists of two 960-WPS-Turbinen of the type of Rolls-Royce IN ACCORDANCE WITH 4, which make a maximum speed of 290 km/h and a maximum rate of climb of 13,4 m/s at ground level for it possible. This also shaft turbine marked with RB.360 worked satisfactorily until today with the Lynx outstanding. It is characterized by a small fuel consumption and is very fast-reacting. The rotor system of the P 277 consists as with the Lynx of a hingeless four-sheet main rotor with a diameter of 12,80 m and a likewise four-leaf tail rotor, whose diameter is with 2,21 m.

For the security of the calculated flight performances served VFW Fokker a P 277-Modell, which was examined in the context of a 75stündigen of program and in the most diverse configurations in the wind tunnel. In addition among other things also the influence of the cannon and the Visiereinrichtung belonged apart from the trunk base data and the pressure distribution around the front and middle trunk. The unloaded weight of the P 277 is with 2460 kg and the maximum takeoff weight with 4760 kg.

The two master units of the tail landing gear chassis are retractable into lateral trunk cars. As is the case for some other helicopter samples the zweiköpfige crew is easily graduated accommodated in a tandem cockpit. Both seats are armored like all vital systems of the equipment and engine installation.

As tasks of main employment of the P 277 the fight of armored ground targets as well as the battlefield support are considered with solid tank break-throughs. Beyond that it is to be in addition, able to suppress opposing soil fire and to accompany and protect if necessary heavy transport helicopters with their employments. For all these tasks the P can carry 277 different weapons of the most modern conception, to which beside, to a fuselage-side 20-mm cannon with 250 in particular two four-fold throwers for HOT or TOW missiles belong to shot. For low attacks however also two throwers with 38 2.75 can " instead of its - rockets and for armed escort-in-corrode two air-to-air guided weapons Matra 550 or Redeye to be carried.

All this, the proven dynamic system of the Lynx as well as a durable cell and equipment with small maintenance need, make the P 277 a combat helicopter with high readiness of application. It corresponds not only to the tactical demands of the army aviators for the PAH II, but also the political conceptions as international community project. Because of the mentioned assumption of the Lynx Rotorsystems and the associated Verkürzung of development time and - the P 277 costs at the beginning of the eighties of the troop with its realization be supplied around half could. The combat helicopter P 277 represents without any doubt a further contribution to the standardization of weapons and equipment within NATO.

Beyond that the development of a modern PAH, on which also the Aerospatiale (France) and Agusta (Italy) work, was completely again animated by the debut of the P 277. One should further pursue it in the next years with largest interest.

The airmobileness of the army will be again crucially improved by the PAH II - it is now the Bo 115 or the P 277 -. The arsenal of the army for the effective fight of armored vehicles will be considerable in the eighties. It is enough then from the Panzerfaust over guided missiles of different ranges up to own hunt and battle tanks as well as with appropriate weapons to equipped combat helicopters of most modern conception. Hans's Redemann
Translated from




PS: small edit made by Deino as the German name for that helicopter was not "Fleidermaus" but only "Fledermaus" without an "i" meaning "bat" !!


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,199
Reaction score
278
Excellent!

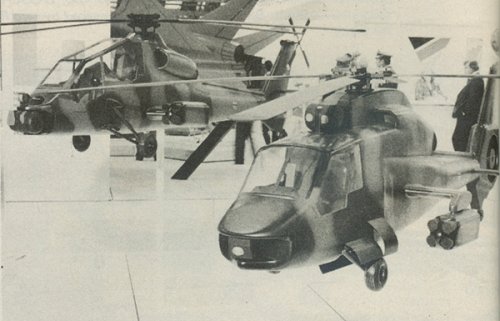

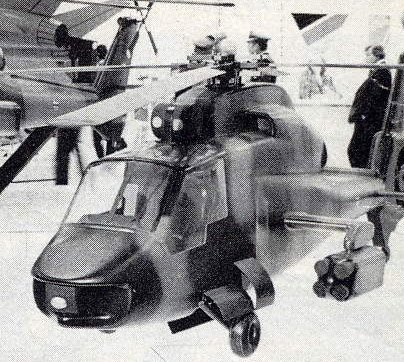

The helicopter scene of the aero salon of this year was clearly characterized by the model debut of a new combat helicopter, which VFW Fokker as well as Westland Helicopters developed in the last two years in all silence. The new helicopter with the designation P.277 bat corresponds to a large extent to the tactical demands of the German Federal Armed Forces for the PAH II. it resembles outwardly the American Bell AH-1 Hueycobra and ranks in the weight class by 4000 kg. As power plant as with the Lynx two 900 WPS turbines of the type Rolls-Royces RB.360 are intended. In addition one took over the entire rotor system of the Lynx, which a crucial contribution might be for standardization within NATO. Beyond that this would reduce the expenditure at costs and time for the development of the new helicopter to half.

With a realization of the all-weather suited P.277 this could take up for instance in the middle of the eighties its active troop service with the German army aviators. As its primary Einsatzaufgaben are considered the battlefield support with solid tank break-throughs, the purposeful fight of other armored ground targets and the escort of heavy transport helicopters. With a flying weight by 4200 kg and with eight HOT guided weapons the P.277 nearly 290 km/h is equipped to be fast. In addition it can be armed with a rotating turret at the fuselage lower side with 20 a mm cannon with 250 shot. One may be strained on the further development of the PAH II, which was again animated by the appearance of the P.277.


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,199
Reaction score
278

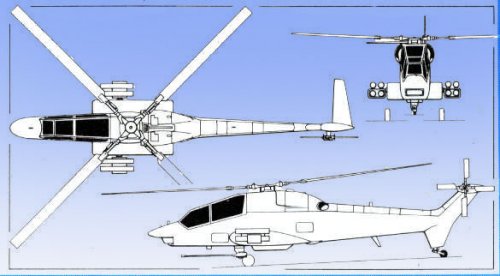

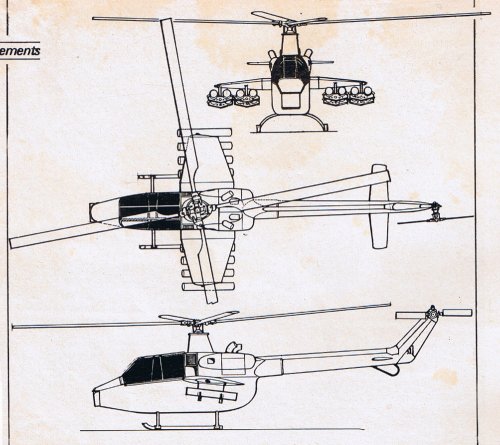

Better copy of the 3 view.

Powerplant: 2 x Rolls-Royce Gem 4 turboshafts, 2.5 min contingency rating 1,050shp and continuous rating 865hp.
Internal fuel 740kg.
Performance: at 4309kg armed, 278km/h cruise speed at sea level. Range 584km at cruise speed at sea level. Max inclined climb, 13.46m/sec: single engine emergency climb 5.58m/sec; ceiling 4875m.
Weights: 2464kg empty, basic armed 2998kg, 8 HOT + 20mm cannon + ammunition, 3749kg; max mission TO, 4309kg; MTOW, 4763kg.
Dimensions: rotor dia, 12.8m; tail rotor dia, 2.21m; fuselage length, 13.1m; width, 1.1m; overall length 15.16m; overall height 3.5m.

Owes much to the cancelled anti-armour Lynx for the French Army and using the rotor, transmission and powerplant of the Lynx. Due to Lynx commonality only 2 years to first prototype, then 3 years to first production delivery anticipated. No less than 700 configurations studied.

Armament 8 HOT or TOW missiles, + 20mm or 30mm cannon with 250 rounds for antiarmour role, or cannon + 8 Redeye or Stinger missiles for AA role.

Rival MBB/Aerospatiale project using BO-105 dynamic components.

Source:
  • Air International, August 1977


Attachments

TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
4
I wonder if it would have been neccessary to redesign the Lynx's gearbox? Typically, this is the sticking point in obtaining design commonality between attack and transport type helicopters.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
576
Reaction score
1
Website
www.tailsthroughtime.com
TinWing said:
I wonder if it would have been neccessary to redesign the Lynx's gearbox? Typically, this is the sticking point in obtaining design commonality between attack and transport type helicopters.
Is it because of the different loads placed on the transmission systems- that is, an attack helo is going to be flown differently than a transport?


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
576
Reaction score
1
Website
www.tailsthroughtime.com
I think those two images came from Bill Gunston's book "Warplanes of the Future". I'll have to go digging through the bookshelves for my copy to confirm that.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,199
Reaction score
278
The second image is from P115 of "Warplanes of the Future", one of two books I read as a child (along with "Project Cancelled") which started my obsession with unbuilt projects.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,199
Reaction score
278

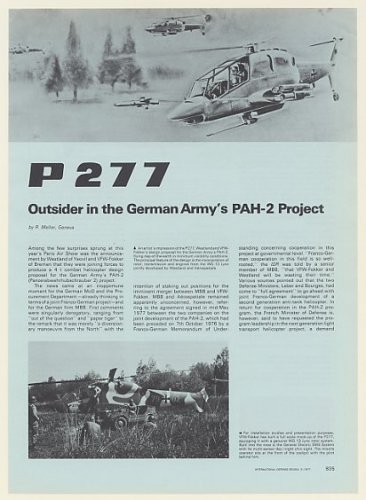

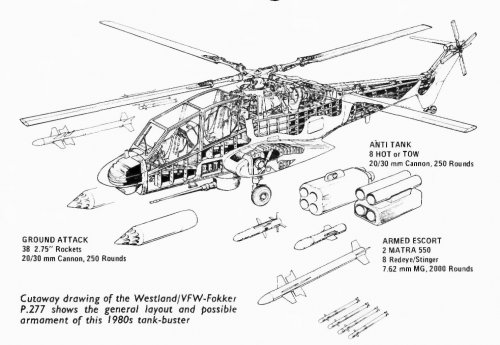

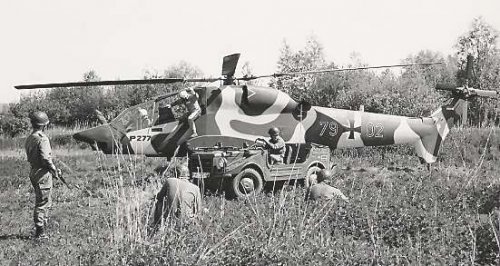

Back to topic with a bang!

Europe's 1980s tank-busting helicopter

ONE of the relatively few genuine military surprises at the Paris Show was the announcement by Westland and VFW-Fokker that they are collaborating on an attack helicopter for central European use in the late 1980s. They are working to a requirement, not yet officially confirmed by the West German Army, generally known as PAH-2 (Panzer Abwehr Hubschrauber) and calling for a specialised day/night anti-armour helicopter of medium weight. It would initially complement and then probably replace the lighter, Hot-armed BO105M PAH-1, the first of which is due for delivery in 1979.

Westland and VFW-Fokker are not alone in bidding for PAH-2. Aerospatiale and MBB—which have been working together, particularly on rotor design, for ten years—are also collaborating but have not been as quick off the mark in announcing details of a firm project. In fact, the Franco-German partners seem much less sure of the scope of their collaboration or of such details as worksharing and technology level.

Aerospatiale, already linked with Westland on the Lynx but informed of the relationship with VFW only at a late stage, remains outwardly unconcerned by the new Anglo-German arrangement. The French company believes that the German and French Armies are harmonising their antitank helicopter requirements for the late 1980s, and that PAH-2 will therefore turn into a Franco-German project along the lines of Alpha Jet or the Euromissile weapons.

Helicopter division director Francois Legrand tells Flight that it is too early to say that either a programme leader or a dynamic system on which to base a PAH-2 has been decided between Aerospatiale and MBB. The German company, on the other hand, appears confident that it will lead and that a scaled-up BO105 system will be used. Legrand believes that a new airframe, new engines, new dynamics and new weapon systems are all feasible, in spite of the resulting extra cost and time. Westland and VFW have in the meantime come up with a firm proposal, designated P.277, which is based on major Lynx assemblies already in production and said to meet fully PAH-2 response and performance requirements at projected mission weights. Bearing in mind the cancelled French Army anti-tank variant and the British Army's planned roles for the utility version, the companies have a safe bet in claiming that the Lynx already meets anti-tank helicopter requirements. It was this, they say, which led to the adoption and development of the VFW-Fokker, which is responsible for P.277 fuselage design, has built a full-scale mock-up in Germany of the hingeless rotor, low-profile transmission and highly responsive engines.

The partners are also promoting the idea that, with Lynx now almost fully developed and adopted as a Nato project, use of Lynx assemblies for PAH-2 would keep development cost to just over half that of a completely new helicopter and reduce development time. A large measure of commonality with other Lynxes in the Nato fleet would be an additional bonus.

The companies say that they could fly three prototypes within about three years of a firm go-ahead, delivering the first production aircraft at the end of the fifth year. Production deliveries of a completely new design would begin an estimated seven years from go-ahead, by contrast.

P.277 performance projections are based on the use of two Rolls-Royce Gem-4 engines. At the maximum allup weight of 4,300kg and carrying eight Hot missiles, the P.277 would have a maximum continuous cruise speed of 150kt TAS with an outside air temperature of 20°C. At an AUW of 3,875kg with the same number of missiles and an OAT of 10° C, the continuous speed is 160kt. At 3,625kg and 10°C, again with eight missiles, the P.277 could achieve a 5min dash speed of 167kt TAS. Sea-level vertical rate of climb (at a 5min take-off power rating) would vary between 4,000ft/min at 3,625kg and 2,700ft/min at 4,300kg (both at an OAT of 10°C). Maximum forward rate of climb under the same conditions would be between 3,450ft/min and 2,650ft/min. Single-engine rate of climb with a 1 hr contingency rating, again at 10°C, would be very nearly 1,500ft/min at 3,625kg and just under 1,000ft/min at 4,300kg.

Three kinds of mission are being projected by Westland and VFW for the P.277: anti-tank, armed escort and ground attack. For the first of these, a 140km sortie has been sketched out, carrying eight anti-tank missiles and 250 rounds of 20mm ammunition. The profile includes a 110km transit out and return at 150kt, 30km of nap-of-the-earth flying in the battle area at 70kt, 20min of loiter and attack, and 40min hovering time left over, plus reserves.

A typical armed-escort mission, with two Matra Magic air-to-air missiles, eight Redeyes and 2,000 rounds of 7.62mm ammunition, could have a radius of action of between 250km and 300km. It would be flown mostly at 120kt, but with 150kt dashes, a couple of attacks and 20min of hovering and/or loiter.

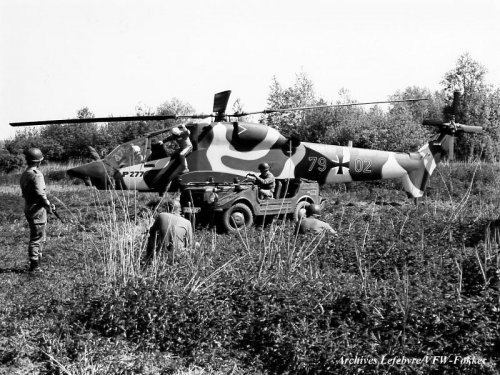

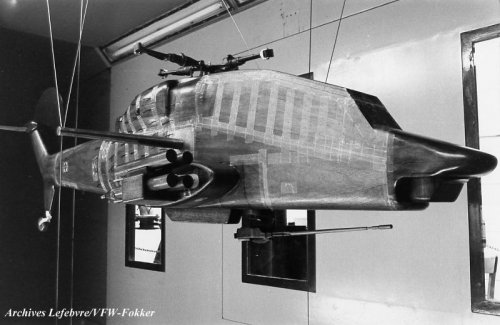

P.277 is already well defined, after 75hr of tunnel tests covering some 700 different configurations. This work has been directed at predicting the performance effects of the canopy form, chin sight, under-fuselage cannon and various other weapon installations. German Government approval of the PAH-2 requirement is still some way off and will depend largely on funding priorities to be settled at the end of this decade. After that, the choice between the Westland/VFW and Aerospatiale/MBB proposals will also depend to an extent on the requirements of other European armies.

This may prove to be crucial, since a collaborative programme is unlikely to get under way without both countries' armies agreeing on the requirement and purchasing a number of aircraft. The British Army has always shied away from specialist anti-tank helicopters, preferring to use multipurpose machines such as the Lynx or the smaller Gazelle. The French Army, however, has the longest antitank helicopter history of all, and the present signs of renewed interest in an aircraft dedicated to the role may give a potent competitive edge to the eventual MBB/Aerospatiale submission for PAH-2.

P.277 DATA
Fuselage length 13.1m
Fuselage width 1.1m
Fuselage height 2.5m
Overall height 3.5m
Main rotor diameter 12.8m
Tail-rotor diameter 2.2m
Empty weight 2,464kg
Typical night-equipped basic weight 2,998kg
Typical operating weight (with 8 Hot/Tow, 20mm cannon plus 250 rounds) 3,749kg
Max mission take-off weight 4,309kg
Max permitted gross take-off weight 4,763kg
Internal fuel capacity 740kg
Equipment Communications: intercom, UHF, VHF, HF, secure speech .
Navigation: Doppler, radar height, UHF homing, Tacan, IFF/SIF
Flight control: stabilisation in pitch, roll and yaw; heading, radar height and barometric height holds
Target sighting: dual-magnification optics with IR tracker. Compatible with FLIR or laser tracking sensors, lase, rangefinder, helmet sights, night vision/sighting systems and lase, weapon-training simulator

Source:
http://www.flightglobal.com/PDFArchive/View/1977/1977%20-%201901.html


Attachments

richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
562
Reaction score
3

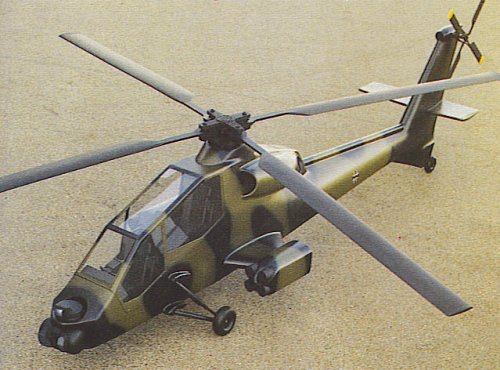

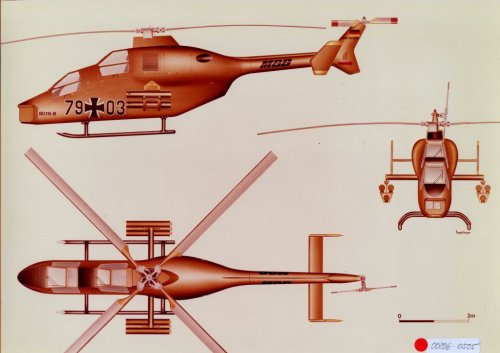

One of the grand-grand father of PAH 2 : The MBB Bo 115 project ,1973 ,and the grand father ,MBB/Aérospatiale first PAH 2 project ,1979 .Both from "Aviation Magazine" of the 70'.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,493
Reaction score
454
Hi,

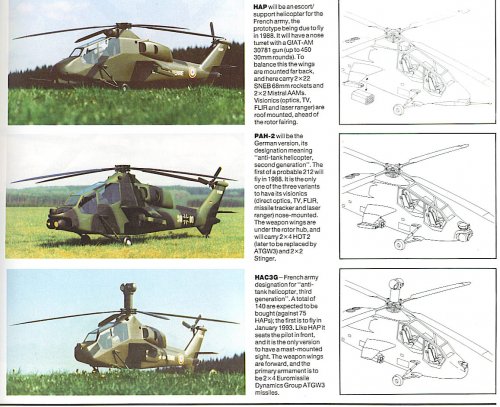

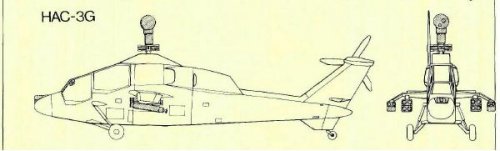

the HAC 3G project;


Attachments

Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
264
Reaction score
6
Hi All,

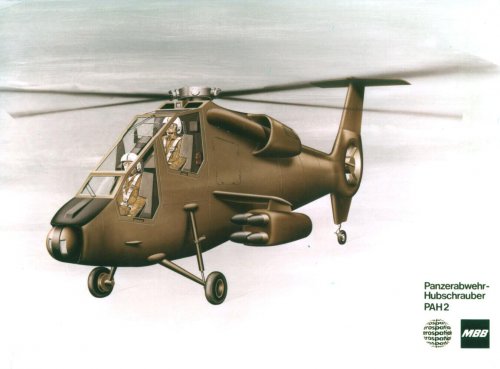

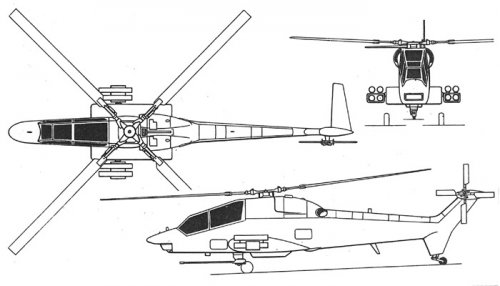

following my previous post, I Think you could appreciate a three-view drawing and an artist's impression (already seen in black and white) of the PAH 2, developed from the Bo 115; the drawings are dated between 1979 and 1980, if I remember right; on the back of the three-view drawing of the PAH 2 there is a note explaining that it was a developed iteration of the project, not the very first Bo 115.

Nico


Attachments

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,440
Reaction score
39
Speaking of the German Tigers, I saw a piece of gear over on MilitaryPhotos.net that they are likely to be using - Saab's Helicopter Target System:

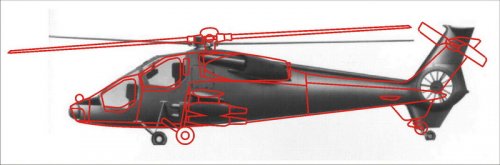

High-resolution vulnerability

The vulnerability of the helicopter depends on the engaging ammunition type, the impact point and often the distance. The two pods on the helicopter prevent blind spots and provide a realistic target signature. The impact areas and the vulnerability of each area are customisable and platform-unique. Different vulnerability models can be downloaded to the generic system dependent on the helicopter type. The target system calculates the effect of incoming fire and informs the crew accordingly. Opposing forces experience rotary-winged aircraft vulnerability to incoming fire through visual effects on the target system. The results of training are stored in the system for use during after-action reviews (AARs). If the system is instrumented, online monitoring and vulnerability to area weapons are included.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,970
Reaction score
60

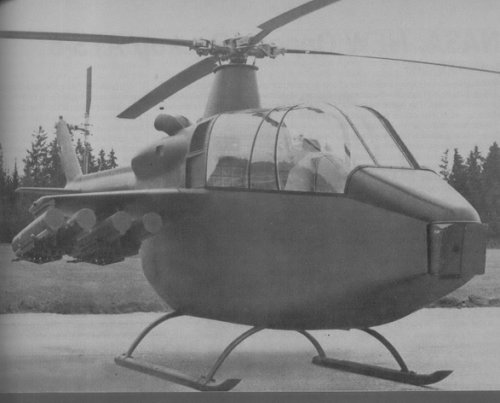

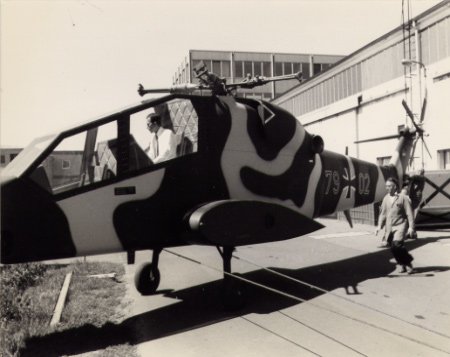

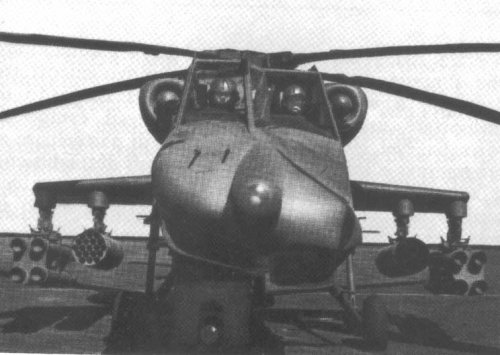

From Aviation Week 1974 a photo of the Bo 115 Mock-Up:


Attachments

richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
562
Reaction score
3
Bonjour

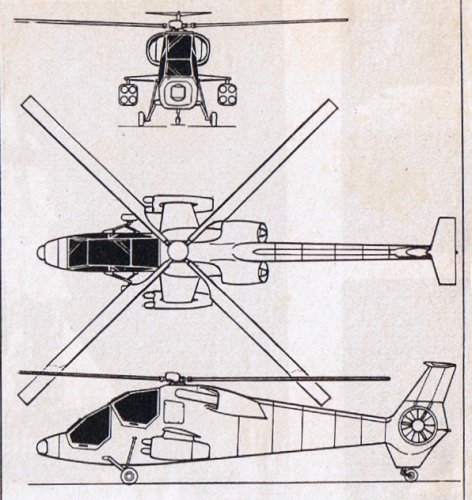

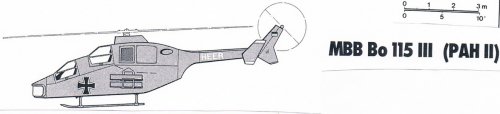

And from an old Flugrevue ( please ,don't ask me the year , I don't know ... :( )
a missing link in the way from Bo115 to PAH2 . There was no text ,only the drawing ...


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
39
Thanks Richard for this missing link!! ;)


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,891
Reaction score
3
I suppose the original Bo 115 design would have sought updated sensors and a reduced frontal cross-section?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,728
Reaction score
2

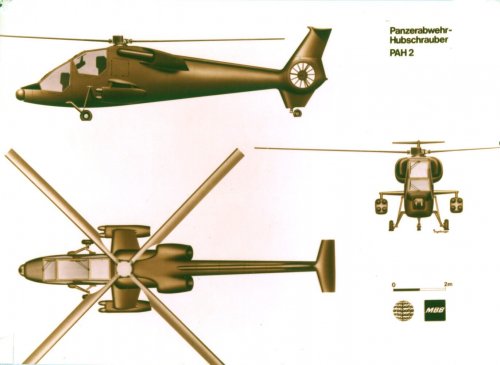

Is it just me, or does the PAH-2 concept posted at
the top of this page, and on the first page, look like
an Agusta A.129 with a fenestron?




cheers,
Robin.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,970
Reaction score
60
robunos said:
Is it just me, or does the PAH-2 concept posted at
the top of this page, and on the first page, look like
an Agusta A.129 with a fenestron?

cheers,
Robin.
I would say it's just "form follows function", general layout is similar, but the A.129 had a more
stepped cockpit, I think


Attachments

luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
1

luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
1

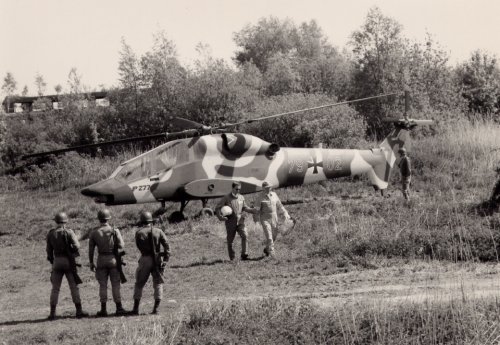

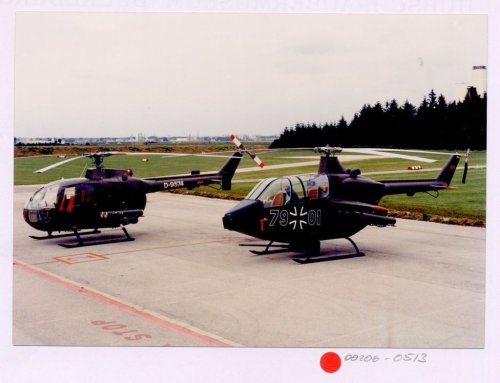

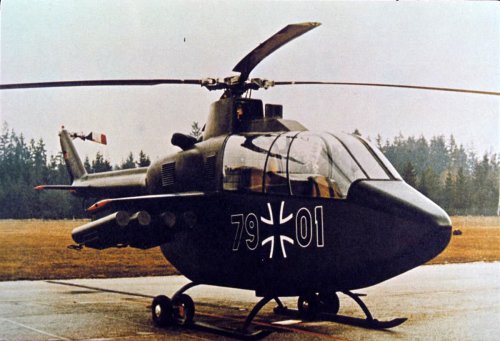

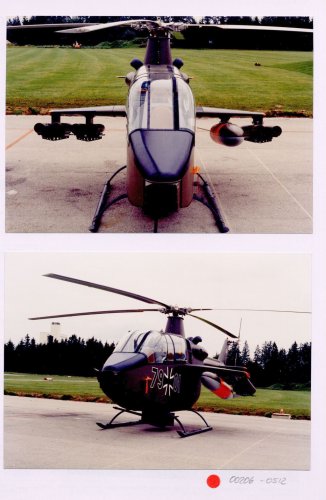

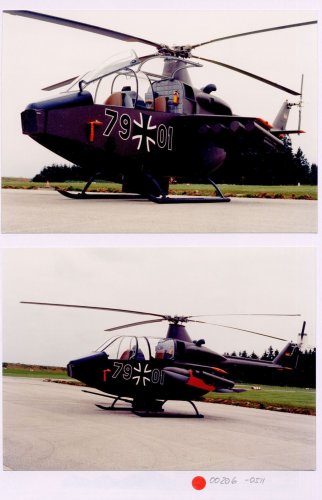

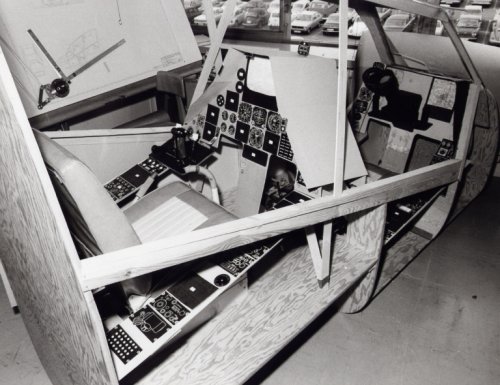

The pics come from the Helicopter Museum in Bückeburg, Germany. But I am allowed to use them for my new book on the AH-1 Cobra.
The museum has got a great archive with a very friendly, hospitable and knowledgeable staff.
I do recommend a visit should you ever come to Germany.


James

CLEARANCE: Restricted
Joined
Mar 4, 2011
Messages
9
Reaction score
0
Thanks for sharing luedo. Not the best looking chopper ever (imo) but certainly looks like it could have done the job.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,728
Reaction score
2
I would say it's just "form follows function", general layout is similar, but the A.129 had a more
stepped cockpit, I think
Jemiba, wasn't implying any kind of commonality of design, but to the
uninitiated.....




cheers,
Robin.


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
1
James said:
Thanks for sharing luedo. Not the best looking chopper ever (imo) but certainly looks like it could have done the job.

Well, being honest, this bird is as ugly as hell! ;)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
39
luedo34 said:
Well, being honest, this bird is as ugly as hell! ;)
Look at the Boeing Vertol 235 and you will know what an ugly bird really is... ::)

No, no, the picture was not distorted. And, no, your screen is not at fault either... ;D


Attachments

Robert

CLEARANCE: Confidential
Senior Member
Joined
Feb 9, 2007
Messages
64
Reaction score
1
Website
hud607.fire.prohosting.com
Previously I was only familiar with the different versions of the Tiger as PAH-2, HAC, HAP, UHT, etc. I've recently seen some references to model numbers AS 665, EC 665 and EC 505. Can anyone clarify?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,493
Reaction score
454
richard said:
And from an old Flugrevue ( please ,don't ask me the year , I don't know ... :( )
a missing link in the way from Bo115 to PAH2 . There was no text ,only the drawing ...

My dear Richard,

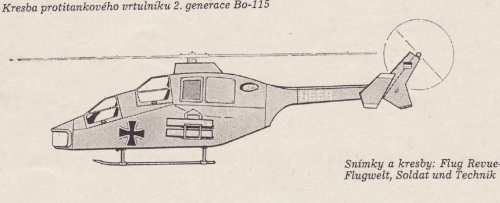

a larger drawing to Bo.115.


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,199
Reaction score
278
Photos and drawings are already posted by luedo34 and others to this topic, nothing very interesting in the text IMHO.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,493
Reaction score
454
Hi,

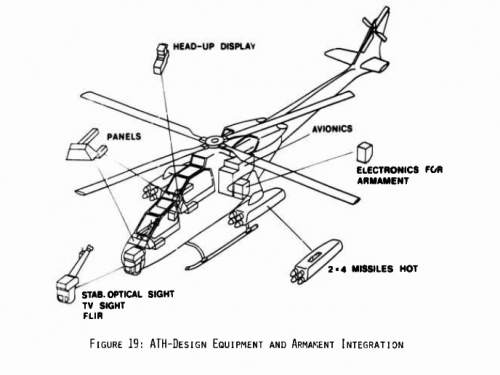

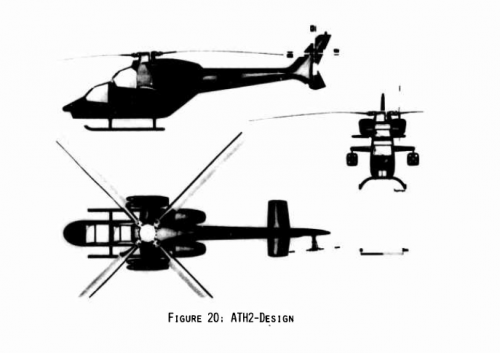

here is the MBB ATH in details;


http://www.dtic.mil/dtic/tr/fulltext/u2/a051589.pdf


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,104
Reaction score
40
Hi folks,
time for some spring-cleaning on my computer.
Last year I took some pictures of some old German issues of the aircraft magazine “Interavia” at nearby university library. Nearly all of the pictures have been already uploaded to this forum.

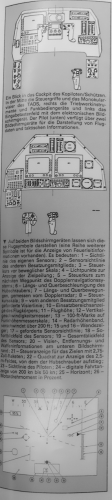

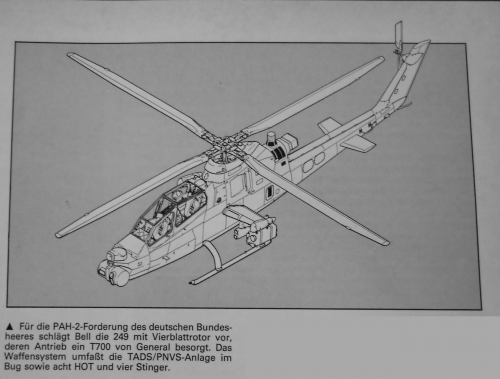

In November 1981 Bell Helicopters presented their concept of an anti-tank helicopter, the Panzerabwehrhubschrauber – 2 (PAH-2), to the German Army.
This concept was based on the Bell Model 249 Cobra. It had a 4-blade main rotor (a smaller version of the Bell Model 412 main rotor). It was powered by a single General Electric T700 engine with max. 1650shp.
The Martin Marietta Target Acquisition and Designation Sights, Pilot Night Vision System (TADS/PNVS) is the combined sensor and targeting unit which was fitted on the nose. There were 4 stations on the stubbed wings to hold weapons like HOT anti-tank missiles, unguided missiles, Stinger A2A missiles, gun pods etc. Like other PAH-2 concepts at that time, this concept also did not have a central chain gun. Later on the AGM-114 Hellfire might have been integrated.
The Bell Model 249 PAH-2 would have been built under licence by Dornier at their final production site near Oberpfaffenhofen, Germany. At that site the Bell UH-1D were already built under licence for service with the German Army and German Air Force. The US Army in Europe also had their older AH-1 Cobra models upgraded at that site (AH-1Q’s to AH-1S’s ?).

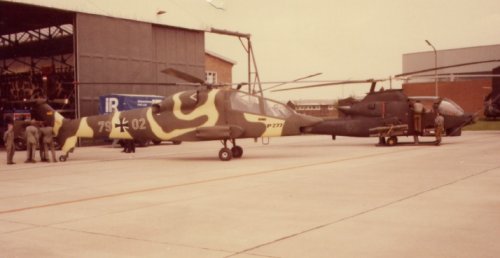

In the early 80’s a Bell Model 249, actually a Bell AH-1S with a 4-blade main rotor, was tested at the Wehrtechnische Dienststelle 61 on the Manching Air Base.
Pictures can be found at airliners.net.
In the same time period Agusta helicopters also presented the Agusta A.129 Option D (D= Deutschland/Germany?) to the German Army. It was basically a normal A.129 fitted the TADS/PNVS system.
The German Army were very interested in the TADS/PNVS system, because nearly all PAH-2 concepts like the MBB PAH-2, the Bell Model 249 PAH-2 and Agusta A.129 Option D had that system in the front fuselage.
Other helicopters concepts like the British Lynx or the French Dauphin/Panther with the side-by-side seating were cut out in this program. According to the German Army at that time, the side-by-side seating gave a poor all-around visibility.
Years later, Bell Helicopter proposed again a PAH-2 concept to the German Army. This time the concept was based on the helicopters AH-1W and AH-1(4B)W Viper as flown now by the USMC.


In December 2014 I send all the scans in higher resolution to Alexander Luedeke aka luedo34 and to Jembia, so that they might be published in a new issue of his book Bell AH-1 »Cobra«. When Jembia has some free time, the might post here a 3-view drawing.


Sources:
Interavia Germany, April 1982, page 300
Interavia Germany, May 1982, pages 508 + 509


Bell AH-1 "Cobra" (German) by Alexander Luedeke (luedo34)
Link:
www.amazon.com/Bell-AH-1-Cobra-Alexander-L%C3%BCdeke/dp/3613034573/ref=sr_1_14?s=books&ie=UTF8&qid=1431886430&sr=1-14


Stingray and hesham, please feel free to post these scans and information over on your helicopter forum.
