Fowler F-70 VTOL

[Jemiba]

Probably the type mentioned here http://www.secretprojects.co.uk/forum/index.php/topic,7589.msg110676.html#msg110676

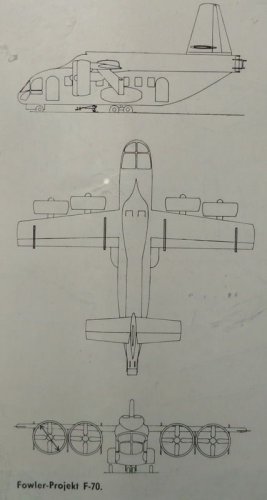

as contender to TS-152, the Fowler F-70 was a project for a shoulder wing VTOL aircraft for 18 passenegers, Two GE T-64/
S4A engines should drive four ducted propellers of 2 m diameter each.
(From Der Flieger, December 1966)



[hesham]

Excellent my dear Jemiba,


great discover,and it will add to those competitors;


http://www.secretprojects.co.uk/forum/index.php/topic,2591.15.html



[hesham]

So weird,in this book,they spoke about Fowler Model-20 as a proposal for TS-152 competition and not that concept (Model-70) ?!.



[hesham]

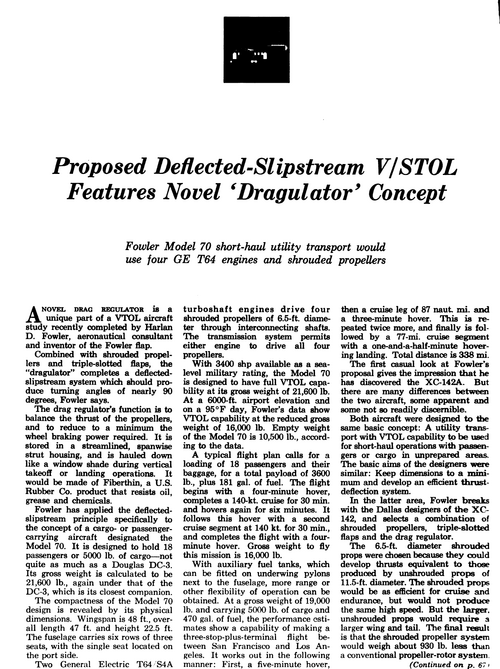

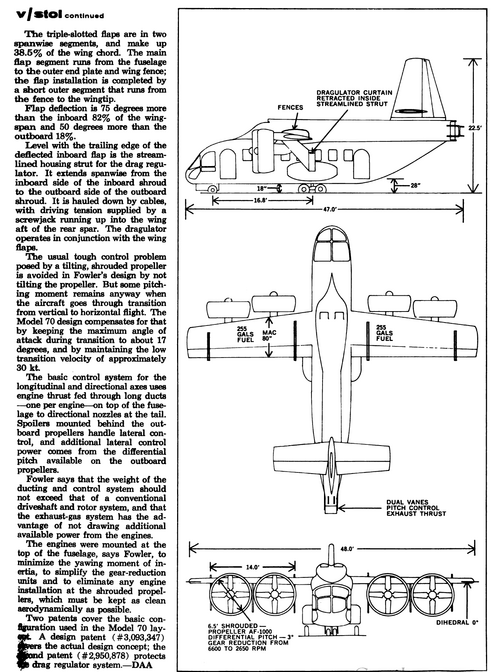

From American Aviation 1965/66



[hesham]

So weird,in this book,they spoke about Fowler Model-20 as a proposal for TS-152 competition and not that concept (Model-70) ?!.

After the member Stargazer made an amazing list about Bernard Lindenbaum Vertical Flight Research Collection,I hope to get all series of this company.

https://www.secretprojects.co.uk/threads/fowler-freighter-idea-and-aircraft.41733/
