Hi folks,

I found a small reference to a joint project from 1962 between Fokker and the Republic Aviation Corporation for a Variable Geometry VTOL aircraft called the D-XXIV. Does anyone have any more information?


Regards,

Greg


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,374
Reaction score
2,274
Website
www.aerospaceprojectsreview.com
Uck. That's a *terrible* bit of artwork, not even remotely accurate. The D-24 was much more conventional, and was aerodynamically simialr to Republics TXF (F-111) design entry.


Attachments

  • Image18.jpg
    9.8 KB · Views: 1,070
  • D24B.GIF
    14.7 KB · Views: 1,022
  • TFX2.JPG
    12.1 KB · Views: 972

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
GTX,

Orionblam.. is right.The artwork you presented
was part of an advertisement from Republic Aviation
published a few months a head of the release of
the first Fokker/Republic D.24 info.
This concept was indeed not as big as their TFX contender.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114

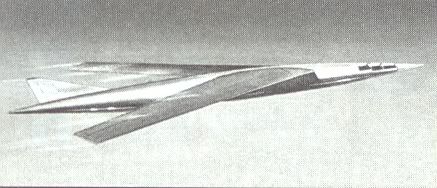

the Dutch-aviation page shows two different designs.
The above one is the Republic TFX contender.

(the only photo of the mock-up ?)

Illustration lower is the D-24.

Best All.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470
Aha!

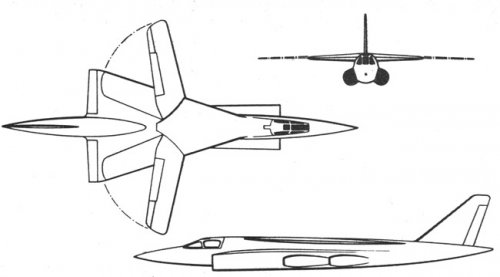

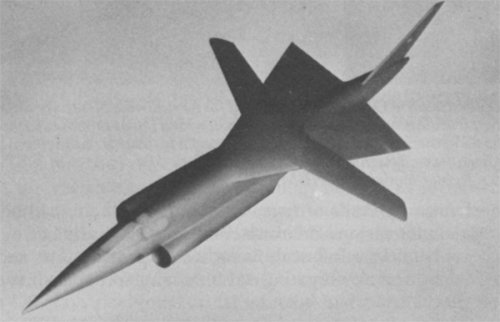

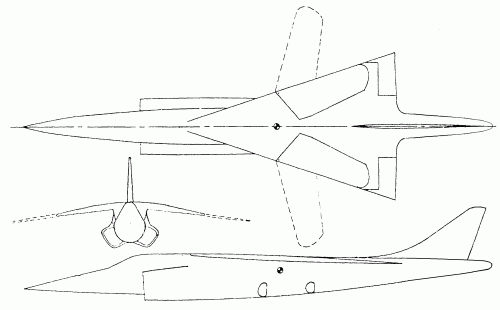

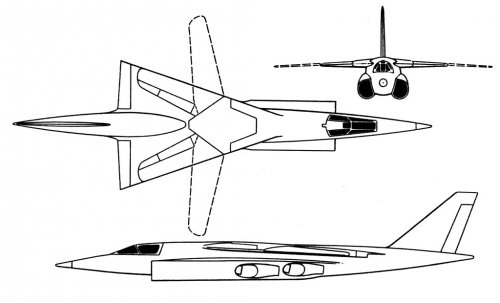

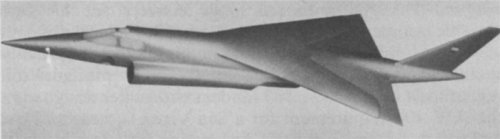

A better 3 view, plus model shots, from The Annals of the Polymorph (Air International May 1975)


Attachments

  • alliance2.jpg
    42.8 KB · Views: 231
  • alliance.jpg
    25.5 KB · Views: 241
  • D-24-Alliance.jpg
    72.3 KB · Views: 2,354

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
194
Website
www.hitechweb.genezis.eu

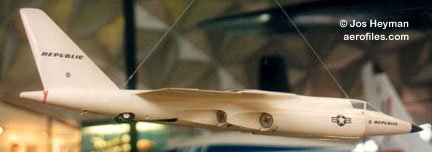

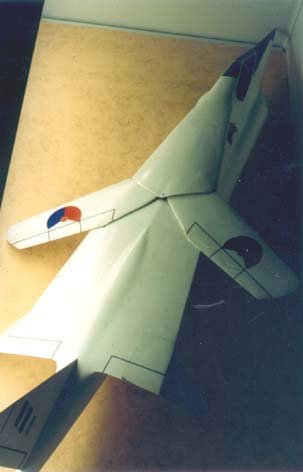

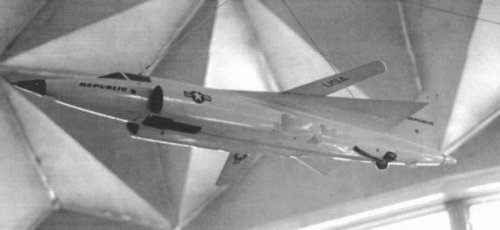

Model from museum in Amsterdam airport.

WarbirdTECH Series, Fairchild-Republic A/OA-10 Warthog, pg. 18


Attachments

  • D24-1.jpg
    21.4 KB · Views: 322
  • D24-2.JPG
    27.7 KB · Views: 305

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470
Additional pic from "Annals of the Polymorph", Air International May 1975


Attachments

  • d24-alliance.jpg
    62.6 KB · Views: 255

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,319
Reaction score
1,403

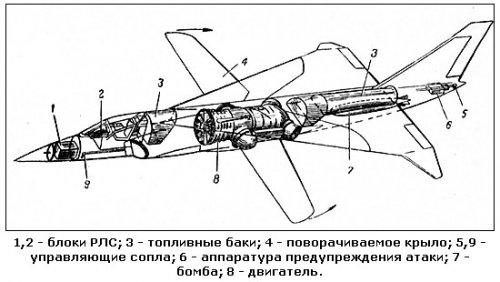

A cut-away from Flying Review vol.19, 1963


Attachments

  • D-24.JPG
    17.7 KB · Views: 298

Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
154
Are there any dimensions and details to go with the D-24 drawings and artwork ?

Cheers

Geoff


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
Artist views from "Fokker, Planemaker to the World".


Attachments

  • D-24.jpg
    51.1 KB · Views: 256

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,319
Reaction score
1,403
In the Flying Review vol.19, 1963 the only details given are :
BS.100-3 engine with 38.500 lb thrust, 70° sweep angle in
high speed configuration, aspect ratio for swept wings is
1,09 and 3,15 for low speed configuration, max. speed at
sea level Mach 1.25 and 2.4 above 40.000ft.
No dimensional data, sorry !


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,319
Reaction score
1,403
Quite funny, in RAF Flying Review 9/62 there's an advert from Fokker/Republic about
the Alliance, but the shown aircraft hasn't much in common with the D-24, shown in
an article just two pages later !
Well, as you've probably noticed, I'm guilty again of buying a pile of old magazines,
carrying them home in secrecy and reading them, sitting on the couch with an innocent
face ("Oh, I had them in the attic for many years ...") ;D


Attachments

  • Republic-Fokker_Alliance.JPG
    45.7 KB · Views: 543

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
One asks were's the space for the wings' pivot... ??? All the way, it's a Swallow disguised as an Alliance ;D ::)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Re-reading an old Dutch book (1964) by Hugo Hooftman about
jetfighters , the writer mentions that the D-24 Alliance should be a development of the Republic RAC-758-1 design.
(could this be Repulics TFX contender?)

Two versions of the D-24 were planned.
- the one with the polymorph delta wing we all know
- a version with the more normal swing wing as in other VG designs.

By the way , the Barnes Wallis-Vickers 'Swallow' should be a good one
to continiue..


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470
:)


Attachments

  • Alliance-pic1.jpg
    45.3 KB · Views: 500
  • Alliance-pic2.jpg
    57.1 KB · Views: 526
  • Alliance-3view.jpg
    27.5 KB · Views: 484

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470

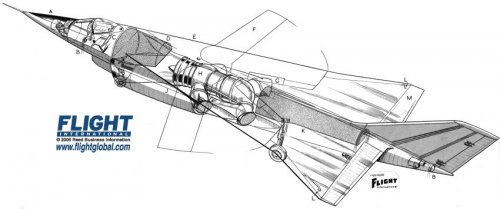

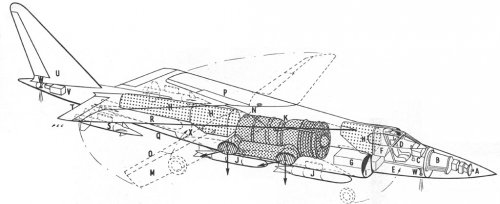

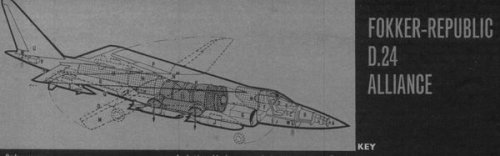

Flight have posted a cutaway of the Fokker/Republic Alliance.


Attachments

  • Fokker-Republic-Alliance-VS.jpg
    49.5 KB · Views: 432

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,156
Reaction score
5,690
Hi,

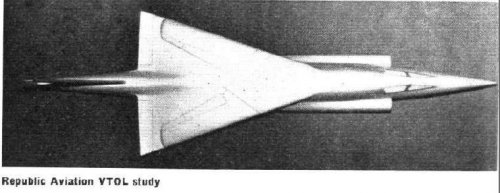

a little different from early Republic Aviation VTOL aircraft,please notice the
cockpit shape.
http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200897.html


Attachments

  • Republic VTOL.JPG
    Republic VTOL.JPG
    43.6 KB · Views: 198

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,862
Reaction score
825
Really cool design.

But I have a question about that: what kind of advantages could offers this odd configuration, compared to a "normal" Harrier or AV-8 (which use the same Pegasus engine)??

Perhaps the intentions of designers was to achieve supersonic speed??
In that case, I suppose, that the VG configuration itself wasn't sufficient to go supersonic due to the natural limitations offered by Pegasus (high cross section and lack of A/B).


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
Yep, it was to be supersonic. The NMBR-3 NATO spec asked for a two-phase approach: interim (subsonic, that generated the likes of the Harrier and the VAK-191), and definitive (supersonic), of which the only two to reach flight stage were the Mirages (III-V and Balzac) and the VJ-101C.


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
11
What were the advantages of adopting a polymorph delta wing? Sure looks like something out of Captain Scarlet or any other Gerry Anderson production.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,165
Reaction score
101
I want to thank everybody here for their finds. It genuinely feels good to see something here I've absolutely never heard of. Good work, guys.

Moonbat


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,374
Reaction score
2,274
Website
www.aerospaceprojectsreview.com

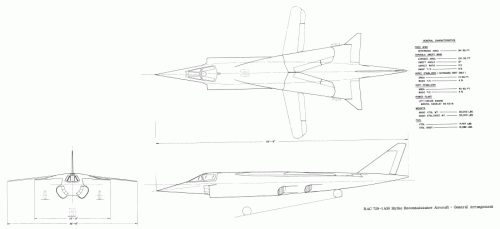

I've always been surprised at how "popular" the D-24 was in its day, appearing all over the aero press, yet none of the artwork or drawings were ever quite right.


Attachments

  • alliance.gif
    35.4 KB · Views: 478

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
16
Hi Orionblamblam!

RAC-758-1A30--Very good drawing.
On the drawing data is not seen well. It would be interesting to know.
If you can show?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,374
Reaction score
2,274
Website
www.aerospaceprojectsreview.com
nugo said:
Hi Orionblamblam!

RAC-758-1A30--Very good drawing.
On the drawing data is not seen well. It would be interesting to know.
If you can show?

The full rez image... and many more... will be in APR issue V2N2, which I'm working on now.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
163
Bristol design possibly related to this thread? From Bristol Siddeley Review's 1962/3.


Attachments

  • scan0021a.jpg
    85.7 KB · Views: 619
  • scan0007a.jpg
    61 KB · Views: 629

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470
Once again... ;D

In this period Bristol (Engines) is not Bristol (Aircraft)

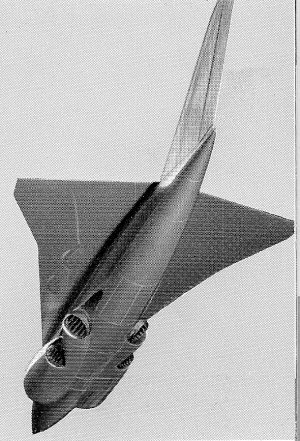

This is a model of the Alliance, displayed by BSEL to promote the Pegasus engine which powered it. Its either a different variant or just inaccurate.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,223
Reaction score
6,470

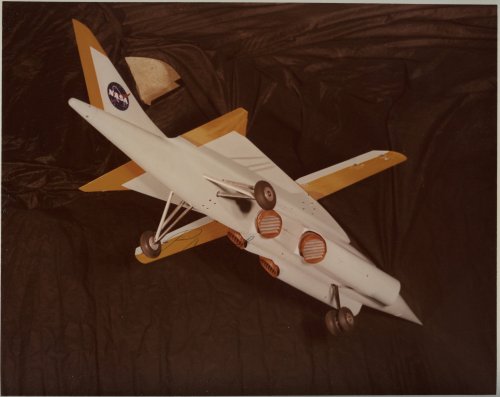

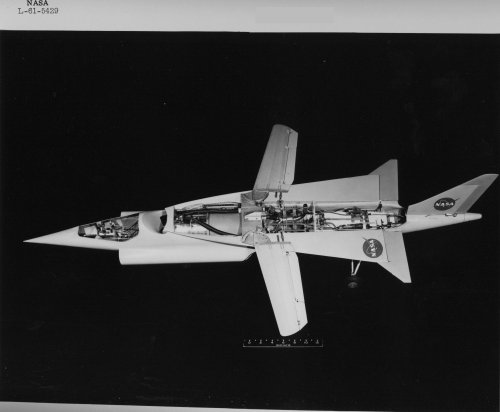

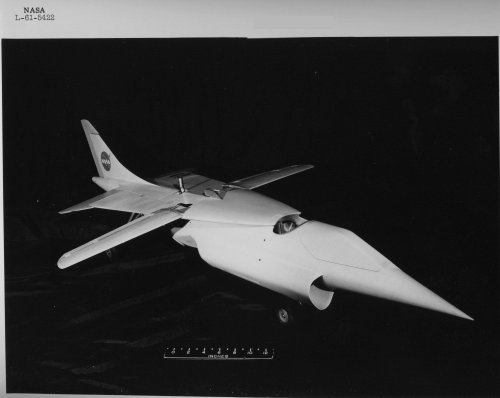

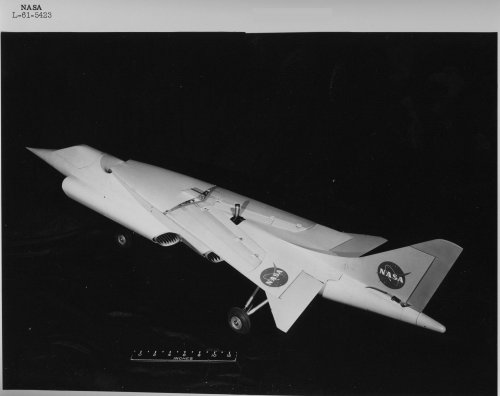

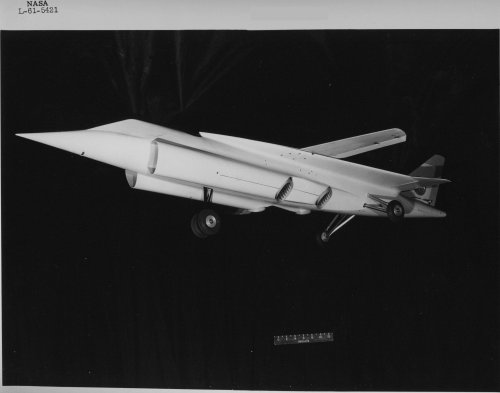

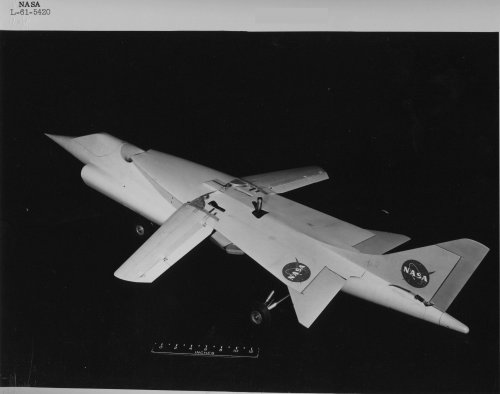

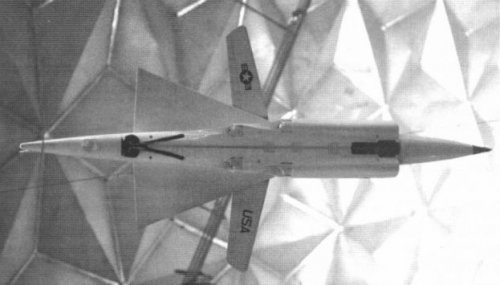

Bunch of NASA windtunnel models of the Alliance.



Attachments

  • L-61-5420.jpg
    724.6 KB · Views: 479
  • L-61-5421.jpg
    747.9 KB · Views: 424
  • L-61-5422.jpg
    797.2 KB · Views: 112
  • L-61-5423.jpg
    795.8 KB · Views: 124
  • L-61-5429.jpg
    857.5 KB · Views: 161

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767

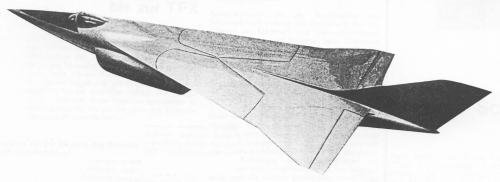

A rare glimpse at Republic's TFX design from the bottom up. But wait?? Was the TFX supposed to be VTOL, too? Or did I miss something? Isn't this the TFX then?

http://crgis.ndc.nasa.gov/mw/images/1/1e/1961_Variable_Sweep.jpg

And more of the same here:


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
197
No, it in't TFX. Republic worked on a VTOL version of Kartvely swing-wing delta concept used in TFX, SST and AMPSS too, both for ADRC and NATO NRMB-3. The NATO version, did in collaboration with Fokker, gave birth to the "Alliance" concept.
