Fokker Fighter Model to identify from Sir George Cox collection

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626
From George Cox

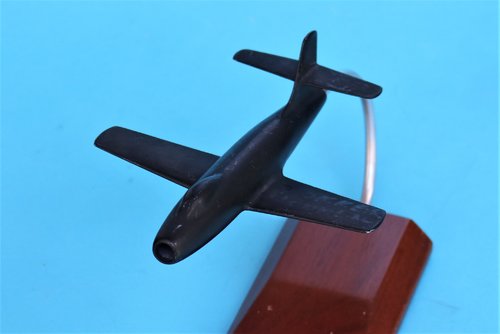

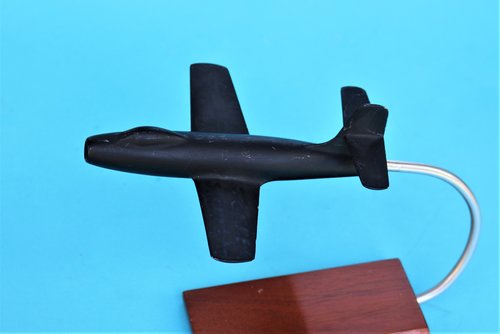

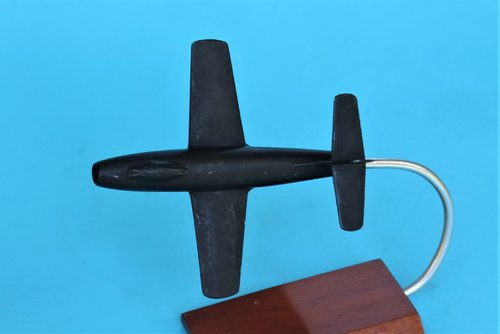

This model came from the personal estate of the renown Dutch model-maker, Matthijs Verkuyl, and appears to represent a Fokker jet-fighter proposal. It’s configuration is very similar to the Douglas D-558-1 Skystreak but I think it’s a fighter rather than research aircraft because of the clear bubble cockpit-canopy. There’s some writing on the wing that I can’t read/interpret, other than ‘Fokker’.

The model has 14cm span and 15cm length, which assuming 1:72 scale (the standard for most Verkuyl models) would have given the actual aircraft a span of 10m and a length of 10.8m.

Verkuyl didn’t spend time on ‘what ifs’ so I can only assume it was a Fokker fighter proposal.

I’d be most grateful if anyone could shed any light on it.


Attachments

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626
This looks like a version of the S-14 Machtrainer:


Canopy looks single seat (or at least tandem, not side-by-side like the S-14) ad the horizontal tail position is different, but very similar altogether.

Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626
Under Ontwerp (=design) 240, the Fokker team came up with various design alternatives .Final design selected was Ontwerp 240K and work on a prototype was soon started. Although in the final design a side-by-side layout for the pilots was selected, Fokker also studied an alternative (Ontwerp 204J) with the pilot seats in tandem.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626

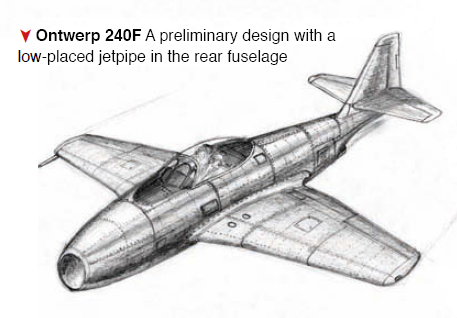

Apparently there was a series of design studies (Ontwerp 238, 239, 240) which led to the S-14. Presumably this fits in somewhere.

Did my best to recover the lower line of text.


Attachments

Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626

Nico Braas (member of http://www.letletlet-warplanes.com) has co-authored a book on the Machtrainer which will almost certainly be of interest, and which includes early design drawings etc.

I've emailed him with this topic URL and asked for his opinion.

Last edited:
  • Like
Reactions: RAP

Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,713
Reaction score
937
Agreed that Nico Braas might know more.
I glance at his Aviation Historian article on the S.14 and some of the early studies does not shed any light, all of the studies shown have low-set tailplanes.
Saying that, I would be very surprised if its not linked to the S.14 in some way.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,803
Reaction score
63
I compared the sideview of the model shown by Paul MM with the 3-views in the ' Fokker S-14 Machtrainer' book by Nico Braas and Willem Vredeling.
I found no matches. The closest I came was with the 3-view on page 23 showing drawing nr 0020-7675 of ontwerp 340
mentioned as the first instigation of the final S-14.

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,101
Reaction score
3,016

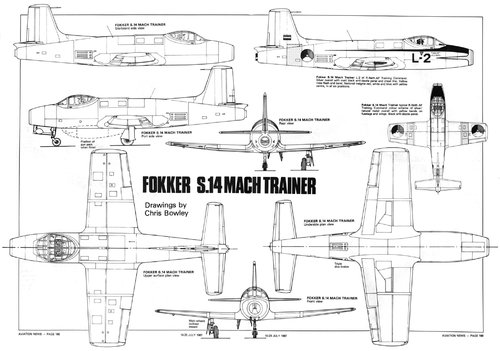

Something likes that ?.


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,803
Reaction score
63
The text of the caption I cited (page 23) is wrong....
Drawing does not compare with the text.

The search go's on...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626
An unexpected twist in the saga from Sir George Cox:

I think that with the help of a Dutch friend I’ve solved the mystery of my model.

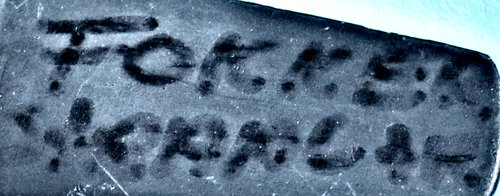

The second line of writing on the wing says: STRAAL+T, which means that the complete text would be: Fokker Straaltrainer, which means Fokker jet trainer. However, with its narrow fuselage and single cockpit, the one thing that the model certainly does not represent is a trainer.



My friend’s suggestion is that it is actually a Verkuyl NATO recognition model of the Yak-19. The latter is certainly very similar in profile and has an identical tailplane/fin arrangement. The wings on the Yak are set a bit higher and the span is greater but since the aircraft only ever flew as a secrecy-enshrouded prototype, it is likely that Verkuyl was working from provisional drawings. Subsequently, someone has looked at the model and because of its similar configuration, wrongly labelled it as the S-14.



We’ve still got ex-Fokker contacts thinking about it, but I think we’ve probably got our answer.

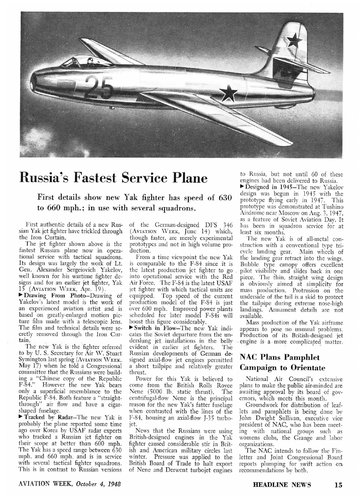

I've added a Western artist's impression of the 'Type 7' from 1948 which was wrongly thought to be Yak-17 but was actually the Yak-19.


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,803
Reaction score
63
Close, but why should the name of Fokker be written on a model of a Soviet fighter...?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,115
Reaction score
2,626
Because someone later on looked at it, didn't recognise it as a Yak-19 model and thought it looked like the S-14 so wrote "Fokker Trainer" on it.
