Hi,

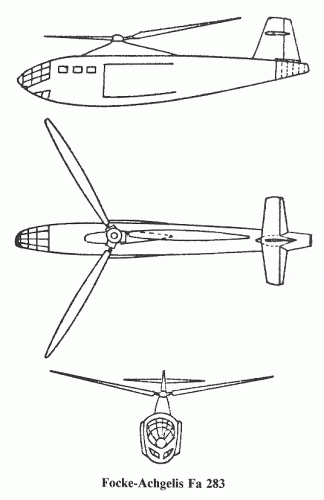

The Fa.283.


Attachments

  • fa283-th.jpg
    5.6 KB · Views: 1,093

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

Maybe someone can help me with these strange and very unknown projects !
I am searching for pictures, drawings and informations about these projects

The flying E-boat project "KRABBE".
What is it ?
A helicopter with torpedoes or it is a helicopter to transport an E-Boat ?

Focke Achgelis Fa 223 "Dackel" Zwillings-Helicopter

Here something about the Flettner Fl.339
Here the is Fl.339 is a two-seat observation helicopter powered by a Argus engine.
http://www.geocities.com/capecanaveral/launchpad/5249/alphabeticalindex1.htm
http://www.geocities.com/capecanaveral/launchpad/5249/fle339.htm

Here the Fl.339 is a large transport helicopter
project powered by a BMW 132A engine
http://www.aviastar.org/helicopters_eng/flettner_kolibri.php

Now I am very confused ! What is right !
Maybe here is a specialist who knows more about these projects

Many Thanks


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
http://www.lautecmedien.de/heinkel_he_111_z_&_junkers_ju_635_-_aus_zwei_mach_eins-_die_geschichte_der_zwillingsflugzeuge.php


Attachments

  • Zwillingshubschrauber....jpg
    31.3 KB · Views: 970

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

Thanks for the pictures !
The Fa 223 Drache
http://en.wikipedia.org/wiki/Focke_Achgelis_Fa_223
Fa 223 Dackel and Fl.339 for the flying E-boat project "Krabbe" ?
http://www.helikitnews.com/issues/thirdreich.htm
Maybe someone own this book and can show us something about these projects ?
Especially about the Project Krabbe.

Many greetings


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
500
Maybe someone own this book and can show us something about these projects ?

I ordered a copy two weeks ago and delivery date is scheduled by mid August. I'll post more details by then.

Regards,

Antonio


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi Moin,

I don`t have an operating scanner*, but this is a summary of what Steve tells on the "Krabbe":

It was felt that an helicopter would fare better as a torpedo carrier than airplanes. The helicopter could complement and eventually replace S(E)-boats ( making four equivalent to that kind of boat ), as well as supporting commando operations. Operations would be carried by 8 "Krabben", one leader equiped with radar ( range 10Kms ), two "Flak Krabben" each equipped with at least one 20mm quad, and 5 torpedo carriers sporting a single torpedo. Apparently the "twinning" of 2 Fa223 would be just an initial step towards a novel airframe.

Kyrill Von Gersdorff`s book on german helicopters adds other data, just refering a transport role: span 12m, 1500kg load, 2 seats, but states there was a project for a torpedo carrier, much on the line of the "Krabbe". They could be the same, only with different missions.

* Steve`s book does not include a sketch of this project. For that our guys in the forum could post a scan from Kyrill v. Gersdorff or Manfred Griehl`s books.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

To pometablava: THANKS FOR YOUR HELP !
To Wurger : WOW! Interesting concept!
Thanks a lot for the great informations about the "Krabbe".

Thanks a lot


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

I have a few questions about the Fa 223 / Krabbe.
Why is a helicopter a better torpedo carrier than an airplane ?
Where is this quad flak located ?
Why only one torpedo ? For such a big helicopter !

Where is the Cockpit located ? In the first fuselage or the second ?

Maybe someone can draw such a flying S-Boot with one torpedo or the flak ?

Many greetings and many Thanks in advance


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,076
Reaction score
235
I have no idea why a helicopter would be preferred to an airplane. Most torpedoes were big (there were tests with up to four torpedoes being dropped by one bomber but most twin engined medium bombers only carried a single torpedo). More importantly I should think that one would keep the weapons load close to the minimum acceptable level in order to carry as much fuel as possible (to compensate for the helicopter's dismal range).

I am pretty sceptical about how this would work. I could see a single fixed 20mm cannon being mounted on such an airframe. Any suggestion of multiple cannons or flexible mounts is likely either the result of a delusional designer or a post war forgery. Still, it is interesting that the Fl282 had a bomb carrying variant planned and that this Fa-223 was planned to carry an MG15...


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

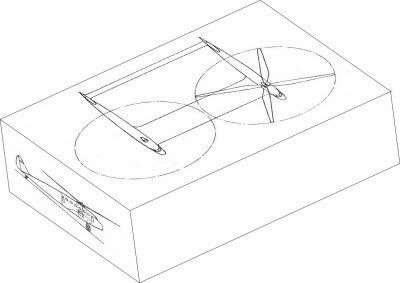

Focke Achgelis 283
http://www.geocities.com/CapeCanaveral/Launchpad/5249/fa283.htm
This source says that this was a jet powered autogyro cargo carrier !
Where does the drawing come from ? Book etc. ?

Other sources says that this was a project for an attack helicopter powered by a 1800hp BMW 801D.
The reactive torque from the rotor was to be countered by a system of two tail rotors in a "V" arrangement !

What is correct?

Many greetings


osul

ACCESS: Restricted
Joined
Apr 27, 2008
Messages
5
Reaction score
1
Hi moin 1900! I,ve information about this two proyects. FA 223 and Flettner "Kolibri", blueprints , pictures and more.


Attachments

  • 1.jpg
    156.8 KB · Views: 830
  • 2.jpg
    222.4 KB · Views: 803

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
To Avimimus: THANKS for your reply !

But where is the Cockpit located ? In the first fuselage or the second ?
http://www.lautecmedien.de/heinkel_he_111_z_&_junkers_ju_635_-_aus_zwei_mach_eins-_die_geschichte_der_zwillingsflugzeuge.php

Here the Focke Achgelis 284 Maybe a alternative ?
http://www.aviastar.org/helicopters_eng/focke_284.php

Many greetings


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,040
Reaction score
564
more information on the 'Krabbe' in 'Helicopters of the Third Reich', Steves Coates, with our own J C Carbonel, pp 152-3

cheers,
Robin.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
But where is the Cockpit located ?
In the first fuselage or the second ?
In the second :)

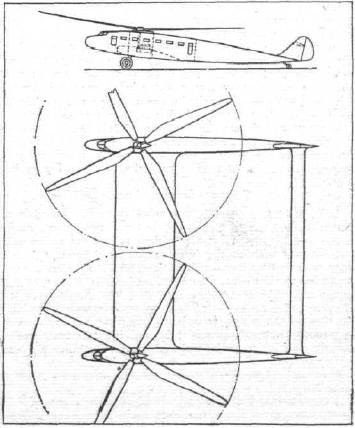

1) Fa 325 Krabbe
“ Fa 325 Krabbe
The Fa 325 Krabbe (Crab) helicopter-crane. Focke commenced work on
it in 1943, and the Kriegsmarine was interested in the design, considering it for the torpedo-carrying role. This was going to be a four-rotor machine, resembling a doubled Fa 223 Drache. It would be powered by two 1,000 hp (735 kW) BMW 301 R-3 (Bramo 323 Fafnir) engines.
Empty weight was calculated at 9,250 kg, and maximum take-off weight at 12,268 kg. Eventually, in 1943 the Kriegsmarine HQ withdrew their support and the Fa 325 Krabbe remained a paper project.”
"Rotorcraft of the Third Reich"


Attachments

  • Fa 325 Krabbe (1943).jpg
    Fa 325 Krabbe (1943).jpg
    30.8 KB · Views: 762

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
Wonderful discovery once again, Hesham.
Alas (for my 1939-45 twin-boom collection) the text says this is a Focke Patent 1938, so... too early, while... the journalist imagine this is a near future in 1941 as flying machine, so, as a dream, this is a 1941-project, kind of. I may draw it and include it as such. I will try to find the source patent, maybe. Thanks again, I had never seen such a twin-rotor twin-fuselage craft! ;D


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
I've found the source patent:
http://v3.espacenet.com/textdoc?DB=EPODOC&IDX=GB495176&F=0
(published in Great Britain, that's why it was easy to find for British journalists)


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
Tophe said:
Alas (for my 1939-45 twin-boom collection) the text says this is a Focke Patent 1938, so... too early, while... the journalist imagine this is a near future in 1941 as flying machine, so, as a dream, this is a 1941-project, kind of. I may draw it and include it as such.
I’ve added it as “true mistake” on my page
http://cmeunier.chez-alice.fr/update_FG.htm
Thanks again.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

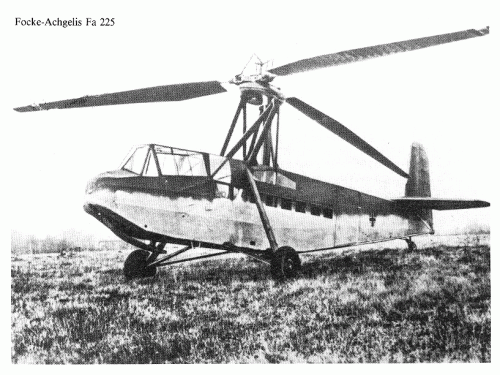

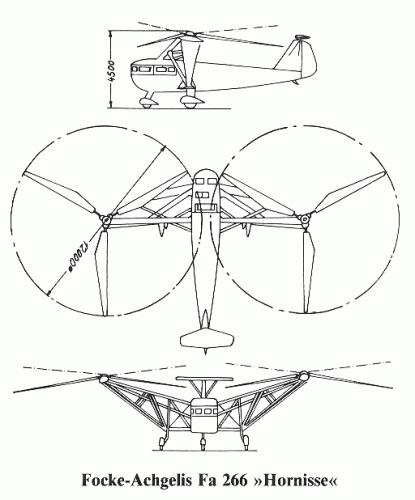

More Focke-Achgelis projects:
  • The Fa 225 prototype
  • The Fa 266 Hornisse project
  • The Fa 283 project


Attachments

  • Fa 283.gif
    Fa 283.gif
    40 KB · Views: 699
  • Fa 266 Hornisse.gif
    Fa 266 Hornisse.gif
    34.9 KB · Views: 728
  • Fa 225.gif
    Fa 225.gif
    324.3 KB · Views: 783

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Was the Fa 325 depicted in the previous page a REAL project? Nowarra doesn't mention it, which makes it kind of dubious in my eyes.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011

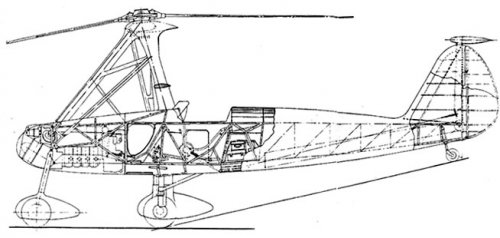

Here is the Fa.224 project.


Attachments

  • Fa.224.JPG
    41.3 KB · Views: 623

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Stargazer2006 said:
Was the Fa 325 depicted in the previous page a REAL project? Nowarra doesn't mention it, which makes it kind of dubious in my eyes.


Probably a real project :


In "Die deutsche Luftfahrt , Band 3 , Hubschrauber und Tragschrauber" it is described as a Marine project with two 1000 hp Bramo engines ( two modified Fa 223 with additional section )


BUT nothing in the outstanding Steve Coates ' outstanding book ....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,


here is an unknonw Focke-Achgelis project,the Fa.236;


http://www.wehrmacht-history.com/manufacturers/focke-achgelis-aircraft-manufacturer.htm


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
hesham said:
here is an unknonw Focke-Achgelis project,the Fa.236

No image? No text? No specs? Just a link? Come on...
This is most likely a typo that was repeated. I have never seen an "Fa 236" ever mentioned in other sources before...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Thanks redstar72 for this piece of information. I had somehow overlooked it in the RLM listing.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,722
Reaction score
6,283
http://www.defensemedianetwork.com/stories/nazi-helicopters-focke-achgelis-fa-223-drache-and-fa-330-bachstelze-at-war/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

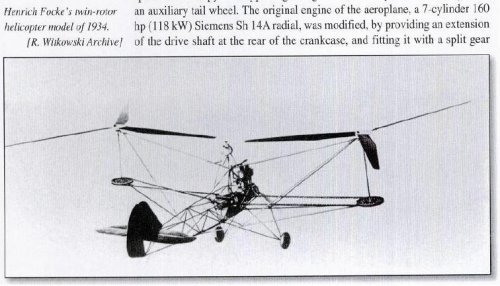

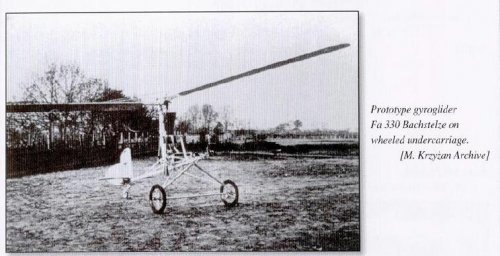

here is the Henrich Focke twin rotor model of 1934 and a prototype
of Focke-Achgelis Fa.330.


Attachments

  • Model of 1934.JPG
    Model of 1934.JPG
    64.1 KB · Views: 958
  • Prototype Fa.330.JPG
    Prototype Fa.330.JPG
    58.1 KB · Views: 792

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

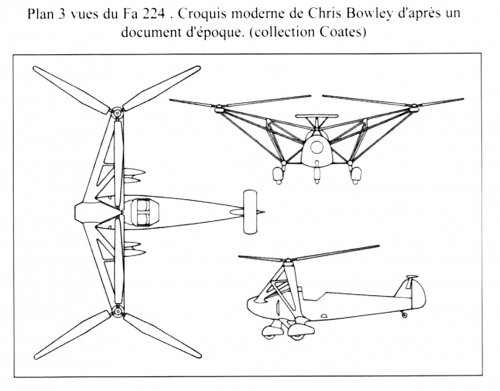

A three-view of the Focke Achgelis Fa 224 project, from Air Magazine 43:


Attachments

  • Fa 224 three-view (Air Mag 43).jpg
    Fa 224 three-view (Air Mag 43).jpg
    164.6 KB · Views: 777

kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
21

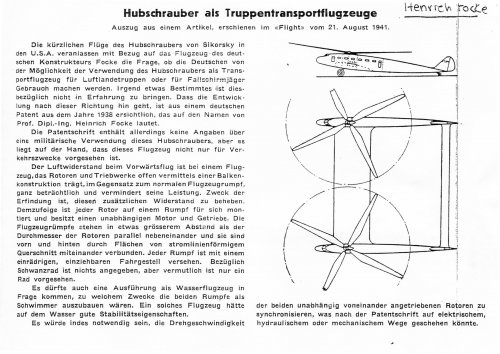

1938 Patent application from Prof.Dipl.-Ing Heinrich Focke for German use of helicopter as transport aircraft for airborne troops or paratroopers.
Anyone care to translate the complete article?


Attachments

  • Scan 102.jpg
    Scan 102.jpg
    431.5 KB · Views: 748

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,025
Reaction score
430
This is only a part, the whole article can you find in the Flight archive 21.08.1941.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

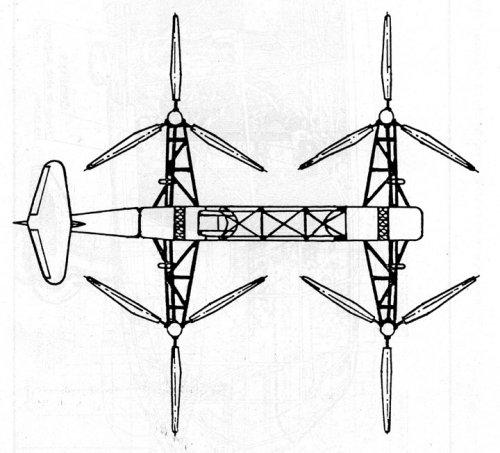

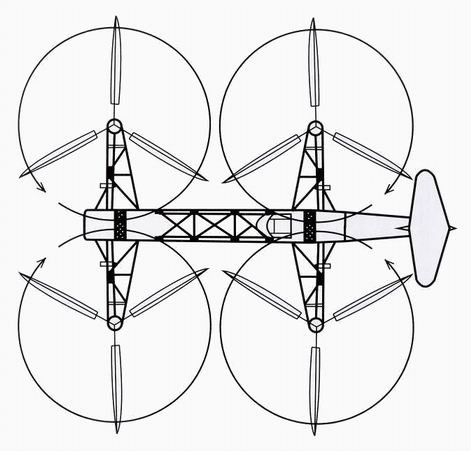

the Fa.223Z was proposed by Focke with two bodies joined inline to form a four-rotor
heavy lift helicopter project.


Who heard about this beast before ?,and who can imagine its configuration ?.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,343
Reaction score
1,501
Maybe this one, found on http://paralympic-ph.com/germanvtol/fockeachgiles/284folder/233z.jpg ?
Not a "Zwilling in the sense of, say, the He 111Z, but more logical. And it's designated Fa 223Da
on that site (http://paralympic-ph.com/germanvtol/fockeachgiles/284folder/fa284.html, sorry, had
a typo in the file name), not sure what it meant, maybe "Doppel Antrieb", because it used two
complete dynamic systems, but it could as well have had no special meaning at all. At least, this
designation is mentioned in several sources, whereas "Fa 223Z" is unconfirmed, as Skyblazer correctly
pointed out.


Attachments

  • Fa-223Da.jpg
    108.7 KB · Views: 465

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Thank you my dear Jemiba,


and here is the source for Fa.223Z;


http://en.wikipedia.org/wiki/Focke-Achgelis_Fa_223


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,


during the 1945,Focke-Achgelis worked on a heavy helicopter with an increased loading
capacity ?.
