In Alexander Lüdekes book "Tiltrotorflugzeuge" I've found two artist impressions made
by Kyle Scoo of the Focke Achgelis Fa 269 VTOL design. From the artist I got the information,
that the differences to the usually shown drawings aren't based on actual sources, but have
to be regarded as "plausible guesses". Nevertheless, to my opinion this aircraft looks
much more "fighterlike", than with the heavily framed canopy. Something for What-If fans . ;)


Attachments

  • Fa269.GIF
    156.6 KB · Views: 194

trekkist

ACCESS: Restricted
Joined
Aug 27, 2009
Messages
24
Reaction score
2
Re: Focke Achgelis 269, hypothetical service version

Unpopular among ground personnel, who dubbed it "Kugelzerhacker."


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
Re: Focke Achgelis 269, hypothetical service version

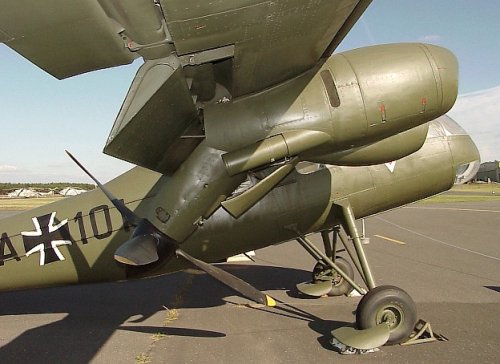

literally "ball mincer", germans would put in a word for a part of the body,I think. ::)
Nevertheless it's correct, that the Fa.269 would have been more dangerous for ground
personal, than most other aircraft. Will look up, if I can find something about the Do 29.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

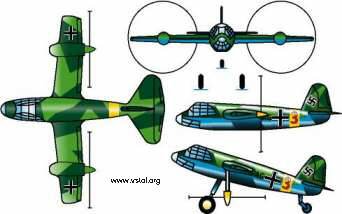

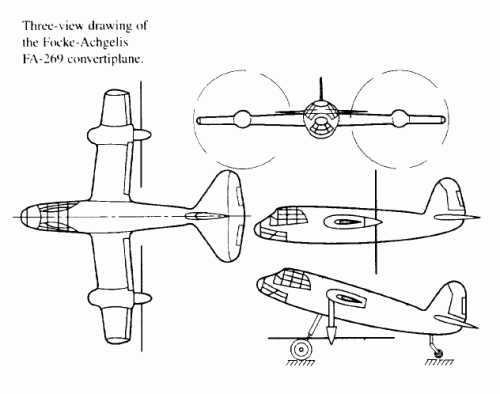

Focke-Achgelis Fa 269 was a convertible helicopter, concept begun early 1938. A wooden mock-up was built and destroyed in WW II Fa 269

Characteristics:

  • Power:two Daimler-Benz DB 601 or 605 engine mounted on the wings. Later a single air-cooled BMW 132 K twin-radial engine with about 1000 hp (745 kW) coupled/linked with a central reduction gearbox was planned; it would have occupied most of the center of the fuselage.
  • Design Speed: 0-600 km/h
  • Wing Span: 10 m (32.8 ft)
  • Length: 8.90 m (29.2 ft)
  • Propeller: Two three-blade propellers with diameters of 4 m (13.1 ft)

Sources:
http://www.aiaa.org/tc/vstol/unbuilt/
http://www.tech-domain.com/thread-2267-2-1.html
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001


Attachments

  • fa_269h.jpg
    42.1 KB · Views: 511
  • fa_269wt.jpg
    8.5 KB · Views: 784
  • fa_269_3.jpg
    15.5 KB · Views: 511
  • focke_269.jpg
    28.8 KB · Views: 500

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63
Have you seen a model of this, built by forum member slava_trudu (my good friend and compatriot :) )?
http://www.secretprojects.co.uk/forum/index.php/topic,10035.html

And one reply from me: I don't understand the term "convertible helicopter", and I think that it's ridiculous - to define this a/c (as well as V-22 or any other convertiplane / tiltrotor) as "helicopter". "A helicopter is a type of rotorcraft in which lift and thrust are supplied by one or more engine driven rotors" (Wikipedia). These aircraft don't have ANY rotors during cruise flight (they become propellers) and the lift is produced by their wings, like it happens with all conventional fixed-wing airplanes... How can they be helicopters? ???

And XFY-1 Pogo takes off like helicopter too, but anybody never called it so ;) .


Pepe Rezende

ACCESS: Confidential
Joined
May 3, 2006
Messages
96
Reaction score
3
Achgelis explore this concept in Brazil:


http://culturaaeronautica.blogspot.com/2009/06/o-convertiplano-do-cta.html

Unhappily in Portuguese...

Cheers

Pepe


Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
22
I haven't posted in a while so I'll upload a slightly better image than the one previous.


Attachments

  • Fa-269_2.jpg
    262.3 KB · Views: 387

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Two more pics:


Attachments

  • Fa 269.gif
    Fa 269.gif
    14.7 KB · Views: 314
  • Focke-Achgelis Fa269.jpg
    Focke-Achgelis Fa269.jpg
    11.7 KB · Views: 76
