Focke-Achgelis Fa 284 « Kran »

[richard]

Here the Focke Achgelis 284
http://www.aviastar.org/helicopters_eng/focke_284.php

Two more (and last ? )variation of Fa 284 .

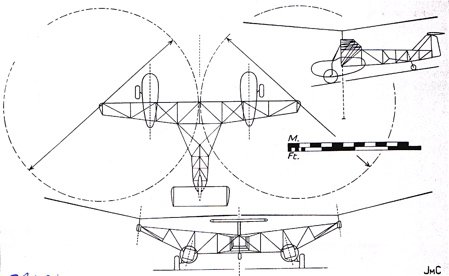

The 3 views is from Jean Marie Cuny's "Bréguet ",editions Larivière .
The prototype was to be built at Bréguet Montaudran plant.
All the design plans were destroyed during the bombing of this plant on 6 april 1944 ,and the project was cancelled .

The sketch is from Erno Spingmann's "Focke " Aviatic Verlag .



[Stargazer]

Yet another image of the Fa 284 Kran, from Docavia No.6 - Les Avions Bréguet:



[Stargazer]

Another picture from an old generic topic:

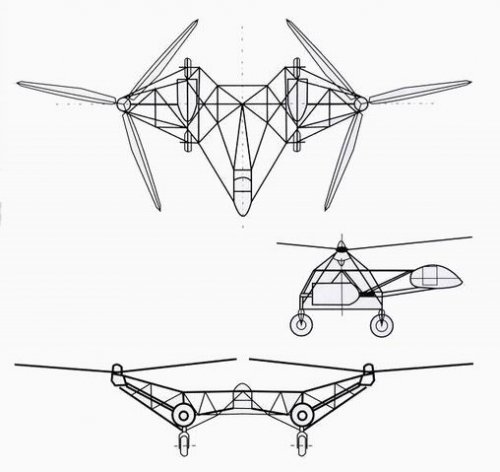

Alternative concept of the Fa 284 crane helicopter.
( Hubschrauberzentrum Buckeburg )



[Stargazer]

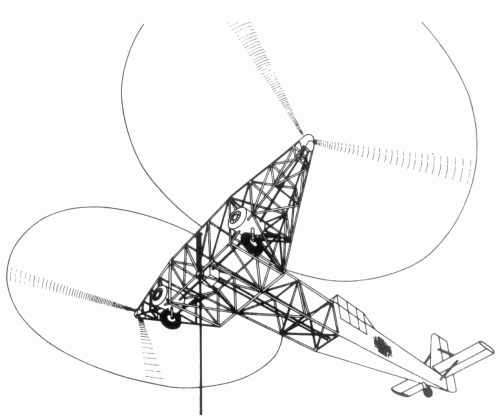

And another picture from the Nowarra encyclopedia:



[Stargazer]

As you can see from the various pics in this topic, there don't seem to be two identical renderings of the Fa 284 project. Are they all genuine? Or are some of them highly speculative? Thanks for any input you can give on that subject!



[hesham]

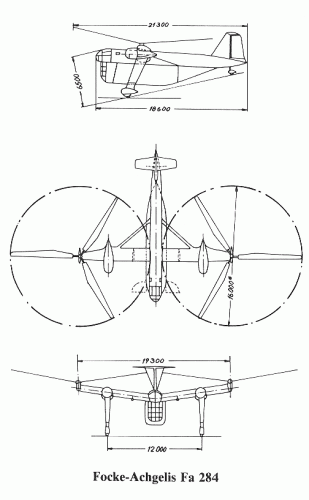

And from Paralympic site;


http://paralympic-ph.com/germanvtol/fockeachgiles/284folder/284a.jpg



[hesham]

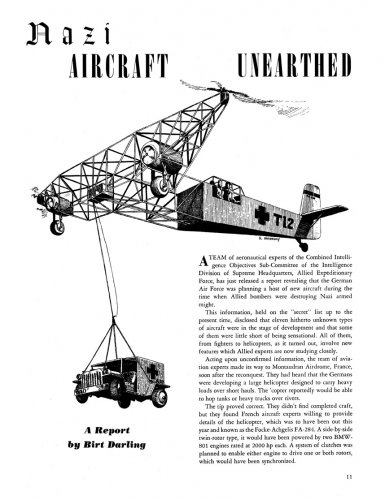

Also from American Helicopter magazine.
