Convair B-36 parasite system

Rosenberg, H W and Klegka, W E Description of Parasite System Utilizing Convair B-36 Carrier
General Dynamics Fort Worth Division Convair Aerospace Division
August 01, 1954

Abstract:
This document presents a description of a basic parasite system using a Convair B-36 type aircraft equipped as the carrier. The parasite airplane is suspended by a trapeze installed in the B-36 bomb bay. The trapeze is designed to support, launch, and retrieve the parasite during flight, and provides parasite support during carrier take-off and landing.

NOTE: Original document is in poor condition and technical drawing are mostly illegible.

Handle / proxy Url: http://handle.dtic.mil/100.2/AD052997


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,631
Reaction score
2,829
Website
www.aerospaceprojectsreview.com
Re: Convair B-36 parasite system

Triton said:
NOTE: Original document is in poor condition and technical drawing are mostly illegible.

I've seen worse. *Lots* worse. Still, they're a mess. I'll patch the best of 'em together best I can and post 'em.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,631
Reaction score
2,829
Website
www.aerospaceprojectsreview.com
Re: Convair B-36 parasite system

Here's some:


Attachments

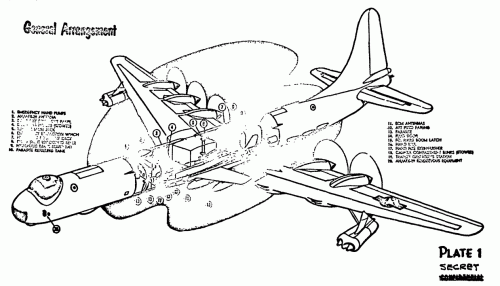

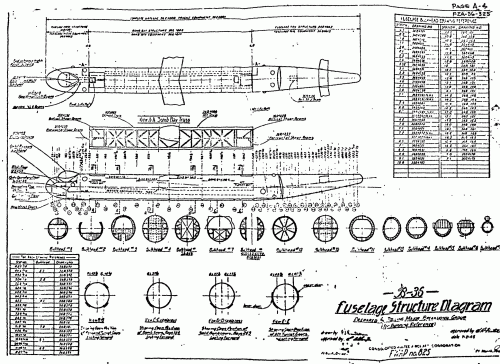

  • B-36 Fuselage Structure Diagram gray.gif
    B-36 Fuselage Structure Diagram gray.gif
    285.7 KB · Views: 184

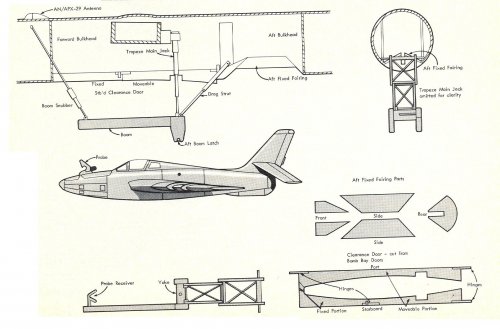

  • B-36 FICON gray.gif
    B-36 FICON gray.gif
    59.2 KB · Views: 186

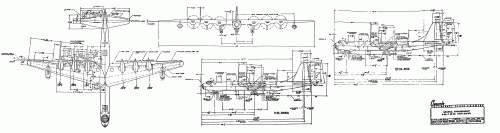

  • B-36 General Arrangement gray.gif
    B-36 General Arrangement gray.gif
    261 KB · Views: 183

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

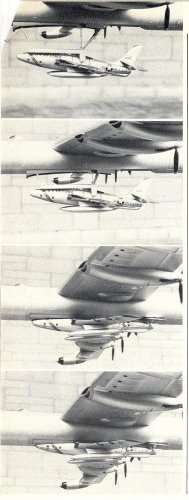

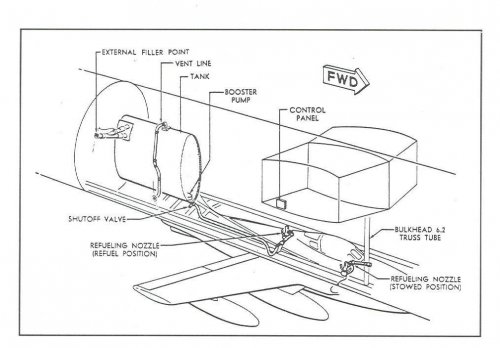

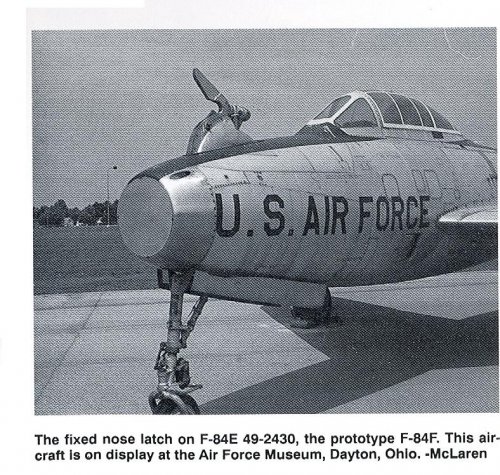

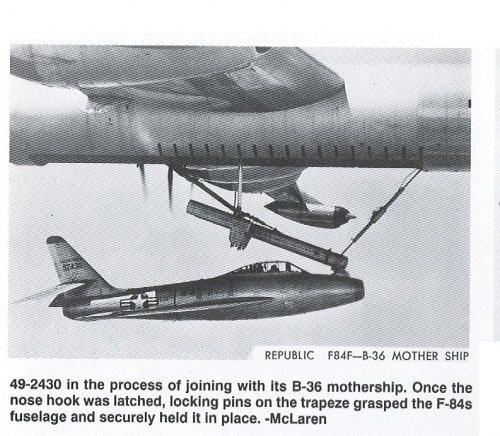

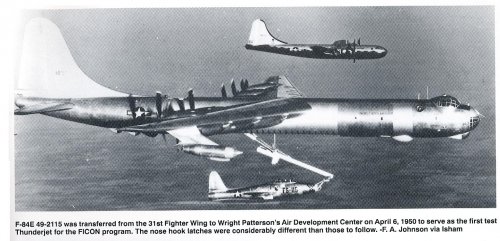

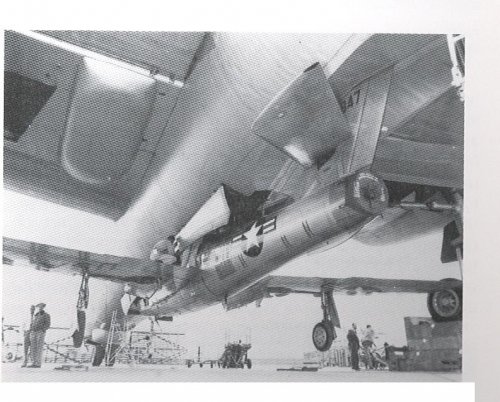

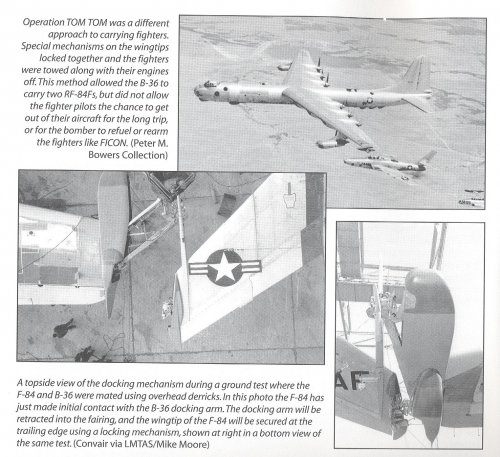

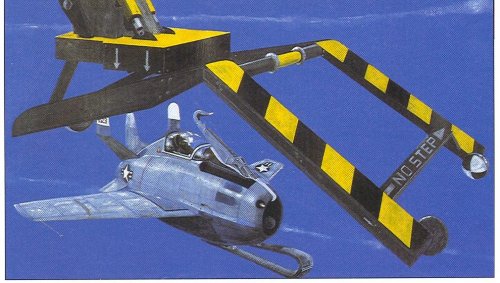

I have found this info...post-1


Attachments

  • Escanear0008.jpg
    192.6 KB · Views: 66
  • Escanear0007.jpg
    281.5 KB · Views: 82
  • Escanear0006.jpg
    590.5 KB · Views: 89
  • Escanear0005.jpg
    389.5 KB · Views: 77
  • Escanear0004.jpg
    76.6 KB · Views: 78
  • Escanear0003.jpg
    217.5 KB · Views: 150

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

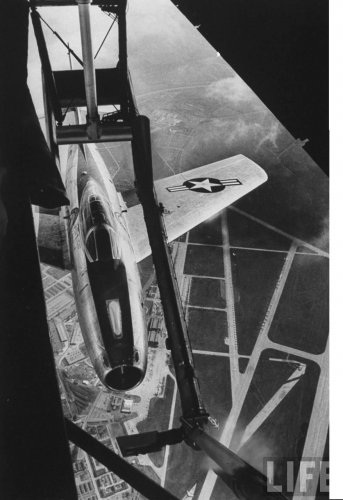

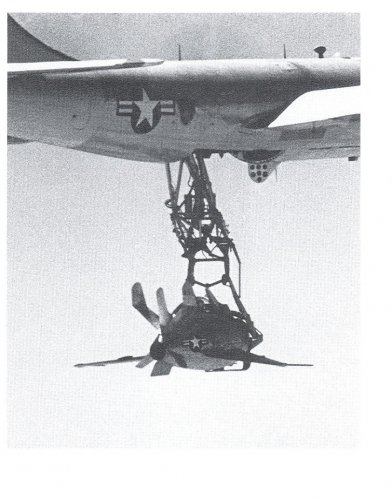

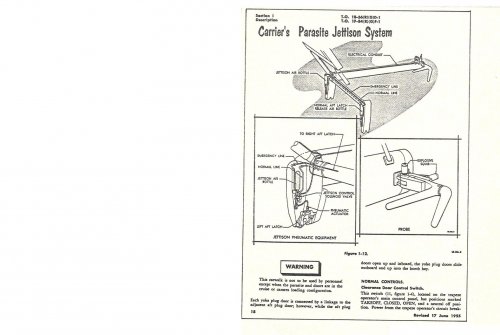

I have found this info...post-2


Attachments

  • Escanear0016.jpg
    148.5 KB · Views: 66
  • Escanear0015.jpg
    170.3 KB · Views: 72
  • Escanear0014.jpg
    201.1 KB · Views: 80
  • Escanear0013.jpg
    34.1 KB · Views: 61
  • Escanear0012.jpg
    375.8 KB · Views: 59
  • Escanear0011.jpg
    90.8 KB · Views: 57
  • Escanear0010.jpg
    92.1 KB · Views: 65
  • Escanear0009.jpg
    115.7 KB · Views: 59

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

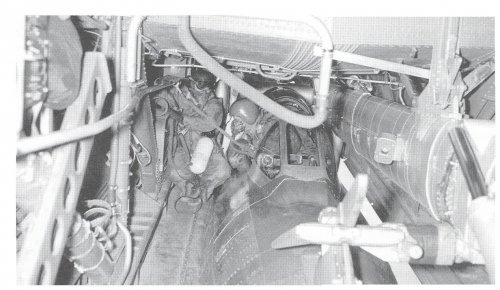

I have found this info...post-3


Attachments

  • Escanear0020.jpg
    141.4 KB · Views: 95
  • Escanear0019.jpg
    214.2 KB · Views: 100
  • Escanear0018.jpg
    279.1 KB · Views: 62
  • Escanear0017.jpg
    520.4 KB · Views: 95

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

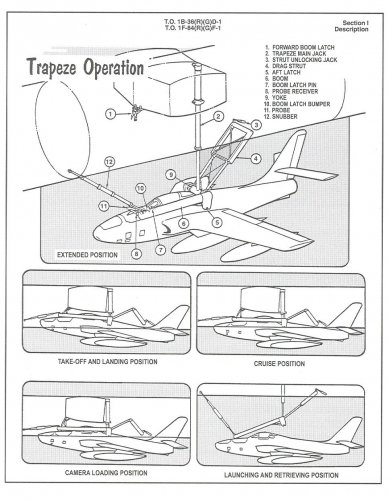

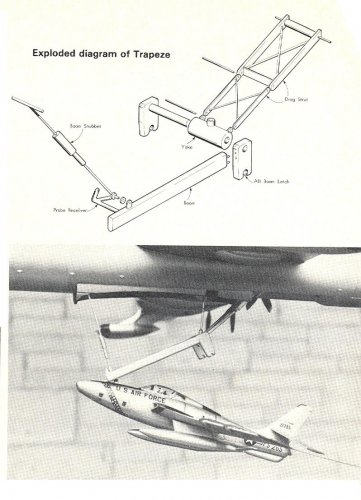

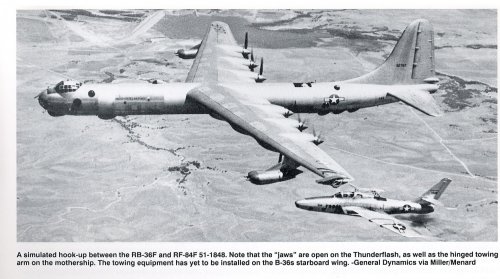

I have found this info...post-4


Attachments

  • Escanear0026.jpg
    180.4 KB · Views: 252
  • Escanear0025.jpg
    426.1 KB · Views: 203
  • Escanear0024.jpg
    138 KB · Views: 114
  • Escanear0023.jpg
    201.5 KB · Views: 61
  • Escanear0022.jpg
    131.5 KB · Views: 51
  • Escanear0021.jpg
    329.2 KB · Views: 53

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com
Re: Convair B-36 parasite system

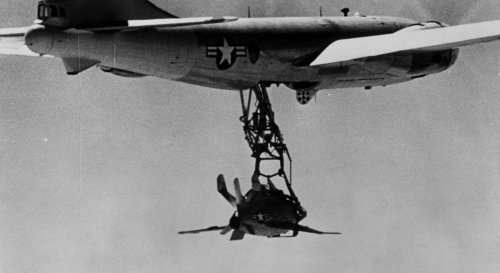

Doh! I had seen pictures of the B-29 with the Wobbly Goblin, but had never seen the B-36 used as an a parasite aircraft carrier. Thought it was an unbuilt project. Should this topic be moved to "Aerospace"?


Mike OTDP

ACCESS: Restricted
Joined
Dec 4, 2009
Messages
36
Reaction score
27
Re: Convair B-36 parasite system

Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
15
Website
RetroFlight.com
Re: Convair B-36 parasite system

Cool...would like to learn more about the 31st century parasites. More on B-36 here

http://www.secretprojects.co.uk/forum/index.php/topic,3842.0/highlight,b-36+parasite.html


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,371
Reaction score
384
Re: Convair B-36 parasite system

Mike OTDP said:
Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.

In the case of the XF-85, it was supposedly turbulence, although Chuck Yeager had a poor opinion of the test pilot that was assigned to it and wrecked the plane.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
17
Re: Convair B-36 parasite system

Mike OTDP said:
Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.

I suppose it might have to do with the higher airspeeds experienced when trying to hook up to a B-36. That sucker was pretty fast for a large piston!


The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
290
Re: Convair B-36 parasite system

airrocket said:
Cool...would like to learn more about the 31st century parasites. More on B-36 here

http://www.secretprojects.co.uk/forum/index.php/topic,3842.0/highlight,b-36+parasite.html

You'll have to wait about a thousand years, then maybe I can tell you something. ;D

Sorry, couldn't resist.
Mike


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
Re: Convair B-36 parasite system

AeroFranz said:
Mike OTDP said:
Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.

In the case of the XF-85, it was supposedly turbulence, although Chuck Yeager had a poor opinion of the test pilot that was assigned to it and wrecked the plane.

He [Ed Schoch] was a former USN aviator used to carrier landings (the proper choice in my eyes) but not experienced in in-flight aerial hook-ups in turbulance. Who was? Could Yeager have pulled it off?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
Re: Convair B-36 parasite system

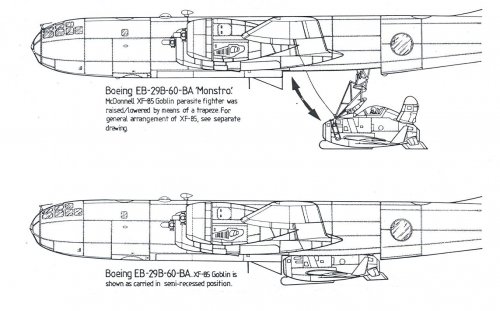

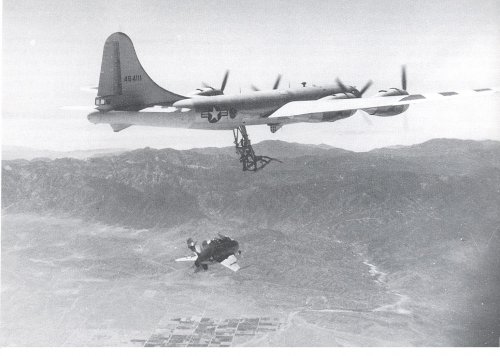

Here's better view of MONSTRO with an XF-85.


Attachments

  • XF-85 and EB-19 Monstro.jpg
    XF-85 and EB-19 Monstro.jpg
    173.3 KB · Views: 104

sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
Re: Convair B-36 parasite system

Triton said:
D'Oh! I had seen pictures of the B-29 with the Wobbly Goblin, but had never seen the B-36 used as an a parasite aircraft carrier. Thought it was an unbuilt project. Should this topic be moved to "Aerospace"?

The B-29 was merely a test machine for the F-85 + B-36 combo, though with the failure of the F-85, no B-36 was ever fitted for it. The F-84 + B-36 was actually operational for a short time.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,371
Reaction score
384
Re: Convair B-36 parasite system


He [Ed Schoch] was a former USN aviator used to carrier landings (the proper choice in my eyes) but not experienced in in-flight aerial hook-ups in turbulance. Who was? Could Yeager have pulled it off?
[/quote]

Hard to say. Maybe it was just too hard. It's just that the environment below a large prop driven bomber flying slow is really turbulent. That might explain why the Sparrowhawk/Macon hookups were so much smoother.

I love his book, but Yeager (Hoover and a bunch of other test pilots too for that matter) is not exactly modest about his flying skills.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

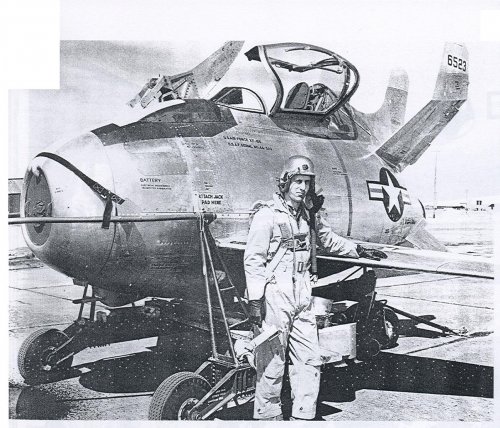

Edwin F. Schoch


Attachments

  • Escanear0002.jpg
    318.6 KB · Views: 80
  • Escanear0001.jpg
    348.9 KB · Views: 87

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Re: Convair B-36 parasite system

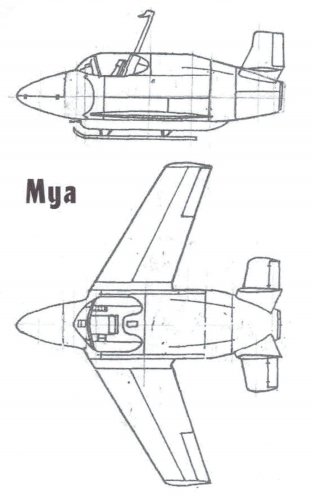

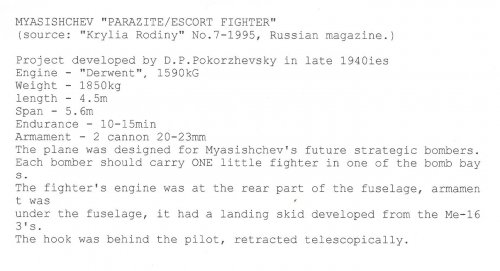

And the soviet version Myasishchev/Pokorzhevsky parasite fighter


Attachments

  • Escanear0003.jpg
    139.8 KB · Views: 92
  • Escanear0004.jpg
    108.3 KB · Views: 87

alfakilo

ACCESS: Confidential
Joined
Oct 18, 2009
Messages
73
Reaction score
9
Re: Convair B-36 parasite system

If there ever was an example of planning for the next war based on lessons from the last one, this parasite fighter is it. The decision makers who gave the green light to this idea must have been WW2 B-17 pilots in Europe prior to the introduction of the Mustang.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Re: Convair B-36 parasite system

And the soviet version Myasishchev/Pokorzhevsky parasite fighter
more:
http://www.secretprojects.co.uk/forum/index.php/topic,2080.0/


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
27
Website
www.io.com
Re: Convair B-36 parasite system

Mike OTDP said:
Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.

...Then again, there's a significant amount of difference between operational airspeeds of a dirigible and a jet-assisted bomber. Simple wind tunnel testing should have revealed this right off the bat.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,095
Reaction score
222
Re: Convair B-36 parasite system

OM said:
Mike OTDP said:
Nope. The FICON was quite real. The USAF never did quite figure out why they were having problems hooking on. The Navy's experience with USS Akron/USS Macon and the F9C was that hooking onto a trapeze was easy.

...Then again, there's a significant amount of difference between operational airspeeds of a dirigible and a jet-assisted bomber. Simple wind tunnel testing should have revealed this right off the bat.

Wind tunnel testing can take you only so far. I suspect the reason why the trapeze was so long on the F-85 system was to put the fighter well outside the worst of the turbulence around the bottom of the bomber. However, it wasn't perhaps long enough. My question is why was the F-84 experiments successful when the F-85's weren't? Could it have been the nature of the F-85 with its short, stubby fuselage which would have made control difficult which was the real problem, rather than necessarily the length of the trapeze or the turbulence itself?


alfakilo

ACCESS: Confidential
Joined
Oct 18, 2009
Messages
73
Reaction score
9
Re: Convair B-36 parasite system

The problem of getting the fighter back aboard the bomber is nothing compared to the bigger questions that confound this idea...such as (not in any particular order)...when and why is the fighter deployed, how does it find the bomber after engaging enemy fighters, did anyone try this at night or in reduced visibility, etc? Did they really think anyone was going to willingly accept this assignment?

For me, this has always been one of those ideas that I'm amazed that went as far as it did in terms of time and expense...it's right up there with the VTOL proposals of the same time period.


sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
Re: Convair B-36 parasite system

I'd guess that the likely mission invisioned would be something on the order of a one-way nuclear apocalyse. Though not often spoke of, an awful lot of the serious Cold War battle plans were in effect suicide missions (including defensive missions, use up your missiles, then ram, was the the expectation)
I suspect the F-85 was also simply an awful little handful.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,167
Reaction score
108
Re: Convair B-36 parasite system

A while back, I started a thread about an air-launched and recovered recon variant of Bell's X-1. Nothing more than a brief description exists of this project according to Jay Miller's X-1 monograph. Here's that thread:

http://www.secretprojects.co.uk/forum/index.php/topic,5884.0/highlight,bell+x-1+recon.html

One has to wonder if the Goblin's shoddy performance was a factor in the recon X-1 remaining no more than an obscure proposal. I also wonder if the FICON F-84 system was perhaps chosen as the better system. I would think so.


iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
502
Reaction score
409

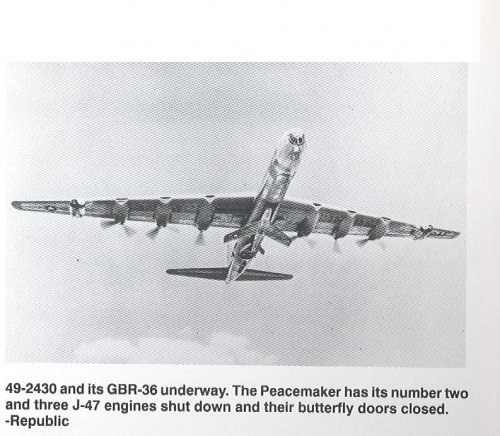

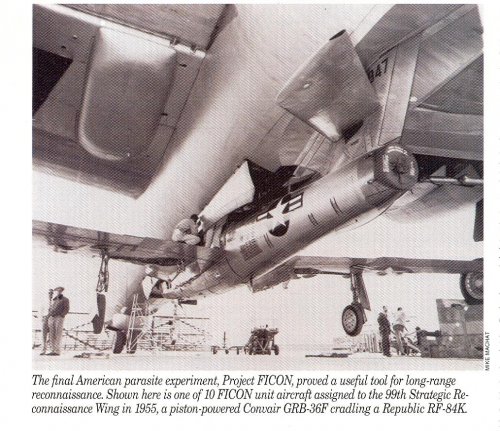

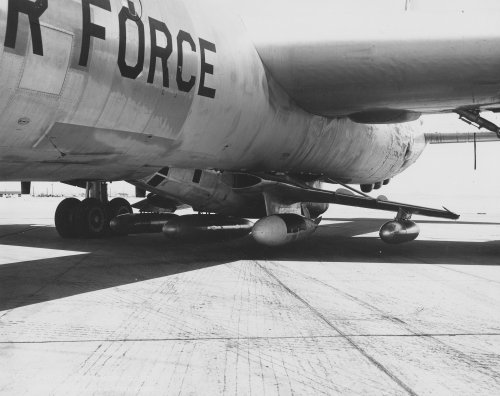

The store on the port inner pylon of the RF-84 appears to be a Mk.7 tactical nuclear bomb. Does anyone know if this was a planned operational configuration of the FICON RF-84?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498
Re: Convair B-36 parasite system

merged topics


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

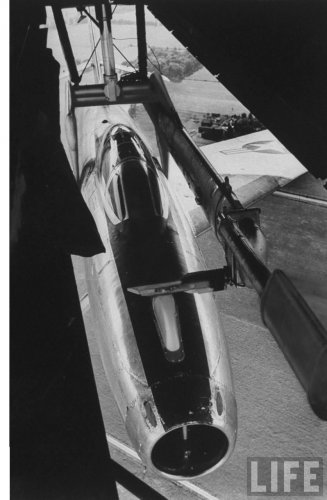

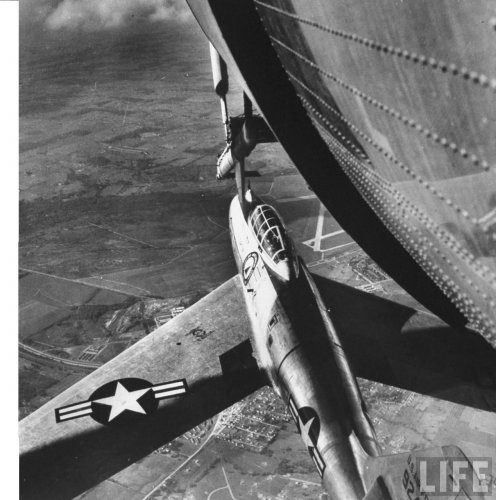

From http://www.clubhyper.com/forums/themepicsframe.htm


Attachments

  • 8693c44d43ede06a_large.jpg
    119.9 KB · Views: 86
  • 4a9524f6d7d9eec1_large.jpg
    101.1 KB · Views: 74

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213

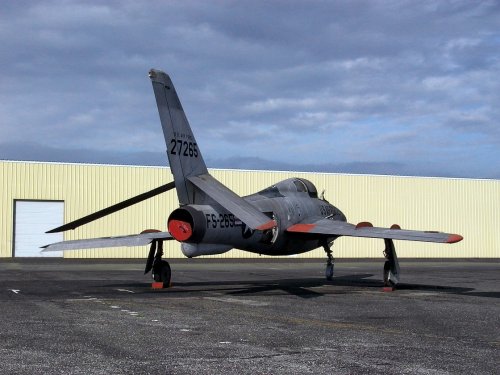

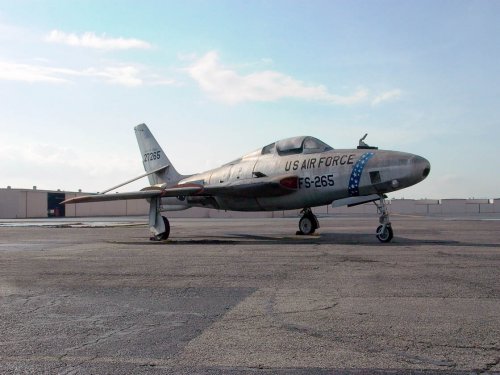

Republic YRF-84K, left over from the FICON program, on a ramp at Chino airport, California, about 5 years ago.


Attachments

  • Republic YRF-84K.jpg
    Republic YRF-84K.jpg
    443.6 KB · Views: 86

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,912
Reaction score
949
Oh great§ Thanks circle-5, it is indeed still well preserved and it is also still possible to see the forward hook extended.


papacavy

ACCESS: Confidential
Joined
Apr 13, 2006
Messages
103
Reaction score
15
I think there's one at the Wings Over The Rockies Museum here in Denver also.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213
Another view of the YRF-84K. The airplane was just sitting there alone, with nobody and nothing else anywhere on the ramp.


Attachments

  • Republic YRF-84K 02.jpg
    Republic YRF-84K 02.jpg
    165 KB · Views: 83
Top
