Fairchild 1984 low-cost Advanced Fighter demonstrator

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,104
Reaction score
1,075

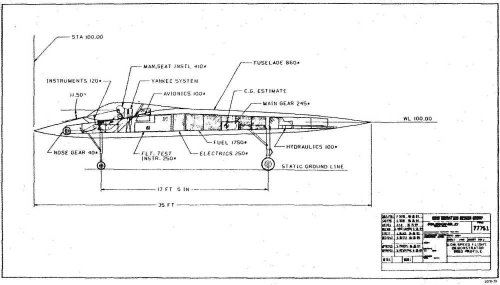

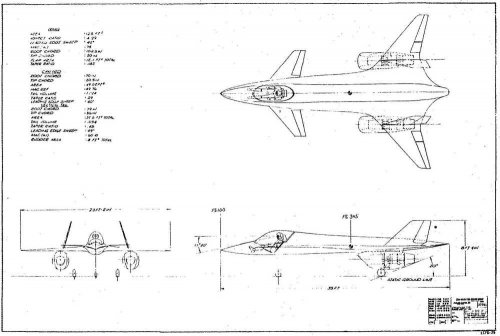

Fairchild 1984 low-cost Advanced Fighter demonstrator


Attachments

  • Clipboard02s.jpg
    52.1 KB · Views: 1,825
  • Clipboard03s.jpg
    46 KB · Views: 1,497
  • Clipboard04s.jpg
    59 KB · Views: 1,486

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,104
Reaction score
1,075

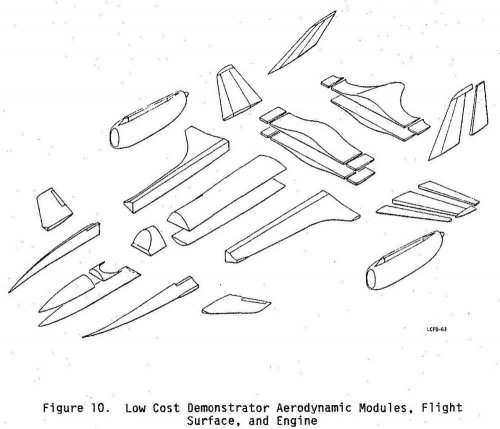

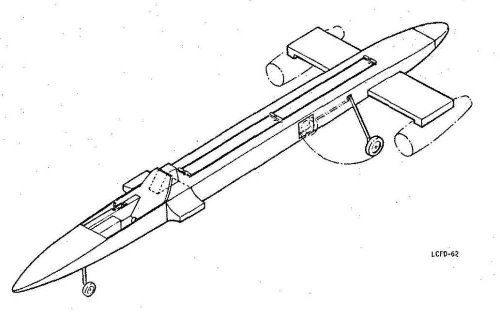

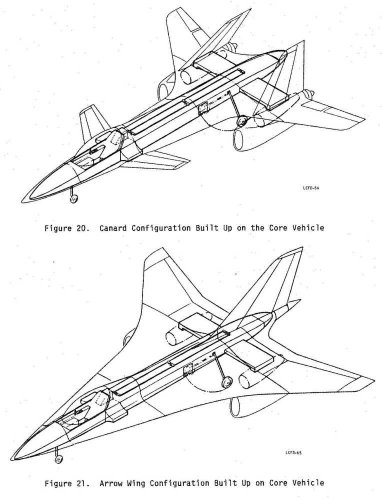

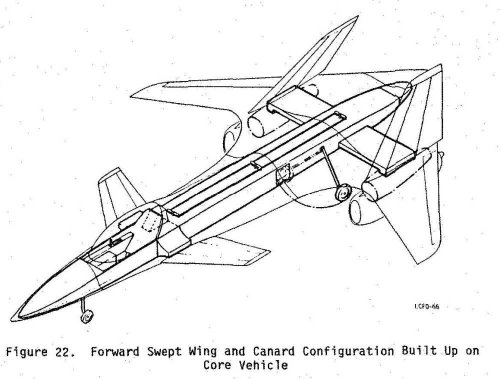

Core testbed 'sceleton', aerodynamic modules variations and the whole variants zoo.


Attachments

  • Clipboard05s.jpg
    36.8 KB · Views: 1,190
  • Clipboard06s.jpg
    60.7 KB · Views: 1,135
  • Clipboard07s.jpg
    64.9 KB · Views: 314
  • Clipboard08s.jpg
    62.5 KB · Views: 327

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,860
Reaction score
318
Wow, that's a cool concept. I've never seen that before. Is there any information on the engines? They look to be J85's, but that's just a best guess based on their size.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
134
Great Gregory, let's keep this forum rocking and rolling ;)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,104
Reaction score
1,075
Sundog said:
Wow, that's a cool concept. I've never seen that before. Is there any information on the engines? They look to be J85's, but that's just a best guess based on their size.

Right!

'The vehicle is 35 feet long, has a wing span of 23 feet and is over 8 feet in
height. The takeoff gross weight is 6,980 lb, including 1,750 lb of fuel.
Power is supplied by two General Electric J85 engines mounted in pods of the
type installed on C-123K aircraft.'


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,042
Hi,

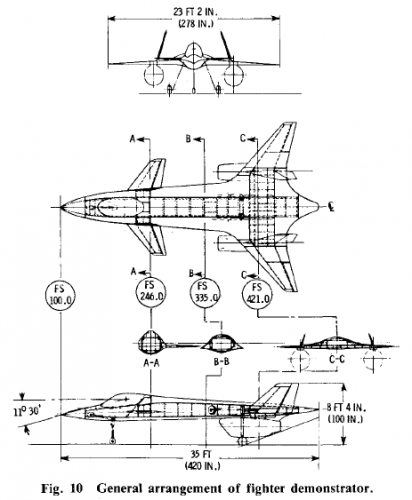

a clearer view to Fairchild low-cost advanced fighter demonstrator.


http://arc.aiaa.org/doi/abs/10.2514/3.45203?journalCode=ja


Attachments

  • F-1.png
    31.9 KB · Views: 216

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
Very neat and a reminder of what could be accomplished if serious defense contractors were actually given a strict, fairly low budget and otherwise free hand to design a low-cost combat aircraft. Yes, I know that this was just a technology demonstrator, just extrapolating here. Something like this could have evolved into a sort of stealthy Textron AirLand Scorpion thirty years earlier.
