F-4B with a Phoenix missile housed in centreline tank?

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
6
Was just doing some reading on F-4s and read that the US Navy was testing a F-4B that could carrie a Phoenix missile in a modified centreline fuel tank? ::)
Does any one have any more info on this? photos and drawings would also be welcome.
Came about with the F-111B getting the axe at the time.

Thanks


Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
6
Well it comes from my hard drive! a few years ago I was given this disc or should I say about 21 of them with just heaps of info on them from the internet that some one had been putting together over the years.
So much to go over and this is when I found this!
I think from what I have read it came from a book called The Phantom Story? (any one got it)

Will keep looking on the disc.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,130
Reaction score
672
Great picture find Lockon!

If anyone knows the size of the Phantom II's centre line drop tank, they will appreciate the size of the Aim-54 Phoenix missile - especially when the Tomcat carried four on its centreline!

I have not read of it before - but could this Phantom II be used somehow in the trials of the Phoenix missile?

Thanks Lockon
Lets hope we can find more pics and drawings!

Regards
Pioneer


erod

ACCESS: Restricted
Joined
Jun 22, 2008
Messages
5
Reaction score
1

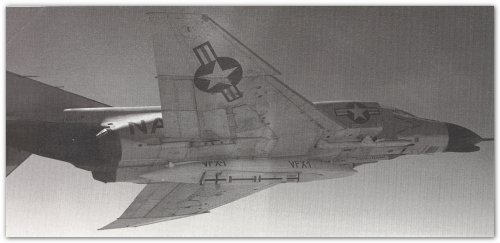

Learn something new everyday. Looking at the picture, I notice that the two forward missile hard points are equipped with sparrow missiles while the two rear hardpoints are empty. The dithering of the picture makes some of the details hard to read. I wish I could get the serial number of the aircraft as well as determining what the lettering says on the sparrow missile on the port side.


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
635
Reaction score
430
The Sparrow in the left forward missile bay is, in fact, an EROS pod. EROS - "Eliminate Range ZerO System" was a McDonnell-developed Collision Avoidance system invented after the company suffered two dead and two injured in a mid-aid collision between two F-101Bs in 1960.

The system became operational in company use in October 1965 and generated over 10,000 collision warnings in the congested St. Louis airspace in the next three years. (It should be noted that F-4 deliveries peaked at somewhere around 60 aircraft a month in this timeframe - each aircraft would undergo three to six functional check flights before delivery. That does not include systems and developmental test flights.)

(Data from the F-4 Phantom Society's Smoke Trails magazine, Volume 17, Number 3.

The lettering reads: "EROS Collision Avoidance System". The pod, wire bundle, upper antenna and indicator were removed prior to final customer acceptance of the aircraft.

If I squint just right, the BuNo appears to be 149410 or 149418. Either number would cross to a Block 9 F-4B.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
I very much doubt that the F-4 was being considered as a platform since the Phoenix wasn't any good without the big Hughes radar. My guess is that it was a flight test to substantiate drag projections in McAir's VFX proposal of a drag reduction innovation involving a "blanket" that sucked down around a semi-submerged missile.


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
635
Reaction score
430
Concur. Initial Phoenix missile flight test was accomplished by launch from NA-3A and F-111B aircraft only, usually operating from Hughes Culver City. Follow-on test was by launches from NA-3B and F-14A/B/D. There were some XAIM-54A ground launches too, but this was part of the missile airframe development effort.

An off the wall question - does anyone know the designation of the radar in the AIM-54? Or was it designated only as a subcomponent of the AIM-54?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,804
Reaction score
3,204
Website
www.aerospaceprojectsreview.com
Lockon said:
Was just doing some reading on F-4s and read that the US Navy was testing a F-4B that could carrie a Phoenix missile in a modified centreline fuel tank? ::)
Does any one have any more info on this?

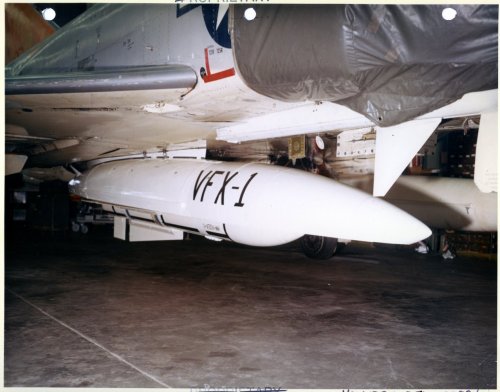

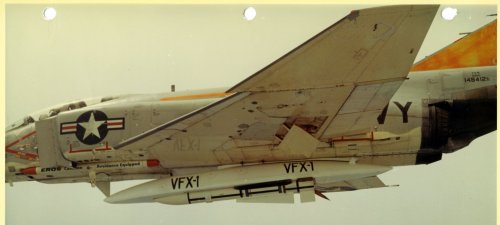

This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

Photos via Mark Nankivil...


Attachments

  • f-4 phoenix 1.jpg
    f-4 phoenix 1.jpg
    149.8 KB · Views: 486
  • f-4 phoenix 2.jpg
    f-4 phoenix 2.jpg
    172.4 KB · Views: 447

NMaude

ACCESS: Secret
Joined
Mar 12, 2021
Messages
242
Reaction score
199
There were some XAIM-54A ground launches too, but this was part of the missile airframe development effort.
It's a pity a mobile Land Phoenix wasn't developed as it could've replaced the MIM-23 Hawk SAM.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,130
Reaction score
672
Thanks Orionblamblam, that makes a lot of sense.

Revisiting this post, I'm wonder, given the timeframe and the amount of F-4 Phantom II's in the USN's ORBAT, was the technology available for a data link like arrangement between the F-14 with its Hughes AN/AWG-9 radar and say a F-4 Phantom II carrying Aim-54's into an intercept (i.e. the Aim-54 carried by F-4's slaved to F-14's radar control)?
Lockon said:
Was just doing some reading on F-4s and read that the US Navy was testing a F-4B that could carrie a Phoenix missile in a modified centreline fuel tank? ::)
Does any one have any more info on this?

This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

Photos via Mark Nankivil...

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,130
Reaction score
672
There were some XAIM-54A ground launches too, but this was part of the missile airframe development effort.
It's a pity a mobile Land Phoenix wasn't developed as it could've replaced the MIM-23 Hawk SAM.
Not that Hawk needed replacement, just polish until much later into CW.
Sorry GARGEAN, I have a strong tendency to believe the MIM-23 Hawk was relied upon for far too long IMO, but alas, I digress from the main topic.;)

Regards
Pioneer


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
719
Reaction score
255
This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

I've just been through the VFX topic with no joy; are there any further descriptions or drawings for how this feature would have worked? I was struggling to see how there was room for internal doors in some of the structural arrangement pictures.

Thanks


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,595
Reaction score
7,594
This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

I've just been through the VFX topic with no joy; are there any further descriptions or drawings for how this feature would have worked? I was struggling to see how there was room for internal doors in some of the structural arrangement pictures.

Thanks
The Model 225A as submitted had recesses sized for Phoenix which were inflatable to seal nicely even if carrying a Sparrow or no missile.


Fluff

ACCESS: Top Secret
Joined
Sep 9, 2019
Messages
700
Reaction score
537
This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

I've just been through the VFX topic with no joy; are there any further descriptions or drawings for how this feature would have worked? I was struggling to see how there was room for internal doors in some of the structural arrangement pictures.

Thanks
The Model 225A as submitted had recesses sized for Phoenix which were inflatable to seal nicely even if carrying a Sparrow or no missile.
Possible link to today, in terms of stealth carriage of larger weapons??


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,614
Reaction score
3,537
This was a series of tests conducted by McDonnell to demonstrate the Phoenix semi-submerged "Integrated Armament Fairing" for their Model 225 VFX entry (note the "VFX" on the tank). When the Phoenix missile was ejected, doors would close over the cavity left by the missile, leaving an unbroken surface.

I've just been through the VFX topic with no joy; are there any further descriptions or drawings for how this feature would have worked? I was struggling to see how there was room for internal doors in some of the structural arrangement pictures.

Thanks
The Model 225A as submitted had recesses sized for Phoenix which were inflatable to seal nicely even if carrying a Sparrow or no missile.
Possible link to today, in terms of stealth carriage of larger weapons??
Back then semi-recessed was for drag. Same with internal carriage. The F-22 wasn't the first. The F-101, F-102, F-106, XF-108, XF-103, YF-12 all had, or would have had, internal weapon carriage for drag reduction. With newer fighters it's RCS reduction that drives it.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,614
Reaction score
3,537
