F-14 and Su-27's nose question

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
Why do the F-14 and SU-27's noses when in level flight appear to be angled down a bit?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
because they are 'in level' with horizont while aircraft cruising - they do it, as you may notice, always with some tiny positive AoA


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
174
Website
www.hitechweb.genezis.eu
Look at the front part of your car, then go inside and take a look forward. You will have the point regarding to visibility. The other thing is that you need to optimally distribute the radar waves in the air and on the ground (remember that the Earth is curved).


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,784
Reaction score
170
Or, it could be that since both aircraft have really large radar antennas, and both are designed to be able to land in tight spaces (carrier for the Tomcat and semi-prepared areas for the Flanker), they need the visibility over the nose while holding angle of attack on the approach... :-\


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
F-14D,

Not so sure about that, as the F-15 has sufficient visibility over the nose for navy purposes and it's nose is big enough to accomodate an AWG-9 radar (assuming it was mounted further back in the nose, closer to where the cockpit is -- me and another member on WHIF had discussed this and concluded this)

KJ Lesnick


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,784
Reaction score
170
KJ_Lesnick said:
F-14D,

Not so sure about that, as the F-15 has sufficient visibility over the nose for navy purposes and it's nose is big enough to accomodate an AWG-9 radar (assuming it was mounted further back in the nose, closer to where the cockpit is -- me and another member on WHIF had discussed this and concluded this)

KJ Lesnick

Re F-15 visibility: Not according to the Navy, without modifying nose and/or elevating pilot's line of sight for constant angle of attack for carrier approach technique

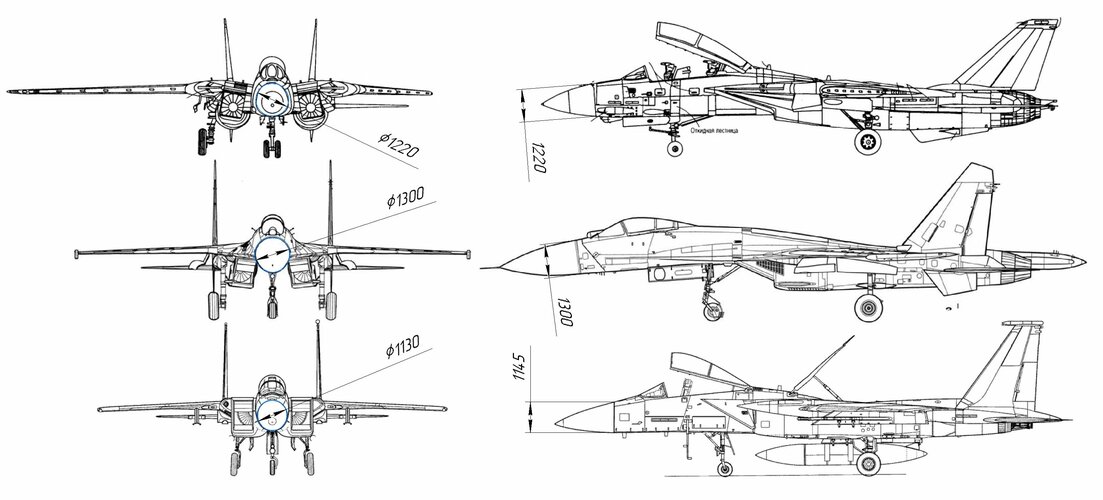

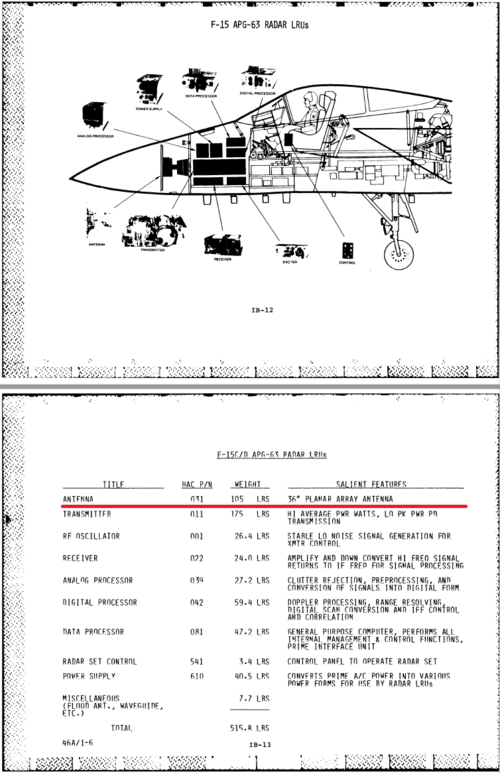

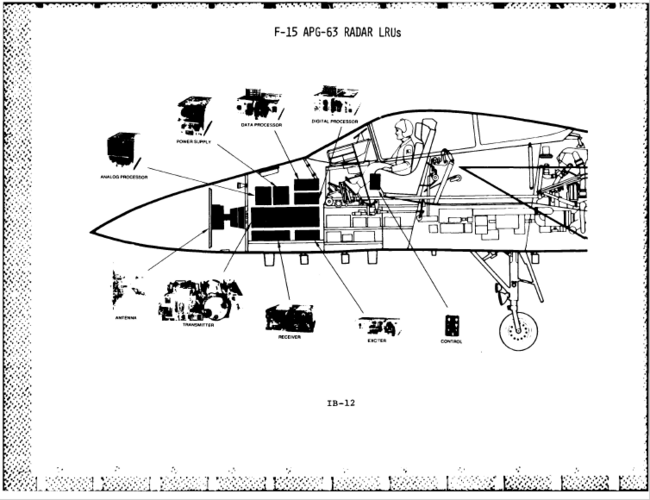

I don't believe the F-15 carried a 36 inch flat plate antenna, and it's the antenna that is really at issue here, since it has to be able to move around. Whether you could fit the entire AWG-9 into an F-15A is not germane, since the F-15, and its nose, was not designed to do so, so why would they build such a nose? As far as moving it back, what happens to all the stuff that's already behind the F-15A's APG-63?

Now they probably could have built a carrier capable F-15, and they probably could have put the AWG-9 in that, but then, the front of the a/c would no longer be the Eagle snout that we know.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
F-14D

Not according to the Navy, without modifying nose and/or elevating pilot's line of sight for constant angle of attack for carrier approach technique

When the USN say that?

I don't believe the F-15 carried a 36 inch flat plate antenna, and it's the antenna that is really at issue here, since it has to be able to move around. Whether you could fit the entire AWG-9 into an F-15A is not germane, since the F-15, and its nose, was not designed to do so, so why would they build such a nose? As far as moving it back, what happens to all the stuff that's already behind the F-15A's APG-63?

Well, it was kind of a hypothetical -- an aircraft that had the same nose-cone shape as the F-15 but the position of the dish and equipment would be different. Either way, from what me and a guy on WHIF concluded, if the AWG-9 antenna was put far enough back in the nose-cone of the F-15 it would fit and apparently there would be enough space for the pilot behind the radar

Now they probably could have built a carrier capable F-15, and they probably could have put the AWG-9 in that, but then, the front of the a/c would no longer be the Eagle snout that we know.

There was a proposed F-15N, but it wasn't to use an AWG-9; it was to use the APG-64 which was a development of the APG-63 with the ability to operate AIM-54's and probably a longer range. I presume it was about the same size and regardless could fit within the confines of the F-15's nose.


KJ Lesnick


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297

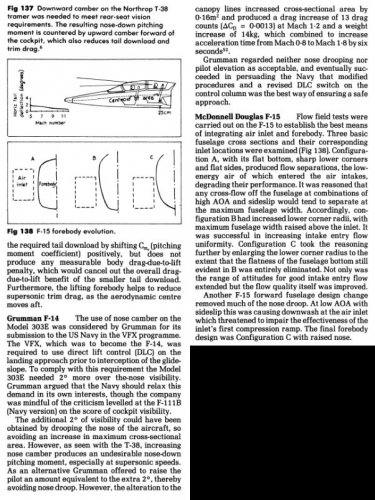

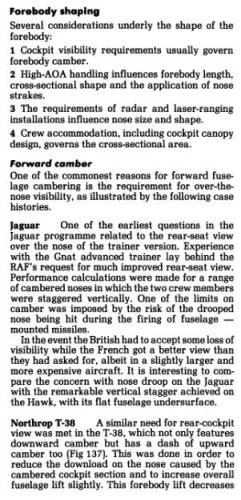

from famous Ray Whitford's Design for Air Combat
KJ, this is a book that I gave you as source more than a year ago
I hardly advise to buy the last edition and *read* it


Attachments

  • aa.jpg
    71 KB · Views: 72
  • ab.jpg
    148.8 KB · Views: 91
