Very interesting concept,thanks a lot for sharing Hesham.




regards


Pedro


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
295
Does anybody know what this is? An afterburner for the afterburner? (Source)


Attachments

  • Lockheed F-104 Mod.jpg
    Lockheed F-104 Mod.jpg
    52.5 KB · Views: 591

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
4,711
Reaction score
3,889
Website
beyondthesprues.com
Some sort of IR shield perhaps? Similar in concept to that on the Israeli A-4s.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Hi,


has anyone a drawings to Lockheed CL-978 & CL-982,which developed from
F-104 fighter ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
A new info for me,

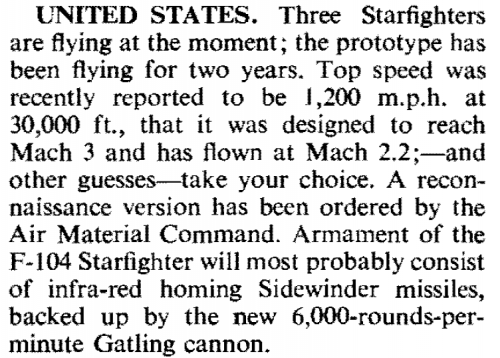

the Lockheed F-104 intended to reach Mach 3 ?,Air Pictorial 9/1956.


Attachments

  • Mach 3.png
    Mach 3.png
    120.8 KB · Views: 216

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
15,415
Reaction score
4,922
:eek:


Attachments

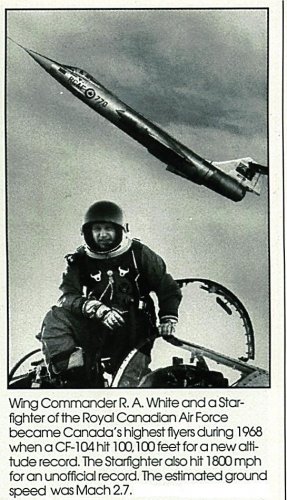

  • a-cf104-1800mph.jpg
    126.9 KB · Views: 265

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
23
Website
rwrwalker.ca
The aircraft used was RCAF 12700, not the one shown in the photo. 12700 was built by Lockheed as an F-104A, 56-770. After several years use by the USAF is was partly converted to F-104G standard, and used by Lockheed, Canadair and the RCAF for avionics development in the CF-104 program. The record breaking flight was its last flight, as airframe and engine limits were considerably exceeded. The aircraft is now in the Museum at Rockcliffe.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,243
Reaction score
359

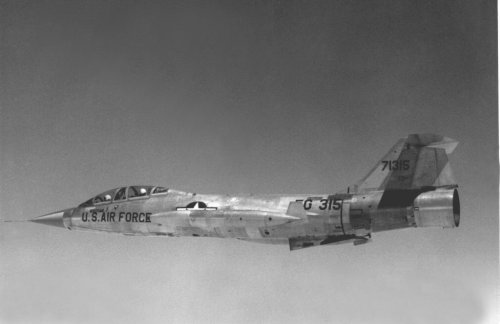

Late, I know, but I would say that Circle-5's F-104B has an experimental ejector nozzle, possibly associated with the SST program. It has a buzz number which makes it a bit early for anyone to be thinking about IR suppression.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,597
Reaction score
1,414

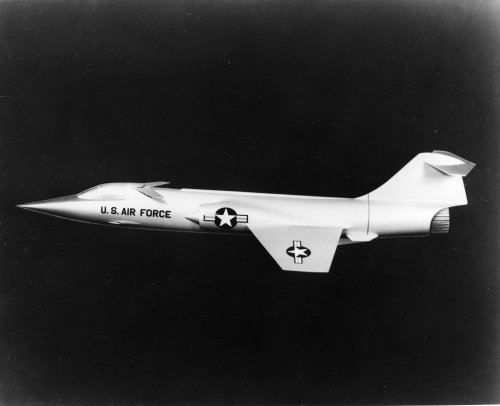

Lockheed CL-981 retractable canard wing design study (mfr LA 5012 via RJF)
PictionID:42253147
Title: Lockheed CL-981 retractable canard wing design study (mfr LA 5012 via RJF)
Catalog: 17_000009
Filename: 17_000009.tif
Image from the René Francillon Photo Archive at San Diego Air and Space Museum Archive.
Link: https://www.flickr.com/photos/sdasmarchives/16950031030/in/set-72157651530128190


Attachments

  • Lockheed CL-981 retractable canard wing design study.jpg
    Lockheed CL-981 retractable canard wing design study.jpg
    91.3 KB · Views: 805

alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
741
Reaction score
485
MBB (Tornado avionics FTB) F-104F.

1973 competition by Panavia for this was between 2 Buccaneer S.2, heavily modifed by Marshall of Cambridge (winner) and MBB F-104F, kit in pods. My memory is that >2 would have been needed. I have never seen a schematic.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Hi,

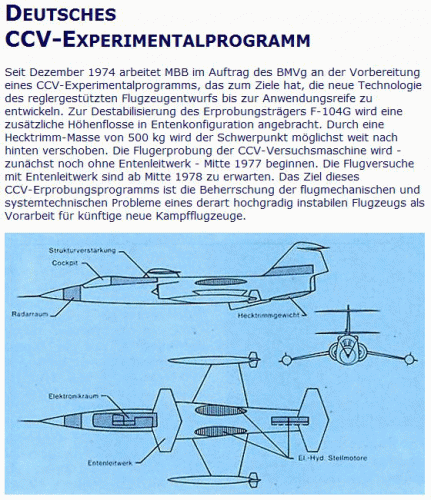

the Lockheed F-104 CCV.


http://www.rolfferch.de/F104G/html/projekte.html


Attachments

  • F-104 CCV.gif
    F-104 CCV.gif
    231 KB · Views: 957

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
325
Reaction score
202
Recently posted by Periscope Film on YouTube, the Lockheed-produced film "Training For Space" (circa-1962?), featuring the USAF Aero Space Research Pilot School at Edwards Air Force Base and the planned modification and use of the F-104 as the NF-104A for training. Also note cameos in the film by future astronauts Michael Collins, (the ill-fated) Charlie Bassett, and Joe Engle.

Periscope Film - AIR FORCE RESEARCH PILOT SCHOOL NF-104A STARFIGHTER EDWARDS AFB 45024

Last edited:

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,927
Reaction score
1,786
If the had taken delivery of the SR-53 for this research and education they would have been able to increase efficiency as the SR-53 was ready to go with rocket power.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
15,415
Reaction score
4,922
Foo Fighter said:
If the had taken delivery of the SR-53 for this research and education they would have been able to increase efficiency as the SR-53 was ready to go with rocket power.

I thought Northrop's T-38 based solution was interesting. A shame they didn't build it.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

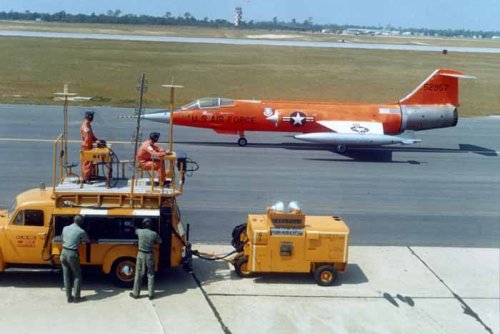

Here's another variant: QF-104A remote control drone flown at Eglin AFB, Florida.


Attachments

  • QF104A.jpg
    40.1 KB · Views: 531

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

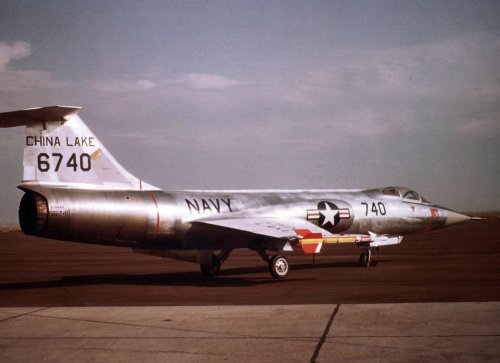

Here's a fun one. A Navy F-104 used for weapons tests at China Lake.


Attachments

  • F-104A_US_Navy_with_AIM-9_NWC_China_Lake_1960.jpg
    1.1 MB · Views: 612

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
15,415
Reaction score
4,922
Surprised this isn't in this thread:

https://www.youtube.com/watch?v=HyUcQbsEBrE


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

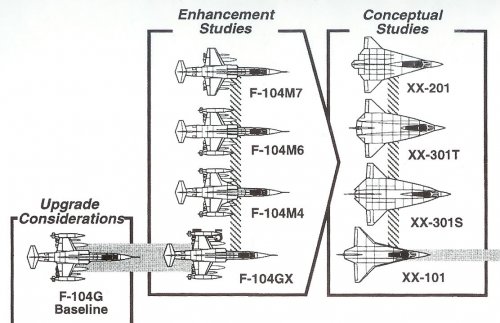

Here's one. Not sure which book it came from.


Attachments

  • F104DevelopmentConcepts.jpg
    151.9 KB · Views: 663

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,181
Reaction score
148
Well those are new. The Conceptual Studies almost look like the Vought SAMI concepts.

Interesting find!


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
sferrin said:
What the hell did they stuff in the back end of that M6? :eek:
This thread, page 2, reply #20:
Deino said:
In that booklet about the Taiwanese IDF-development there are at least three Starfighter-based designs ...
1. The X-27 Lancer
2. F-104M4 + J-79
3. F-104M6 +2x TFE-1042

... the other designs I will post at the Taiwan-projects tread !

Source: Scale Model Enthusiast - Military Series No. 1 / 15. Nov.1996 - everything else is written in Chinese !

From Wiki's F124-page:
In 1978, Garrett announced joint research on the TFE1042 afterburner with Swedish company Volvo Flygmotor AB in order to provide an engine for the AIDC F-CK Indigenous Defence Fighter (IDF) being developed for the Republic of China (Taiwan) Air Force (ROCAF). The TFE731 Model 1042 was touted as a low bypass ratio "military derivative of the proven commercial TFE731 engine" and "provides efficient, reliable, cost effective propulsion for the next generation of light strike and advanced trainer aircraft", with thrust of 4260 lbf (18.9 kN) dry and 6790 lbf (30.2 kN) with afterburner. After initial negotiation, the investment was going to be divided between Garrett, Volvo, AIDC, and Italian company Piaggio. The development would consist of the non-afterburning TFE1042-6 for light attack aircraft/advanced trainer, and TFE1042-7 for the AMX or F-5 upgrade. Garrett would be responsible for the core engine, and Volvo would be responsible for the fan section and the afterburner. The engine first ran for 3 hours at a Volvo test facility in 1979.[1]

AIDC also suggested upgrading TFE1042-7 to 8000 lbf (31 to 36 kN) thrust as twin engine solution, in order to compete with General Electric F404 for applications such as the JAS 39 Gripen. However, the Gripen project decided to continue with a single engine F404 variant, built by Volvo, and Volvo left the project to at that point to focus on the Gripen work. Piaggio asked to participate at a later date due to financial reasons and left the program as well. Thus only Garrett and AIDC invested in the new International Turbine Engine Corporation (ITEC), with the contract signed in 1982.[1]

In 1988, ITEC decided to invest in the 12,000 lb TFE1088-12, which was re-designated as TFE1042-70A (for political reason as well). Preliminary study had shown that IDF could supercruise with the new engine. At the same time, GE decided to enter the market with J101/SF, a smaller version of F404. However after the IDF order was cut in half due to budget concerns, the TFE1088-12 engine upgrade plan ended as well.[2] The F-CK IDF first flew in 1989, and aircraft were delivered through 1999.[1]


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,877
Reaction score
3,506
on Graphic that Dynoman posted "The Conceptual Studies"

Is the F-104G as Baseline reference or was this Studies something for German Luftwaffe ?
because F-104G, G for Germany...


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678
The "G" was the "Super Starfighter" with stronger airframe, larger tail, increased fuel capacity, and upgraded avionics for work as a fighter-bomber. The F-104G was sold all over the world, serving with the Germans, Dutch, Taiwanese, etc. The document on the conceptual growth variants of the F-104G uses the aircraft as a baseline.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,877
Reaction score
3,506
Dynoman said:
The "G" was the "Super Starfighter" with stronger airframe, larger tail, increased fuel capacity, and upgraded avionics for work as a fighter-bomber. The F-104G was sold all over the world, serving with the Germans, Dutch, Taiwanese, etc. The document on the conceptual growth variants of the F-104G uses the aircraft as a baseline.

Thanks for info, Dynoman


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

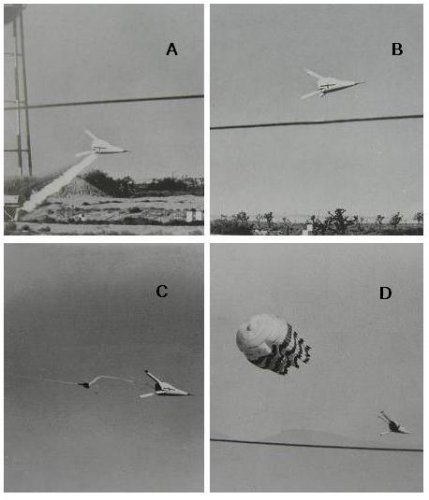

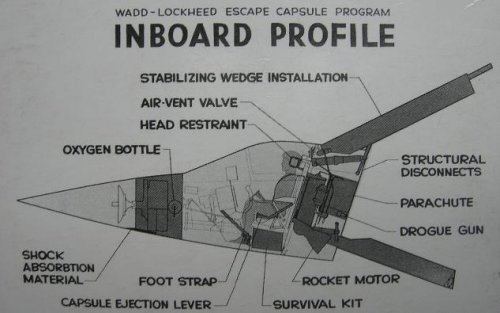

Due to the dangers associated with the Stanley B downward ejection seat developed for early model F-104's a capsule approach was considered.


Attachments

  • F104 Escape Capsule.jpg
    F104 Escape Capsule.jpg
    32.1 KB · Views: 1,496
  • F104 Escape System.jpg
    F104 Escape System.jpg
    44.6 KB · Views: 1,413

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

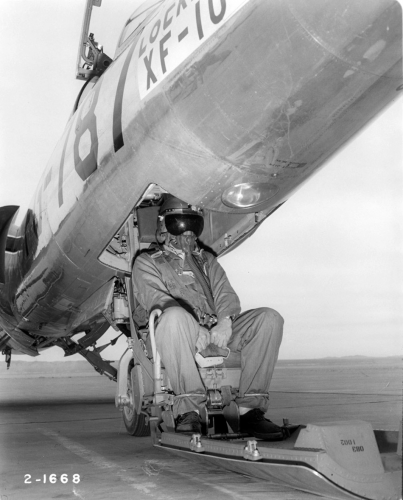

XF-104's downward ejection system.


Attachments

  • DownwardEjectionXF-104.png
    898.1 KB · Views: 1,421

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
Posted earlier in the Napier Rocket Engines thread:
In 'Lockheed's Skunk Works', Jay Miller writes downward ejection was chosen because
- it promised lower escape g's
- better instrument panel position
- easier clearing the various sharp edges of the F-104's T-tail on ejection
- better tie-in of the lower escape hatch with the seat than was possible with ejectable canopies


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,877
Reaction score
3,506
what for excellent finding, Dynoman

Since the F-104 was original design as high-speed, high-altitude fighter/interceptor.
The downward firing Ejection seat was consider ideal, by passing the "T-tail" empennage.
but deaths of 21 USAF pilots, do low-level emergencies with downward firing Ejection seat, let to installment of C-2 upward-firing seat.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

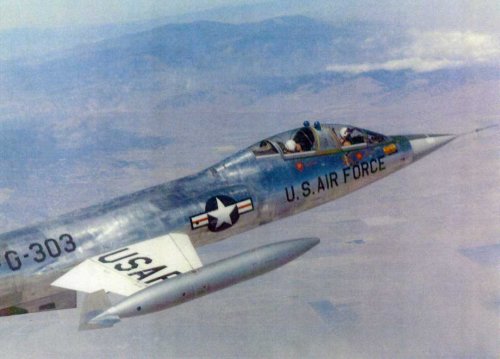

F-104B 57-1303, USAF (later NASA's) aircraft, was used several times to support low-visibility pilot studies using periscopes to land a low L/D vehicle. It supported the X-20 Dyna Soar project as well as a NASP project.

http://webs.lanset.com/aeolusaero/Articles/F-104B_HISTORY_OF_57-1303_Howling_Howland_24Jan10.pdf


Attachments

  • F-104_Periscope_Project.jpg
    58.2 KB · Views: 1,295

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
4,711
Reaction score
3,889
Website
beyondthesprues.com

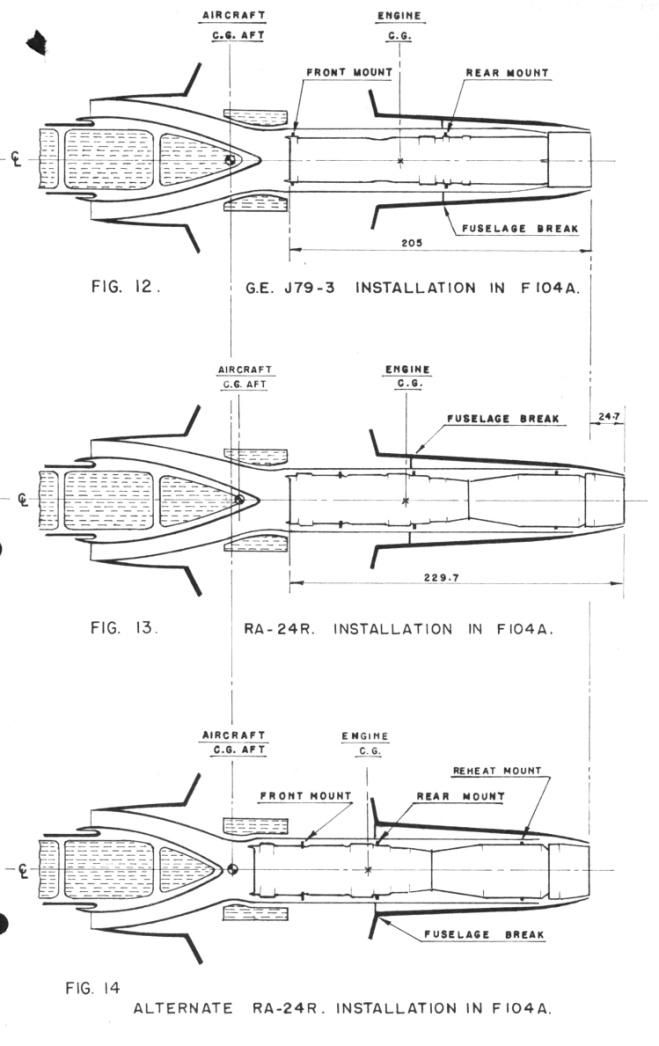

One that I wasn't previously aware of: apparently back before they settled on the Mirage III there was Australian interest in a RR Avon powered version of the F-104:



circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
295

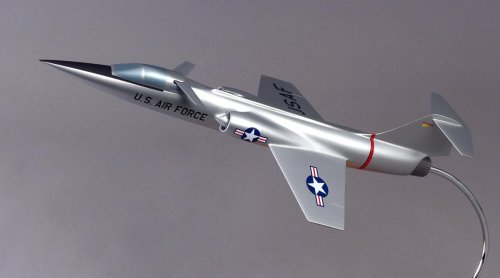

Lockheed CL-981 manufacturer's display model.

In addition to the retractable canard, the wing is larger than a standard F-104 wing (250 sq.ft. vs. 230 sq.ft.) This larger wing is different from the NF-104 wing, which had simple tip extensions to position the RCS roll nozzles further outboard (to increase their effectiveness). Instead, the CL-981 extensions were at the wing root, with a dihedral reduction from 10 to 7 degrees. The CL-981 would have been equipped with an uprated J79/J1Q engine with auxiliary inlet doors.


Attachments

  • Lockheed CL-981 03.jpg
    Lockheed CL-981 03.jpg
    45.2 KB · Views: 282
  • Lockheed CL-981 04.jpg
    Lockheed CL-981 04.jpg
    53.8 KB · Views: 282

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,341
Reaction score
940
circle-5 said:
Lockheed CL-981 manufacturer's display model.

In addition to the retractable canard, the wing is larger than a standard F-104 wing (250 sq.ft. vs. 230 sq.ft.) This larger wing is different from the NF-104 wing, which had simple tip extensions to position the RCS roll nozzles further outboard (to increase their effectiveness). Instead, the CL-981 extensions were at the wing root, with a dihedral reduction from 10 to 7 degrees. The CL-981 would have been equipped with an uprated J79/J1Q engine with auxiliary inlet doors.

Very interesting circle-5 ;)

Thank you for sharing!!

Regards
Pioneer


Volkodav

I really should change my personal text
Joined
Mar 28, 2014
Messages
539
Reaction score
753
GTX said:
One that I wasn't previously aware of: apparently back before they settled on the Mirage III there was Australian interest in a RR Avon powered version of the F-104:


Very interesting


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678

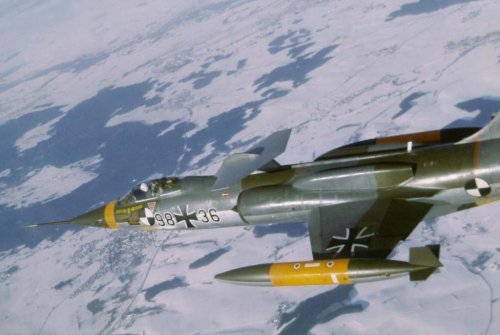

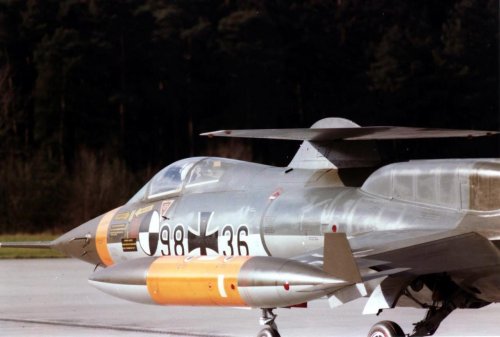

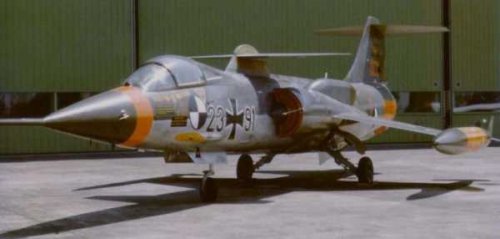

German F-104 CCV


Attachments

  • F-104GCCV_1.jpg
    13.1 KB · Views: 165
  • f104CCV09.jpg
    78.7 KB · Views: 160
  • F-104-CCV.jpg
    51.3 KB · Views: 236

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,172
Reaction score
678
F-104 CCV Article


Attachments

  • F-104CCV_Classic Aircraft, Zeitler Andreas_2012.pdf
    1.6 MB · Views: 95

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com
F-104 dogfighter project:
http://www.edwardsflighttest.com/pics/F-104-Dogfighter.pdf
Don't think it's connected to the High wing Lancer project...
