Enzian ground-to-air rocket-propelled winged missiles

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
457
Reaction score
20
Hello everbody

I am searching for a Picture and any other Data about the Enzian E-6 Rocket.
It is a very little known Anti-Tank Rocket version of the Anti-Aircraft Rocket Enzian
I do not have any more Information about that Project!

P.S. Is there anybody who have a picture of the Enzian E-4 or E-5 Warhead containing 550 small 20mm "Pfeil" Rockets ?

Thaks in advance


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
457
Reaction score
20
Re: Enzian Variants and Warheads

Hi everybody

I have found some
http://www.walter-rockets.i12.com/missiles/enzian.htm
http://www.ausairpower.net/DT-MS-1006.pdf (about Enzian etc)
http://www.ww2aircraft.net/forum/aviation/b-29s-over-germany-4013-11.html
http://one72guy.awardspace.com/Missiles_Germany_WW2_1_72.html (some Plastic Models)

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
457
Reaction score
20
Re: Enzian Variants and Warheads

Hi everybody

Any news about the Enzian E-4 warhead that contained 550 rockets ?
I have read that there was a drawing in the book
"German Explosive Ordnance".

Maybe someone knows more ?

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
457
Reaction score
20
Re: Enzian Variants and Warheads

Hi everybody

Enzian warhead with 550 little rockets
To answer my own question
There is not a picture or sketch !
But there is a little text on page 232
(SEE SKETCH BELOW)

But where is this sketch ?
Maybe someone can help ?

Here the document
http://www.lexpev.nl/manuals/index.html
http://www.lexpev.nl/downloads/tm919852germanbombfuzesmines1953.pdf

Here the Pfeilraketen
http://www.secretprojects.co.uk/forum/index.php/topic,6806.0.html

Thanks for every reply


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Re: Enzian Variants and Warheads

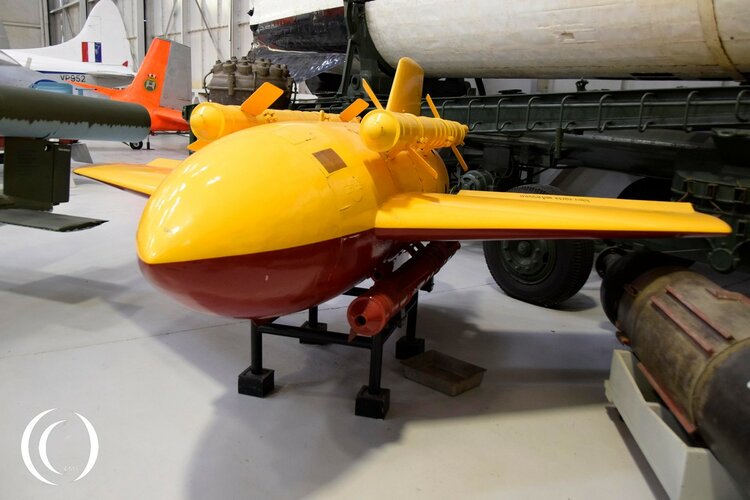

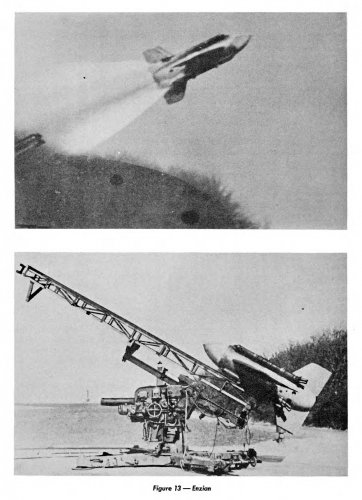

ENZIAN

This is the third AA rocket sponsored by GL Flak E5. It was designed by Dr. Wurster, chief test pilot of Messerschmitt and holder of the 1936 world's speed record in the Me-109. The development was begun in November, 1943. Work was interrupted by the destruction of the Messerschmitt plant at Augsburg in February, 1944.

The project was moved to Sonthofen and later to Schlosswirtschaft Linderhof near Oberammergau. A document dated 22 January 1945, said that 23 missiles had been launched, all without control, and that 14 were failures.

On 24 February 1945, the aerodynamics man Neuschutz wrote in an internal memorandum, "for the further work a clear leadership must be created with definition of responsibility. Dr. Wurster, Dr. Thiel. Dr. Thun, and Mr. Muhlberg now have some authoritative influence without a plan of organization and without a leader. The previous lack of success does not lie in the technical sector but is solely in question of leadership.

"No information on aerodynamic and flight performance has been obtained from the test firings because the firings were marred by explosions, failures of launching rockets. etc."

The work was ordered stopped on 17 January 1945. Messerschmitt intervened and took the matter to Hitler himself but the work was finally stopped about the middle of March.

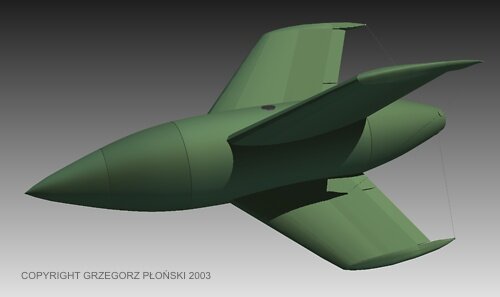

There were several designs of Enzian. The subsonic version was similar in design to the Me-163 airplane which has no horizontal tail surface. It was 90 cm in diameter, 365 cm long, starting weight 1600 kg, final weight 690 kg with pay load of 300 kg of explosive. Its maximum speed was about 270 m/ sec, maximum altitude 13.8 km, range 25.3 km.

In the tests a conventional radio control was used. It was intended to use an acoustic homing device or an infrared homing device.

A larger supersonic version with pay load of500 kg was also designed.


Source: Technical Intelligence Supplement, May 1946
