Energia-M Drawings

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
http://www.ninfinger.org/models/vault2004/Energiya-M%20Reference/index.html

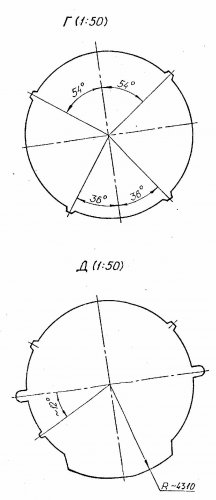

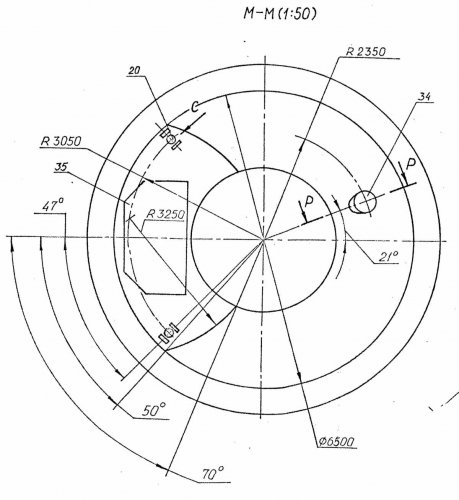

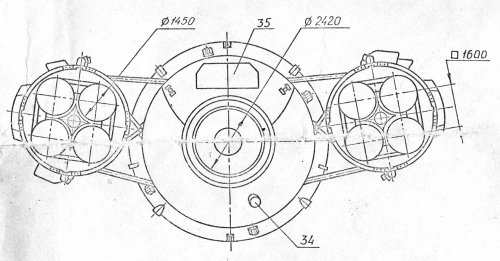

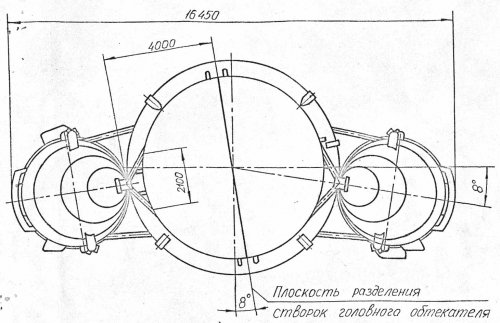

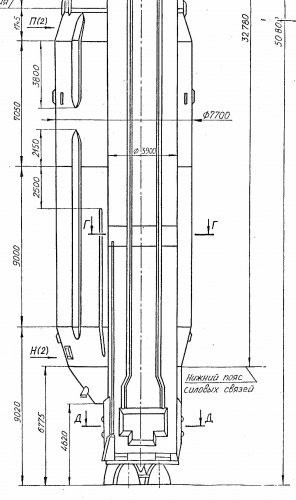

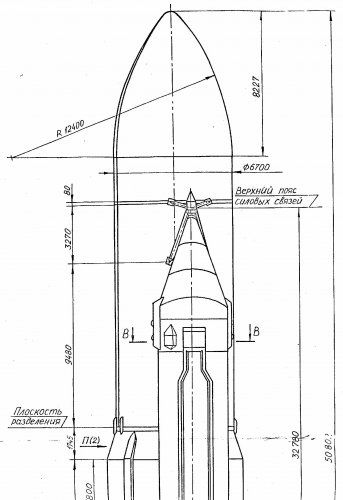

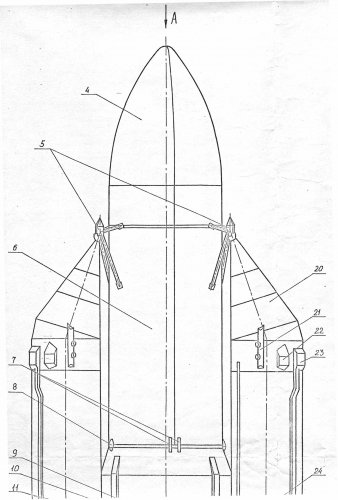

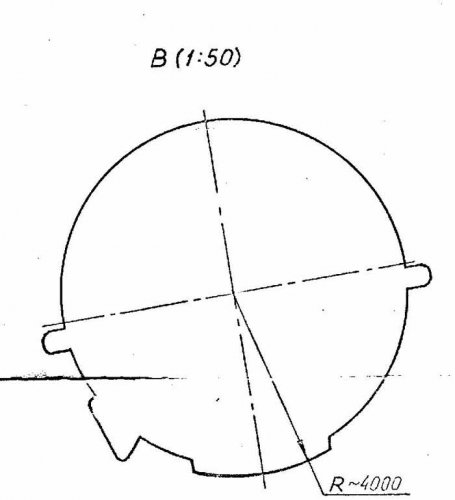

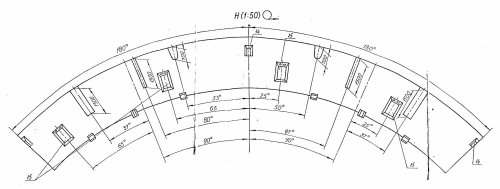

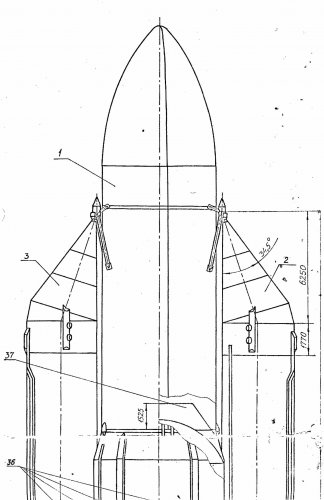

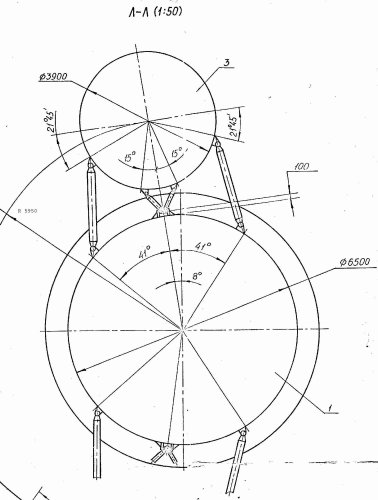

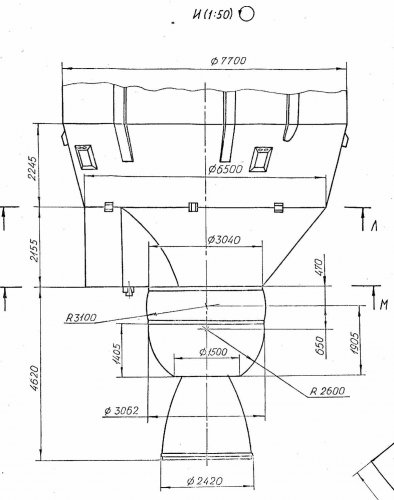

"NPO Energiya 1991 drawings of Energiya-M


Attachments

  • 01.jpg
    116.2 KB · Views: 234
  • 02.jpg
    132.9 KB · Views: 222
  • 03.jpg
    245.4 KB · Views: 217
  • 04.jpg
    299.1 KB · Views: 212
  • 05.jpg
    169.3 KB · Views: 206
  • 06.jpg
    290.3 KB · Views: 21

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82

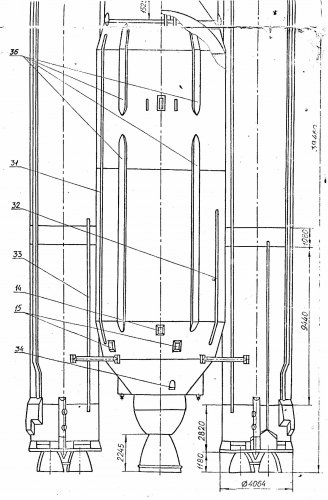

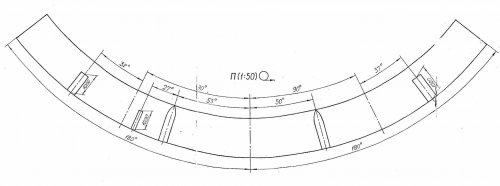

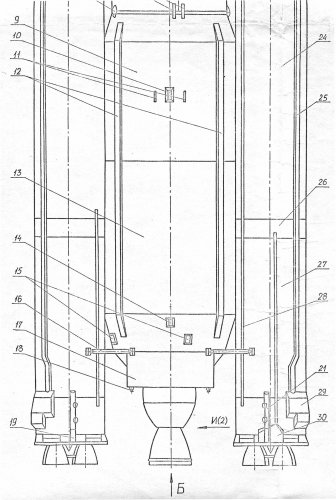

Some more:


Attachments

  • 12.jpg
    116.1 KB · Views: 19
  • 11.jpg
    93.4 KB · Views: 17
  • 10.jpg
    38.9 KB · Views: 16
  • 09.jpg
    88.1 KB · Views: 17
  • 08.jpg
    234.5 KB · Views: 19
  • 07.jpg
    183.9 KB · Views: 25

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
And the last few.


Attachments

  • 13.jpg
    22.1 KB · Views: 15
  • 14.jpg
    73.8 KB · Views: 15
  • 15a.jpg
    90.7 KB · Views: 17
  • 17a.jpg
    60.5 KB · Views: 17

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,974
Reaction score
391
I've always assumed that the strap-ons were arranged 180o apart, like a Titan III,
so now I assume the odd angle is to make use of already designed Energiya hardware...


cheers,
Robin.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,962
Reaction score
1,313
Urban Explorer Ralph Mirebs
Manage to visit Baikonur Cosmodrom and Launch site 220 and enter the Abandon Hangers

He Found Energia-M rocket mockup park in Vertical test stand
https://ralphmirebs.livejournal.com/220278.html

those are unique Picture
