Neat stuff. Pity about the opening price...

http://www.ebay.com/itm/ARTICLE-17KS-MIR-SPACE-STATION-BASE-MODULE-TECHNICAL-DESCRIPTION-ALBUM-/280838767523?pt=LH_DefaultDomain_0&hash=item41634b83a3

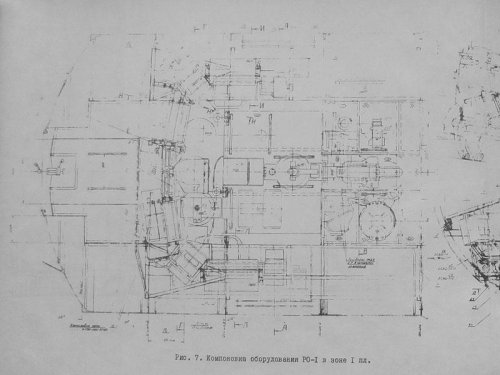

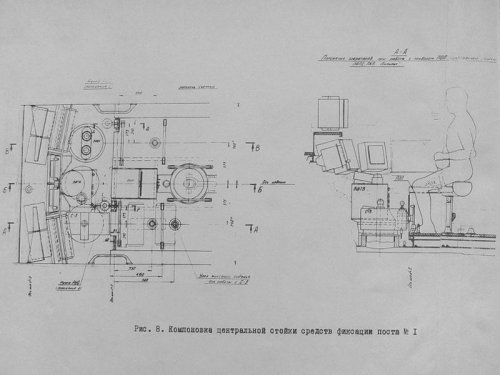

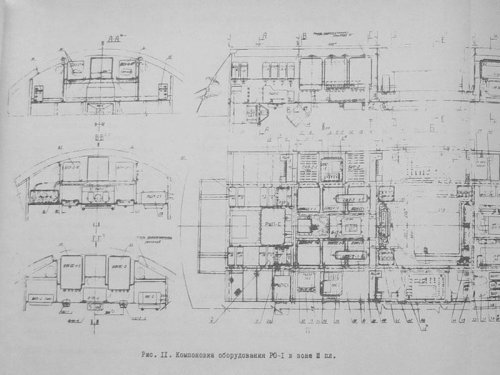

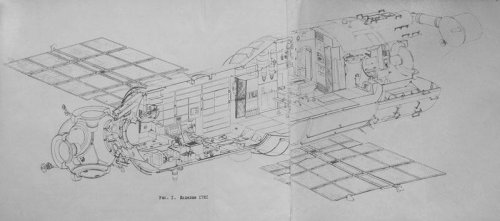

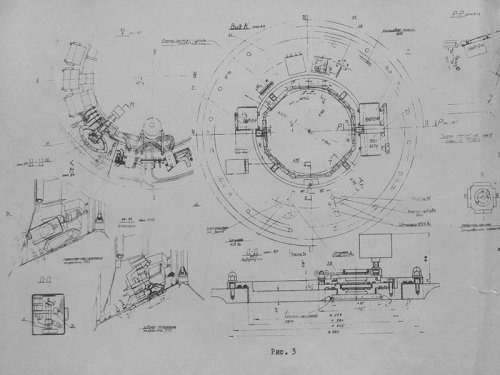

ARTICLE 17KS - *MIR* SPACE STATION BASE MODULE TECHNICAL DESCRIPTION ALBUM It's offered to your attention about A3 format album named "Article 17KS. Technical description. Part 2. General composition.", with the technical data, schemes and drawings of the Soviet space station MIR, known as "article 17KS" - the special limited issue for its designers, manufacturers and cosmonauts. This particular album is taken from MIR army testers. It was stored in a "military unit" which number is striked out because of the top secrecy regime for all Soviet space industry, including proving grounds and launch pads.



Attachments

  • 032084_mir_scetches_05.jpg
    39.6 KB · Views: 81
  • 032084_mir_scetches_06.jpg
    69.4 KB · Views: 72
  • 032084_mir_scetches_07.jpg
    63.2 KB · Views: 57
  • 032084_mir_scetches_08.jpg
    56 KB · Views: 54
  • 032084_mir_scetches_09.jpg
    67.9 KB · Views: 53
