El/M-2035 radar info and photo request

[shkval]

I have heard El/M-2035 radar many times,I try to search but there is few info on this radar ,and I've never seen it.If you guys has any photo and info on this radar,please add to this page,thanks in advance!



[Kiwiguy]

I recall seeing a black and white photo of it in a Flight magazine from the Eighties. It was such a tapered device with no obvious dish that I assume it must have been a sold state stererable beam dish?



[lancer21]

From this image , it seems the EL/M-2035 is a conventional MSA with a planar( i think thats how its called anyway ) antenna...

http://i26.tinypic.com/2nu4lkg.jpg



[Pit]

EL/M-2035 was Lavi proposed radar.

EL/M-2032 is a derivative or 2035, adapted to diverse uses...



[Deino]

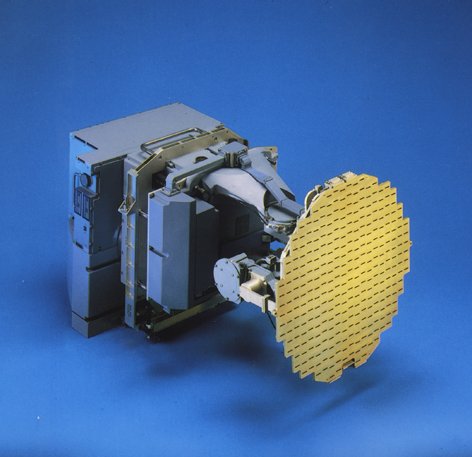

This is what I have found over the years ....

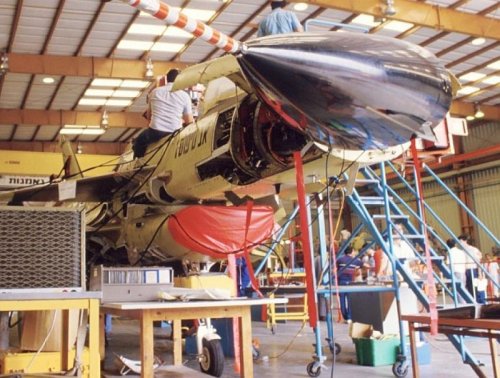

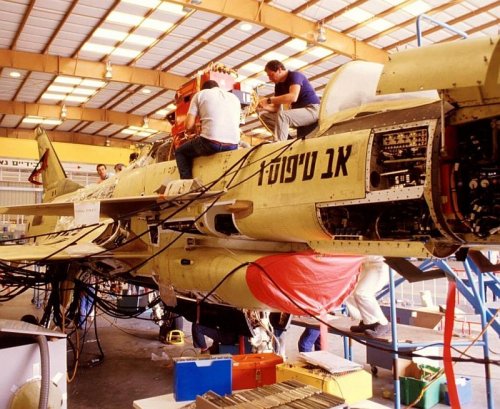

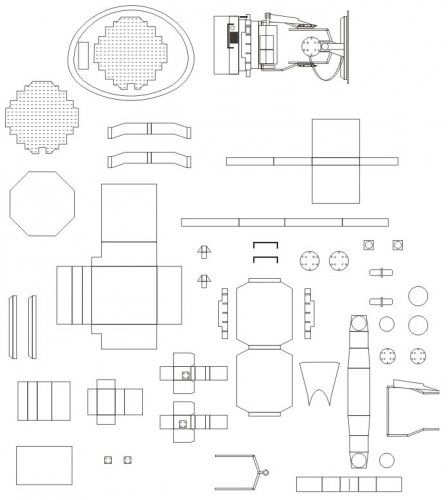

the last one is from a modeller, who's currently scratching a Lavi + its radar.

http://www.plastimodelismo.org/bbs/viewtopic.php?f=37&t=429&start=150

... for an even better Lavi-build look here:

http://forum.largescaleplanes.com/index.php?showtopic=13162&st=0&start=0

Deino



[John Cool]

[...] a conventional MSA with a planar( i think thats how its called anyway ) antenna...

I believe it is called slotted waveguide array antenna



[F-2]

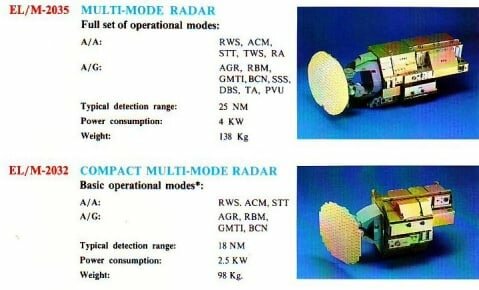

I found this



[F-2]

EL—2032火控雷达的飞行试验.pdf

m.doc88.com

Paper in Chinese on el/m-2032. Recommend google lense.
