ECOSHIPS : radical french new project for "ecological" warships

colombamike

ACCESS: Restricted
Joined
Nov 14, 2009
Messages
18
Reaction score
2

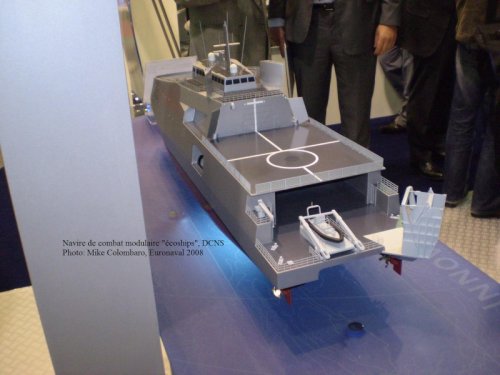

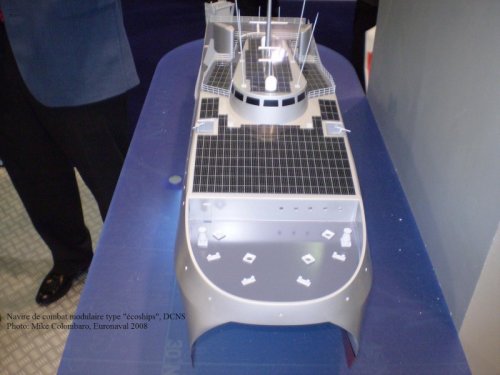

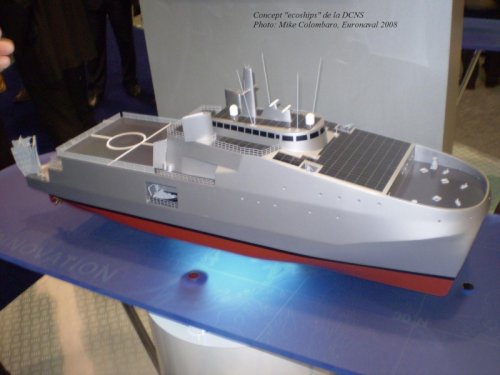

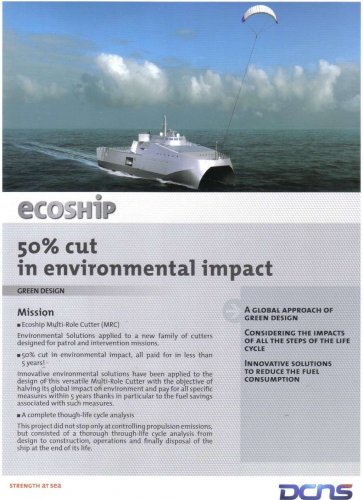

View of ECOSHIPS
a french study for ecological warships


Attachments

  • lastsc19.jpg
    176.8 KB · Views: 353
  • p6200825.jpg
    122.5 KB · Views: 306
  • p6200831.jpg
    143.1 KB · Views: 260
  • p6200832.jpg
    145.5 KB · Views: 258

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Putting aside the solar cells and the silly "kite" auxiliary propulsion, the design has a vague similarity to the canceled BAMO Narvik ocean mine countermeasures ship, although there are obvious differences in scale and size. At very least, DCN has experience with double hull vessels of composite construction, although the Narvik itself was never completed? Actually, Narvik warrants its own thread.....


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,816
Reaction score
294
Madurai said:
Before dismissing the idea entirely, I'd like to see the numbers on exactly how much fuel they're saving. The kite thing, though absurd-looking, is apparently effective enough to interest shipping lines in it--and for monetary reasons, not enviro-hairshirtism ones.

Well, lesseee. As depicted, the warship seems to lack one important consideration: weapons. Just a couple of small guns, no missiles, a helo deck but not much else. That's because most of the deck is taken up with solar cells, which are poor choices for on-demand power, especially in a relatively compact area, and will require lot of work to keep clean (power generation capability falls off rapidly the further you get from pristine).

Fuel savings alone are not a valid measure, its fuel savings vs. capabilities. After all, the maximum fuel savings can be achieved if the ship never leaves the dock and the sailors all have fierce expressions and shake their fists at the foe. I suspect that given the limited amount of power that will be available, there won't be a lot of capability.

...and heaven help it if it encountered any "real" opponent. That white kite might be in big demand after all...

IMHO


MihoshiK

ACCESS: Secret
Joined
Feb 9, 2007
Messages
219
Reaction score
162
I wonder how much environmental impact this ship will have when it's lack of CIWS means it will fall prey to the first guy that lobs a SSM at it...

Maybe it's meant to be a man-made reef?


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
16
F-14D said:
Well, lesseee. As depicted, the warship seems to lack one important consideration: weapons. Just a couple of small guns, no missiles, a helo deck but not much else. That's because most of the deck is taken up with solar cells, which are poor choices for on-demand power, especially in a relatively compact area, and will require lot of work to keep clean (power generation capability falls off rapidly the further you get from pristine).

TinWing's observation makes me wonder if this is meant to be an auxiliary of some type, such as a minesweeper like the original Navik or an environmental/fisheries protection or patrol vessel. It would make sense in that regard, and would give such a vessel decent endurance too.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com
The DCNS "Ecoship" is an environmentally conscious design study to replace the French Navy's five Bâtiment de Transport Léger or BATRAL class light amphibious landing ships. The BATRAL class itself is only 80 m (262 ft) and has a fully loaded displacement of 1,330 tons. It is armed with two 40 mm guns and two 12.7 mm machine guns, which explains why the "Ecoship" appears to be so lightly armed. The BATRAL is designed to ferry 400 tons of material to land a Guépard-type intervention unit (5 officers, 15 petty officers and 118 men), so I presume that the "Ecoship" is designed to carry a similar number of men and material

To save on weight and reduce the size of the powerplant, the "Ecoship" has an aluminum hull instead of steel. A catamaran hull was chosen over a monohull to further reduce the size of the powerplant and to also increase deck space. The ship is powered by a hybrid electric and medium-speed diesel powerplant to reduce fuel consumption and also carbon dioxide emissions. The powerplant powers a cycloidal drive system.

The hull uses silicone-based anti-fouling that is non-toxic.

The ship also has solar cells and the kite sail that has already been commented on.

Sources:

http://translate.google.com/translate?hl=en&sl=fr&u=http://www.techniques-ingenieur.fr/article/article_6179/ecoship--le-fleuron-ecologique-de-la-marine-francaise.html&ei=umsxS9qfGoSasgOl-I3YAw&sa=X&oi=translate&ct=result&resnum=8&ved=0CDAQ7gEwBw&prev=/search%3Fq%3DEcoship%2BDCNS%26hl%3Den%26client%3Dfirefox-a%26rls%3Dorg.mozilla:en-US:eek:fficial%26sa%3DN

http://en.wikipedia.org/wiki/BATRAL

http://translate.google.com/translate?js=y&prev=_t&hl=en&ie=UTF-8&layout=1&eotf=1&u=http%3A%2F%2Fwww.meretmarine.com%2Farticle.cfm%3Fid%3D108689&sl=fr&tl=en


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
This thread has diverged from the original topic. All posts should pertain to the specifics of the DCNS concept, or to related issues such as multi-hull construction.


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
492
Reaction score
142
Uh, could the kite also support an antenna for UAV control ? Extend horizon some-what, save sat issues...


hs1216

ACCESS: Confidential
Joined
Oct 5, 2006
Messages
110
Reaction score
9
I thought the Falklands proved that aluminum wasn't a terribly good warship building material, as far as getting hit by missiles is concerned.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Yildirim said:
I thought the Falklands proved that aluminum wasn't a terribly good warship building material, as far as getting hit by missiles is concerned.

That's a widely held misconception. In reality, the USS Belknap fire of 1975 was far more influential, while the losses that occurred during the Falklands war had more to do with real design flaws, such as the lack of a second fire main, poor damage control, and poor shipbuilding practices in general, etc. All to frequently, the reversion to a steel superstructure in the DDG-51 class is wrong attributed to the Falklands War losses.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,945
Reaction score
5,520
The Japanese are going all out on 'ecoships' at the moment, though there doesn't seem to be any dedicated MSDF/Naval projects so far.

www.maritimejapan.com/xoopspartners/vpartner.php?id=18
