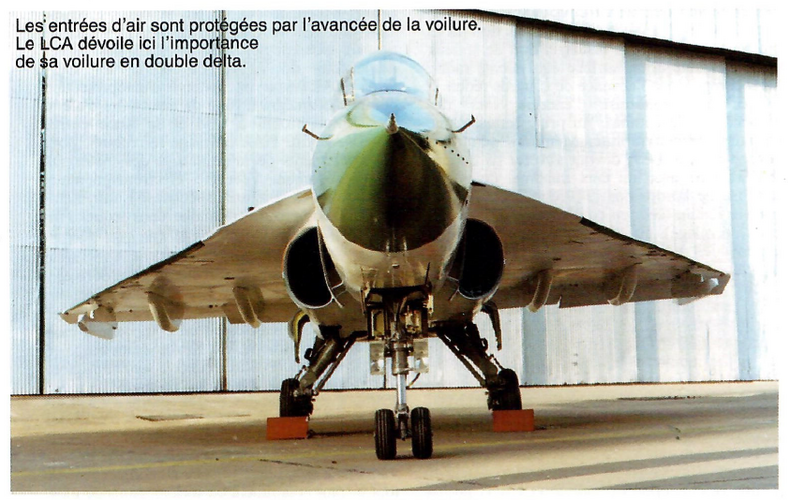

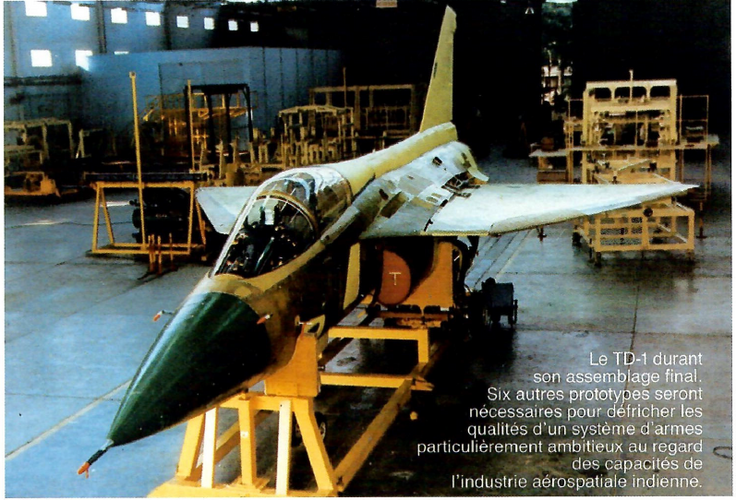

Early LCA Design

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2

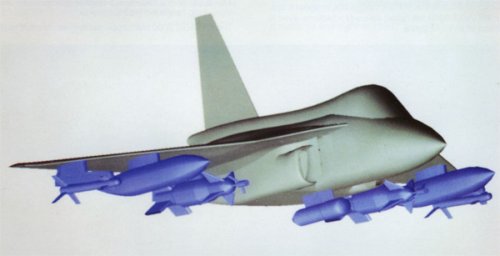

This pic is from AW&ST and is a model or artist concept of an early LCA design. The wing tip configuration got my attention especially since it did not appear on the production aircraft. Does anyone know what the intended function of this design would have been?


Attachments

  • 05-29-2005 10_42_18PM.JPG
    05-29-2005 10_42_18PM.JPG
    117.5 KB · Views: 399

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,848
Reaction score
292
Basically that's just a version of a cranked arrow wing like those shown on supersonic airliners and the F-16XL. It makes a more efficient wing and has good high alpha roll control, but it also adds weight and complexity which adds cost. It may have been decided that for their LCA configuration and mission, it just didn't add enough, in terms of performance, to justify that planform when compared to the much simpler gothic wing of the current design.


elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2
Thanks sundog. I'm not an engineer so I had thought it might be something exotic. Something along the lines of Lockheed's ICE or Northrop's wing-end control concept. What you wrote makes good sense to me.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,594
Reaction score
3,910

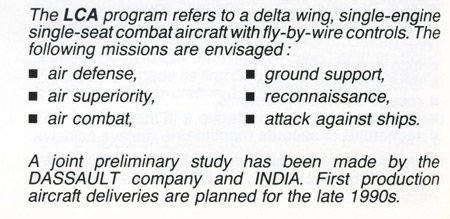

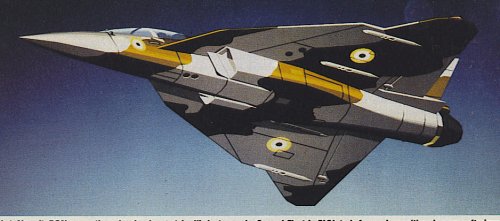

Early-ish LCA render from Dassault brochure via Flateric.


Attachments

  • LCA.jpg
    38.2 KB · Views: 178
  • LCA-text.jpg
    41.2 KB · Views: 122

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,777

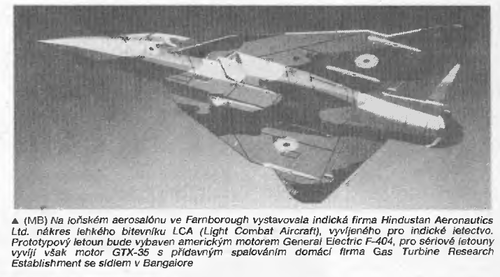

Also from L+K 2/1989.


Attachments

  • B.png
    216.9 KB · Views: 76

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
632
Reaction score
89

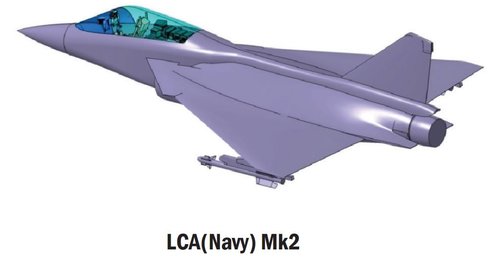

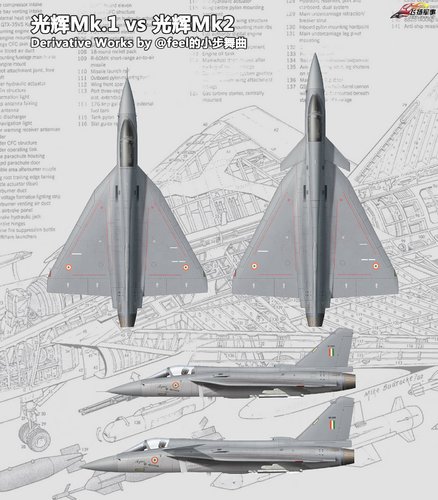

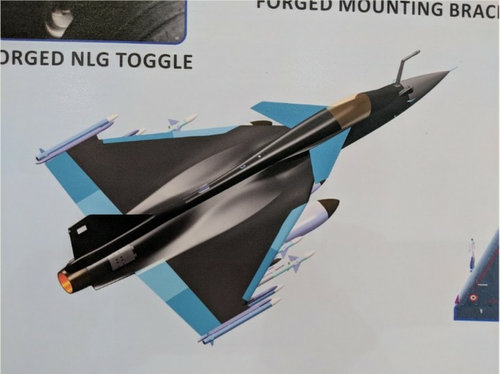

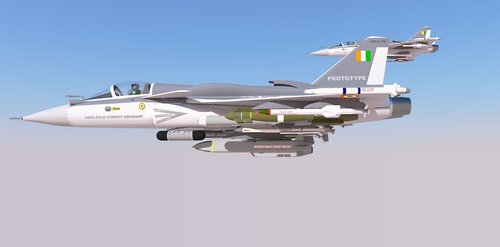

LCA Mk.2 Tejas Indian Navy


Attachments

  • a_002.jpeg
    39.7 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,777

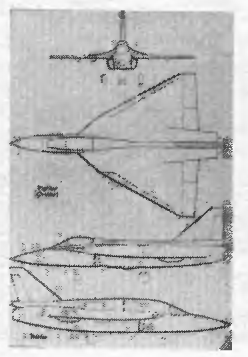

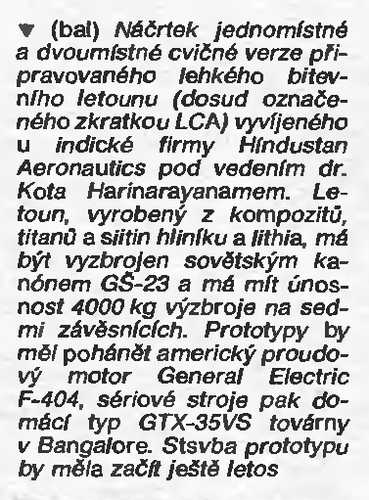

From L+K 12/1990,

look to lower one.


Attachments

  • 1.png
    78.1 KB · Views: 19
  • 2.png
    64.1 KB · Views: 13

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,848
Reaction score
292
It looks like the Indians will finally be getting the "Gripen" three decades after it entered service. Of course, there's a new Gripen now. maybe they can build that one by 2050?
