E-system (now part of Raytheon) produces a number of mini rpv's, but i could not find any pictures of these, anyone can help?

E-Systems Inc., Melpar Division, VA:
- twin-tailboom mini-RPVs models:
E-45
E-55
E-55S Superfly
E-100X
- single-tailboom mini-RPVs models:
E-75 (for USAF 'LCEHV' program)
E-90
E-130
E-150
E-175
E-200
E-260
E-310

Are there any other?


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
582
Reaction score
463

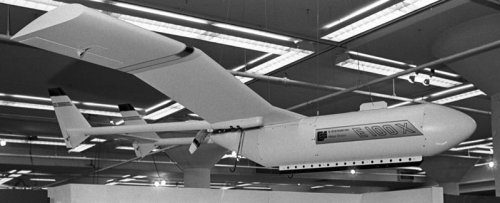

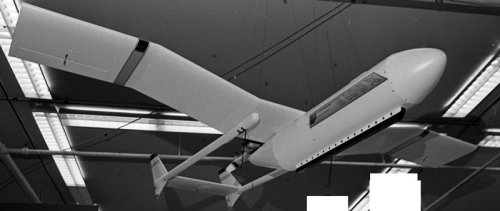

E-100X trade show pictures from Vought Heritage Archives.

Any further info on the purpose of this craft?

bill


Attachments

  • E-Systems-E-100X-Vought-Heritage-Archives.jpg
    51.2 KB · Views: 542
  • E-Systems-E-100X-Vought-Heritage-Archives-1.jpg
    42.3 KB · Views: 527

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
19
I have the following:
E-Systems L450F

Specifications: span: 57’, 17.40 mlength: 29’7”, 9.02 m engines: 1 Pratt & Whitney PT6A max. speed: 230 mph, 370 km/h Designed for the Compass Dwell system, the L450F aircraft was based on the Schweizer SGS 2-32 sailplane, and was first of two was flown in manned configuration in February 1970. They had serials 72-1286/1287. The second aircraft was later converted to an unmanned vehicle (with the cockpit deleted) and evaluated by the USAF in early 1972 under the designation XQM-93A.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
582
Reaction score
463

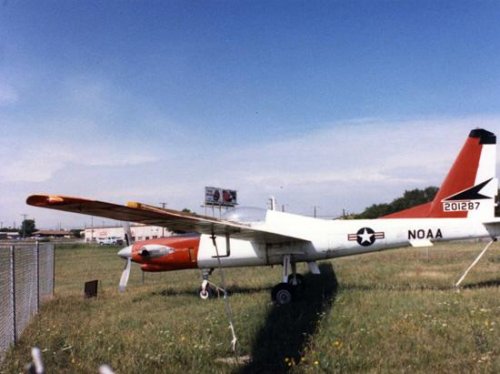

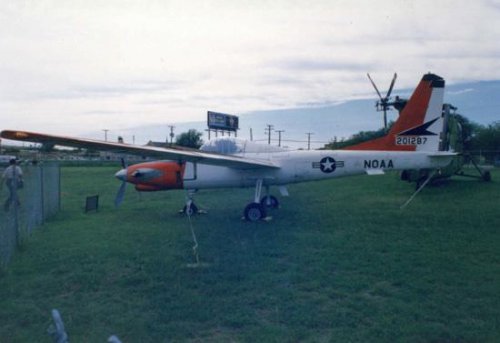

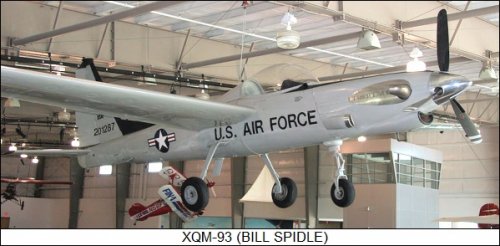

The Frontiers of Flight museum at Dallas Love Field has one of these aircraft.

My pics are here: http://www.primeportal.net/hangar/bill_spidle3/l-450f_72-1287/


bill

Jos Heyman said:
I have the following:
E-Systems L450F

Specifications: span: 57’, 17.40 mlength: 29’7”, 9.02 m engines: 1 Pratt & Whitney PT6A max. speed: 230 mph, 370 km/h Designed for the Compass Dwell system, the L450F aircraft was based on the Schweizer SGS 2-32 sailplane, and was first of two was flown in manned configuration in February 1970. They had serials 72-1286/1287. The second aircraft was later converted to an unmanned vehicle (with the cockpit deleted) and evaluated by the USAF in early 1972 under the designation XQM-93A.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Splendid pics of the L450F/XQM-93A. Thanks for sharing, Bill!

Please note that E-Systems didn't exist as such at the time. It was an LTV Electrosystems product and a Schweizer design.

I have some doubt as to the markings applied by the museum on the restored item... Doesn't look like standard USAF lettering to me.

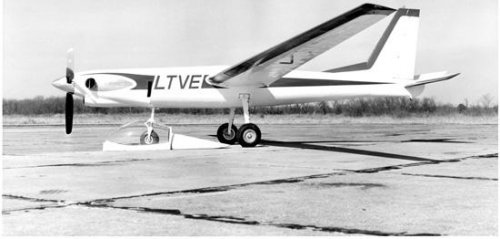

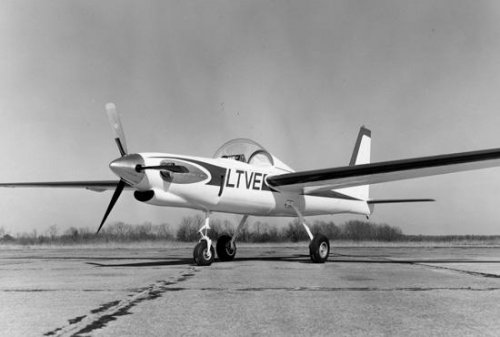

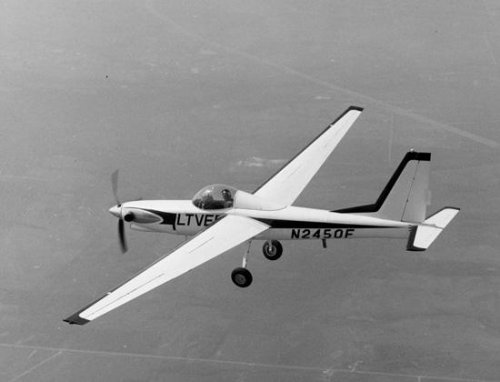

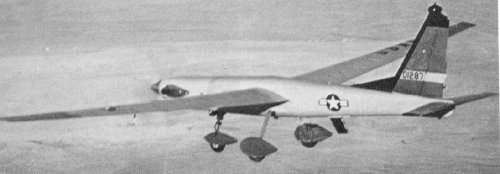

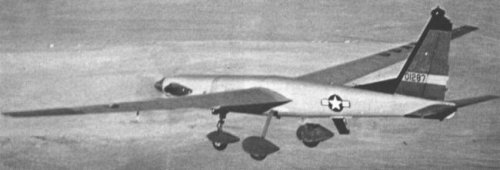

Anyway, here are a few more pics of the same aircraft in original company guise and original military markings:


Attachments

  • 4589899937_ef29c4d81e_o.jpg
    32.4 KB · Views: 23
  • 4590519862_f0ae7d1a4f_o.jpg
    23.3 KB · Views: 20
  • xqm-93a-1.jpg
    46 KB · Views: 29
  • xqm-93a.jpg
    19.3 KB · Views: 20
  • 4589900071_3f252786e2_o.jpg
    21.8 KB · Views: 20
  • 4589900029_d21a2af025_o.jpg
    23.4 KB · Views: 165
  • 4589899993_21f699d8a6_o.jpg
    23.2 KB · Views: 167
  • E-Systems L450F.jpg
    E-Systems L450F.jpg
    186 KB · Views: 180

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

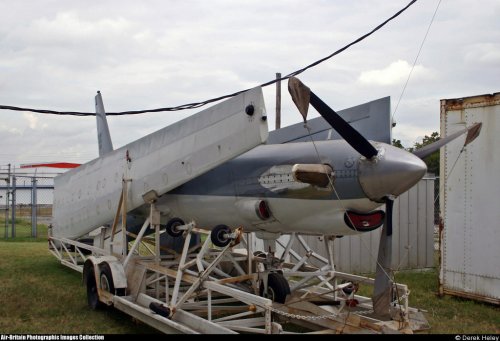

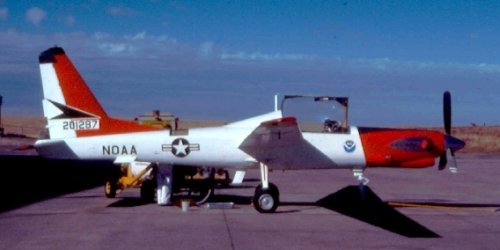

More pics of what wasn't yet known as an OPV (Optionally Piloted Vehicle).

All of these were picked from the web, mostly from the SDAM's Flickr gallery I believe.

As a bonus, a picture of the E-Systems E-45 UAV.


Attachments

  • twuav_12_02.jpg
    101.4 KB · Views: 31
  • 1082605F.jpg
    206.1 KB · Views: 32
  • E-Systems E-45.jpg
    E-Systems E-45.jpg
    49.9 KB · Views: 24
