Douglas DC-3 with Floats

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,983
Hi,

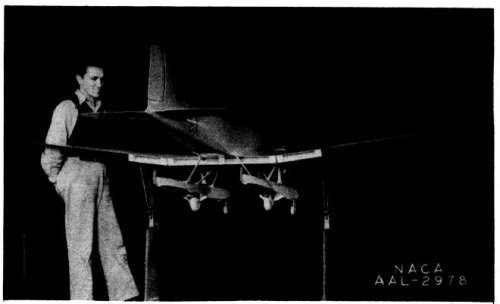

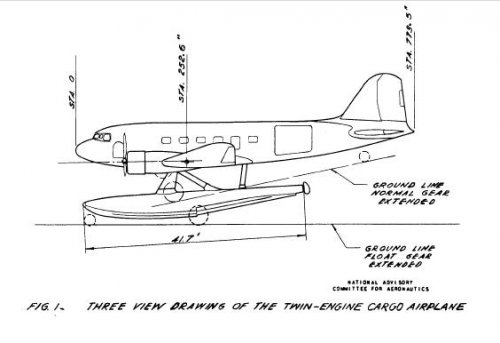

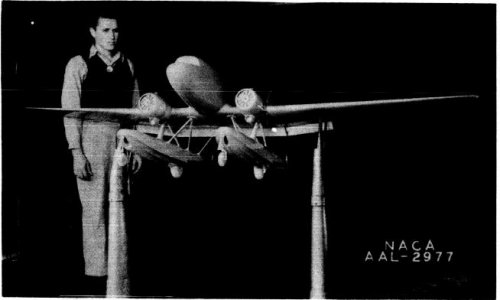

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930092596_1993092596.pdf


Attachments

  • 1.JPG
    25.8 KB · Views: 53
  • 2.JPG
    24.7 KB · Views: 48
  • 3.JPG
    22.7 KB · Views: 36

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55

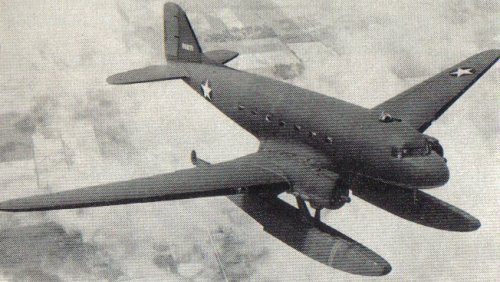

Not only a project ,but one C 47 A was fitted with two Edo Model 78 floats by American Airlines at La Guardia Field and flown in June 1943.
The designation was C-47 C
(from William Green's "Floatplanes of the second world war")


Attachments

  • r.jpg
    161.5 KB · Views: 48

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13

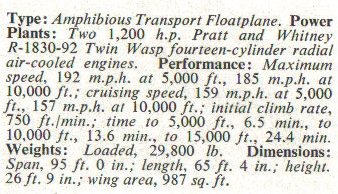

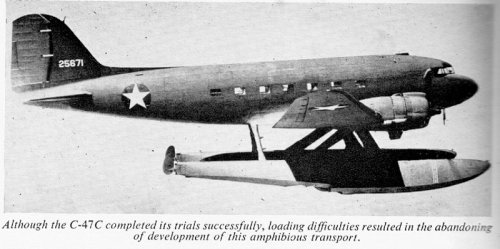

More, from "War Planes of the Second World War Vol 6 - Floatplanes - William Green.

Regards Bailey.


Attachments

  • DC3 Floats_001.jpg
    DC3 Floats_001.jpg
    259.6 KB · Views: 50
  • DC3 Floats_002.jpg
    DC3 Floats_002.jpg
    81 KB · Views: 15

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,851
Reaction score
1,486
True that there was only one prototype XC-47C conversions but, according to Airways Magazine #29 (July 1998), 150 Edo 78-29 float sets were ordered by the USAAF (although only 30 sets were actually completed). As far as I know, N130Q is still flying on Edo floats.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
And here it is :

http://www.airliners.net/search/photo.search?regsearch=N130Q


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23
Only picked this one up now - sorry for the delay.
The aircraft currently registered as N130Q and with floats was c/n 11761 (as it states on the photos) and was orginally 42-12834. As far as I know this a/c was not converted as C-47C so the modification must have been after its service as a military aircaft.
Aircraft converted as XC-47C and C-47C were 41-18582 (c/n 4707), 42-5671 (c/n 7356) - the XC-47C, 42-92577 (c/n 12393), 42-92699 (c/n 12529) and 42-108868 (c/n 12528). This last one was converted back to C-47A and was in 2007 still registered as N45860.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
22
Bailey said:
More, from "War Planes of the Second World War Vol 6 - Floatplanes - William Green.

Regards Bailey.

Are these specifications correct as far as classifying this aircraft as an amphibian?
In the photo provided, it looks like (to me), that these are just straight floats, unless they also count the beaching gear to make it amphibious.

Chuck


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23
In Douglas J. Ingells, The Plane That Changed The World, p. 185, it states:
"They called it the Duck beause it could ...... take off or land neatly on the water". But then it goes on: "The land-water versions of the C-47 were used in Alaska".
This is all accompanied by a pic that shows wheels coming out of the floats but, in my honest opinion, these do represent beaching gear rather than proper landing gear.

Hope this helps.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23

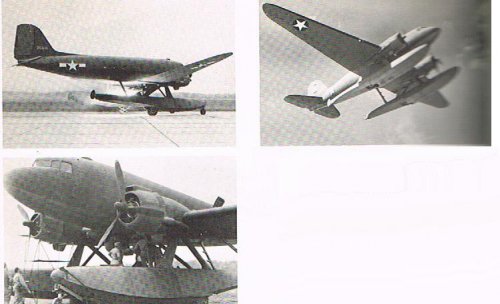

Here is a set of three photos from Len Morgan's The Douglas DC-3 (Arco Publishing 1964) showing the floats.
Again, I don't think one should land on those wheels.


Attachments

  • DC3 floats.jpg
    DC3 floats.jpg
    52.9 KB · Views: 28

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,872
Reaction score
2,368
Several reasonable well-researched sites (such as the one below) state that the wheels on the C-47C could be used on land, but that there was a high rate of tire failure. That claim is not sourced that I could find, but it seems plausible.

http://www.dc3history.org/floats.htm

Whether later commercial DC-3 floats had similar capabilities is unclear, but the gear certainly look similar.
