Douglas A3D-1 Original Design & Prototypes

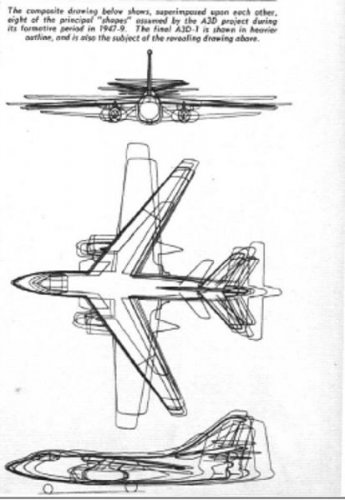

Great find, Hesham. Any volunteer to try and extract viewable 3-views from that entanglement of lines ?

I can't at the moment see EIGHT alternatives, unless say one set of wings goes with two sets of tails, in which case some of the eight become guesswork?

smurf said:
I can't at the moment see EIGHT alternatives, unless say one set of wings goes with two sets of tails, in which case some of the eight become guesswork?

There is surely some of that. Same fuselage, different wings; different fuselages with the same wing, etc.

The thing to do would be to extract fuselages, wings and tails from that drawing separately, and start matching up.

Greetings All -

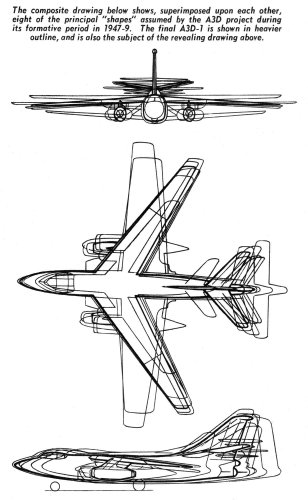

Here's the alternatives that Hesham originally posted but scanned direct from the original article - just a bit sharper image.

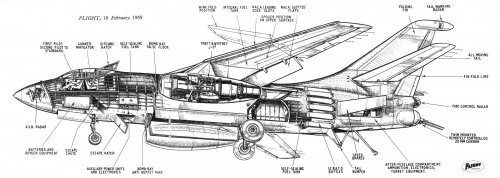

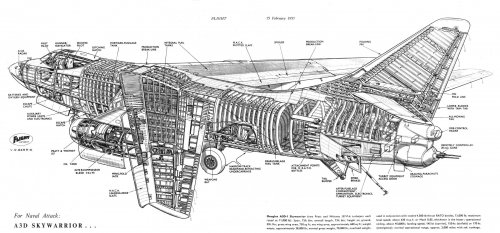

Also including a couple of nice cutaways for reference.

Enjoy the Day! Mark


Attachments

  • zA3D Principal Design Shapes 1947-48.jpg
    zA3D Principal Design Shapes 1947-48.jpg
    263.5 KB · Views: 949
  • zA3D-1 Skywarrior Cutaway Flight Feb-18-55.jpg
    zA3D-1 Skywarrior Cutaway Flight Feb-18-55.jpg
    335.7 KB · Views: 1,010
  • zDouglas A3D Skywarrior Cutaway Flight Feb-57.jpg
    zDouglas A3D Skywarrior Cutaway Flight Feb-57.jpg
    506.8 KB · Views: 944
Hi,

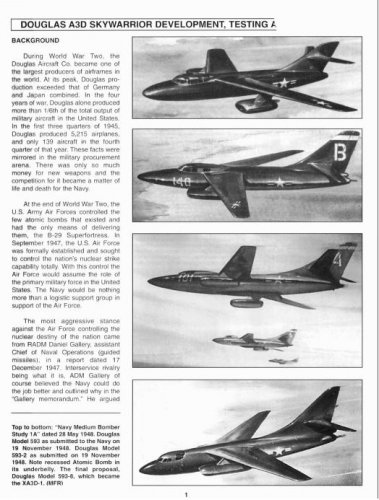

from the book, Douglas A3D Skywarrior,by Steve Ginter,here is the original XA3D designs.


Attachments

  • XA3D.JPG
    73.4 KB · Views: 618
One of the AJ Savage-like ones is in the Naval Fighters series edition on the Savage.

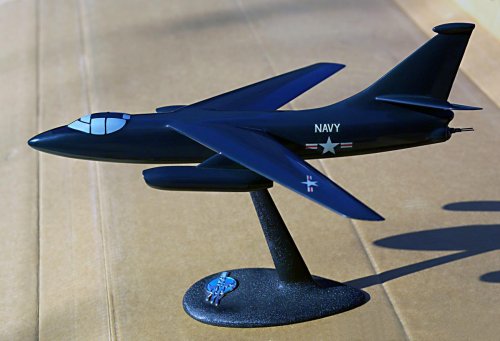

Douglas proposal model for the XA3D-1. Not sure if El Segundo had its own model shop, so this may be from Santa Monica.


Attachments

  • Douglas Model 593.jpg
    Douglas Model 593.jpg
    89.8 KB · Views: 183
Very nice - thanks!

The J-40 was quite a long engine as evidenced by the nacelles.

Enjoy the Day! Mark

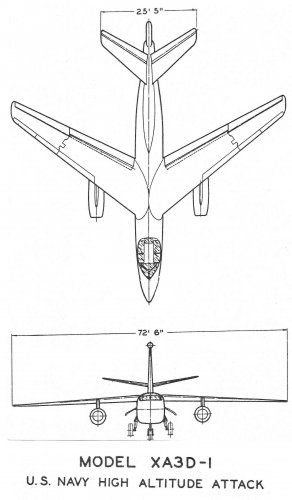

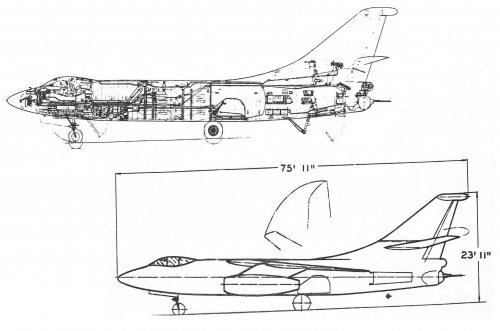

XA3D drawing.


Attachments

  • scan0006.jpg
    367.5 KB · Views: 167
  • scan0008.jpg
    309.8 KB · Views: 225

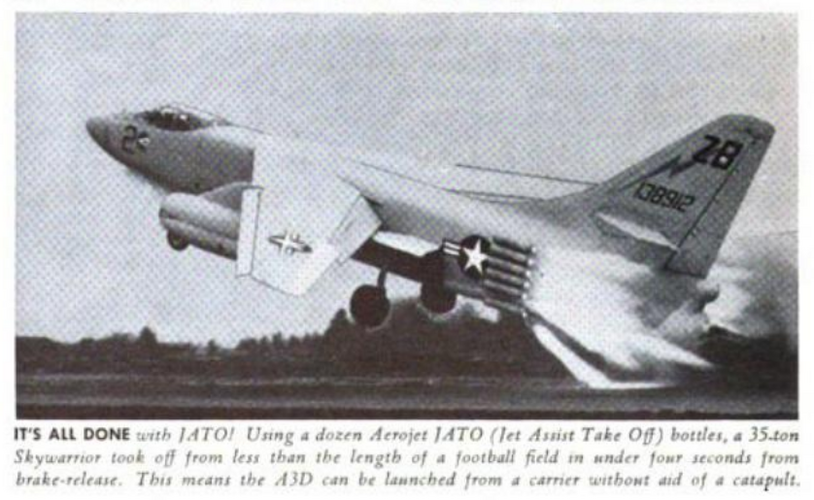

From Naval Aviation News 1958.


Attachments

  • 4.png
    823.6 KB · Views: 64
