Lockheed Constellation projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281

Attachments

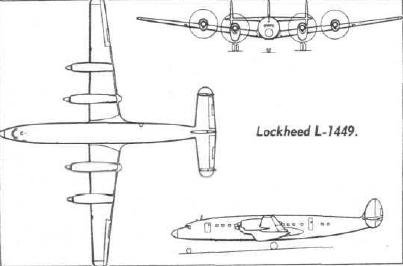

  • L-1449.JPG
    13.6 KB · Views: 2,246

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

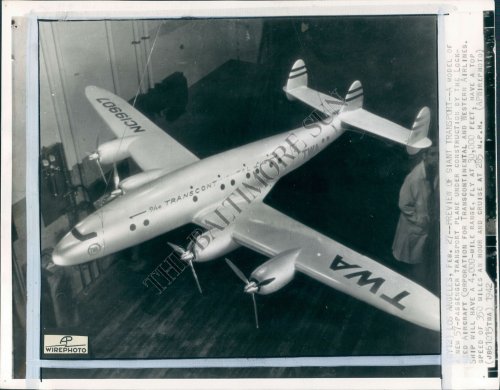

Baltimore Sun wire photo of Lockheed Constellation model photograph found on eBay.

http://www.ebay.com/itm/BS-BS-Airplanes-Concept-and-Misc-TWA-Model-/280826145668?pt=Art_Photo_Images&hash=item41628aeb84


Attachments

  • AAC-268-BS_F.jpg
    215.7 KB · Views: 755

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

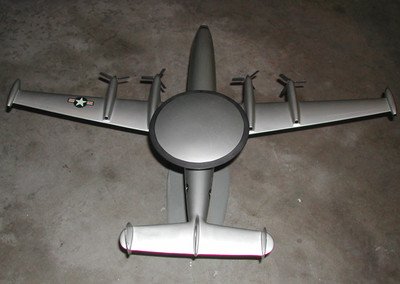

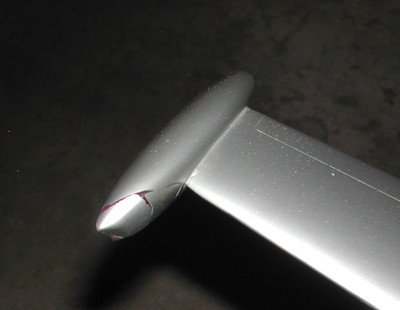

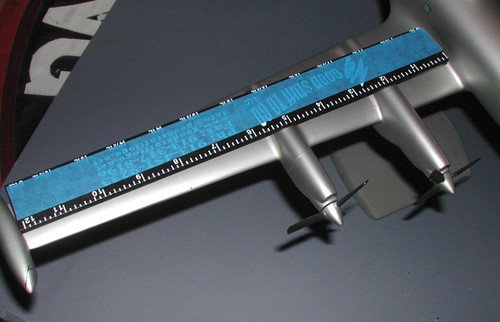

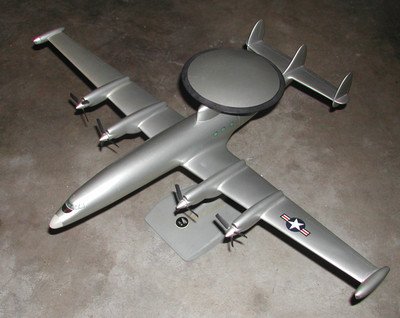

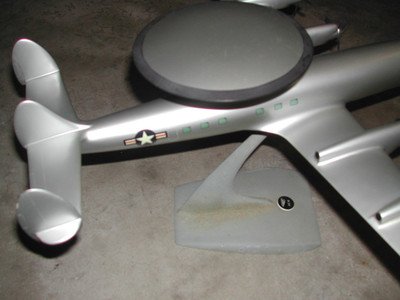

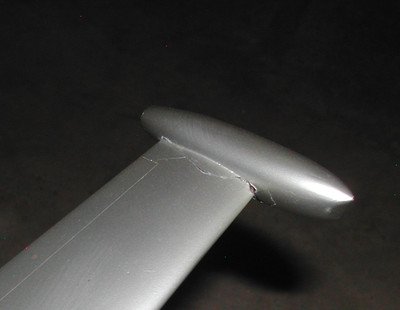

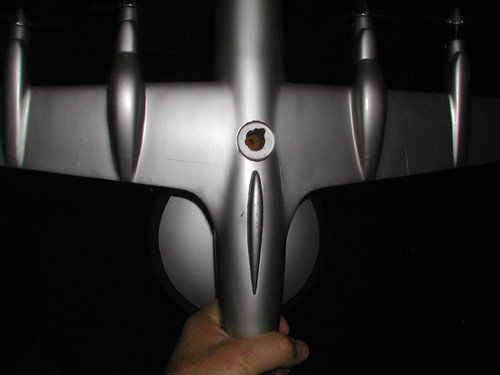

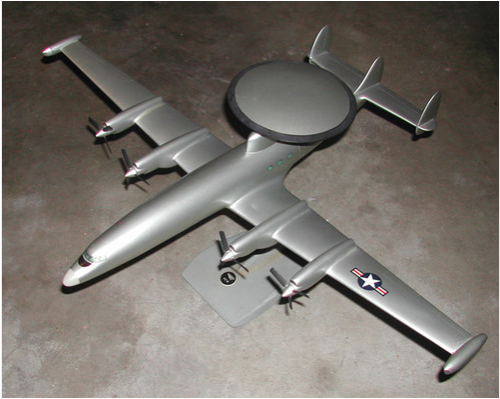

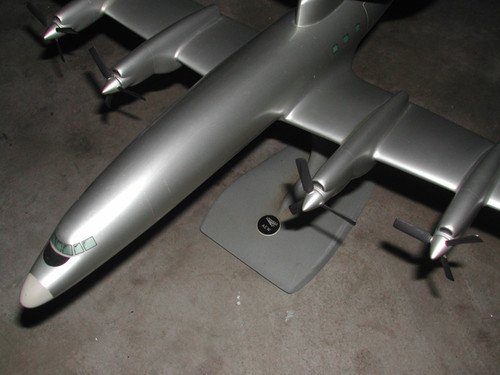

Lockheed XW2V-1 concept model found on eBay.

URL:
http://www.ebay.com/itm/LOCKHEED-AEW-CONSTELLATION-PROTOTYPE-IN-HOUSE-FACTORY-DESK-MODEL-TOPPING-PRECISE-/400296873798?pt=LH_DefaultDomain_0&hash=item5d338d8f46

Seller's description:
ULTRA RARE - PERHAPS ONE OF A KIND LARGE Lockheed XW2V-1 AEW Turboprop US Navy early warning prototype aircraft. Proposed naval development with new features such as four Allison T56-A8 turboprop engines. This is an "In House" model from Lockheed. Not a Topping or Precise model. Large 29" wingspan. Model is near mint with two small imperfections on each tip tank. (see photos). Great decals, paint, original stand.

From Wikipedia:
The XW2V-1 was a planned radar version of the WV-2 with the Starliner's wings for the US Navy. It would have included four Allison T56-A8 engines and missiles for protection against attackers. Considerably different than its predecessors, given the production designation Lockheed L-084.


Attachments

  • $(KGrHqZHJDQE-nw!Fjy(BPrF0(rWYg~~60_1.jpg
    37 KB · Views: 635
  • $(KGrHqZHJEME-nGtZjckBPrF0,KNIg~~60_1.jpg
    27.8 KB · Views: 603
  • $(KGrHqFHJF!E-oCZ0jf!BPrF0dH9ZQ~~60_1.jpg
    19.6 KB · Views: 578
  • $(KGrHqZHJBIE-eW3+,ZCBPrF0ep8p!~~60_1.jpg
    17.5 KB · Views: 140
  • $(KGrHqNHJFQE-lKM2UOmBPrF0Y8ft!~~60_1.jpg
    29 KB · Views: 143

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Hi,


L-149 L-049 conversion to include extra wing fuel tanks for a longer range.Production
versions were planned for Pan Am, but none were ever produced.
L-249 Company designation for the XB-30 bomber. Project cancelled in favor of the Boeing B-29.
L-349 Company designation for the C-69B. None built.
L-449 Unknown proposed civilian airliner version.
L-549 Company designation for the C-69C. One built.
L-849 Planned version of the L-749, which would have had Wright R-3350 TurboCompounds.
L-949 Speedfreighter combi version of the L-849 with an 18 ft 4in fuselage stretch.
L-1149 A planned Allision turboprop version of the L-1049G and L-1049H.
L-1449 as the old post.
L-1549 unbuilt project to stretch L-1449, 95 in (240 cm).
L-1649B Planned turboprop version of the L-1649A.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857
Three more pics:


Attachments

  • W2V-1_08.JPG
    23.1 KB · Views: 107
  • W2V-1_07.JPG
    45.3 KB · Views: 108
  • W2V-1_06.JPG
    44.6 KB · Views: 110

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Hi,

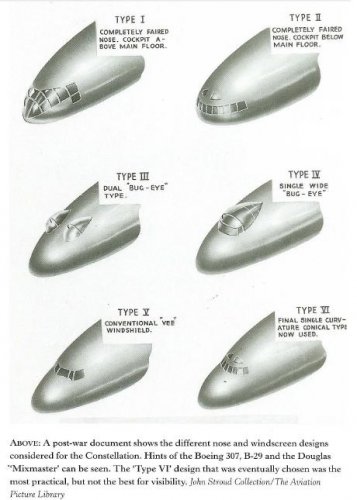

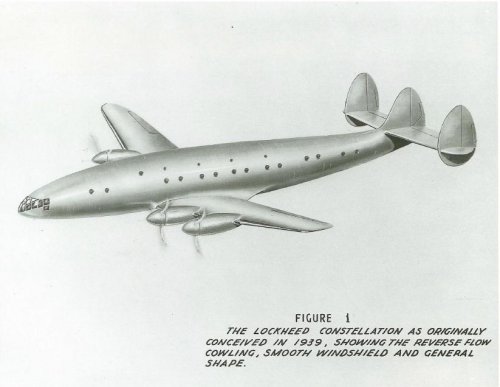

from the book; Lockheed Constellation,by Jim Winchster.


Attachments

  • Lockheed Constellation 1.JPG
    Lockheed Constellation 1.JPG
    49.8 KB · Views: 1,093
  • Lockheed Constellation 2.JPG
    Lockheed Constellation 2.JPG
    40.8 KB · Views: 1,144

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Here is the rest of Constellation projects;


C-69A was a troop transport with a different internal layout than C-69.


C-69D was a VIP transport version,with different engines,also with different
extra oil and fuel tanks.


L-749B proposed a turboprop version.


L-1049J was a version of L-1049H/02 with lengthened wingspan and an extra
fuel tank.


L-1249B was an airliner version,based on L-1249A,with L-1049E based fuselage
and P&W PT2F-1 turboprops.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
122
1249 A :proposed civil freighter version of R7V2 with PT2F-1 (civil T34) turboprops
source :Air Enthusiast nr. fourteen.


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
663
Reaction score
334
A great what if in civil air transport was 1946 Bristol/L-049 licence.


L-049 stimulated Brabazon Type III Empire, which was firstly Interim, bomber-variant Avro Tudor and HP Hermes, which were known to be too heavy to be competitive. But UK had a Unique Selling Proposition:(propellor-) turbines! Many schemes ended up as Bristol T.175 Britannia with Proteus. But onway, 1944-47, Avro, HP and Vickers-Armstrongs offered lures that Bristol Aeroplane could not match, diverted onto L-89 (XR6O-1) Constitution-sized T.167 Brabazon I. From 13/7/46 BOAC operated 5 L-049 from Bristol/Whitchurch, maintained by BOAC Engineering/Filton. Many more were wanted but UK had no $.

To defeat new Type III schemes, Bristol pitched licence-built Centaurus/ Constellation, to be followed by Theseus/Constellation. By early 1947 notions of a Medium Bomber were gaining traction. Clearly Avro and HP would be contenders, maybe V-A too. MoS saw benefit in keeping the Big Bomber firms free to do a Big Bomber, and putting BOAC's Empire into Bristol. It helped that the MP for Bristol E. was the President of the Board of Trade, who therefore supported a bid to Treasury for $. Cabinet rejected this on 22/4/47. Consolation came to Bristol, after Mediums were awarded to everybody-but-Bristol, as T.175, initially Centaurus, then Proteus.


A Theseus/L-749B in Service 1951-ish, no doubt followed by a Proteus/L-1049...Wow!


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
122

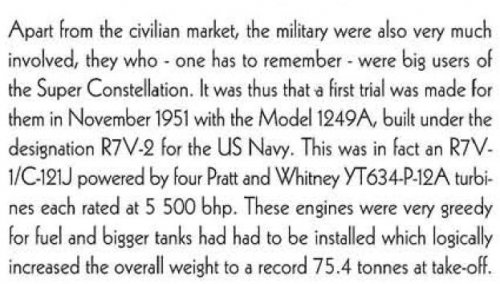

from :The Classic Civil aircraft series.Volume about the
Lockheed Constellation.

1249A/1249B and 1449-1549 :all Lockheed unbuilt projects only...

It seems that there is much confusion about 1249/1249A and 1249B.
Most serious -printed- sources do not use the prefix ' L ' in relation to the Model 49 evolution.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
You are right my dear Lark,


in anther book about Constellation,they didn't mention the L-1249.


Attachments

  • 1249A.JPG
    51.4 KB · Views: 554

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281

Attachments

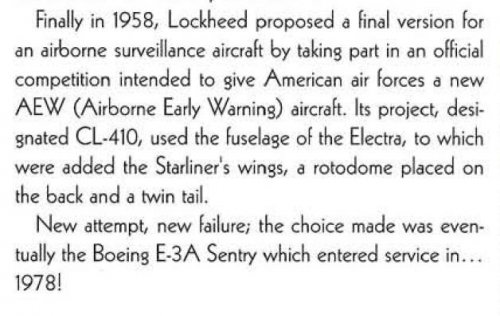

  • CL-344.JPG
    9.6 KB · Views: 396
  • CL-410.JPG
    47.5 KB · Views: 130

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Hi,


also the CL-257 or Lockheed Model 84,the US Navy W2V-1 project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
hesham said:
Hi,


also the CL-257 or Lockheed Model 84,the US Navy W2V-1 project.

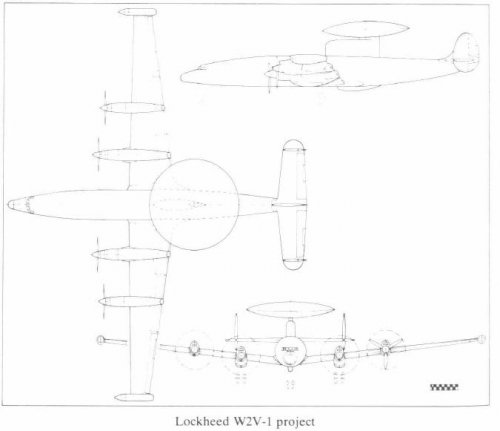

And a drawing for it.


Attachments

  • CL-257.JPG
    24.9 KB · Views: 520

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
362
Reaction score
26

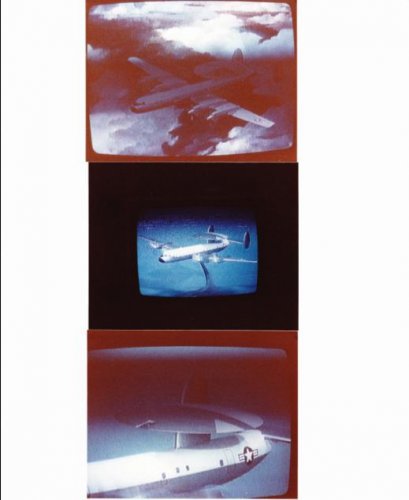

I have some pics of the CL-410 taken crudely from the old Discovery 'Wings' series' episode on the Constellation. My pics are too large to post but I'm happy to email them to hesham or someone else who can reduce them and post them. Thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
OK Famvburg,


that's very nice,please send them to me on that E-mail;


hasann_hesham@yahoo.com


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
famvburg said:
I have some pics of the CL-410 ...

Perhaps it looks somehow like this , just a kind of puzzle using the given
dscription in heshams post.


Attachments

  • CL-410.gif
    49.1 KB · Views: 920

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,968
Reaction score
3,498
Website
www.aerospaceprojectsreview.com
Jemiba said:
famvburg said:
I have some pics of the CL-410 ...

Perhaps it looks somehow like this , just a kind of puzzle using the given
dscription in heshams post.

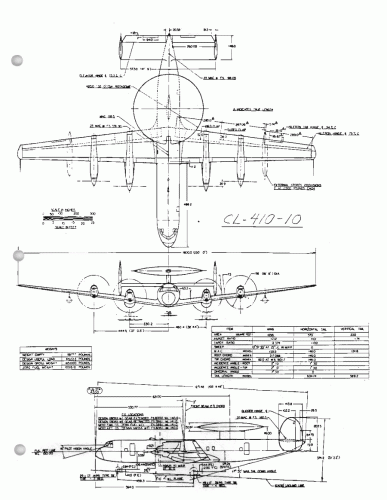

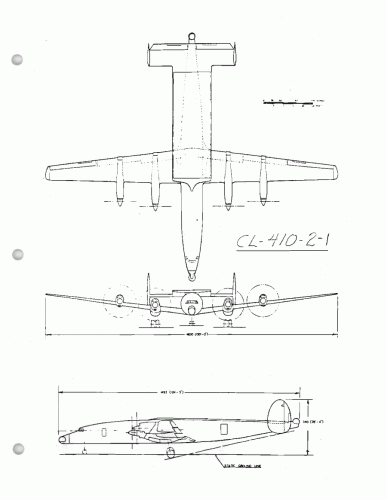

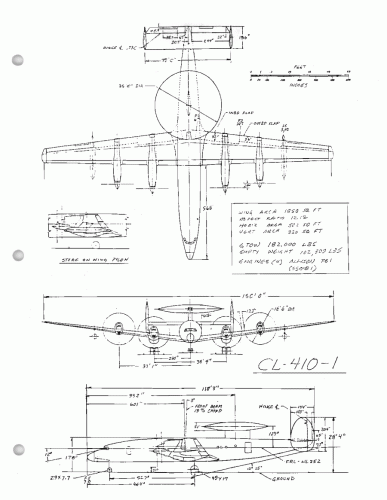

Close (see CL-410-10).


Attachments

  • CL-410-10.gif
    155.1 KB · Views: 888
  • CL-410-2-1.gif
    54.8 KB · Views: 882
  • CL-410-1.gif
    96.4 KB · Views: 891

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Excellent my dear Scott,


and thank you Famvburg,I received your message,and I re-size the picture
to be suitable for displaying,here it's;


Attachments

  • CL-410 model.JPG
    CL-410 model.JPG
    25.9 KB · Views: 551

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
362
Reaction score
26
Glad you got the pics and thanks for re-sizing and posting them. One of these days I am going to figure out how to do that myself. :)


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
232

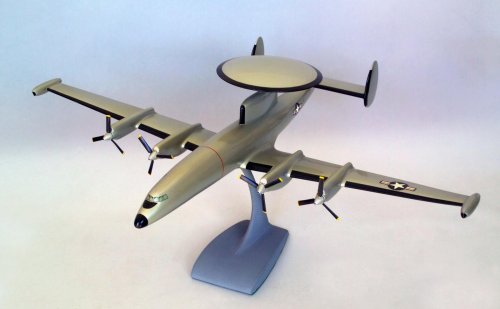

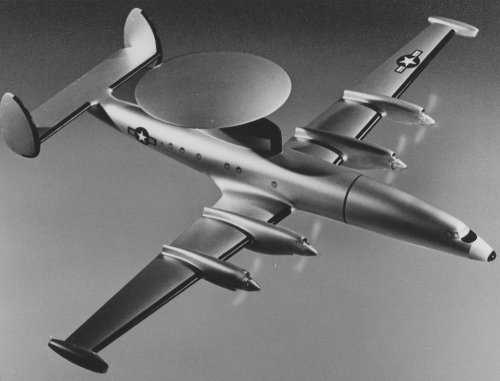

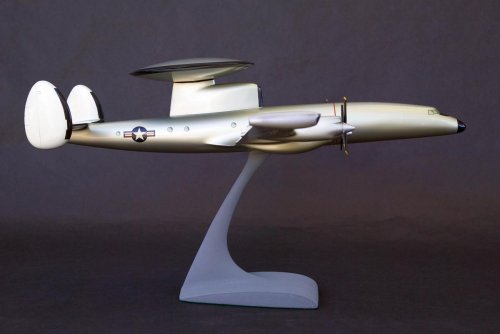

Lockheed CL-257 (USN W2V-1) late-1956 factory model, based on the L-1649 Starliner, but with turboprops and wingtip jets. This last Constellation also lost its signature triple fin (although the XW2V-1 still had it.)


Attachments

  • Lockheed W2V-1 AEW 01sml.jpg
    Lockheed W2V-1 AEW 01sml.jpg
    82.2 KB · Views: 208
  • Lockheed W2V-1 AEW 02sml.jpg
    Lockheed W2V-1 AEW 02sml.jpg
    54.3 KB · Views: 215
  • Lockheed W2V-1 AP Wire Photo.jpg
    Lockheed W2V-1 AP Wire Photo.jpg
    106.8 KB · Views: 207

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Oh my God,that's better,thank you Circle-5.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
232
As I mentioned above, the Lockheed CL-257 / W2V-1 proposal was initially equipped with three verticals. Wind tunnel tests determined the center fin performance was negatively affected by the radar pylon ahead of it, and it was eliminated. The empennage was then enlarged and extensively reconfigured with all-metal, twin verticals. Here is a factory model of the W2V-1 with the original L-1649 Starliner tail configuration.


Attachments

  • Lockheed XW2V-1 01.png
    Lockheed XW2V-1 01.png
    325 KB · Views: 189

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857
Awesome photos and models, as usual! Thanks for giving us a better look at that unbuilt Warning Star.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
232

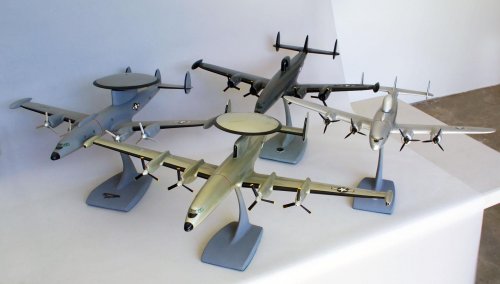

This group of Lockheed factory models covers most of the AEW Constellation's 7-year evolution. Counter-clockwise, from right:

Lockheed PO-1W (2 built): modified L-749A Constellation airliners, 1949
Lockheed WV-2 (142 built): modified L-1049 Super Constellation airliners, 1953
Lockheed WV-2E (1 built): modified EC-121K Warning Star, 1955
Lockheed W2V-1 (none built): L-084 / highly modified L-1649 Starliner, 1956

Notes about the models:

The PO-1W is a very early design, not yet equipped with the lengthened-nose weather radar.
The WV-2E (EC-121L) has an unknown dorsal blister ahead of the rotodome. I do not believe the -2E was ever equipped with this.


Attachments

  • Radar Constellations.jpg
    Radar Constellations.jpg
    91.6 KB · Views: 308

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,680
Reaction score
7,949

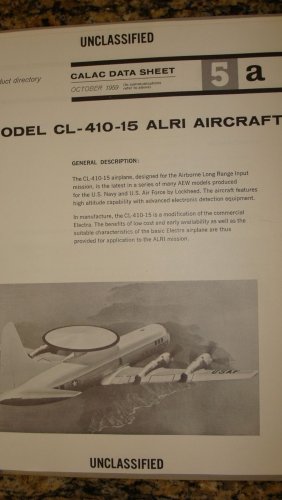

Cl-410-15, 1959


http://www.ebay.com/itm/LOCKHEED-FOLDER-WITH-CALAC-DATA-SHEETS-/301112017735


Attachments

  • CL-410-15.JPG
    144.9 KB · Views: 208

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281

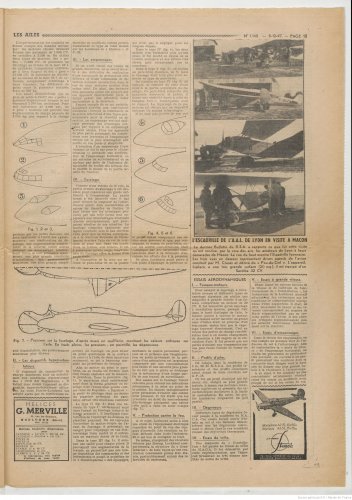

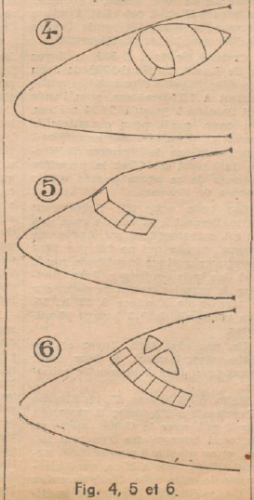

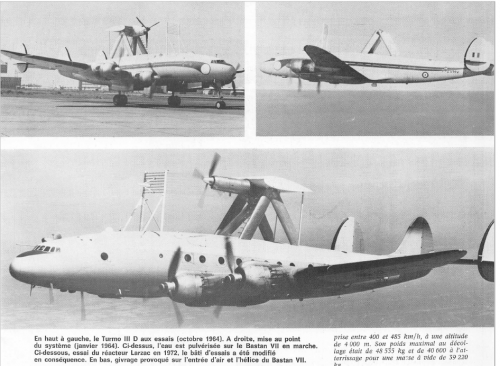

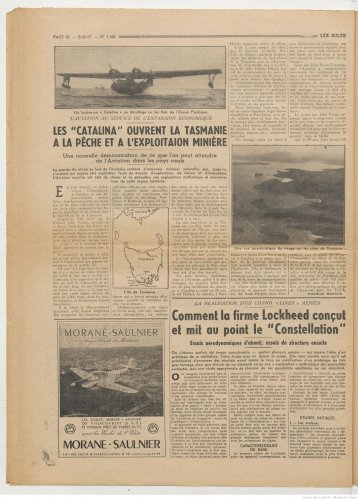

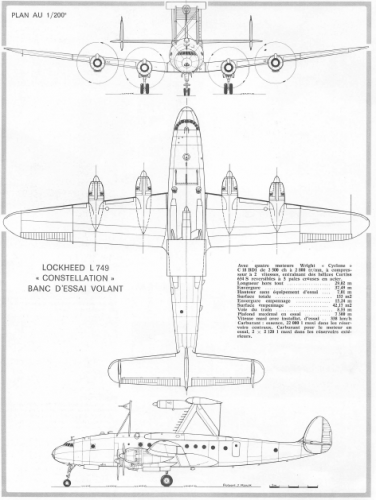

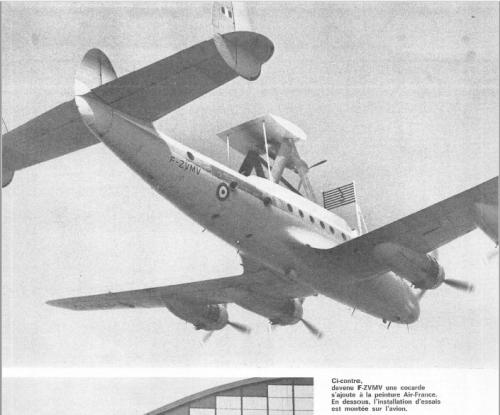

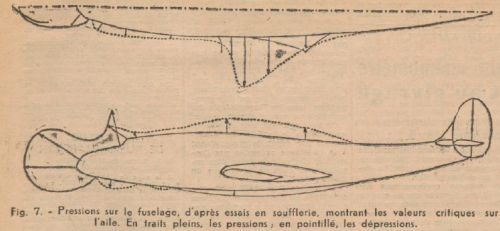

From Le Fana 86.


Attachments

  • 3.png
    652.3 KB · Views: 1,214
  • 2.png
    193.1 KB · Views: 1,273
  • 1.png
    409.8 KB · Views: 1,300

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
PaulMM (Overscan) said:
Cl-410-15, 1959


http://www.ebay.com/itm/LOCKHEED-FOLDER-WITH-CALAC-DATA-SHEETS-/301112017735

Wow Paul, very interesting find!!
Can I ask if anyone has more on this AEW derivative of the L-188 Electra (I'm assuming its a direct development of the L-188 :-\)

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
PaulMM (Overscan) said:
Cl-410-15, 1959


http://www.ebay.com/itm/LOCKHEED-FOLDER-WITH-CALAC-DATA-SHEETS-/301112017735

Gentlemen, does anyone know what the radar was depicted on this Lockheed CL-410-15 ALRI [DATA Sheet] proposal?

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
Pioneer said:
PaulMM (Overscan) said:
Cl-410-15, 1959


http://www.ebay.com/itm/LOCKHEED-FOLDER-WITH-CALAC-DATA-SHEETS-/301112017735

Gentlemen, does anyone know what the radar was depicted on this Lockheed CL-410-15 ALRI [DATA Sheet] proposal?

Regards
Pioneer

Anyone :eek: :p


Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,153
Reaction score
687
Ok gents, just thought Id let you know that I've just sent off an email to Lockheed Martin in the attempt...the hope that I can get more information on the Lockheed CL-410-10/15 ALRI design proposal pitched to both the USN and USAF in what looks like 1959.

Fingers crossed they show some favour to this request, and Ill naturally post anything (if anything) I get in response!


Regards
Pioneer


lleu

ACCESS: Restricted
Joined
Jul 10, 2009
Messages
13
Reaction score
6

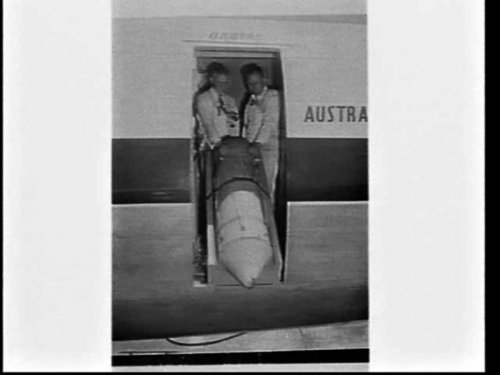

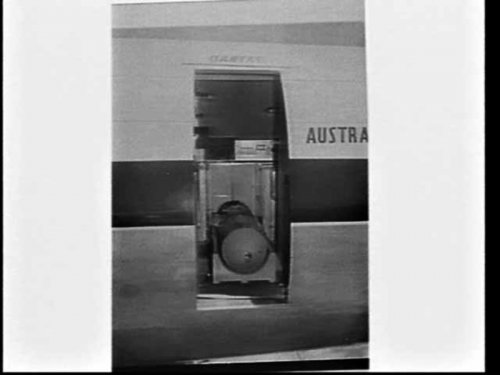

What is it? Torpedo? Really?

From State Library of New South Wales.
Dropping a torpedo from a Qantas Super Constellation
http://digital.sl.nsw.gov.au/delivery/DeliveryManagerServlet?dps_pid=FL1036308&embedded=true&toolbar=false
http://digital.sl.nsw.gov.au/delivery/DeliveryManagerServlet?dps_pid=FL1029511&embedded=true&toolbar=false


Attachments

  • d7_04649r.jpg
    49.3 KB · Views: 521
  • d7_04650r.jpg
    46.2 KB · Views: 508

Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,681
Reaction score
3,234
Probably a life raft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281

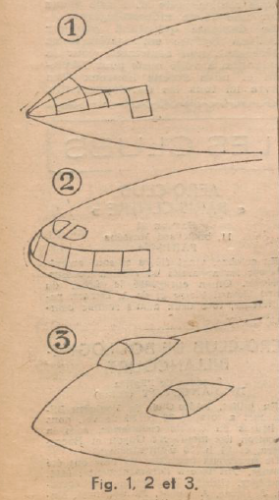

Also from Ailes 12/1947.


Attachments

  • 1.png
    244.9 KB · Views: 75
  • 2.png
    247.8 KB · Views: 80
  • 3.png
    519.8 KB · Views: 136

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,651
Reaction score
524
Hesham, what is that? Any description?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Antonio said:
Hesham, what is that? Any description?

OK my dear Antonio.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k9795510n_12.jpeg
    1.5 MB · Views: 122
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k9795510n_13.jpeg
    1.5 MB · Views: 152

Similar threads

Top
