Douglas A-26 Invader type A & C

[hesham]

Hi,

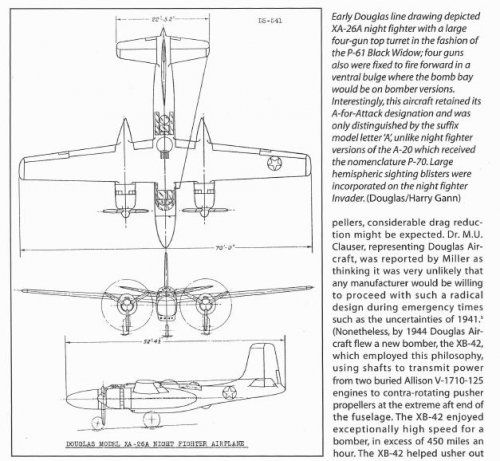

The Douglas XA-26A Invader was a night fighter version and A-26C was attack

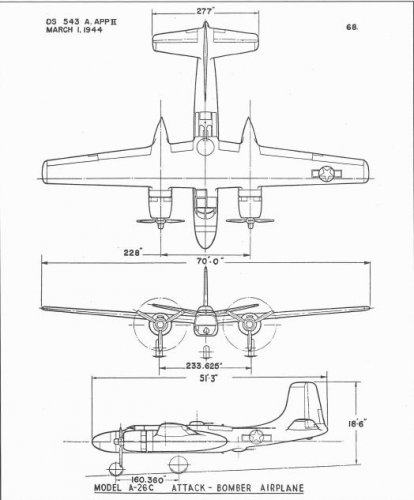

bomber version,I repeat displaying a 3-view to A-26C.


Warbird Tech,Douglas A-26 Invader,by Frederick A. Johnsen



[hesham]

Hi,

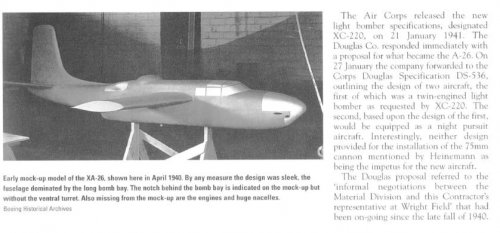

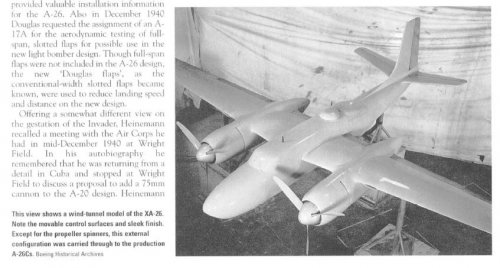

here is the XA-26 early mock-up or DS-536 and the final wing tunnel model for
XA-26 or DS-538.


Douglas A-26 and B-26 Invader,by Scott Thompson.



[Boyington]

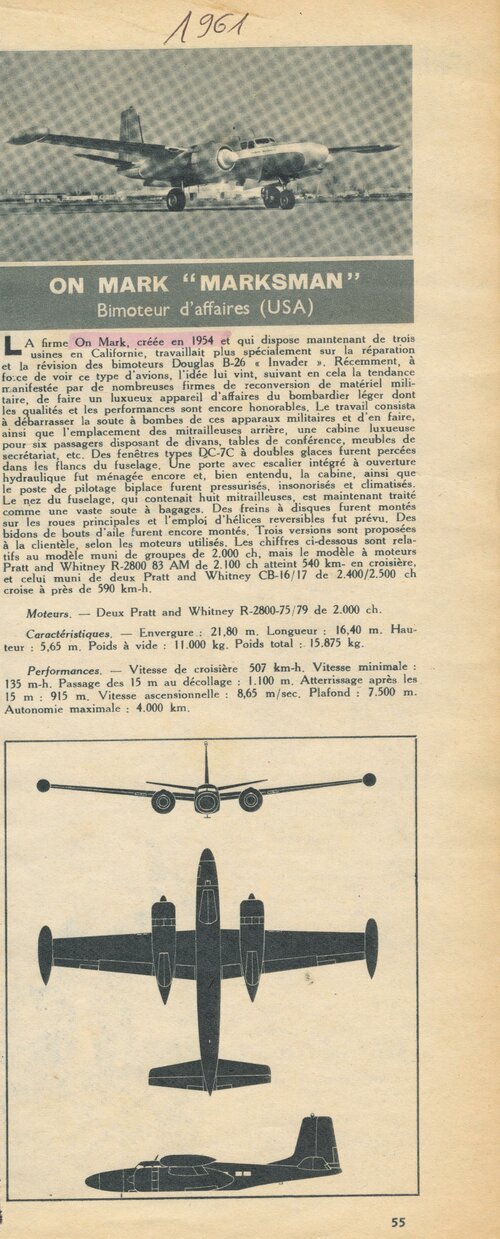

DOUGLAS B-26 transformed in commercial aircraft
