Dornier Tirailleur AAM (1977 - 1980)

overscan (PaulMM)

Administrator
Staff member
Joined
27 December 2005
Messages
16,654
Reaction score
20,001
Dornier worked on this advanced AAM in 1977-1980. It featured body lift and in one form motor TVC steering. Both IR and miniature radar guidance were investigated.

Sources:
  • Bill Gunston, Modern Airborne Missiles, Salamander 1983

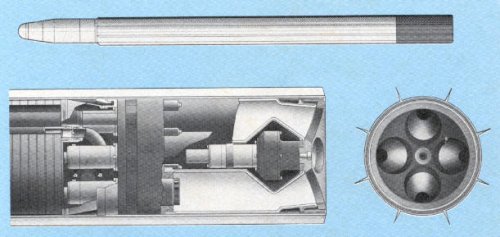

This what Trailleur AAM looked like. Source IDR


Attachments

  • GER- Tiralleur AAM.jpg
    GER- Tiralleur AAM.jpg
    36.4 KB · Views: 532
Interesting nozzle design there. One comparatively small nozzle aimed directly aft and four canted nozzles that balance through the missile centerline. I can understand the multiple nozzles as opposed to one large nozzle, it makes for better expansion ratios and better performance.

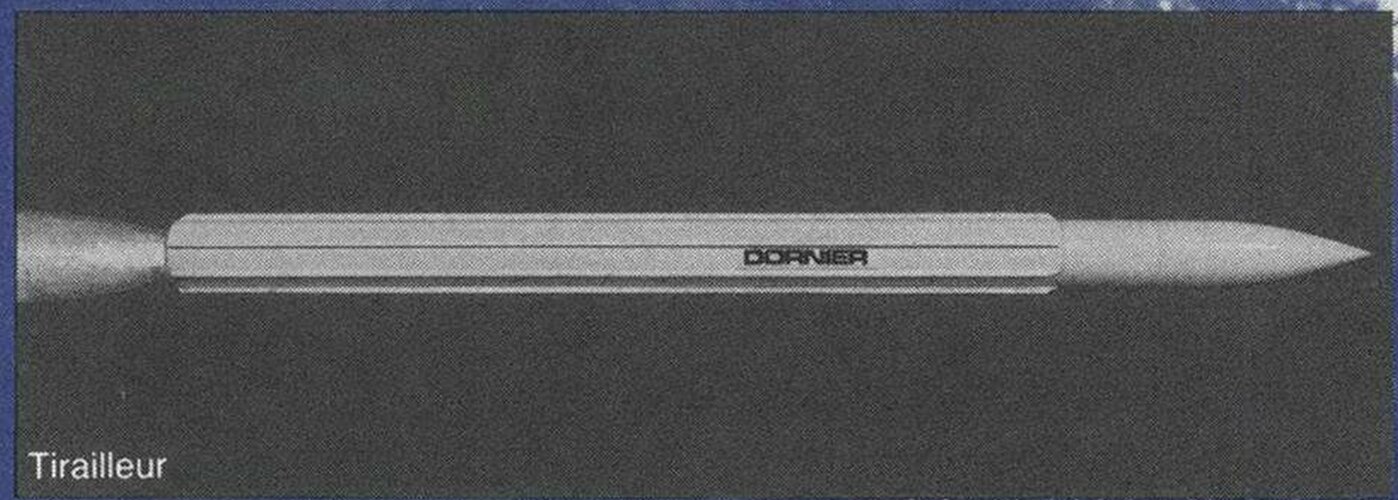

From a Dornier Advert, AWST November 12 1979. Appears to be the radar homing version.


Attachments

  • tirailleur-ad.jpg
    203.9 KB · Views: 143
Another new programme is Tirailleur, a low-cost short to medium range air-to-air missile with, as the name suggests, an undisclosed degree of French participation. Optional radar and infra-red homing heads are envisaged and the missile is intended for the ECA. The weapon will be similar in size to the US advanced medium-range air-air missile (AMRAAM).

Flight International 14 Jun 1980

Conceptual ancestor to MICA?

Last edited:
Two Dornier Post articles on the Tirailleur:
Do-Post_80-2
Do-Post_81-3
Apparently it was meant to have a liquid fuel rocket motor and came (optionally) with an TV/laser-rangefinder target tracker mounted on the Aircraft

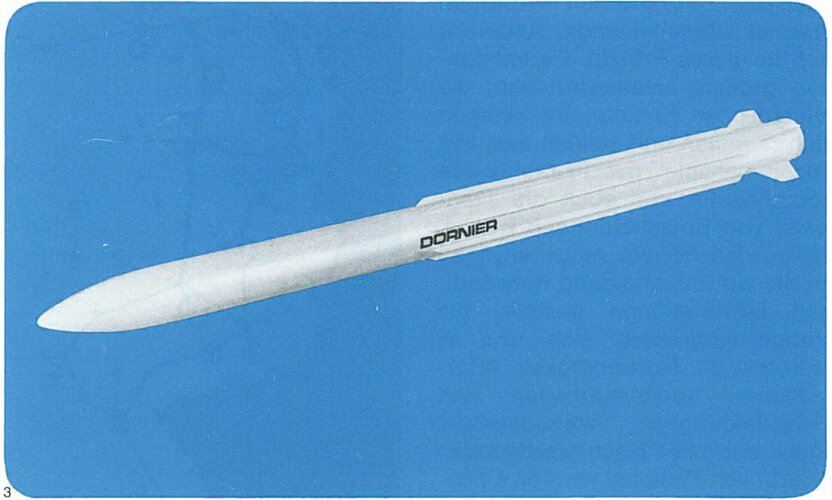

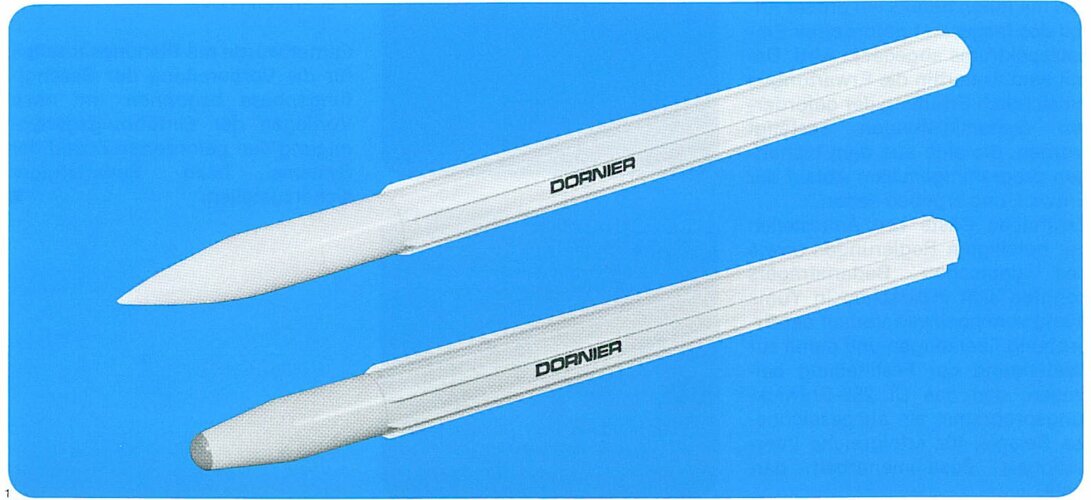

Pictures includ an IR-seeker variant and a longer range variant with secondary functionality against air-defenses


Attachments

  • DornierTirailleurSeekers.JPG
    137.6 KB · Views: 89
  • DornierTirailleurSelbstverteidigung.JPG
    107.7 KB · Views: 99
Two Dornier Post articles on the Tirailleur:
Do-Post_80-2
Do-Post_81-3
Apparently it was meant to have a liquid fuel rocket motor and came (optionally) with an TV/laser-rangefinder target tracker mounted on the Aircraft
Pictures includ an IR-seeker variant and a longer range variant with secondary functionality against air-defenses


Attachments

  • Do-Post_80-2-TIRAILLEUR-Konzept eines LL-Flugkörpers der----.PDF
    1.6 MB · Views: 27
  • Do-Post_81-3-Selbstverteidigungs-FK nach dem TIRAILLEUR-Konzept.PDF
    1.1 MB · Views: 22
Two Dornier Post articles on the Tirailleur:
Do-Post_80-2
Do-Post_81-3
Apparently it was meant to have a liquid fuel rocket motor and came (optionally) with an TV/laser-rangefinder target tracker mounted on the Aircraft
Pictures includ an IR-seeker variant and a longer range variant with secondary functionality against air-defenses
Great, thanks for sharing
