Dornier/Hawker Siddeley DoHS VTOL/STOL aircraft

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,860
Reaction score
4,748

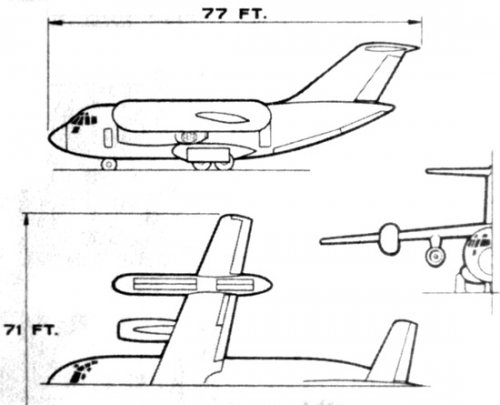

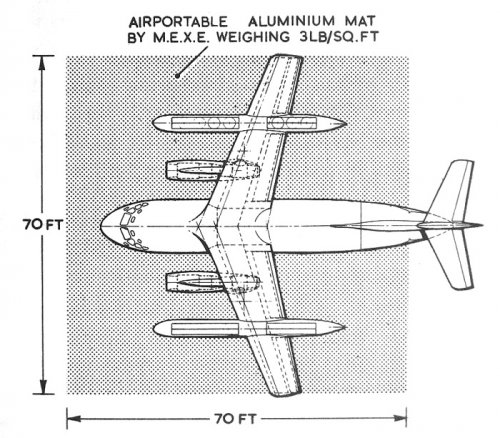

DoHS-2 VTOL (newer technology lift jets)


Attachments

  • DoHS-2-VTOL.jpg
    42.5 KB · Views: 373

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
Do you know the years for HS 129 ,Do/HS 1 and Do/HS 2 ?
Thanks
Richard


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,860
Reaction score
4,748
DoHS brochure is dated April 1966.

The DoHS-2 is projected for the "mid 1970s", pending RB.189 lift jet availability.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,860
Reaction score
4,748
Some specs would be in order I think...

DoHS-1(12)

2 x Rolls-Royce Spey 5-1 main engines (takeoff/cruise)
12 xRB.162-81 lift jets (takeoff)

Liftjet pods can be left off and the DoHS-1 operated as a conventional transport.

Design Weight: 68,350lb
Max payload: 16,000lb
Hold size: 36ft x 7ft x 7.5ft
Cruise speed: 400kts
Design mission: 11000lb/270nm radius

Hold is large enough to hold 2 Unimog trucks, 36 paratroopers, or DoHS liftjet pods.

DoHS-1(14)
2 additional lift jets in each pod
Maximum weight increased to 77,000lb

DoHS-2
Basically similar to DoHS-1(14) but with developed Speys and 12 RB.189 engines replacing the 14 RB.162 engines in smaller pods.
Design mission: 12000lb/500nm radius (NMBR4 requirement)

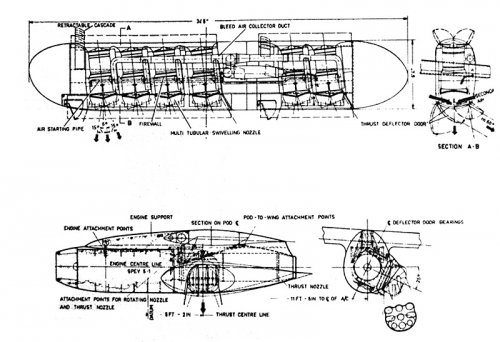

Attachments

  • DoHS-Engine-Installation.jpg
    121.4 KB · Views: 377

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,065
Reaction score
176
Closely related to Dornier 131. See:

http://www.vstol.org/GermanVSTOLTransports.pdf


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
640
Reaction score
120
Anything on the HS(DH)129 itself which led to this joint project ?

Drawings, dimensions etc as its being rather elusive ???

Cheers

Geoff


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
936
Reaction score
142

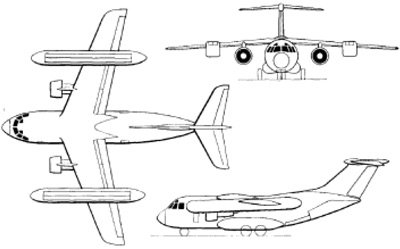

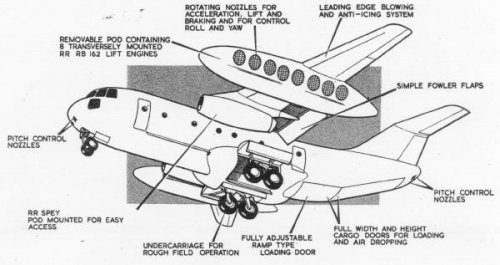

How about this?
From Flight International 11th November 1965.


Attachments

  • HS1 (2).jpg
    HS1 (2).jpg
    27.7 KB · Views: 130
  • HS3 (2).jpg
    HS3 (2).jpg
    39.4 KB · Views: 138

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

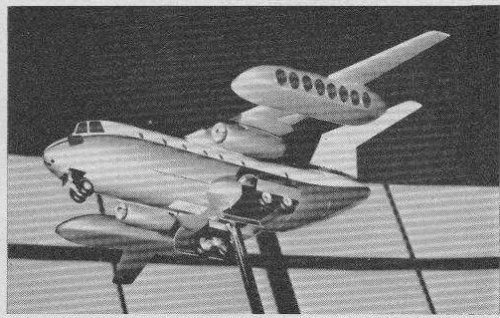

Model shown in Aeroplane 1965:


Attachments

  • HS-129_01.jpg
    51.8 KB · Views: 96

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
581
Reaction score
235

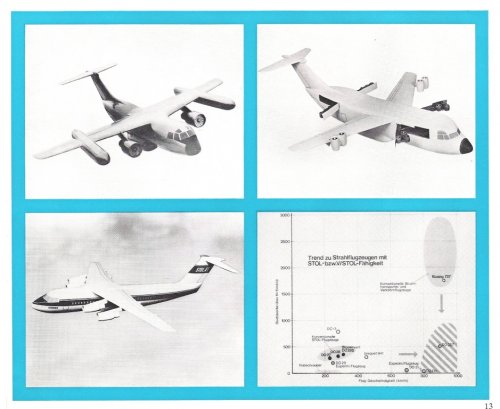

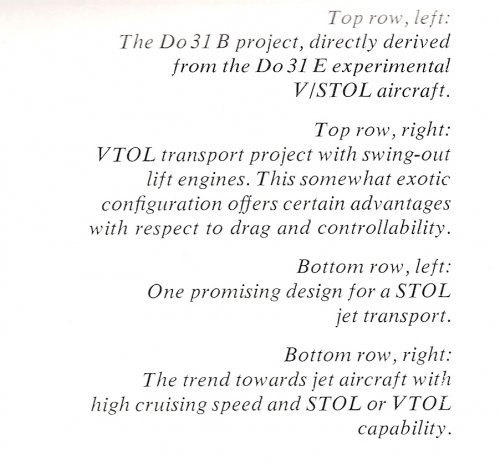

Some images from Dornier Post magazine 1/2 1969 in a piece about the Do.31.

The top left image appears to be the type mentioned as the Do.131B variant in an earlier post.

The image in the top right was pictured in the Do.60T topic at http://www.secretprojects.co.uk/forum/index.php/topic,1357.msg11604.html#msg11604.


Attachments

  • doscan0001_Image.jpg
    248.5 KB · Views: 182
  • doscan0002_Caption.jpg
    200.1 KB · Views: 172

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,147
Reaction score
1,868
Sadly the Dornier and HS light transports and the VJ101D and P1154 supersonic strike fighters were too complex and expensive. Both Dornier and HS carried on with the Do231 and HS141 vstol transports for civil and military use. By 1973 these also had proved too much. The DH129 has a r vague similarity to the HS146 feederliner, better known as the BAe 146.
